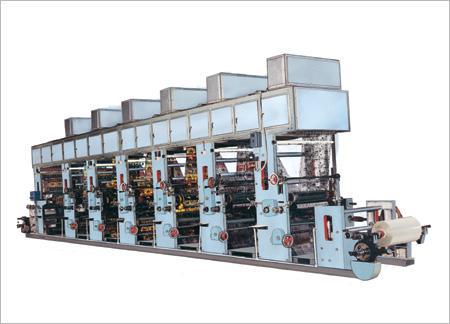

Polyester Printing Machine

Polyester Printing Machine
Polyester Printing Machine
Product Code : RPM9
Brand Name : Mohindra Mech Works
Product Description

We aim to maintain the trust in our clients by offering highly efficient Polyester Printing Machine. Optimum in performance, the offered machine is used for imparting images, designs and prints on polyester fabrics. The provided machine is manufactured with immense perfection under the proper guidance of our experienced professionals by utilizing quality checked components and pioneering technology in accordance with set industry standards. Undergoes certain quality parameters, our prestigious clients can purchase this Polyester Printing Machine from us at rock-bottom prices.


  • Tolerance free setting of feeding materials to assure printing wastage

  • High definition printing in true colors

  • Sensitive motorized controlled tension system

  • Quick and easy filling of printing inks

  • Hassle-free operation during longer service life


  • Printing material: - Film, paper, aluminum foil, pet, bopp, pvcfilm, polyster, bolyster, poly, matelized film etc

  • Number of colors: - 1 - 8 colors

  • Web Width:- 20" to 80"

  • Web roller:- Aluminum rollers or steel rollers

  • Machine speed:- Up to 250 m/min

  • Unwind type: - Single fixed shaft type or 2 shaft turret type unwind

  • Reel diameter: - 1000 mm(approx)

  • Unwind shaft: - Air shaft, tapper cone with solid shaft or shaftness

  • Tension controller: - Manually & auto registration control system (A.C. Motor)

In feed unit:-

  • Synchronized control (A.C. Motor)

Printing Unit:-

  • Frame:- Cast iron

  • Cylinder :- Diameter - 100 mm to 300 mm

  • Chucking :- Shaft with taper cone

  • Drying system :- Single chamber impingement slot dryer (electric, thermic oil, hot air generator, etc.)'

  • Doctor Blade :- Manual &numetic doctor blades

  • Ink system :- S. S. ink tray

  • Registration system:- Manually & auto registration control system

  • Out feed unit:- Synchronized control (A.C. Motor)


  • Reel diameter :- 1000 mm(approx)

  • Rewind shaft :- Air shaft, taper cone with solid shaft or shaft ness

  • Tension controller :- Manual & Fully automatic control system (A.C. Motor)

Suitable for roller to roller printing plastic film, BOPP, PET, PVC, PVC Foil, aluminum Foil, PE, CPP and Paper etc. It is extensively used in high quality packaging material printing.
