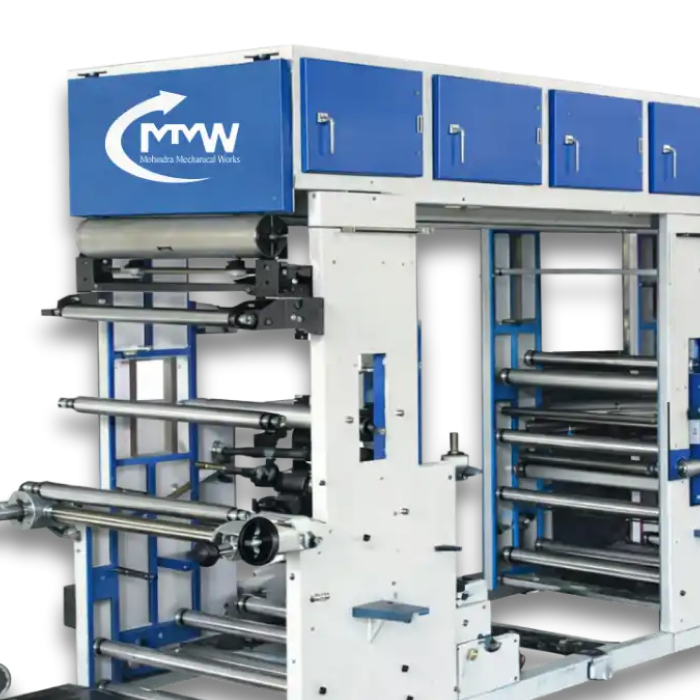

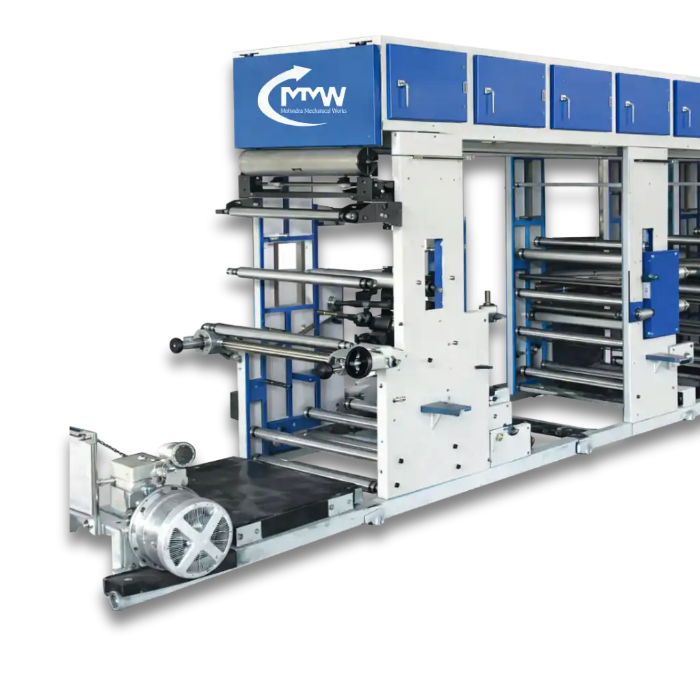

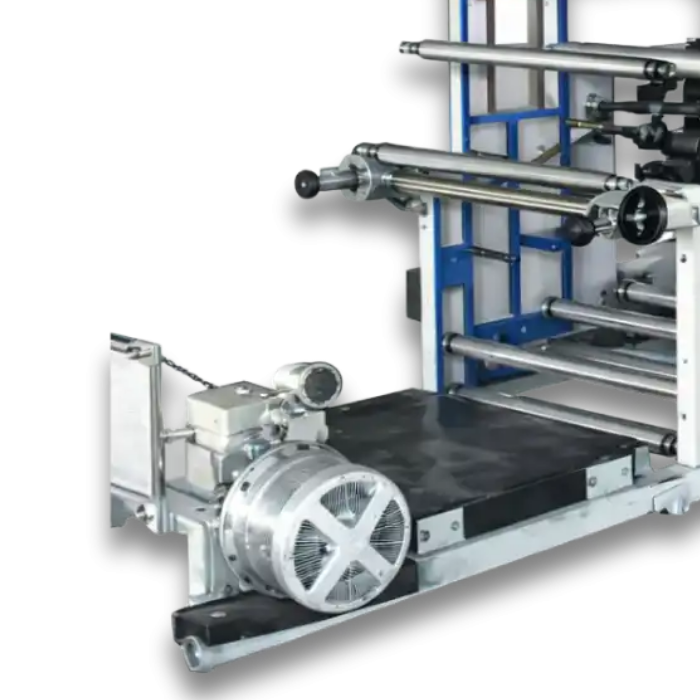

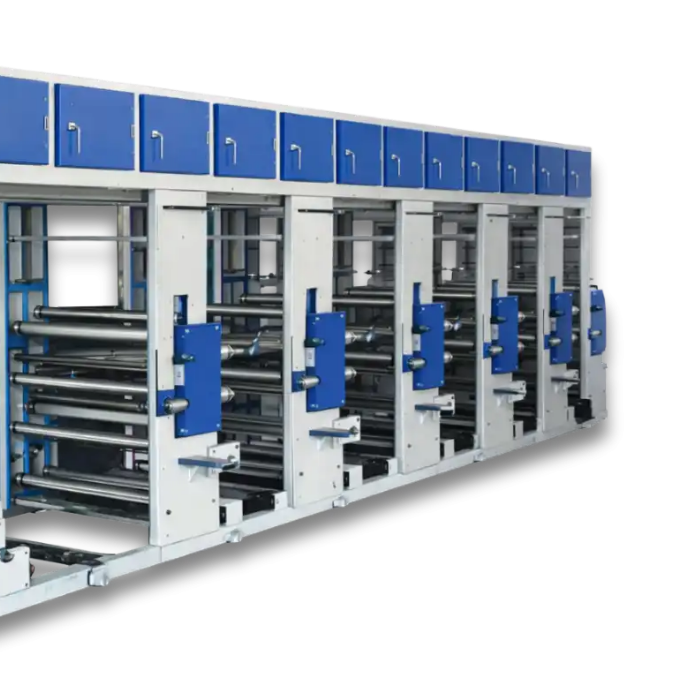

Aluminum and Foil Printing Machine

Aluminum and Foil Printing Machine
Aluminum and Foil Printing Machine
Send Inquiry
Product Code : aluminum-and-foil-printing-machine-500x500
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price
  • 650000 INR/Piece
Product Description
Get Best Quote

Approx. Rs 6.5 Lakh / Set Get Latest Price

Product Details:
Minimum Order Quantity1 Set
Automation GradeAutomatic
Automatic GradeAutomatic
Max Speed100-150 m/min
Max Web Width>900 mm
FeaturesReel to Reel Delivery
Weight10 TON
BrandMOHINDRA

We are one of the leading manufacturers of Aluminium and Foil Printing Machine.

Specifications:
  • Printing material: Film, paper, aluminum foil, pet, BOPP, PVC film, polyster, bolyster, poly, matelized film etc
  • Number of colors: 1 - 8 colors
  • Web Width: 20" to 80"
  • Web roller: Aluminum rollers or steel rollers
  • Machine speed: Up to 250 m/min
  • Unwind type: Single fixed shaft type or 2 shaft turret type unwind
  • Reel diameter: 1000 mm(approx)
  • Unwind shaft: Air shaft, tapper cone with solid shaft or shaft ness
  • Tension controller: Manually & auto registration control system (A.C. Motor)
  • In feed unit:Synchronized control (A.C. Motor)
  • No. Of Colours: 1 To 10
  • Wed Width: 20” to 80”, 500 mm to 2050 mm
  • Unwind/rewind Reel Dia: 1000 mm (40”)
  • Unwind/rewind Core Id: 76 mm to 152 mm (3” And 6”)
  • Cylinder Dia: 100 mm to 800 mm
  • Film Thickness: 6 Micron to 300 Micron
  • Paper Thickness: 20 Gsm to 300 Gsm
  • Web Roller: Aluminium Roller or Steel Roller
  • Printing Speed: 120 to 180 Mtr Per Min

Printing Unit:

  • Frame: Cast iron
  • Cylinder: Diameter: 100 mm to 300 mm
  • Chucking: Shaft with taper cone
  • Drying system: Single chamber impingement slot dryer (electric, thermic oil, hot air generator, etc.)
  • Doctor Blade: Manual &numetic doctor blades
  • Ink system: S. S. ink tray
  • Registration system: Manually & auto registration control system
  • Out feed unit: Synchronized control (A.C. Motor)

Rewinder:

  • Reel diameter: 1000 mm(approx)
  • Rewind shaft: Air shaft, taper cone with solid shaft or shaft ness
  • Tension controller: Manual & Fully automatic control system (A.C. Motor)
Trade Information
  • Supply Ability
  • 1 Piece Per Day
  • Delivery Time
  • 1 Days
