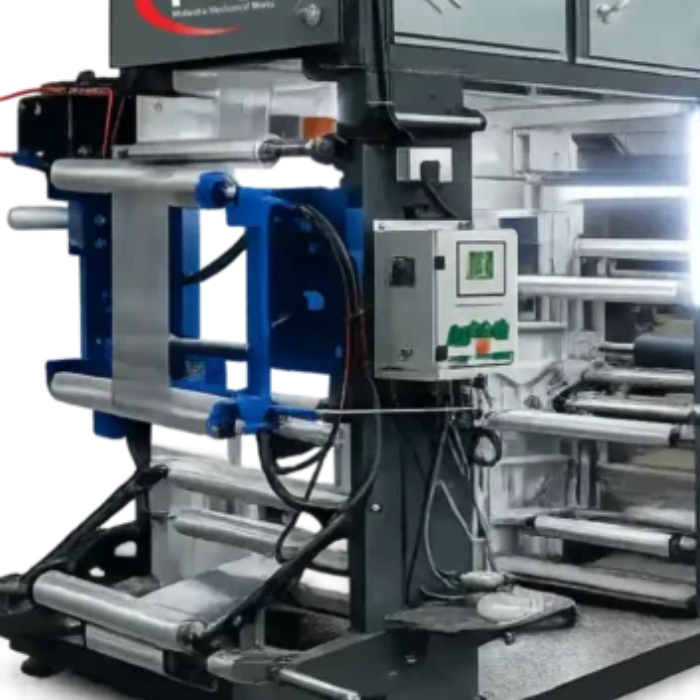

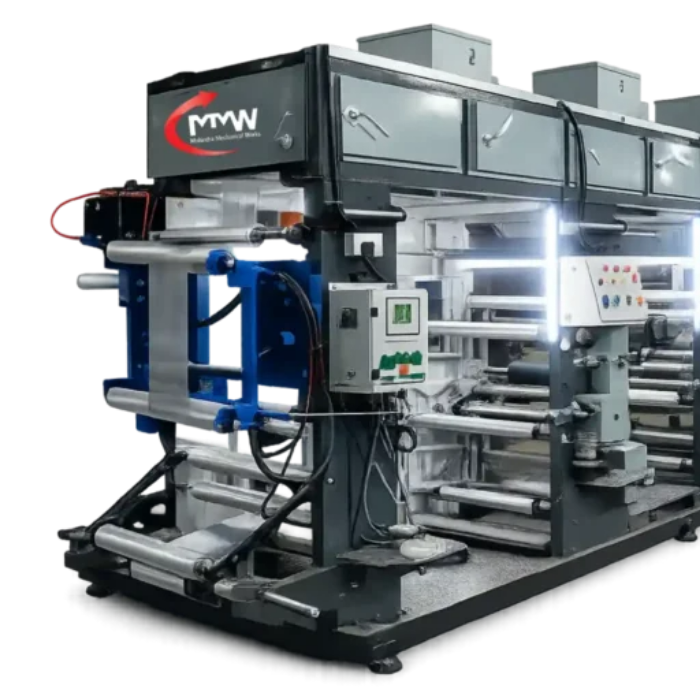

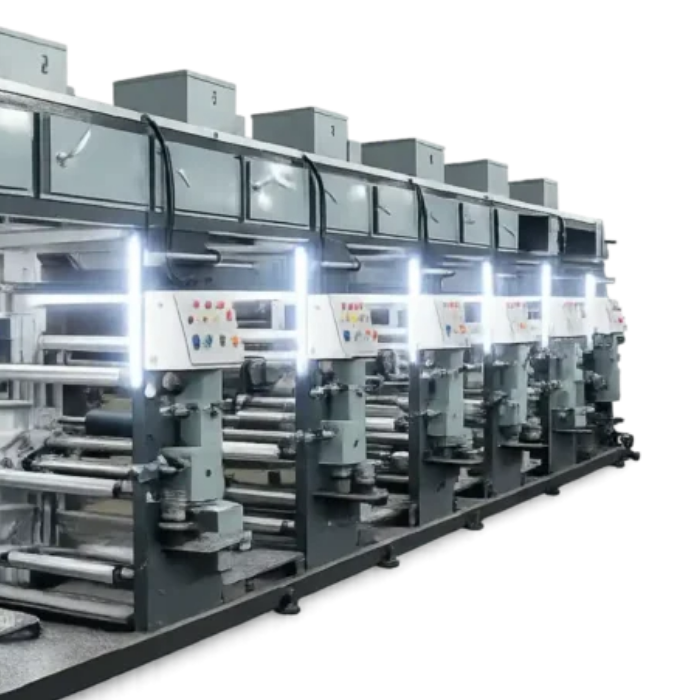

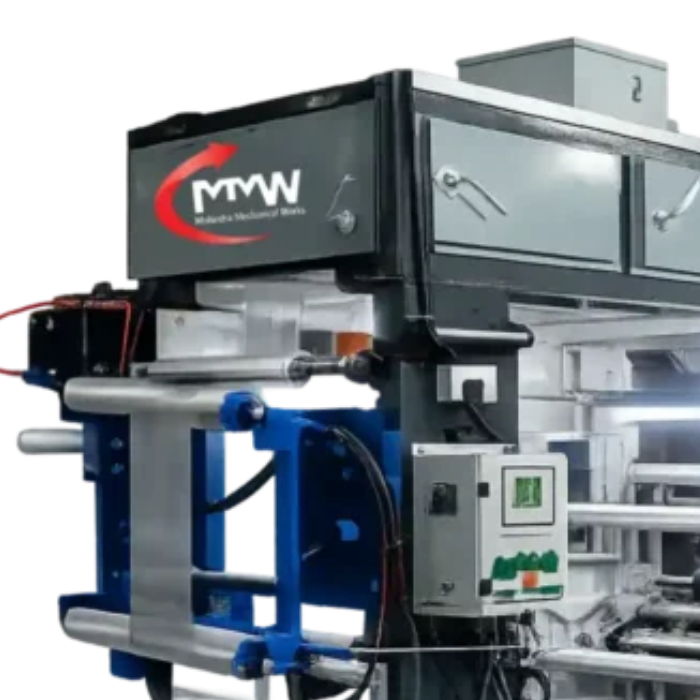

Blister Foil Printing Machine

Blister Foil Printing Machine

650000.00 INR/Piece

Product Details:

X

Price And Quantity

  • 1 Piece
  • 650000.00 INR/Piece

Trade Information

  • 1 Piece Per Day
  • 1 Days

Product Description

Get Best Quote

Approx. Rs 6.5 Lakh / Unit Get Latest Price

Product Details:
Minimum Order Quantity1 Unit
Automation GradeAutomatic
Automatic GradeAutomatic
Max Speed100-150 m/min
Max Printing Width500-1000 mm
Max Web Width>900 mm
Machine TypeAutomatic
Color PrintingColor Printing
FeaturesReel to Reel Delivery
Max Printing Speed40-60 m/min
Weight10 TON
BrandMOHINDRA

We are one of the leading manufacturers of Blister Foil Printing Machine, Cup Printing Machine, Rotogravure Printing Press, BOPP Printing Machine, Pouch Printing Machine.


Specifications:
  • Printing material: Film, paper, aluminum foil, pet, bopp, pvcfilm, polyster, bolyster, poly, matelized film etc
  • Number of colors: 1 - 8 colors
  • Web Width: 20" to 80"
  • Web roller: Aluminum rollers or steUel rollers
  • Machine speed: Up to 250 m/min
  • Unwind type: Single fixed shaft type or 2 shaft turret type unwind
  • Reel diameter: 1000 mm(approx)
  • Unwind shaft: Air shaft, tapper cone with solid shaft or shaft ness
  • Tension controller: Manually & auto registration control system (A.C. Motor)
  • In feed unit: Synchronized control (A.C. Motor)
  • No. Of Colours: 1 to 10
  • Wed Width: 20 to 80, 500 mm to 2050 mm
  • Unwind/rewind Reel Dia: 1000 mm (40)
  • Unwind/rewind Core Id: 76 mm To 152 mm (3 And 6)
  • Cylinder Dia: 100 mm to 800 mm
  • Film Thickness: 6 Micron to 300 Micron
  • Paper Thickness: 20 Gsm to 300 Gsm
  • Web Roller: Aluminium Roller or Steel Roller
  • Printing Speed: 120 to 180 Mtr Per Min

Printing Unit:

  • Frame: Cast iron
  • Cylinder: Diameter: 100 mm to 300 mm
  • Chucking: Shaft with taper cone
  • Drying system: Single chamber impingement slot dryer (electric, thermic oil, hot air generator, etc.)
  • Doctor Blade: Manual &numetic doctor blades
  • Ink system: S. S. ink tray
  • Registration system: Manually & auto registration control system
  • Out feed unit: Synchronized control (A.C. Motor)

Rewinder:

  • Reel diameter: 1000 mm(approx)
  • Rewind shaft: Air shaft, taper cone with solid shaft or shaft ness
  • Tension controller: Manual & Fully automatic control system (A.C. Motor)
