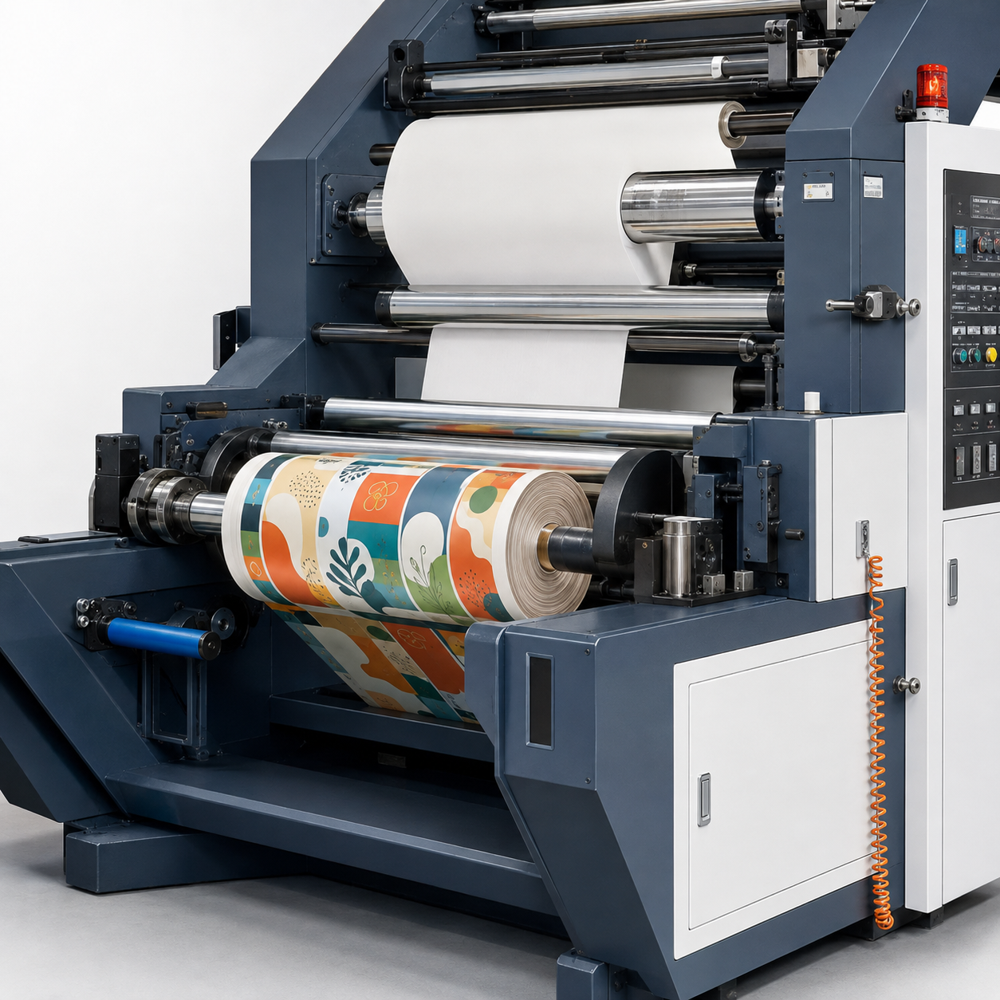

Eight Colour Flexo Printing Machine

Get a Price/Quote

MOQ : 1 , , Unit

Eight Colour Flexo Printing Machine Specification

Product Type
Printing Machines

General Use
Printing on packaging materials such as paper, polypropylene, polyethylene, and laminated films

Printing Material
Plastic films, paper, non-woven fabrics, laminated materials

Type
Eight Colour Flexo

Capacity
500-2000 m2/hr

Weight (kg)
4-6 Tonne

Computerized
No

Automatic
Yes

Control System
PLC Based Control

EPS System
Yes (Electronic Positioning System)

Feeding Size
900-1400 mm

Printing Length
300-1200 mm adjustable

Printing Width
Up to 1000 mm

Printing Thickness
0.02-0.25 mm

Printing Plate Lifting System
Automatic with micro adjustment

Mechanical Speed
180 m/min

Printing Speed
80-150 m/min

Dimension (L*W*H)
5500 x 2500 x 3000 mm

Feature
High speed, multi color, easy operation, precise registration, quick changeover

Color
Custom/Industrial finish (standard: blue/grey)

Noise Level
75 dB

Tension Control
Automatic Tension Control

Ink Type
Water-Based or Solvent-Based

Safety Features
Emergency Stop, Safety Guards, Overload Protection

Working Temperature
5C - 40C

Number of Printing Units
Eight

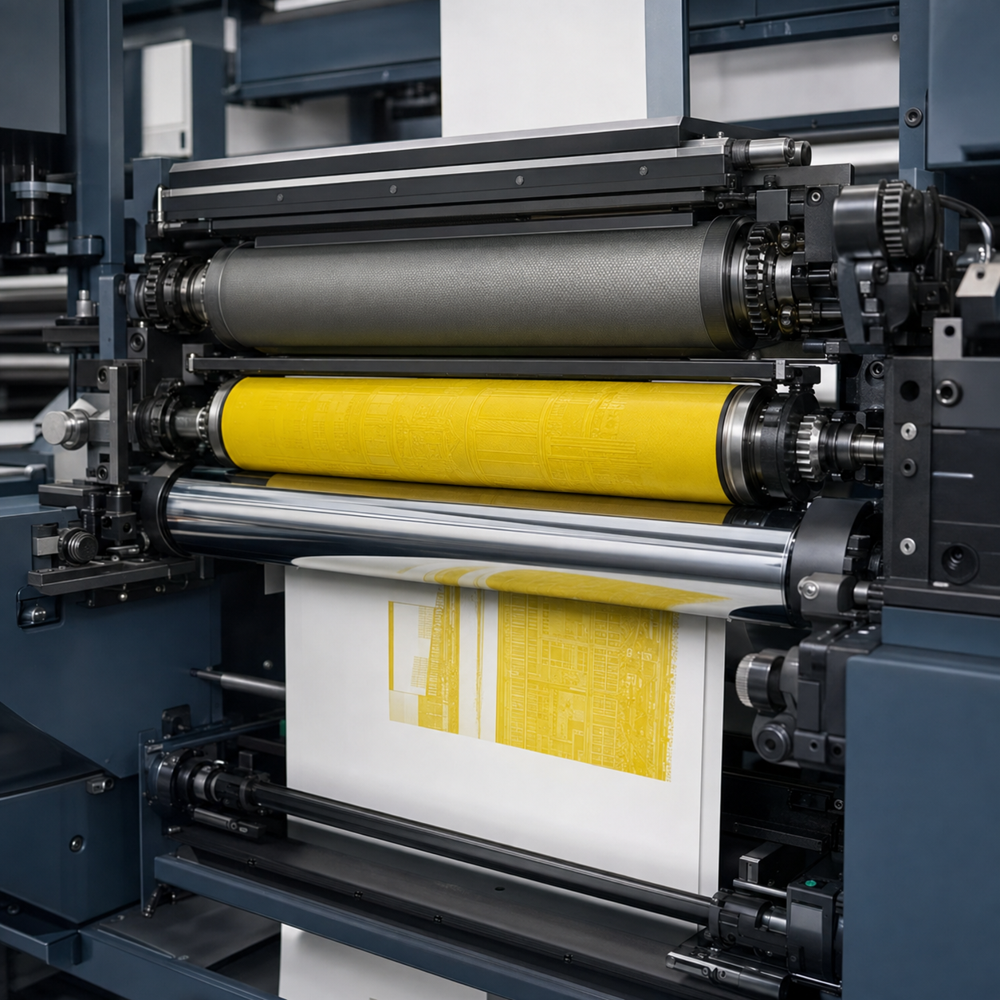

Anilox Roller
Ceramic/Chrome Plated for Consistent Ink Transfer

Suitable Substrates
HDPE, LDPE, BOPP, CPP, Paper, Aluminum Foil

Doctor Blade System
Chambered

Drying System
Hot Air / Infrared Drying

Web Guide System
Integrated Web Guiding for Precise Printing

Power Consumption
18-25 kW (depends on model and configuration)

Max. Repeat Length
1200 mm

Min. Repeat Length
250 mm

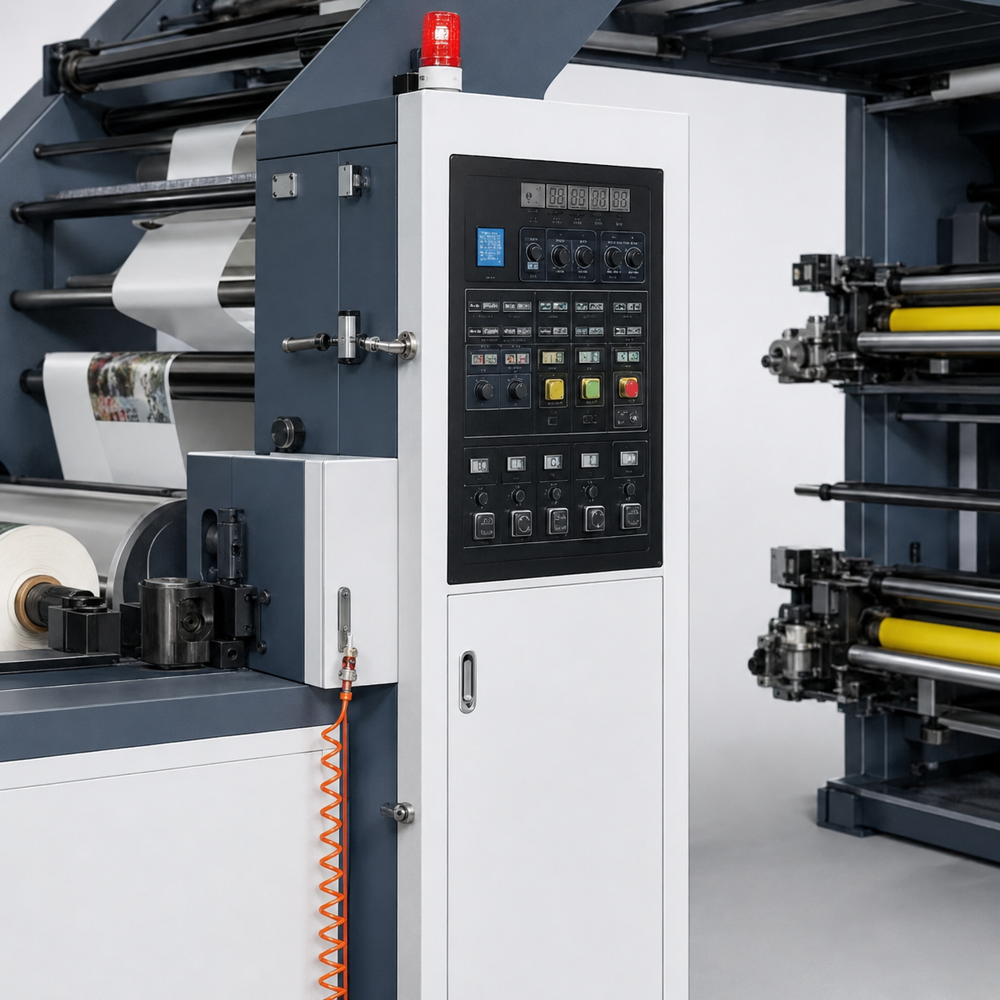

Operator Panel
Touch Screen HMI

Material Feeding
Unwinding and Rewinding Capability

Eight Colour Flexo Printing Machine Trade Information

Minimum Order Quantity
1 , , Unit

Payment Terms
Cash in Advance (CID), Cash Advance (CA), Cash on Delivery (COD)

Supply Ability
200 Units Per Month

Delivery Time
45-60 Days

Main Export Market(s)
Central America, Middle East, South America, Australia, Western Europe, Eastern Europe, Asia, North America, Africa

Main Domestic Market
Delhi

About Eight Colour Flexo Printing Machine

Our rich expertise and experience has enabled us to carve a niche of success in the domain by offering precisely tested Eight Colour Flexo Printing Machine. With the aid of latest techniques, this machine is meticulously manufactured by making use of quality checked components and modern techniques as per the standards laid down by the industry. Known for its hassle-free performance, the provided machine is checked on certain parameters by our quality analysts. Likewise, the offered Eight Colour Flexo Printing Machine can be availed from us at highly discounted prices.

Features of Eight Colour Flexo Printing Machine:

Efficiency and economical printing over various surfaces
Energy efficiency for improved production rate
Precise operation and efficient starting
Pneumatic printing cylinder for constant stirring of printing inks
Adaptable with various printing speeds

Advanced Multi-Color Printing Technology

Designed for packaging manufacturers, this eight-colour flexo press provides high-speed, accurate, and repeatable results across a wide range of materials. Featuring advanced registration, web guiding, and automated functions, the machine is capable of handling heavy production volumes with minimal manual intervention.

Versatile Material Compatibility

Print on diverse substrates such as polyethylene, polypropylene, paper, non-woven, and laminated films with ease. Precise tension and edge control systems ensure stable processing for various material thicknesses and feeding sizes, making it an ideal choice for businesses serving different industry needs.

Efficiency and Ease of Operation

With its intuitive touch-screen HMI, centralized lubrication, automatic tension control, and rapid plate changeover, operator workload is minimized while productivity is maximized. Hot air and infrared dryers guarantee swift drying, supporting reliable outputs even at high speeds.

FAQ's of Eight Colour Flexo Printing Machine:

Q: How does the eight colour flexo printing machine maintain precise registration during high-speed operation?

A: The machine uses a servo-based registration system, which continuously monitors and adjusts the position of the print, ensuring precise alignment even at print speeds up to 150 m/min. This system reduces color variation and print defects.

Q: What materials can be printed using this flexo printing press?

A: It is designed to print on a wide variety of substrates including plastic films, paper, non-woven fabrics, and laminated materials. This versatility allows it to meet diverse packaging and labeling requirements.

Q: When should I use water-based vs. solvent-based inks on this machine?

A: Water-based inks are generally preferred for eco-friendly applications and substrates compatible with water absorption, while solvent-based inks are suitable for non-porous materials like some plastics. The machine supports both ink types, providing application flexibility based on project requirements.

Q: Where is this flexo printing machine typically installed and used?

A: It is commonly installed in packaging manufacturing plants and printing facilities across industries requiring high-volume, high-quality multi-color packaging prints. Its robust construction makes it ideal for continuous industrial environments.

Q: What is the process for changing printing plates or colors on the machine?

A: The machine features an automatic printing plate lifting system with micro adjustment and quick-change capabilities, enabling operators to switch plates or colors swiftly, minimizing downtime during production transitions.

Q: How does the integrated drying system benefit production efficiency?

A: With hot air and infrared dryer integration, ink dries faster between print units, preventing smudging and ensuring sharp print quality even at higher speeds, thus increasing throughput and reducing waiting times in production.

Q: What are the primary benefits of using this machine for packaging printing?

A: Key benefits include high-speed operation, excellent color accuracy, quick changeovers, minimal waste, user-friendly controls, and the ability to produce complex multi-color designs with precise registration on a variety of substrate types.
