Rotary Sheet Cutting Machine

Name: Rotary Sheet Cutting Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 225000 INR
Availability: InStock

Price 225000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Rotary Sheet Cutting Machine Specification

Drive Motor
AC Electric

Product Type
paper, non woven etc

General Use
Paper, Cardboard, Film, Non-woven, and Flexible Sheet Material Cutting

Material
Mild Steel Structure

Type
Rotary Sheet Cutting Machine

Capacity
15,000-20,000 sheets/shift

Weight (kg)
Approx. 900 kg

Computerized
Yes

Automatic
Yes

Cutting Speed
70-120 cuts/min

Cutting Thickness
Up to 10 mm (Varies by material)

Cutting Function
Continuous Rotary Sheet Cutting

Cooling System
Air Cooled

Drive Type
Electric Motor

Voltage
220-415 V

Dimension (L*W*H)
2200 mm x 1600 mm x 1400 mm

Feature
High Precision, Adjustable Cutting Length, Heavy Duty Construction

Color
Customized / Standard Grey & Blue

Warranty
1 year

Motor
3 HP AC Induction Motor

Mechanical Precision
0.5 mm

Software Detail
PLC Control System

Cutting Method
Rotary Slitter and Shear Mechanism

Control System
PLC with HMI

Cutting Material
Paper, Cardboard, Plastic Sheets, Aluminum Foil

Cutting Area
1200 mm x 1800 mm

Packaging
Standard export wooden box

Noise Level
<65 dB (A)

Working Temperature Range
5C to 45C

Power Consumption
2.5 kW average

Roller Size
Precision ground, 110 mm diameter

Maintenance
Low maintenance, easy blade change

Safety Feature
Emergency stop button, safety guards

Operator Panel
Touch screen / manual keypad

Display
Digital length setting display

Installation
On-site support available

Rotary Sheet Cutting Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cheque, Cash in Advance (CID), Cash Advance (CA)

Supply Ability
10 Units Per Month

Delivery Time
7 Days

Main Domestic Market
Delhi

About Rotary Sheet Cutting Machine

Rotary Sheet Cutting Machine

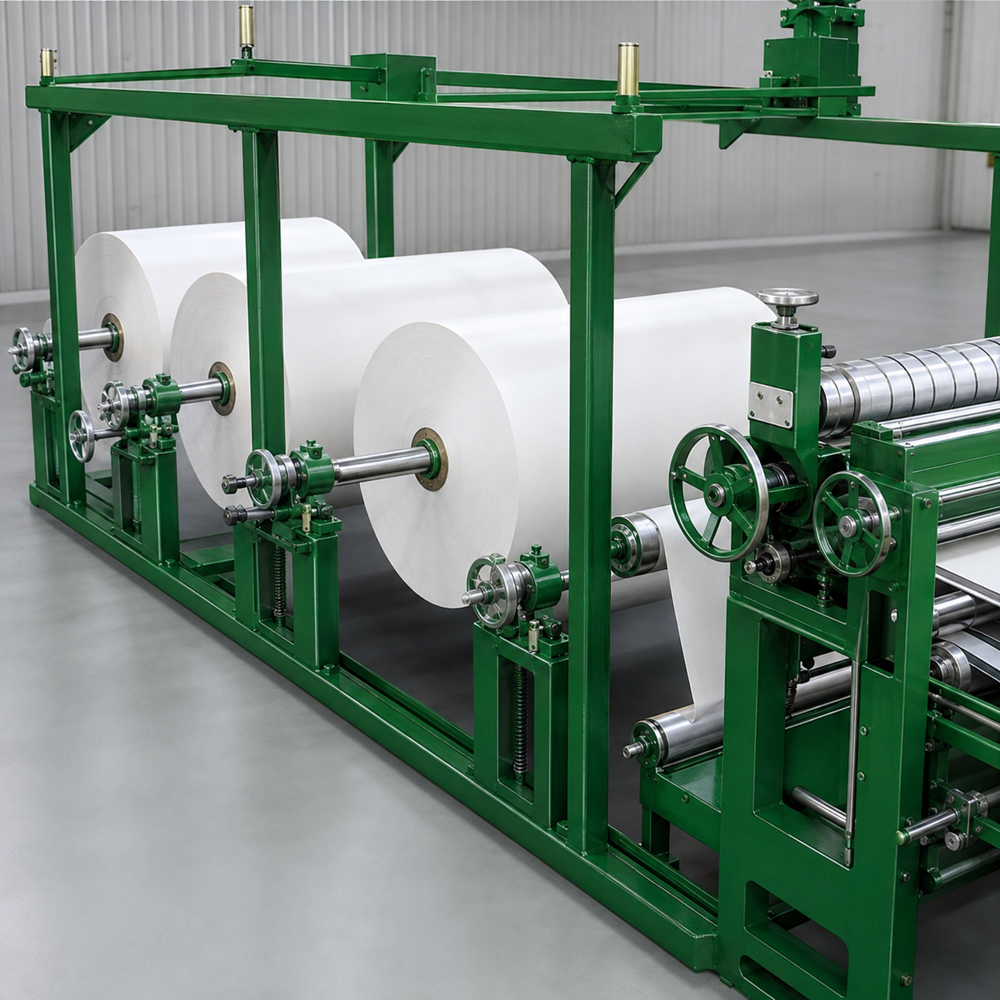

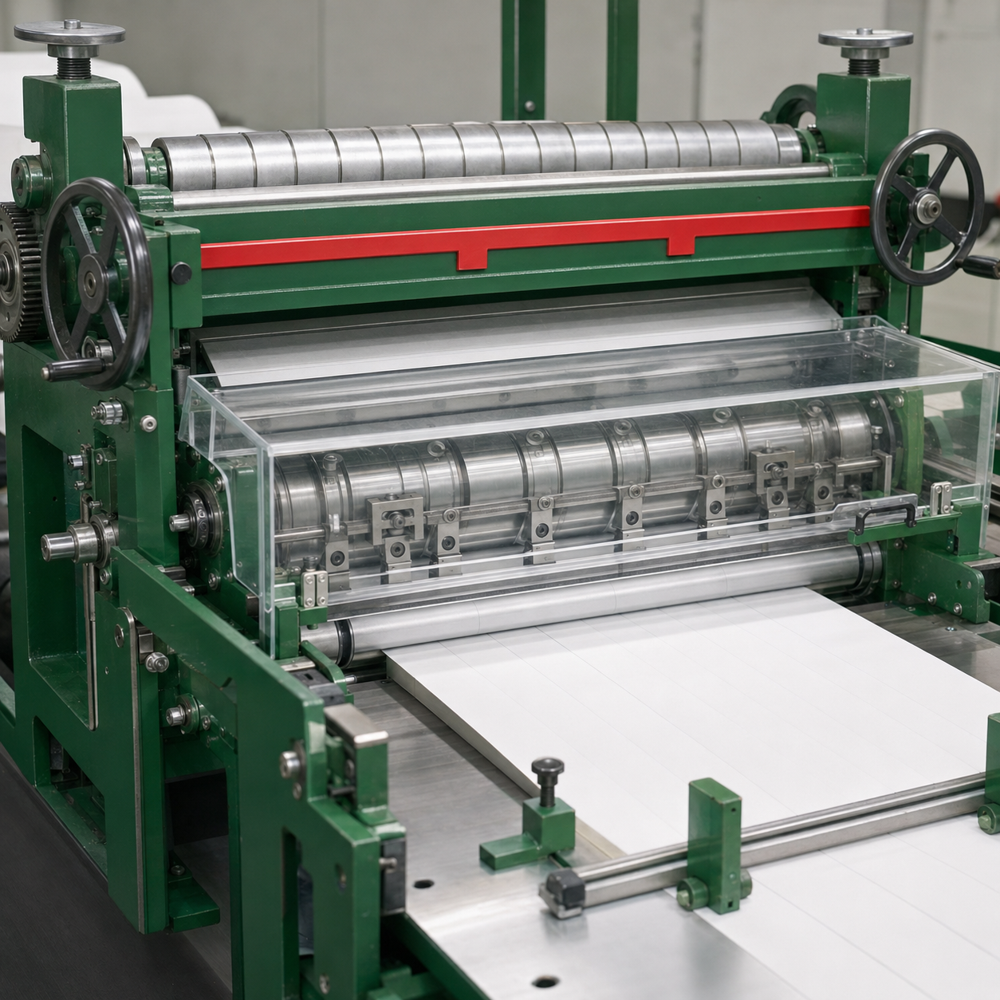

MOHINDRA Non-woven fabric roll to sheet cutting machine is design for non woven fabric sheet cutting. It is necessary equipment for reel to sheet cutting of non woven fabric of any thickness. It adopts servomotor (or step less motor) for controlling constant-length cutting. It has the functions of easy operation, high precision, good stability, low noise.(Pneumatic device is optional).

Exceptional Efficiency and Versatile Performance

Engineered for high-output operations, this rotary sheet cutting machine delivers speeds up to 120 cuts per minute and a capacity of 15,000-20,000 sheets per shift. Its adjustable feeder and precision guides guarantee accurate cutting, with a mechanical precision up to 0.5 mm. Suitable for various materials, it is ideal for paper, cardboard, plastic sheets, and more, accommodating a maximum cutting thickness of 10 mm depending on the material.

Advanced Control and Reliable Safety Features

Equipped with a modern PLC control system and touch-based HMI, the machine allows for seamless parameter adjustments and real-time monitoring. Multiple safety mechanisms, including an emergency stop and overload protection, provide operator confidence and safeguard against unexpected scenarios. The air-cooled system and optional manual or centralized lubrication enhance machine longevity and smooth operation.

FAQ's of Rotary Sheet Cutting Machine:

Q: How does the automatic sheet feeding system in the rotary sheet cutting machine work?

A: The automatic sheet feeder guides materials using adjustable guides and rollers, ensuring a steady and accurate feed for seamless, uninterrupted cutting. This reduces manual handling and enhances productivity for high-volume operations.

Q: What materials can be processed with this rotary slitter and shear mechanism?

A: This machine is capable of cutting a wide range of sheet materials including paper, cardboard, plastic sheets, aluminum foil, film, and non-woven fabrics, making it highly versatile for numerous industrial applications.

Q: When should the lubrication system be used, and what options are available?

A: Lubrication should be performed as per the operational schedule and intensity of usage; operators can choose between manual or centralized lubrication systems to ensure smooth functioning and extend the lifespan of key components.

Q: Where is the rotary sheet cutting machine typically installed, and how is it assembled?

A: The machine is designed for indoor factory floors, arrives packaged in a standard export wooden case, and is floor-mounted. Its modular design enables easy assembly following the included installation instructions.

Q: What software and control features are included for operational convenience?

A: It operates with a PLC control system, featuring a user-friendly HMI panel for adjusting cutting lengths and speed, monitoring performance, and diagnosing operational issues, which streamlines the cutting process and increases efficiency.

Q: How does the machine maintain operator safety during use?

A: Safety is ensured through features like an emergency stop and overload protection. These protective measures quickly halt the machine in emergencies or during overloading, minimizing risks and safeguarding the operator.

Q: What are the primary benefits of using this rotary sheet cutting machine in manufacturing processes?

A: The main advantages include high-precision cutting, adjustable cutting lengths, continuous operation, high-capacity throughput, low noise, and adaptability to various materials, all of which collectively boost productivity and product quality.
