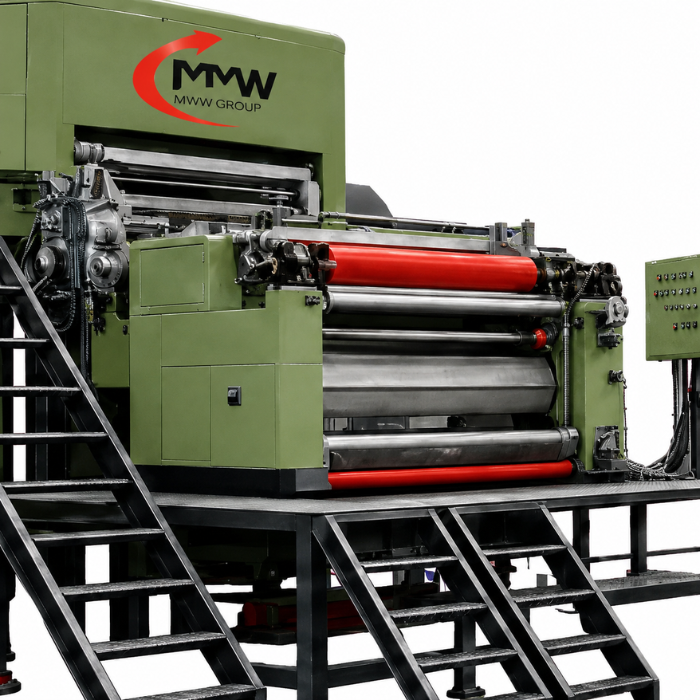

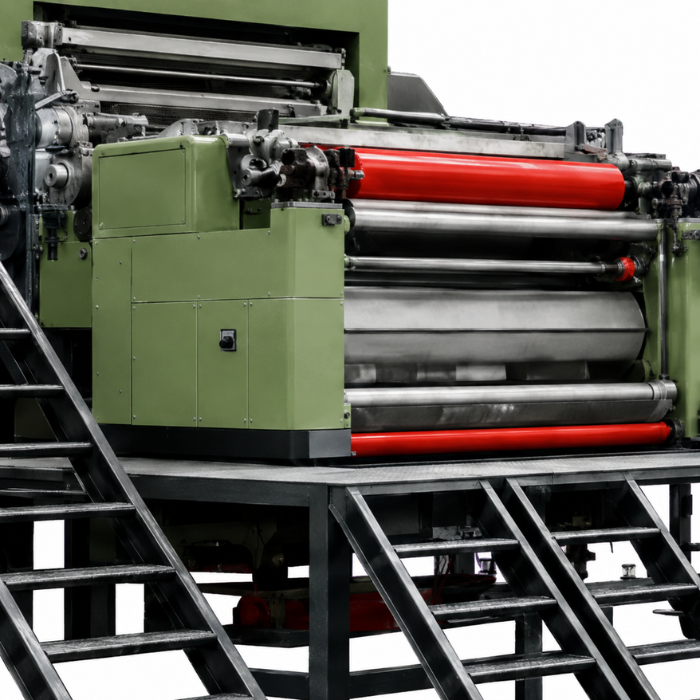

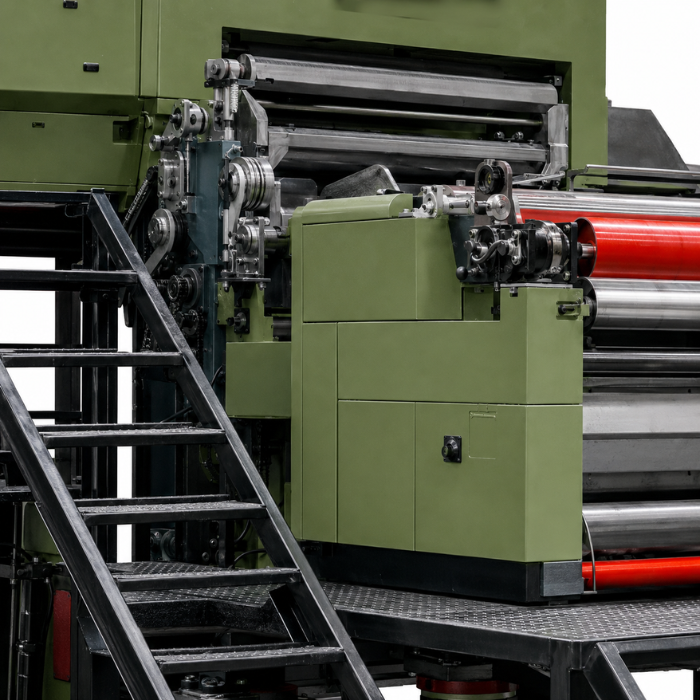

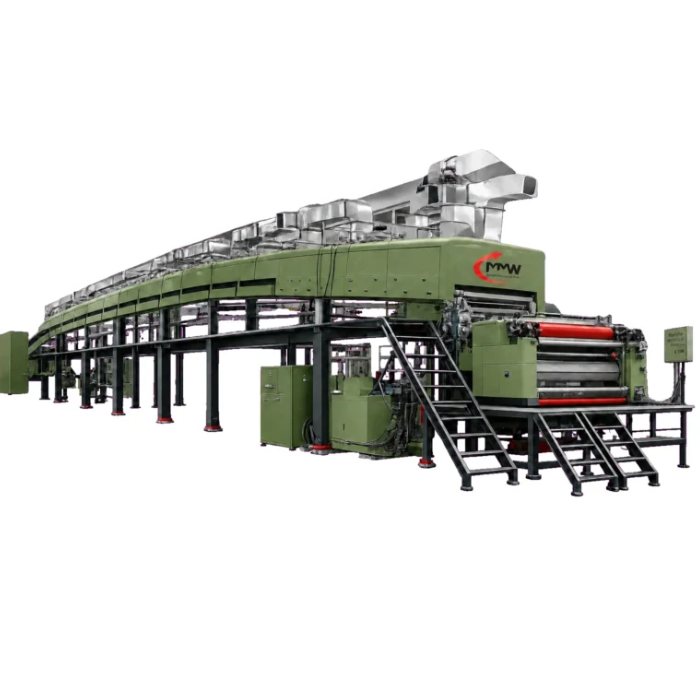

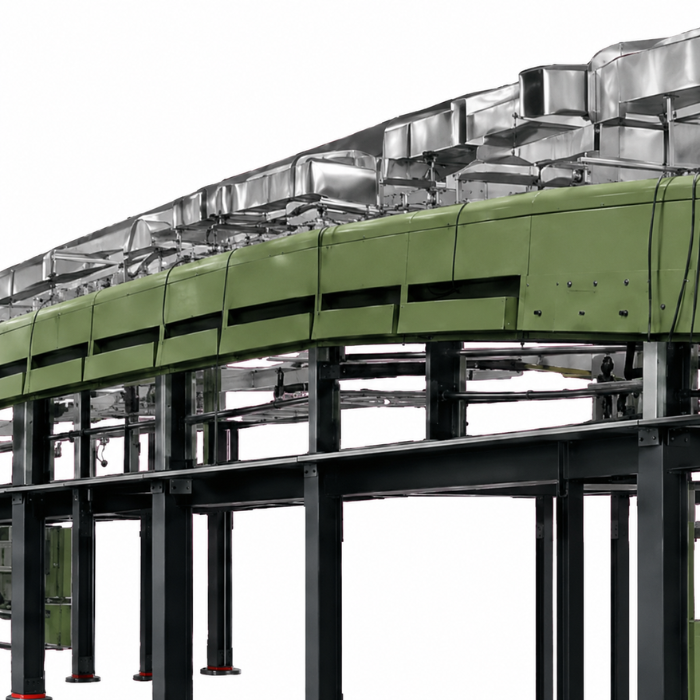

3 Roller & 5 Roller Paper Silicone Coating Machine

Send Inquiry

Request To Call Back

3 Roller & 5 Roller Paper Silicone Coating Machine

Name: 3 Roller & 5 Roller Paper Silicone Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 3500000.0 INR
Availability: InStock

Price 3500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

3 Roller & 5 Roller Paper Silicone Coating Machine Specification

Max. Coating Area
Full Web Width

Min. Sheet Area
As per Customer Requirement

Power Requirement
140 220 kW

Sheet Thickness
40 250 GSM

Max. Sheet Area
32 Inch

Coating Format
Roll to Roll

Feeding Type
Continuous Roll Feeding

Registration
Automatic Web Alignment

Machine Speed
Up to 150 m/m

Coating Type
Silicone Release Coating

Coating Transfer Method
3-Roller or 5-Roller Precision Coating

Varnish Type
Solventless or Water-Based Silicone

Product Type
Paper Silicone Coating Machine

General Use
Applying Silicone Release Coating on Paper Rolls

Material
Stainless Steel

Type
Adhesive Coating Machine, Industrial Coating Machine

Weight (kg)
16000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
140- 220 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
2000 500 520 Centimeter (cm)

Feature
High Precision, Low Energy Consumption, High Speed, Coating

Color
Green, Black or Customized

Warranty
1 Year

3 Roller & 5 Roller Paper Silicone Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Precision coating rollers, silicone-contact assemblies, electrical panels, motors and other sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Australia, Western Europe, Middle East, Africa, Central America, Eastern Europe, Asia, North America, South America

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

3 Roller & 5 Roller Paper Silicone Coating Machine About

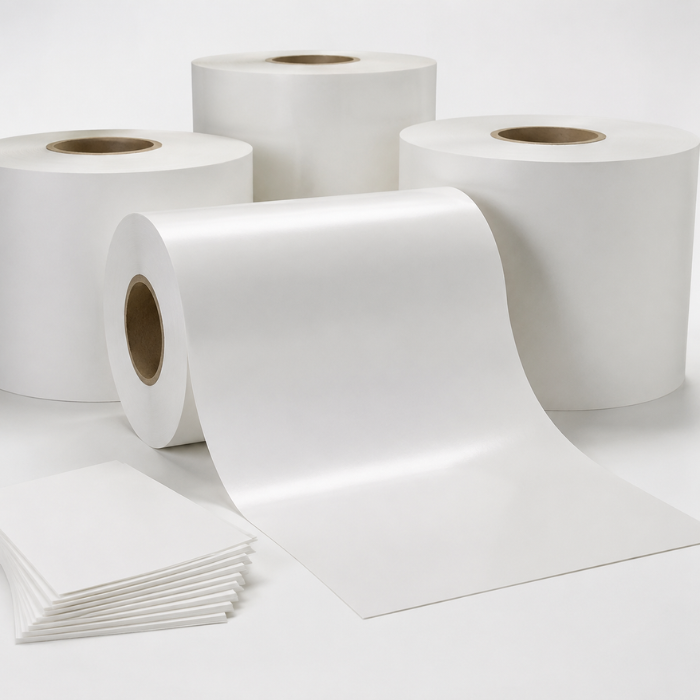

The 3 Roller & 5 Roller Paper Silicone Coating Machine applies a thin, uniform silicone layer onto paper rolls. Its precision roller arrangement controls coat weight and produces consistent release properties. The finished paper is suitable for labels, stickers, adhesive tapes and industrial release liners.
