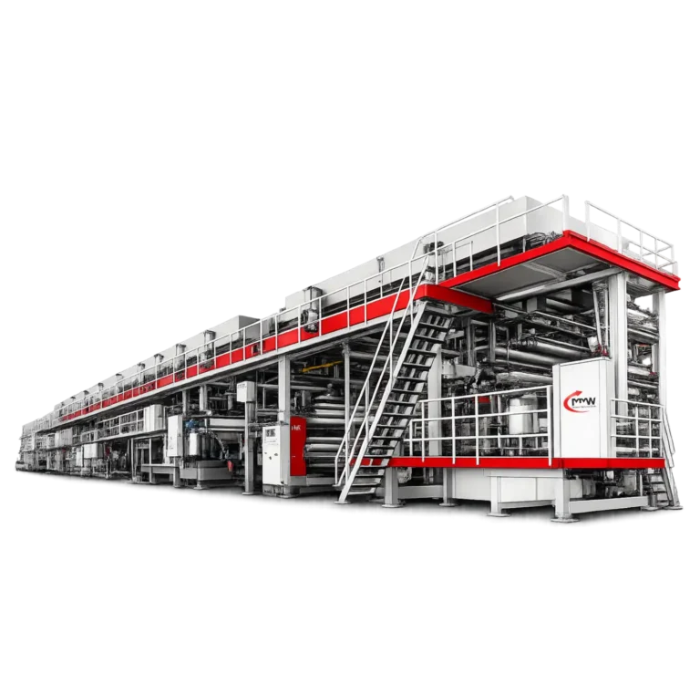

Paper Lamination Coating Machine

Name: Paper Lamination Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 7500000.0 INR
Availability: InStock

Price 7500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Paper Lamination Coating Machine Specification

Power Requirement
30 kW

Coating Transfer Method
Metering Rod / Mayer Bar

Feeding Type
Roll to Roll

Sheet Thickness
50 - 300 GSM

Machine Speed
150 m/m

Max. Coating Area
32 Inch

Registration
Automatic / Manual

Varnish Type
Heat Sealable Varnish / Aqueous Laminating Dispersion

Coating Type
Lamination Barrier Coating / Moisture Proof Coating

Min. Sheet Area
12 Inch

Coating Format
Web / Roll

Max. Sheet Area
32 INCHS Inch (in)

Product Type
Gutka Pouch Paper Lamination Coating Machine

General Use
Paper & Packaging Coating Industry

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
10500 Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Mayer Bar

Coating Width
32 Inch (in)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
25 - 30 Horsepower (HP)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
32 Inch (in)

Unwinding Width
32 Inch (in)

Dimension (L*W*H)
480 x 96 x 135 Inch (in)

Feature
High Speed, High Precision, Coating, Low Energy Consumption

Color
Red & White / Light Grey

Warranty
1 Year

Paper Lamination Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Nhava Sheva / Mundra / ICD Tughlakabad

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Heavy-Duty Industrial Wooden Box Packaging with Moisture-Proof Stretch Wrapping for Safe Transit

Main Export Market(s)
Central America, Africa, Asia, Australia, North America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Paper Lamination Coating Machine About

Mohindra Mechanical Works offers the high-capacity Automatic Paper Lamination Coating Machine for Gutka Pouches, specifically engineered for industrial lamination and barrier coating on flexible packaging materials. Designed for manufacturing gutka sachets, pan masala packaging, and aroma-retention paper pouches, this heavy-duty machine combines high-precision coating with seamless multi-layer film/paper lamination.

Equipped with a high-accuracy Mayer Bar / Metering Rod coating head, an extended multi-zone Hot Air drying tunnel, duplex unwinder, duplex rewinder, and pneumatic tension control, it operates effortlessly at speeds up to 150 m/min. The computerized PLC Control System with HMI touchscreen interface guarantees precise coat weight application, automated tension adjustments, high lamination bond strength, and reliable continuous operation.
