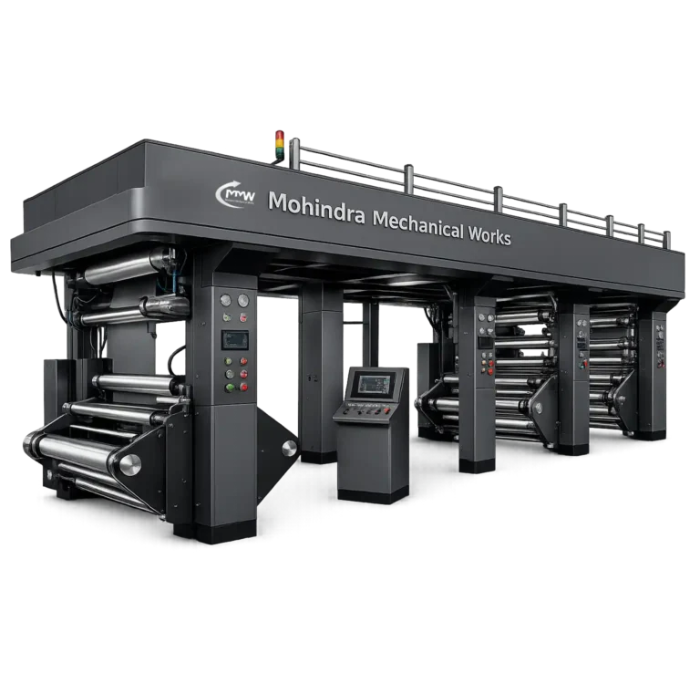

Aluminium Free Coating Machine

Name: Aluminium Free Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 7500000.0 INR
Availability: InStock

Price 7500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Aluminium Free Coating Machine Specification

Coating Type
Aluminium-Free Eco Barrier Coating / Moisture Proof Coating

Machine Speed
150 m/m

Registration
Automatic / Manual

Max. Coating Area
32 Inch

Coating Format
Web / Roll

Sheet Thickness
50 - 300 GSM

Min. Sheet Area
12 Inch

Varnish Type
Heat Sealable Barrier Varnish / Aqueous Dispersion

Feeding Type
Roll to Roll

Power Requirement
25 kW

Max. Sheet Area
32 INCHS Inch (in)

Coating Transfer Method
Metering Rod / Mayer Bar

Product Type
Eco Pouch Paper Coating Machine

General Use
Paper & Packaging Coating Industry

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
9500 Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Gravure Roller

Coating Width
32 Inch (in)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
20 - 25 Horsepower (HP)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
32 Inch (in)

Unwinding Width
32 Inch (in)

Dimension (L*W*H)
420 x 96 x 120 Inch (in)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Matte Black & Dark Charcoal / Grey

Warranty
1 Year

Aluminium Free Coating Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Nhava Sheva / Mundra / ICD Tughlakabad

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Units Per Month

Delivery Time
60 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Heavy-Duty Industrial Wooden Box Packaging with Moisture-Proof Stretch Wrapping for Safe Transit

Main Export Market(s)
Western Europe, Middle East, Central America, North America, South America, Eastern Europe, Africa, Asia, Australia

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Aluminium Free Coating Machine About

Mohindra Mechanical Works offers the advanced Automatic Aluminium Free Gutka Pouch Coating Machine, engineered to manufacture eco-friendly, recyclable, high-barrier flexible paper pouches without the use of aluminum foil. Designed to replace traditional foil laminates, this heavy-duty machine applies specialized water-based high-barrier dispersions, moisture barriers, and aroma-retention coatings directly onto paper substrates for gutkha, pan masala, and mouth freshener packaging.

Equipped with a high-precision Mayer Bar / Metering Rod coating head, an efficient multi-zone Hot Air drying system, duplex unwinder, duplex rewinder, and pneumatic web tension control, it operates smoothly at production speeds up to 150 m/min. The computerized PLC Control System with HMI touchscreen interface allows precise coating weight management, tension control, and reliable continuous operation.
