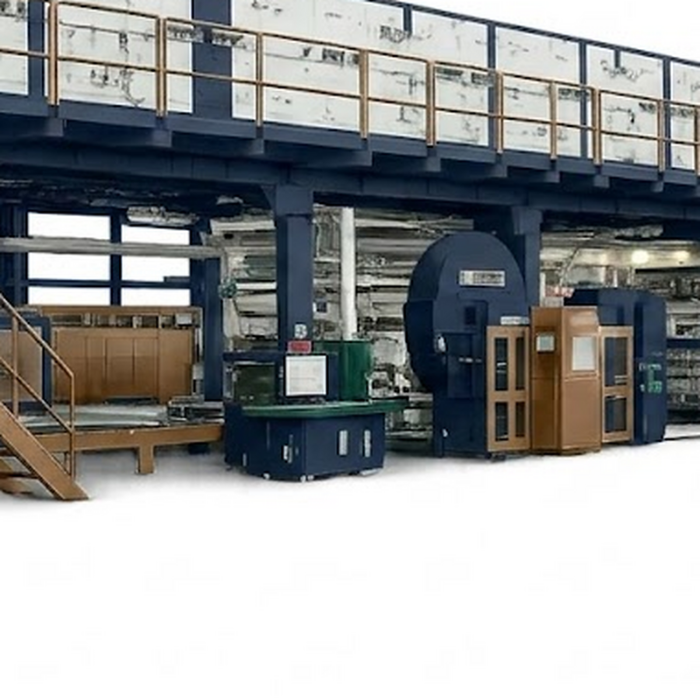

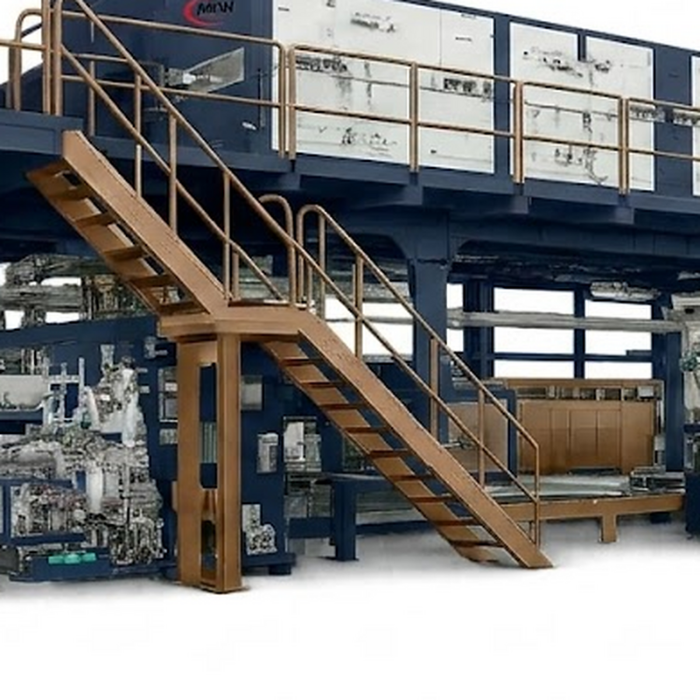

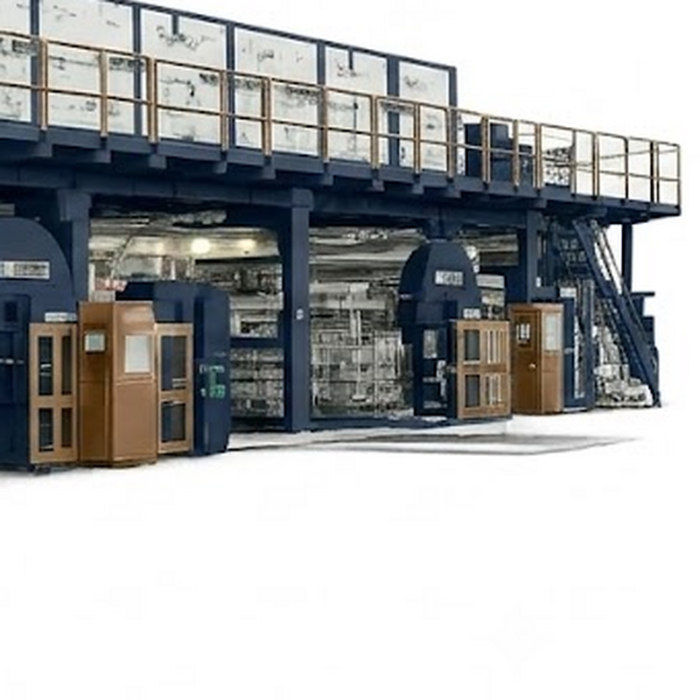

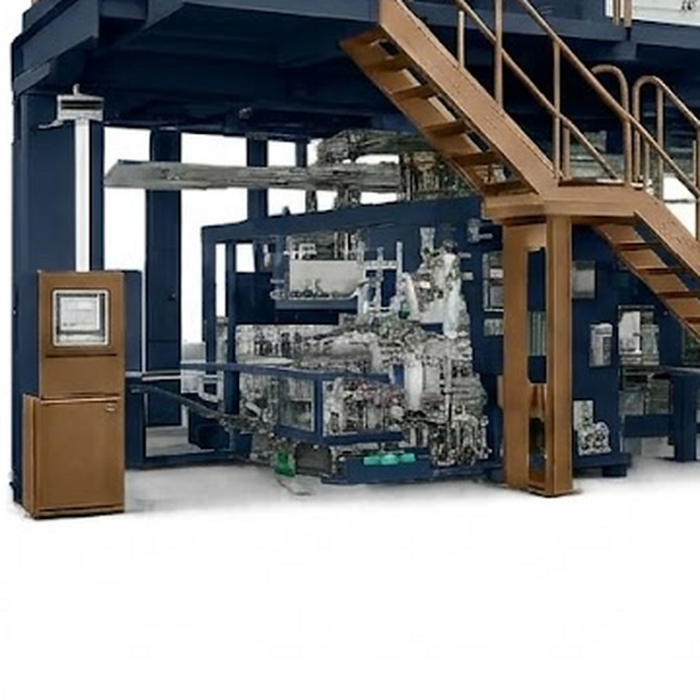

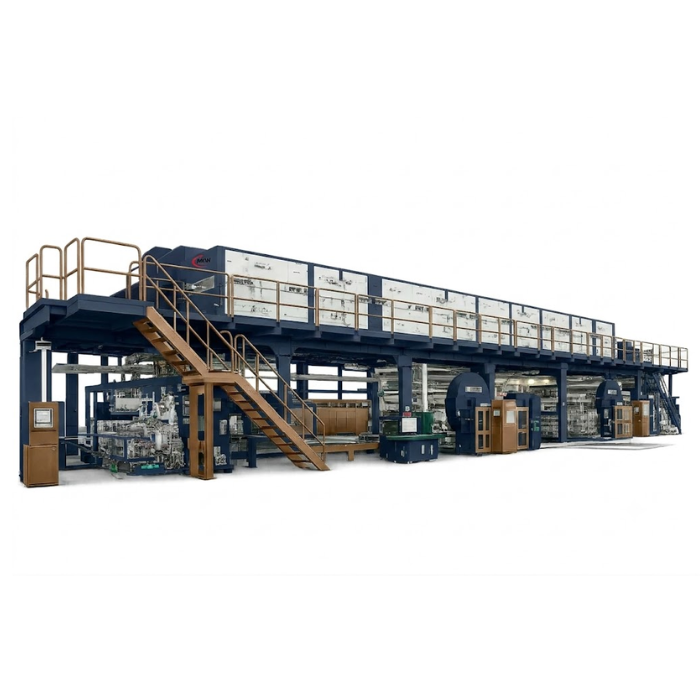

Release Paper and Film Coating Machine
Release Paper and Film Coating Machine
Release Paper and Film Coating Machine
Release Paper and Film Coating Machine
Release Paper and Film Coating Machine
Release Paper and Film Coating Machine
Release Paper and Film Coating Machine
Release Paper and Film Coating Machine
Release Paper and Film Coating Machine
Release Paper and Film Coating Machine
Release Paper and Film Coating Machine
Release Paper and Film Coating Machine

Release Paper and Film Coating Machine

Price 3500000.0 INR/ Piece

MOQ : 1 Piece

Release Paper and Film Coating Machine Specification

  • Coating Transfer Method
  • Multi-Roll or Gravure Coating
  • Feeding Type
  • Continuous Roll Feeding
  • Min. Sheet Area
  • As per Customer Requirement
  • Coating Format
  • Roll to Roll
  • Max. Coating Area
  • Full Web Width
  • Registration
  • Automatic Web Alignment
  • Max. Sheet Area
  • 32 Inch
  • Varnish Type
  • Silicone or Customized Release Coating
  • Coating Type
  • Release-Liner Coating
  • Power Requirement
  • 140 220 kW
  • Machine Speed
  • Up to 150 m/m
  • Sheet Thickness
  • Paper: 40 250 GSM; Film: 12 200 Microns
  • Product Type
  • Release Paper and Film Coating Machine
  • General Use
  • Applying Release Coatings on Paper and Flexible Film Rolls
  • Material
  • Stainless Steel
  • Type
  • Adhesive Coating Machine, Industrial Coating Machine
  • Weight (kg)
  • 14000 Kilograms (kg)
  • Coating Speed
  • Up to 150 m/m
  • Coating Head
  • Gravure Roller
  • Coating Width
  • Up to 1600 Millimeter (mm)
  • Coating Material
  • Other
  • Computerized
  • No
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Power Source
  • Electric
  • Power Consumption
  • 140 220 Kilowatt (kW)
  • Heating System
  • Hot Air
  • Drive Type
  • Pneumatic
  • Voltage
  • 440v Volt (v)
  • Humidification System
  • No
  • Glue Type
  • Water Based
  • Rewinder Type
  • Duplex Rewinder
  • Unwinder Type
  • Duplex Unwinder
  • Rewinding Width
  • Up to 1600 Millimeter (mm)
  • Unwinding Width
  • Up to 1600 Millimeter (mm)
  • Dimension (L*W*H)
  • 2000 500 520 Centimeter (cm)
  • Feature
  • Low Energy Consumption, High Speed, High Precision, Coating
  • Color
  • Blue, Golden or Customized
  • Warranty
  • 1 Year


Release Paper and Film Coating Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • ICD Tughlakabad, Delhi
  • Payment Terms
  • Cash on Delivery (COD), Cheque
  • Supply Ability
  • 2 Pieces Per Month
  • Delivery Time
  • 90 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • The machine is covered with waterproof protective wrapping. Precision coating assemblies, rollers, electrical panels, motors and sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 Certified, CE Certified Standard Machinery


About Release Paper and Film Coating Machine

The Release Paper and Film Coating Machine applies uniform release coatings onto paper and flexible-film rolls. Its continuous process combines precision coating, controlled drying or curing, automatic web alignment and smooth rewinding. The finished material is suitable for labels, adhesive tapes, protective films, hygiene products and industrial release-liner applications.

Key Features

  • Suitable for both paper and flexible film
  • Uniform release-coating application
  • Accurate coating-thickness adjustment
  • Consistent release performance
  • Automatic roll-to-roll operation
  • PLC-based machine control
  • Automatic web-tension management
  • Automatic edge-guiding system
  • Multi-zone drying and curing chamber
  • Adjustable temperature and airflow
  • Precision coating-contact rollers
  • Smooth and wrinkle-free rewinding
  • Reduced substrate and coating wastage
  • Customized working width available

Suitable Raw Materials

  • Glassine paper
  • Kraft release paper
  • Super-calendered paper
  • Poly-coated paper
  • PET film
  • BOPP film
  • PE film
  • Polyester film
  • Silicone-compatible film
  • Specialty release-liner material

Suitable Coating Materials

  • Solventless silicone
  • Water-based silicone emulsion
  • Thermal-curing silicone
  • UV-curable silicone
  • Acrylic release coating
  • Fluorosilicone coating
  • Low-release formulation
  • Medium-release formulation
  • High-release formulation
  • Customized release coating

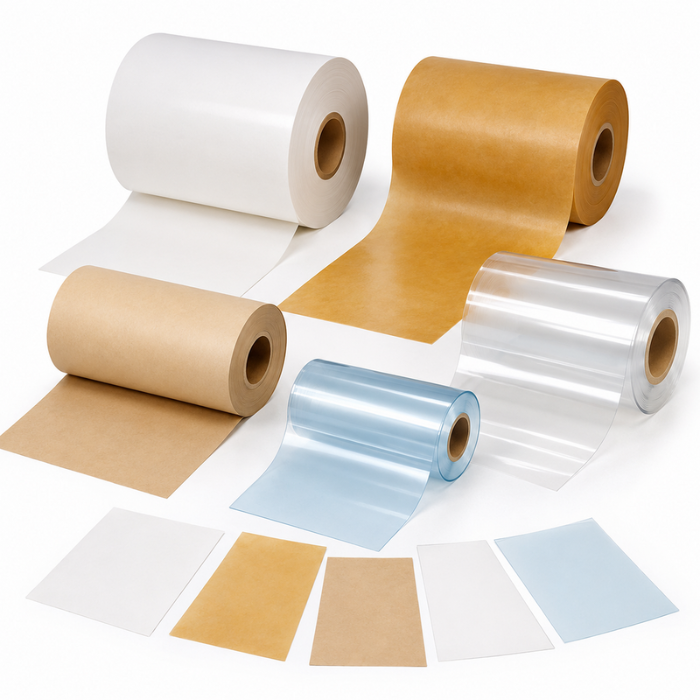

Finished Products

  • Silicone release-paper rolls
  • Release-film rolls
  • Label backing liners
  • Sticker release liners
  • Adhesive-tape liners
  • Double-sided tape liners
  • Protective-film liners
  • Medical and hygiene release liners
  • Industrial adhesive liners
  • Die-cutting release liners
  • Composite release material
  • Self-adhesive product backing
