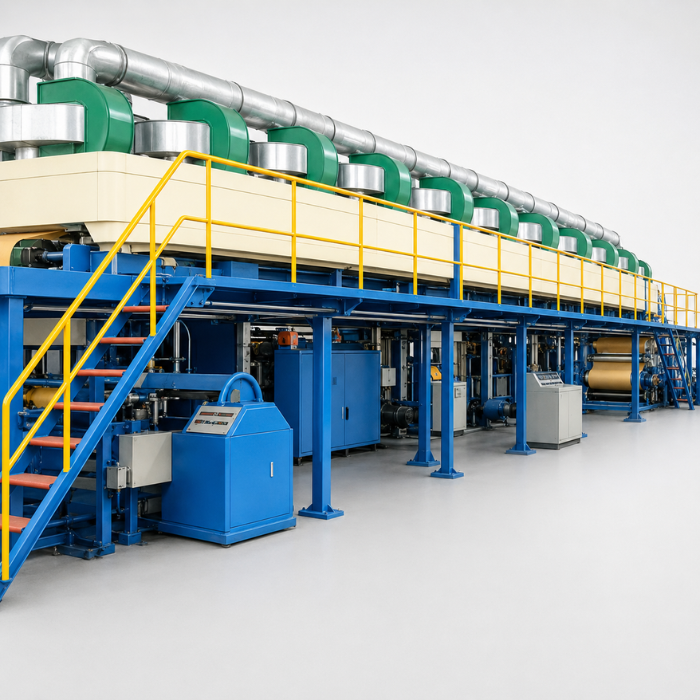

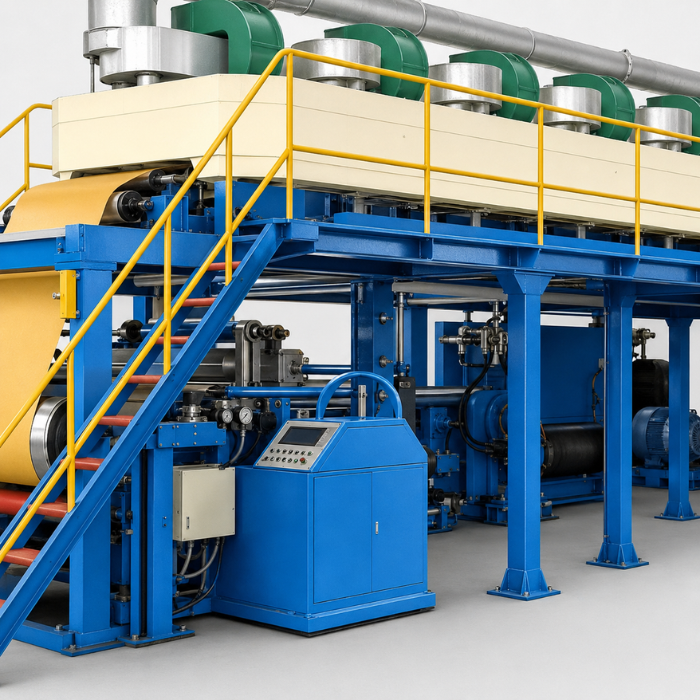

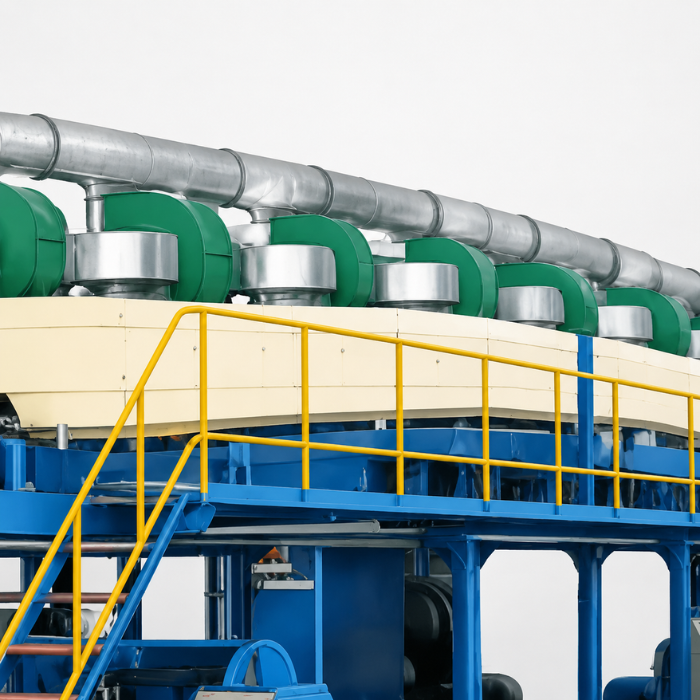

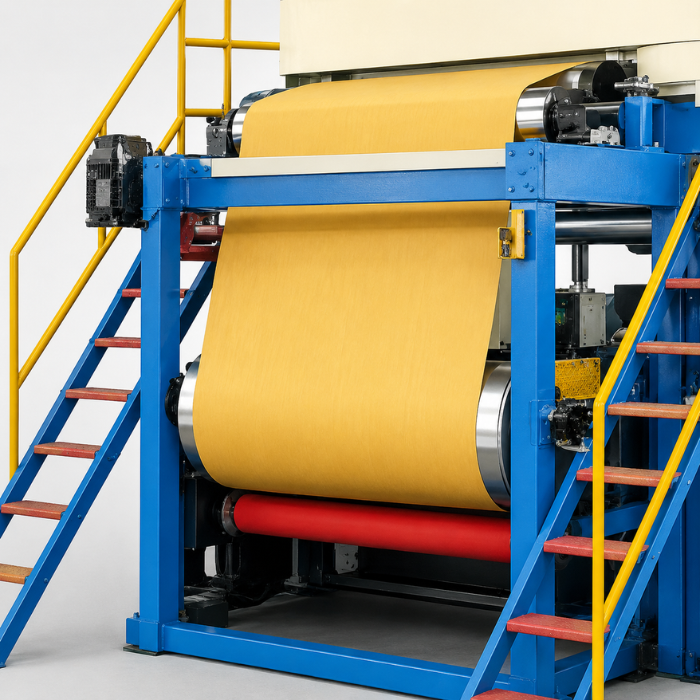

Fluorescent Paper Coating Machine

Name: BOPP Adhesive Tape Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 2300000 INR
Availability: InStock

Price 2300000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fluorescent Paper Coating Machine Specification

Feeding Type
Continuous Roll Feeding

Coating Transfer Method
Mayer Bar Coating

Coating Type
Fluorescent Pigment Coating

Varnish Type
Water-Based Fluorescent Coating

Coating Format
Roll-to-Roll

Registration
Automatic Web Alignment

Sheet Thickness
40 300 GSM

Machine Speed
Up to 150 m/m

Max. Sheet Area
32 Inches

Min. Sheet Area
As per Customer Requirement

Power Requirement
120 200 kW

Max. Coating Area
Full Web Width

Product Type
BOPP Adhesive Tape Coating Machine

General Use
Applying Fluorescent Pigment Coating on Paper

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
12,000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Gravure Roller

Coating Width
1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
120 200 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
380-440 Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 500 Centimeter (cm)

Feature
High Precision, Coating, Low Energy Consumption, High Speed

Color
Blue, Cream, Yellow or Customized

Warranty
1 year

Fluorescent Paper Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Electrical panels, coating assemblies, rollers, motors and sensitive components are properly protected. Major sections are securely fastened on wooden or steel supports for safe transportation by road or sea. Export-worthy packaging can be provided according to customer requirements.

Main Export Market(s)
Australia, North America, Central America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia

Main Domestic Market
Delhi

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Fluorescent Paper Coating Machine About

The Fluorescent Paper Coating Machine manufactured by Mohindra Mechanical Works is designed for applying bright fluorescent pigment coatings onto paper and paperboard rolls. It produces high-visibility coated paper for promotional displays, labels, posters, decorative products, stationery and speciality printing applications.

The machine operates through a continuous roll-to-roll process comprising controlled unwinding, accurate coating application, multi-zone hot-air drying and uniform rewinding. A Mayer Bar coating head helps maintain the required coating thickness and consistent colour coverage across the paper web.

Its PLC-based control system enables convenient management of machine speed, web tension, coating operation and drying temperature. Automatic web guiding keeps the paper correctly aligned during production. The working width, coating head, drying length and heating system can be customized according to the paper grade, pigment formulation and required production output.
