Price 2000000.0 INR/ Piece

MOQ : 1 Piece

Double Side Tape Coating Machine Specification

  • Coating Transfer Method
  • Comma Coating
  • Power Requirement
  • 80 150 kW
  • Min. Sheet Area
  • As per Customer Requirement
  • Registration
  • Automatic Web Alignment
  • Varnish Type
  • Adhesive Coating
  • Max. Coating Area
  • Full Web Width
  • Sheet Thickness
  • 20 500 Microns
  • Feeding Type
  • Continuous Roll Feeding
  • Machine Speed
  • Up to 100 m/m
  • Coating Format
  • Roll-to-Roll
  • Coating Type
  • Double-Side Pressure-Sensitive Adhesive Coating
  • Max. Sheet Area
  • 32 Inches
  • Product Type
  • Double Side Tape Coating Machine
  • General Use
  • Applying Adhesive Coating on Both Sides of Tape Carrier
  • Material
  • Stainless Steel
  • Type
  • Industrial Coating Machine, Adhesive Coating Machine
  • Weight (kg)
  • 8000 Kilograms (kg)
  • Coating Speed
  • Up to 100 m/m
  • Coating Head
  • Gravure Roller
  • Coating Width
  • Up to 1600 Millimeter (mm)
  • Coating Material
  • Other
  • Computerized
  • No
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Power Source
  • Electric
  • Power Consumption
  • 80 150 Kilowatt (kW)
  • Heating System
  • Hot Air
  • Drive Type
  • Pneumatic
  • Voltage
  • 440v Volt (v)
  • Humidification System
  • No
  • Glue Type
  • Water Based
  • Rewinder Type
  • Duplex Rewinder
  • Unwinder Type
  • Duplex Unwinder
  • Rewinding Width
  • Up to 1300 Centimeter (cm)
  • Unwinding Width
  • Up to 1300 Centimeter (cm)
  • Dimension (L*W*H)
  • 1400 380 400 Centimeter (cm)
  • Feature
  • Low Energy Consumption, High Speed, High Precision, Coating
  • Color
  • Blue, White or Customized
  • Warranty
  • 1 Year


Double Side Tape Coating Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • ICD Tughlakabad, Delhi
  • Payment Terms
  • Cash on Delivery (COD), Cheque
  • Supply Ability
  • 2 Pieces Per Month
  • Delivery Time
  • 90 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • The machine is covered with waterproof protective wrapping. Electrical panels, coating heads, precision rollers, motors and sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for domestic or export transportation.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 Certified, CE Certified Standard Machinery


About Double Side Tape Coating Machine

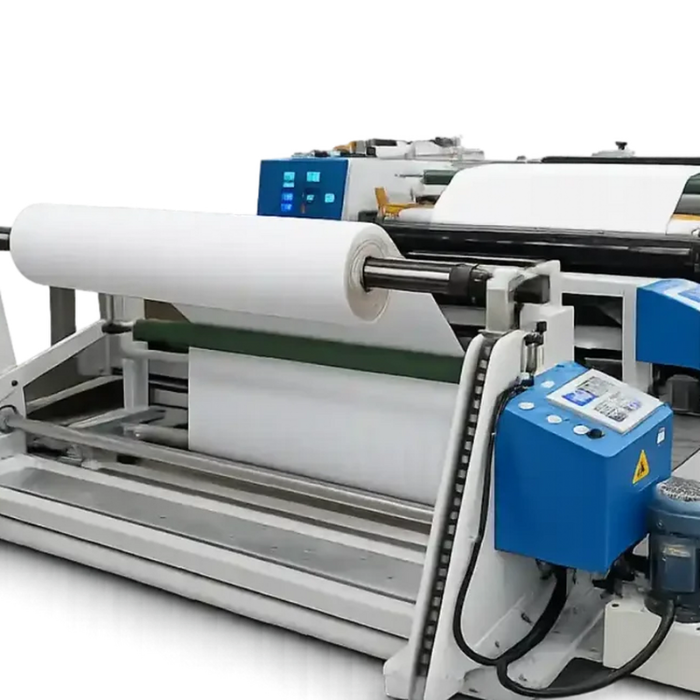

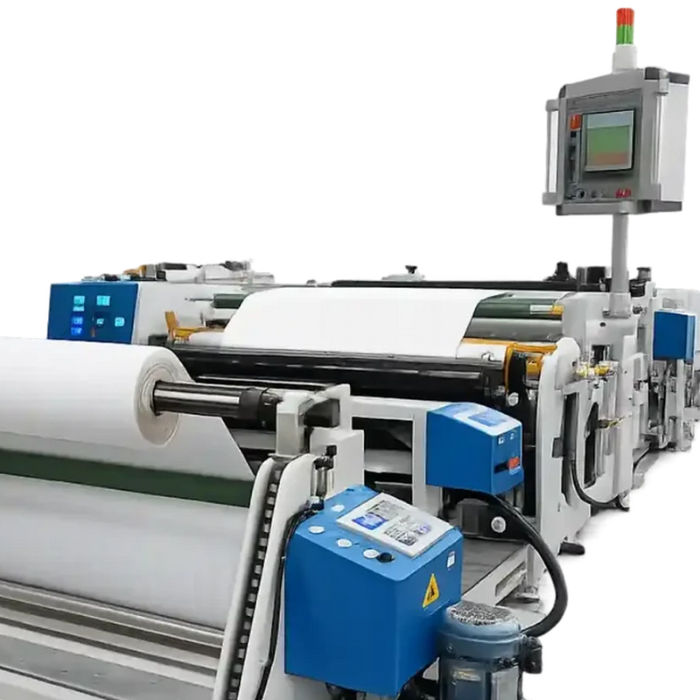

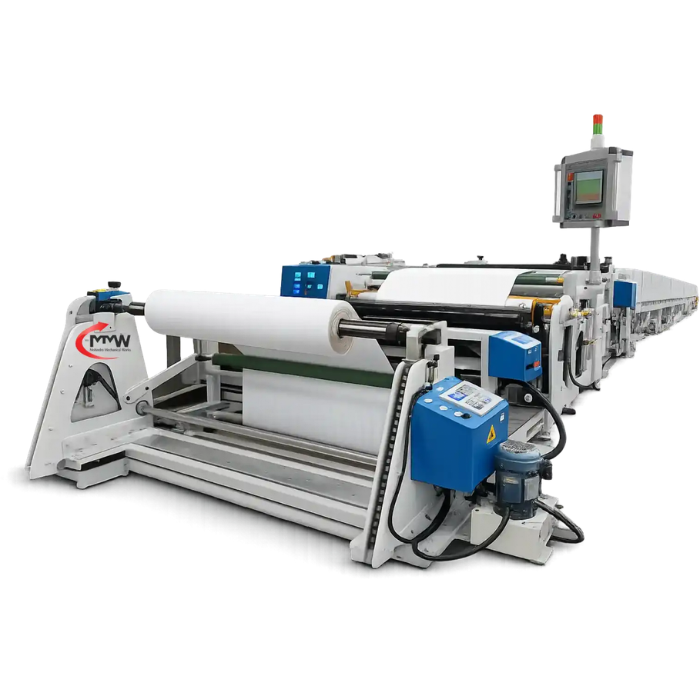

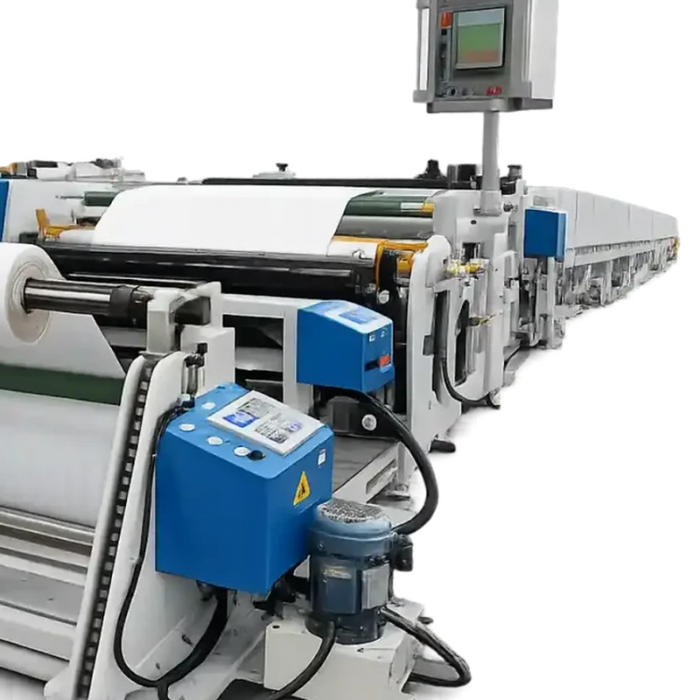

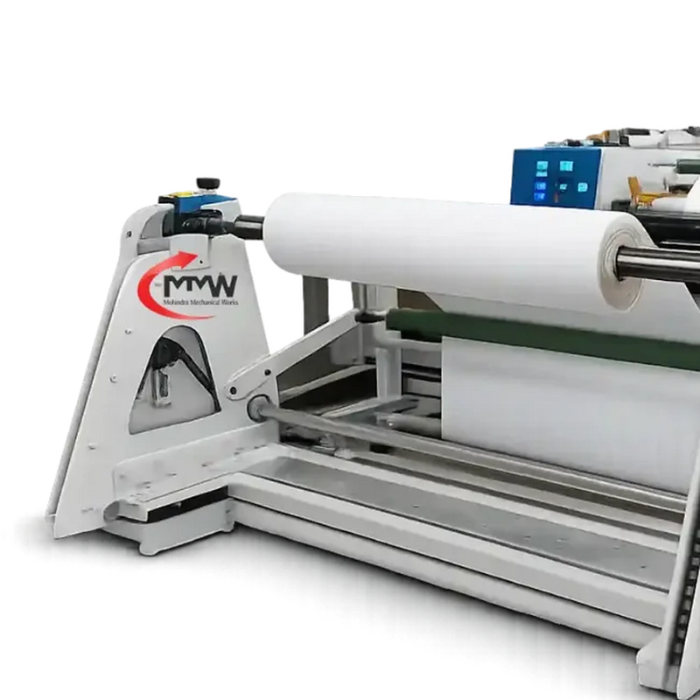

The Double Side Tape Coating Machine manufactured by Mohindra Mechanical Works is designed for applying a uniform pressure-sensitive adhesive coating to both sides of tissue paper, PET film, non-woven fabric, foam and other flexible carrier materials. It supports the production of double-sided tapes used in packaging, printing, stationery, automotive, electronics and industrial assembly applications.

The continuous roll-to-roll system integrates automatic unwinding, precision adhesive coating, controlled hot-air drying, release-liner lamination and uniform rewinding. Its PLC-based controls allow operators to regulate coating speed, web tension, drying temperature and coat weight. Automatic web guiding maintains correct material alignment during production. The machine configuration can be customized according to the carrier material, adhesive formulation, coating width and required production capacity.

Key Features

  • Uniform coating on both sides
  • Precise adhesive coat-weight control
  • Automatic release-liner lamination
  • PLC and HMI-based operation
  • Automatic web-tension control
  • Automatic edge-guiding system
  • Multi-zone hot-air drying chamber
  • Adjustable temperature and airflow
  • Smooth, wrinkle-free rewinding
  • Reduced adhesive and material wastage
  • Heavy-duty industrial construction
  • Customized coating width available

Suitable Raw Materials

  • Tissue paper
  • PET film
  • BOPP film
  • Non-woven fabric
  • Foam
  • Cotton cloth
  • Paper carrier
  • Release paper
  • Release film

Suitable Coating Materials

  • Water-based acrylic adhesive
  • Solvent-based acrylic adhesive
  • Rubber-based adhesive
  • Hot-melt pressure-sensitive adhesive
  • Heat-resistant adhesive
  • High-tack industrial adhesive
  • Removable adhesive
  • Customized adhesive formulation

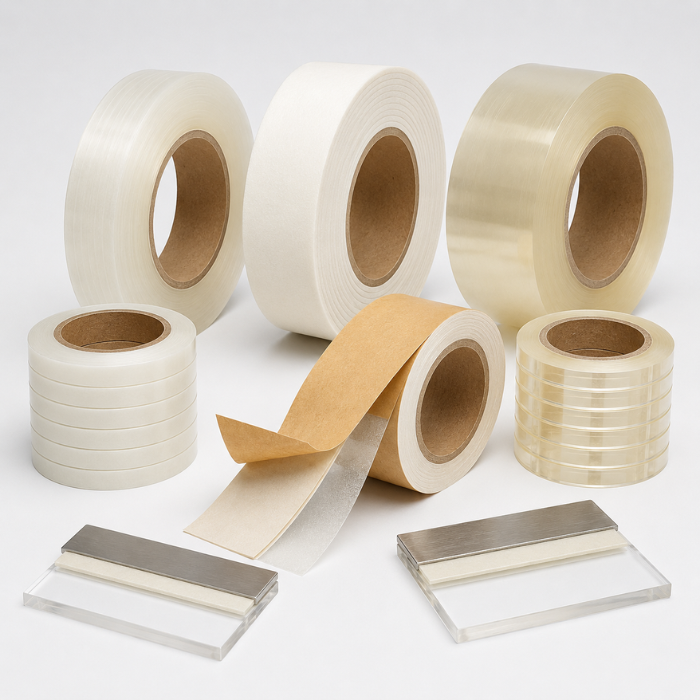

Finished Products

  • Double-sided tissue tape
  • Double-sided PET tape
  • Double-sided foam tape
  • Double-sided cloth tape
  • Double-sided non-woven tape
  • Automotive mounting tape
  • Stationery adhesive tape
  • Carpet-fixing tape
  • Electronics assembly tape
  • Industrial bonding tape
  • Label and printing tape
  • Adhesive jumbo rolls
