Thermal Paper Coating Machine

Name: BOPP Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 1500000.00 INR
Availability: InStock

Price 2500000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Thermal Paper Coating Machine Specification

Sheet Thickness
45 120 GSM

Max. Coating Area
32 Inch

Registration
Automatic Web Alignment

Coating Format
Roll-to-Roll

Machine Speed
Up to 150 m/m

Feeding Type
Continuous Roll Feeding

Power Requirement
120 200 kW

Coating Type
Thermal-Sensitive Paper Coating

Min. Sheet Area
12 Inches

Varnish Type
Water-Based Protective Topcoat

Max. Sheet Area
32 Inches

Coating Transfer Method
Mayer Bar / Gravure Coating

Product Type
Thermal Paper Coating Machine

General Use
Applying Heat-Sensitive Thermal Coating on Paper

Material
Other

Type
Industrial Coating Machine

Weight (kg)
12,000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Mayer Bar

Coating Width
42 INCHS Inch (in)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
120 200 kW Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 500 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision

Color
White or Customized

Warranty
1 year

Thermal Paper Coating Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cheque, Cash Advance (CA), Cash in Advance (CID)

Supply Ability
2 Units Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is packed using waterproof protective material. Electrical panels, coating heads, motors and other sensitive components are properly covered. Major machine assemblies are securely fastened on wooden or steel supports for safe road or sea transportation. Export-worthy packaging is available according to customer requirements.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Delhi

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

About Thermal Paper Coating Machine

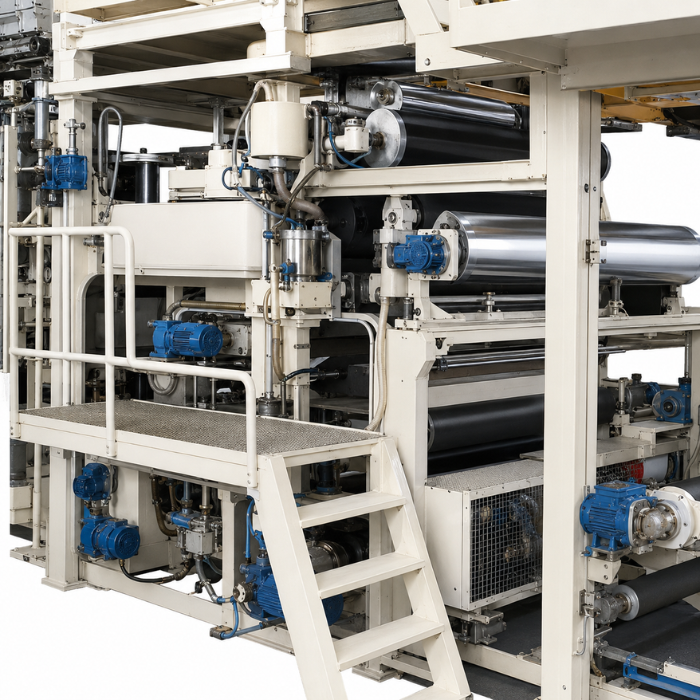

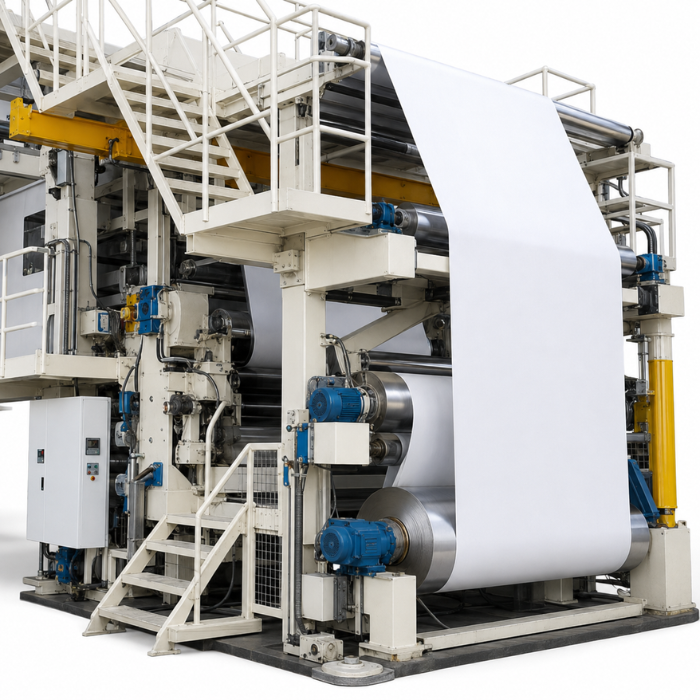

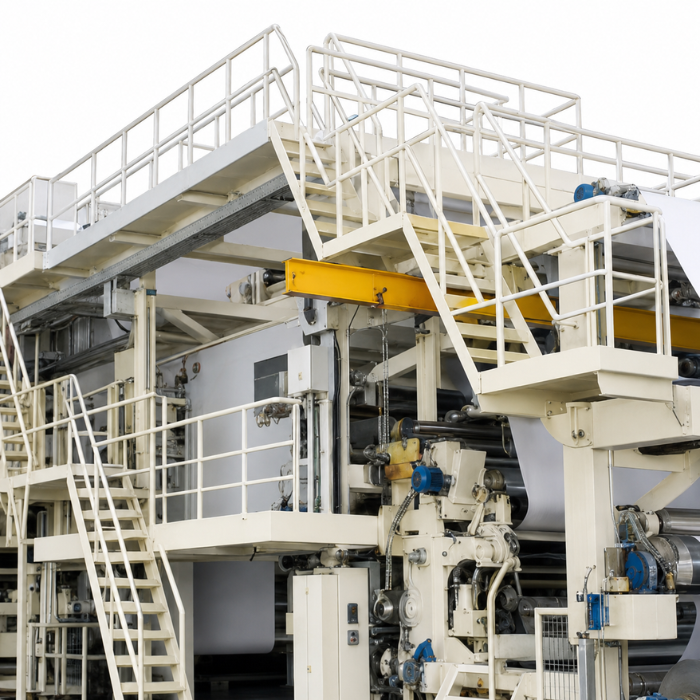

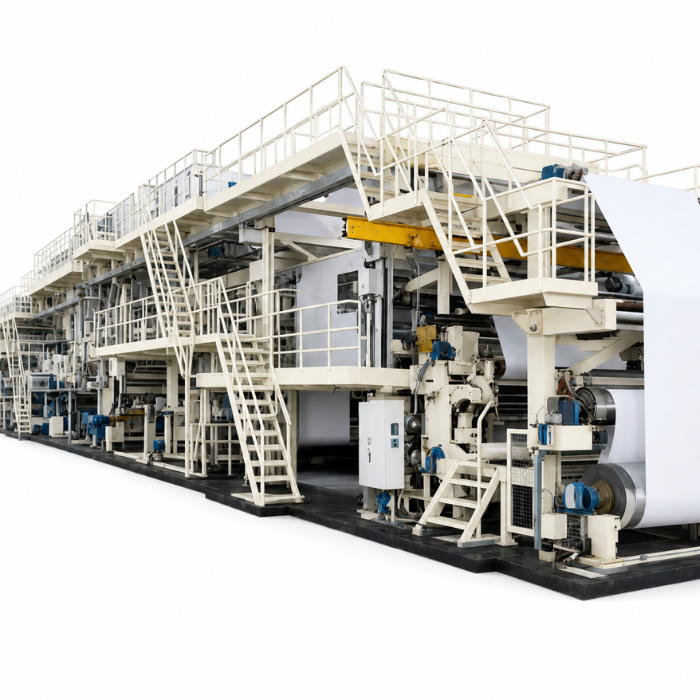

The Thermal Paper Coating Machine manufactured by Mohindra Mechanical Works is designed for applying base coat, heat-sensitive thermal coat and protective topcoat onto paper rolls. It operates through a continuous roll-to-roll process comprising automatic unwinding, accurate coating application, controlled drying and uniform rewinding.

The machine can be configured with Mayer Bar, air-knife or gravure coating arrangements according to the coating formulation and required coat weight. Its PLC-based control system manages web speed, tension, coating operation and drying temperature for stable production. The multi-zone hot-air drying chamber removes moisture uniformly without damaging the paper surface.

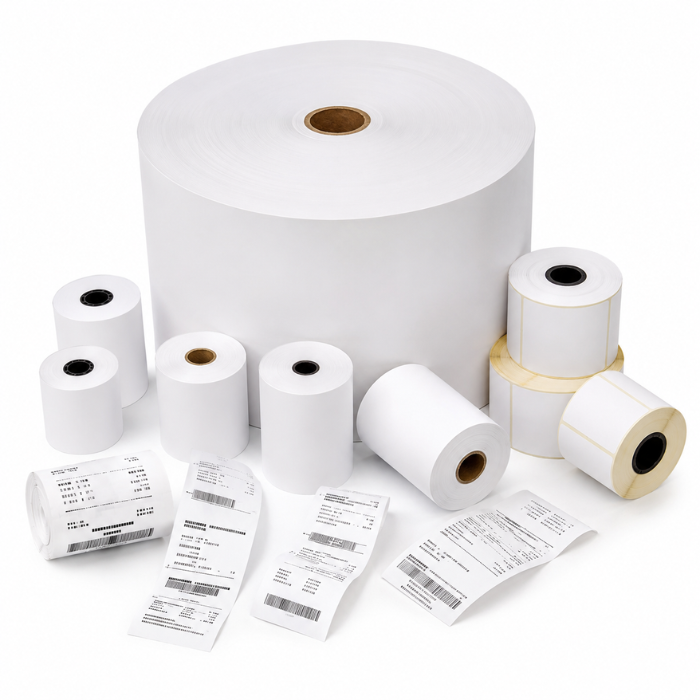

This machine is suitable for producing thermal paper used in POS receipts, ATM slips, billing rolls, labels, tickets, logistics documents and other heat-sensitive printing applications. Working width, coating stations, drying length and production speed can be customized according to the buyers manufacturing requirements.
