Fully Automatic Self Adhesive BOPP Tape Coating Machine

Send Inquiry

Request To Call Back

Fully Automatic Self Adhesive BOPP Tape Coating Machine

Price 3500000.0 INR/ Case

Get a Price/Quote

MOQ : 1 Piece

Fully Automatic Self Adhesive BOPP Tape Coating Machine Specification

Coating Format
Roll-to-Roll

Varnish Type
Water-Based Acrylic Adhesive

Max. Sheet Area
Up to 1600 mm

Max. Coating Area
Full Web Width

Power Requirement
140 220 kW

Registration
Automatic Web Alignment

Feeding Type
Automatic Continuous Roll Feeding

Coating Transfer Method
Gravure, Mayer Bar or Customized Precision Coating

Sheet Thickness
20 50 Microns

Min. Sheet Area
As per Customer Requirement

Coating Type
BOPP Pressure-Sensitive Adhesive Coating

Machine Speed
Up to 150 m/m

Product Type
Fully Automatic Self-Adhesive BOPP Tape Coating Machine

General Use
Fully Automatic Manufacturing of Self-Adhesive BOPP Tape

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
14000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Other

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Bopp Film

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
140 220 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
2200 500 520 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Blue, White or Customized

Warranty
1 Year

Fully Automatic Self Adhesive BOPP Tape Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. The coating head, adhesive-contact rollers, drying chamber, cooling rollers, unwinders, rewinders, motors, drives, sensors and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Asia, Australia, Central America, Eastern Europe, Western Europe, Africa, South America, North America, Middle East

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Fully Automatic Self Adhesive BOPP Tape Coating Machine About

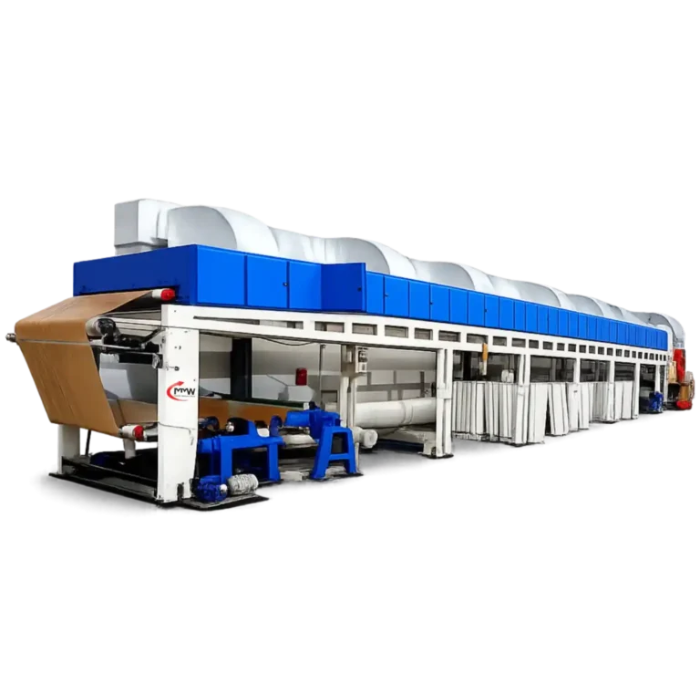

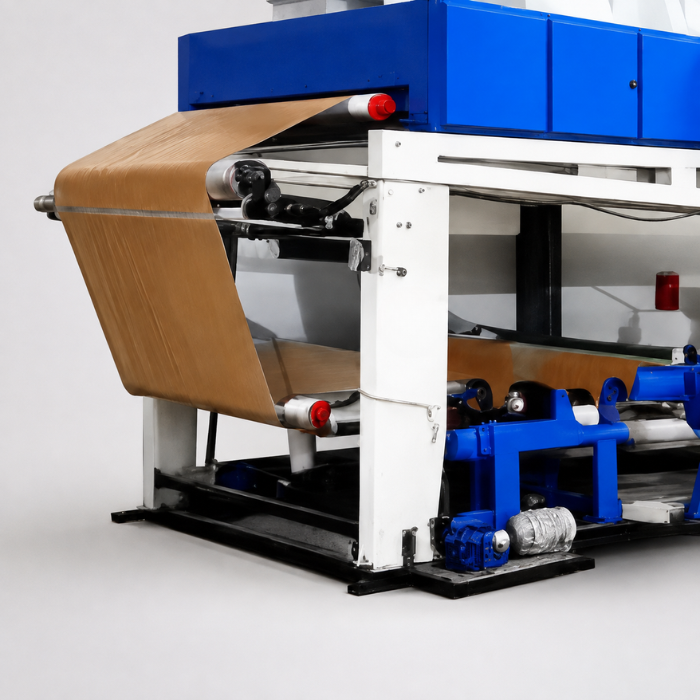

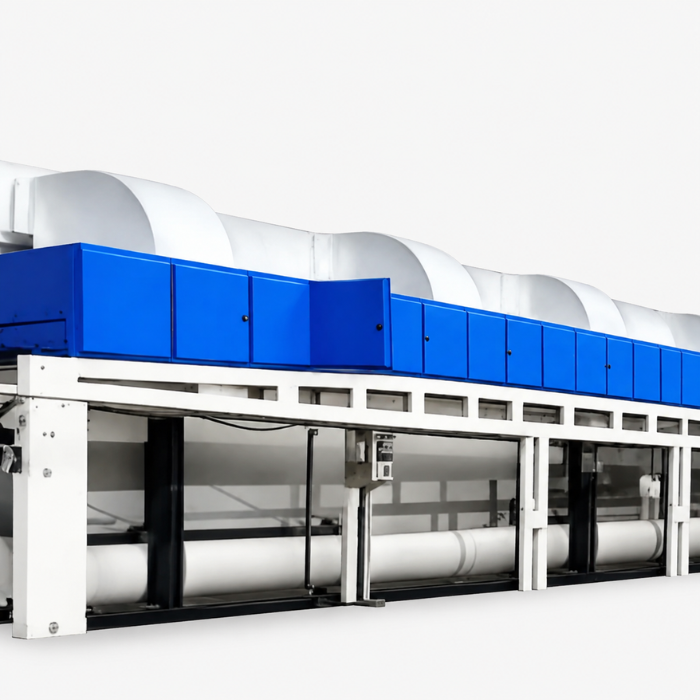

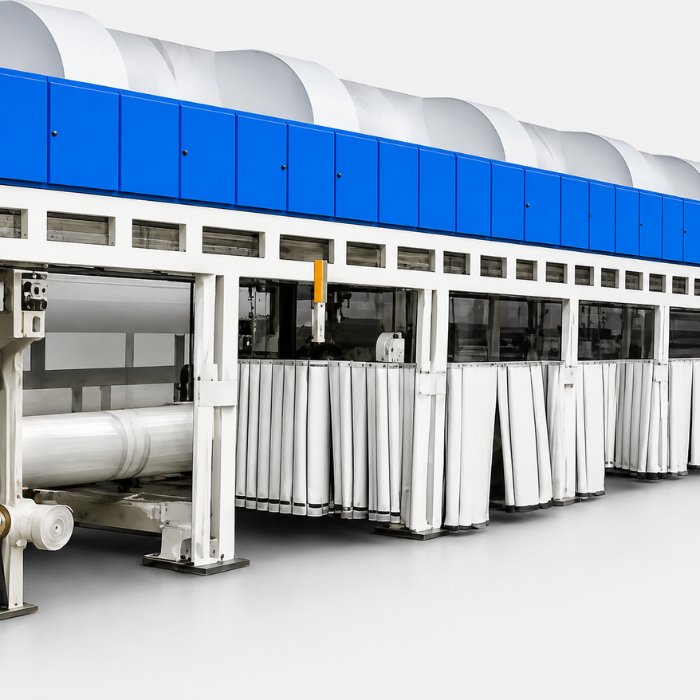

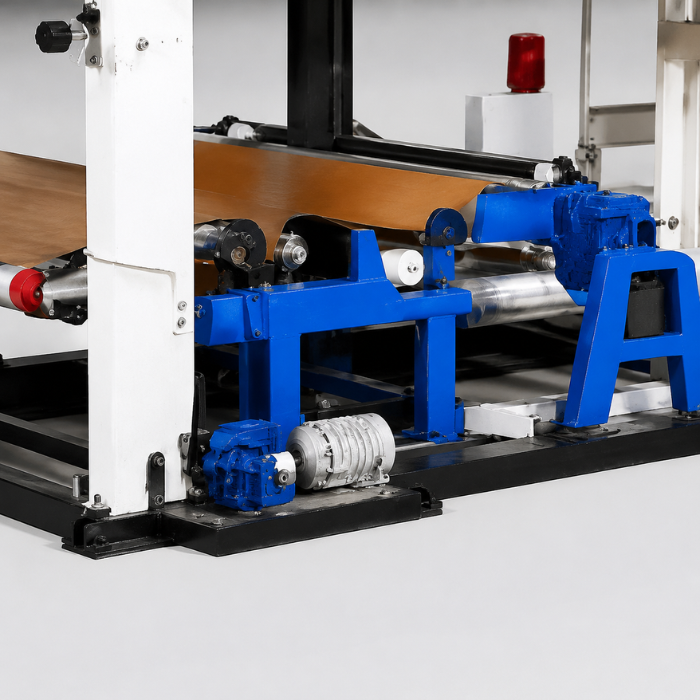

The Fully Automatic Self-Adhesive BOPP Tape Coating Machine is designed for high-volume production of adhesive-coated BOPP jumbo rolls. The machine applies a precise and consistent layer of pressure-sensitive adhesive onto transparent, brown, coloured or printed BOPP film.

Its integrated roll-to-roll system combines automatic unwinding, closed-loop web-tension control, precision adhesive coating, multi-zone hot-air drying, film cooling and controlled jumbo-roll rewinding. PLC and HMI controls allow operators to monitor speed, tension, temperature and other production parameters from a centralized control panel.

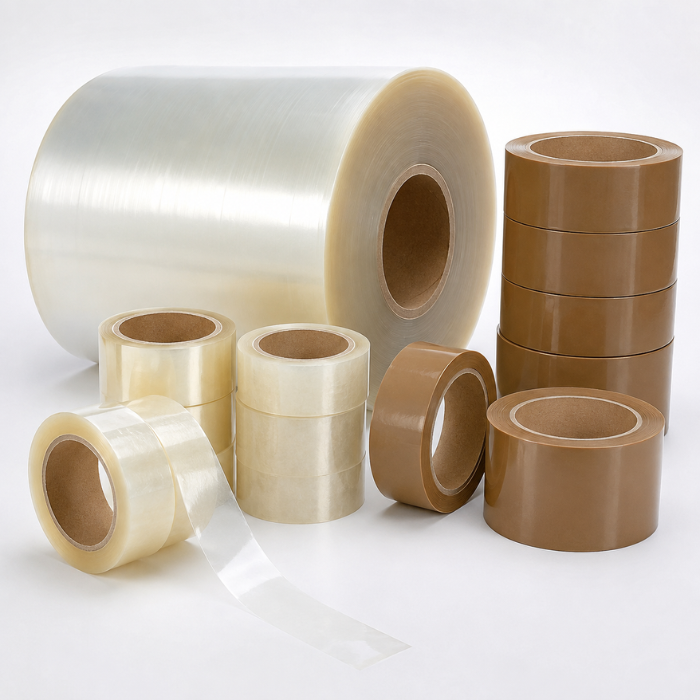

The coated jumbo rolls can subsequently be converted into transparent tape, brown packing tape, printed tape, coloured tape and industrial carton-sealing tape using a suitable slitting and rewinding machine.
