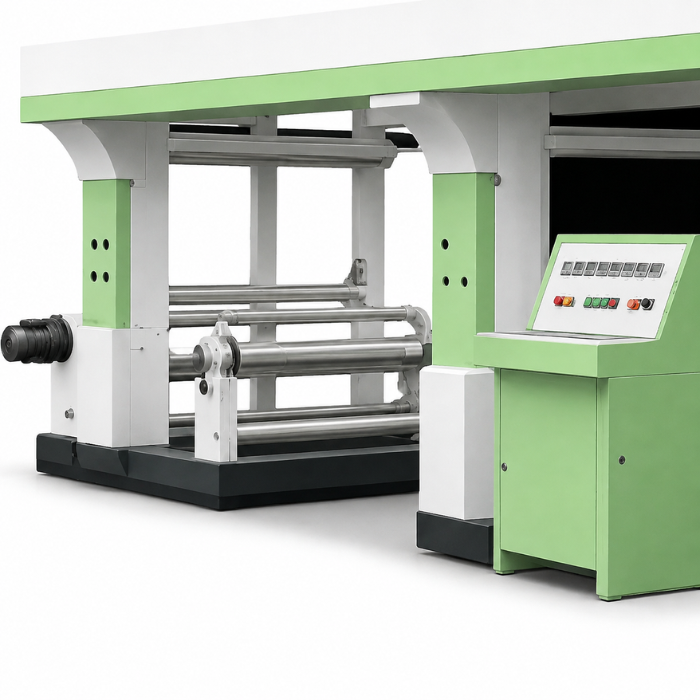

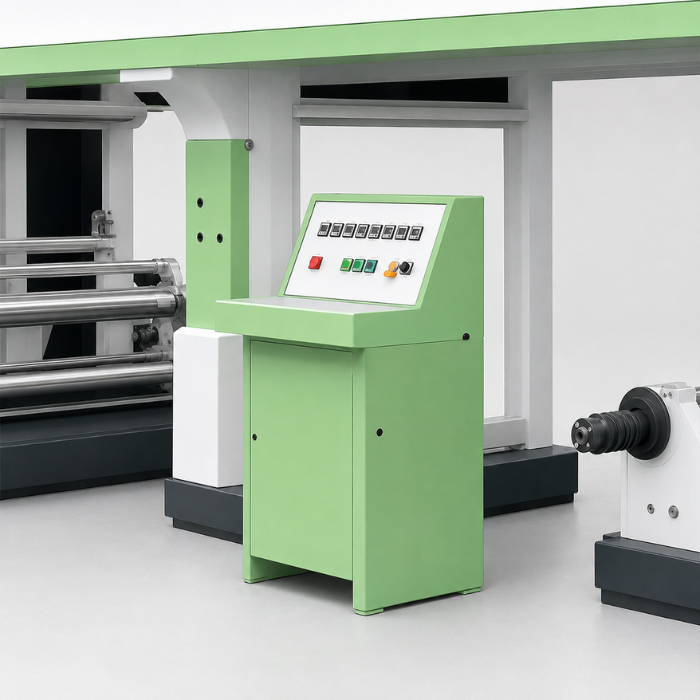

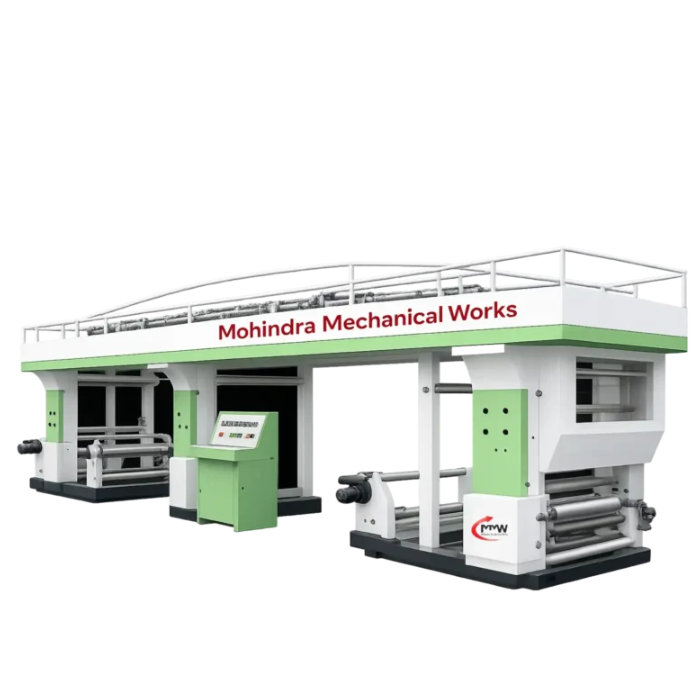

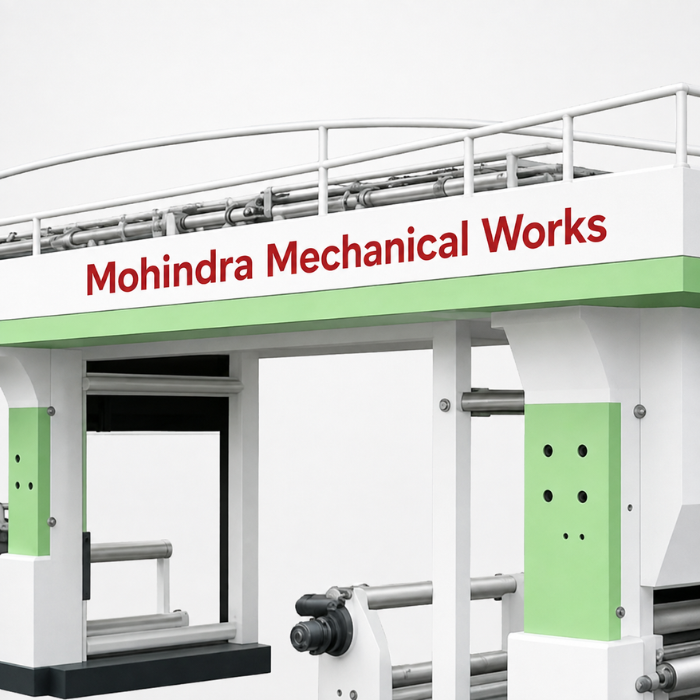

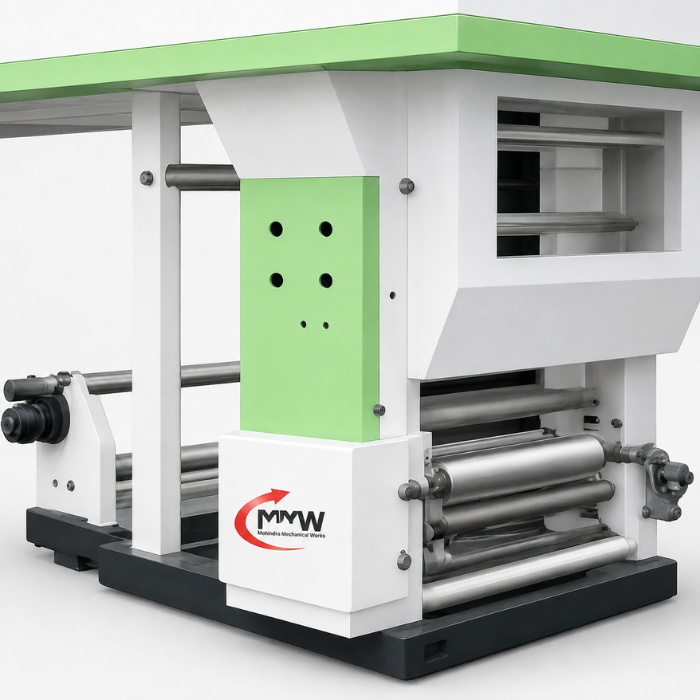

Induction Wads Lamination Machine

Name: Induction Wads Lamination Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 1300000.0 INR
Availability: InStock

Price 1300000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Induction Wads Lamination Machine Specification

Membrance Core Size
3 Inches or 6 Inches

Max Lamination Temp
180 C

Max Film Width
1600 mm

Lamination Speed
Up to 100 Metres per Minute

Product Type
Wax Lamination Machine

Material
Aluminium Foil, Paperboard, Foam and Film

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Pneumatic

Heating System
Other

Power Source
Electric

Voltage
440v Volt (v)

Weight (kg)
10000 Kilograms (kg)

Dimension (L*W*H)
1600 450 480 Centimeter (cm)

Capacity
300 Kg/hr

Feature
High Efficiency, Low Noise, Lower Energy Consumption, Touch Screen, Simple Control, High Performance, ECO Friendly

Color
White and Blue or Customized

Warranty
1 Year

Type of Rollers
Chrome-Plated Steel and Rubber Nip Rollers

Speed
100 m/m

Input Paper Size
Up to 1600 mm Roll Width

Suitable Paper
Pulpboard, Duplex Board, Coated Paper and Glassine Paper

Induction Wads Lamination Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Lamination assemblies, precision rollers, heating units, unwinders, rewinders, electrical panels, motors and sensitive components are properly protected. Major sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Induction Wads Lamination Machine About

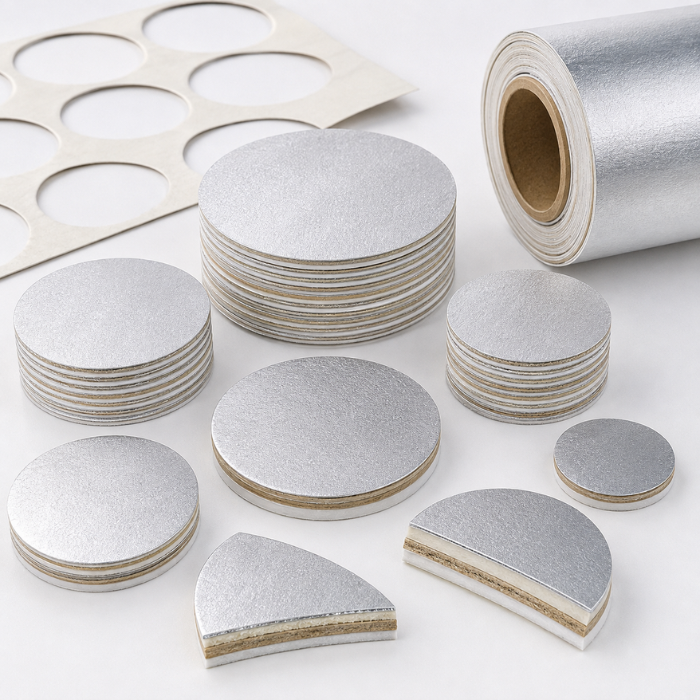

The Induction Wads Lamination Machine is designed for producing multilayer roll stock used to manufacture induction-sealing wads and cap liners. It combines aluminium foil with suitable backing materials through a controlled roll-to-roll lamination process. Accurate web tension, uniform adhesive or wax application, controlled heating and smooth rewinding help produce consistent laminated material for subsequent slitting and wad-punching operations.

The machine can be configured for pulpboard, paper, foam, film and other compatible backing materials according to the required liner construction.
