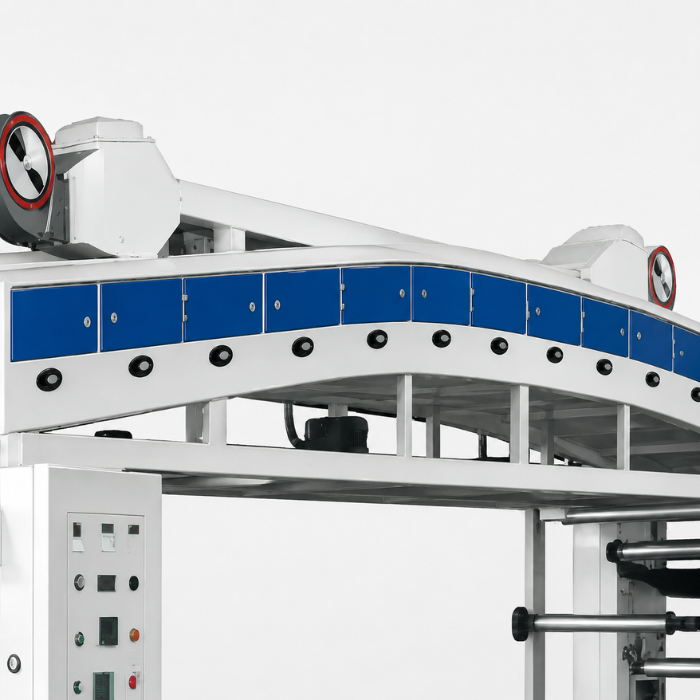

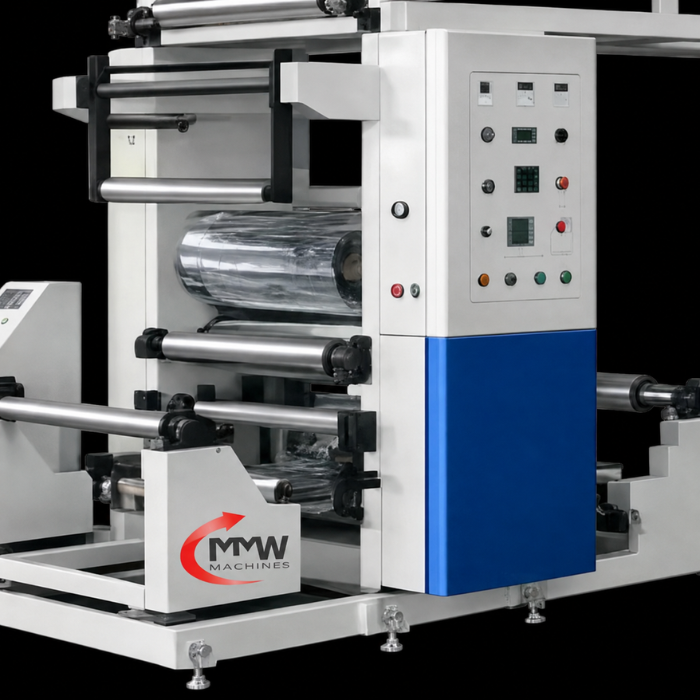

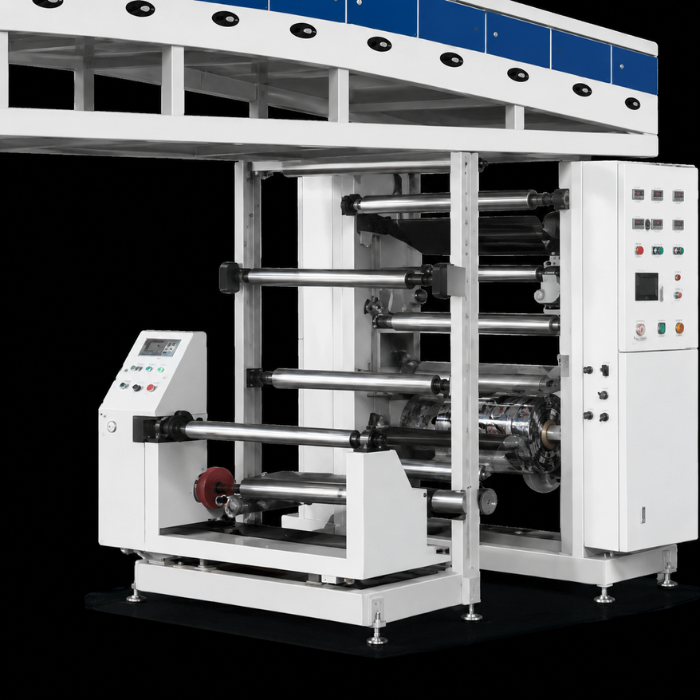

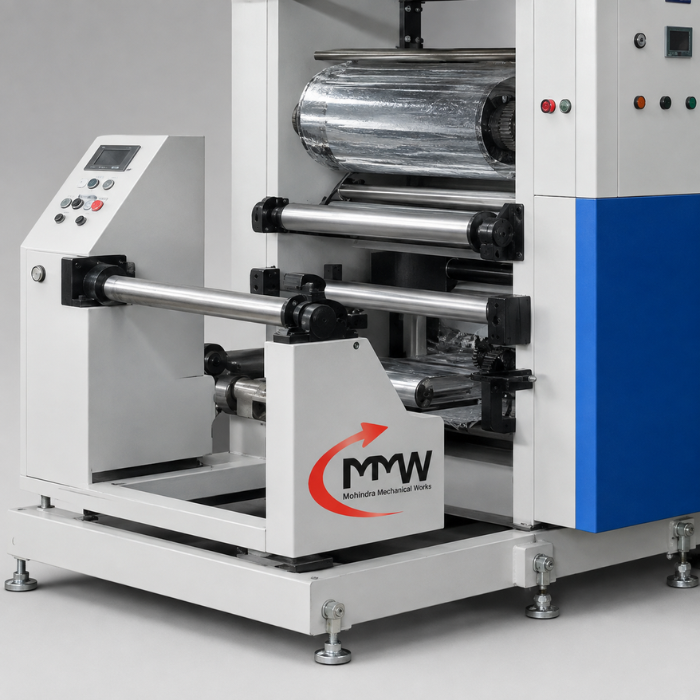

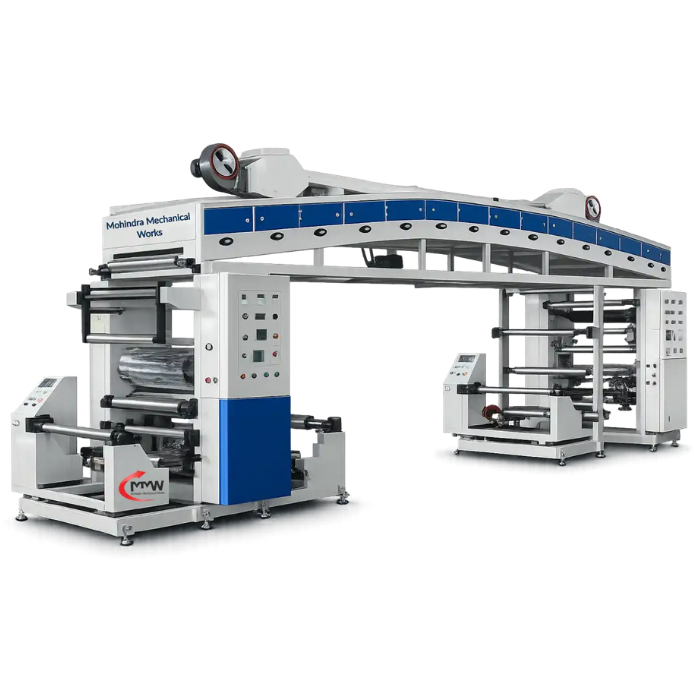

Induction Wads Wax Coating Lamination Machine

Send Inquiry

Request To Call Back

Induction Wads Wax Coating Lamination Machine

Name: Induction Wads Wax Coating Lamination Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 1300000.0 INR
Availability: InStock

Price 1300000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Induction Wads Wax Coating Lamination Machine Specification

Coating Type
Hot-Melt Wax Coating

Registration
Automatic Web Alignment

Power Requirement
100 180 kW

Max. Coating Area
Full Web Width

Sheet Thickness
0.2 2.5 mm

Max. Sheet Area
22 Inch

Coating Format
Roll-to-Roll

Varnish Type
Foil-to-Paperboard, Pulp Board or Foam

Feeding Type
Continuous Roll Feeding

Coating Transfer Method
Heated Roller Coating

Min. Sheet Area
As per Customer Requirement

Machine Speed
Up to 80 m/m

Product Type
Induction Wads Wax Coating Lamination Machine

General Use
Producing Wax-Bonded Laminated Material for Induction Wads

Material
Stainless Steel

Type
Adhesive Coating Machine, Industrial Coating Machine

Weight (kg)
12000 Kilograms (kg)

Coating Speed
Up to 80 m/m

Coating Head
Other

Coating Width
Up to 1300 Millimeter (mm)

Coating Material
Other

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
100 180 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440 Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1300 Millimeter (mm)

Unwinding Width
Up to 1300 Millimeter (mm)

Dimension (L*W*H)
1400 400 450 Centimeter (cm)

Feature
Coating, Low Energy Consumption, High Speed, High Precision

Color
White, Blue or Customized

Warranty
1 Year

Induction Wads Wax Coating Lamination Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Wax-melting equipment, heated rollers, lamination units, unwinders, rewinder, electrical panels and motors are properly protected. Major machine sections are securely fastened on wooden or steel supports for transportation by road or sea.

Main Export Market(s)
Middle East, Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Induction Wads Wax Coating Lamination Machine About

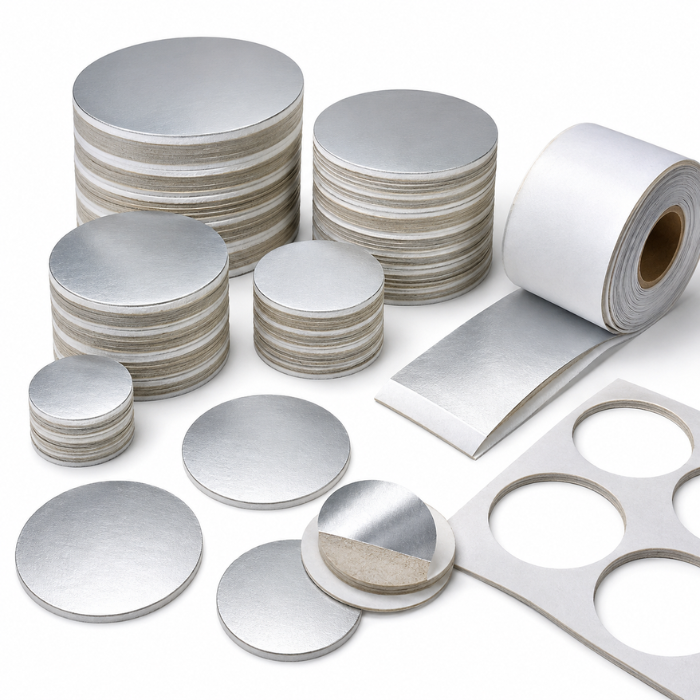

The Induction Wads Wax Coating Lamination Machine coats wax onto induction foil and bonds it with pulp board, paperboard or foam backing. Accurate heating, lamination pressure and web control help produce consistent liner-stock rolls for two-piece induction sealing wads.
