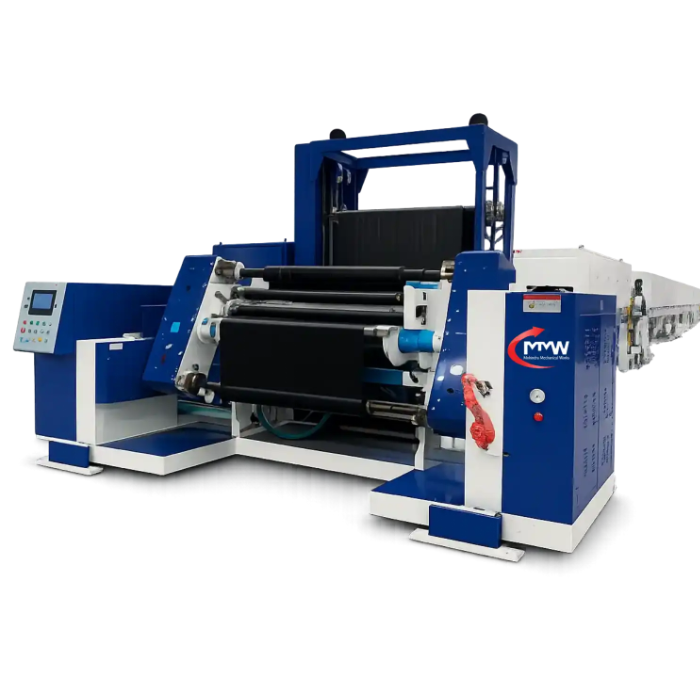

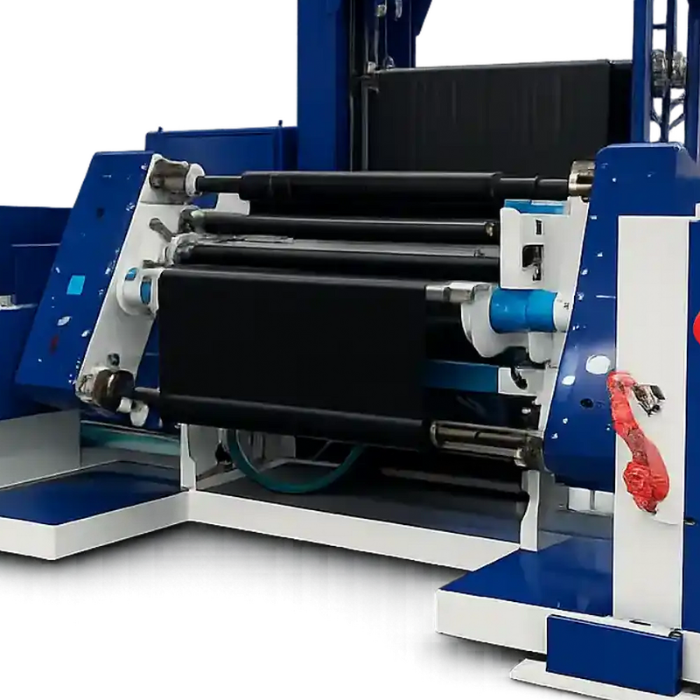

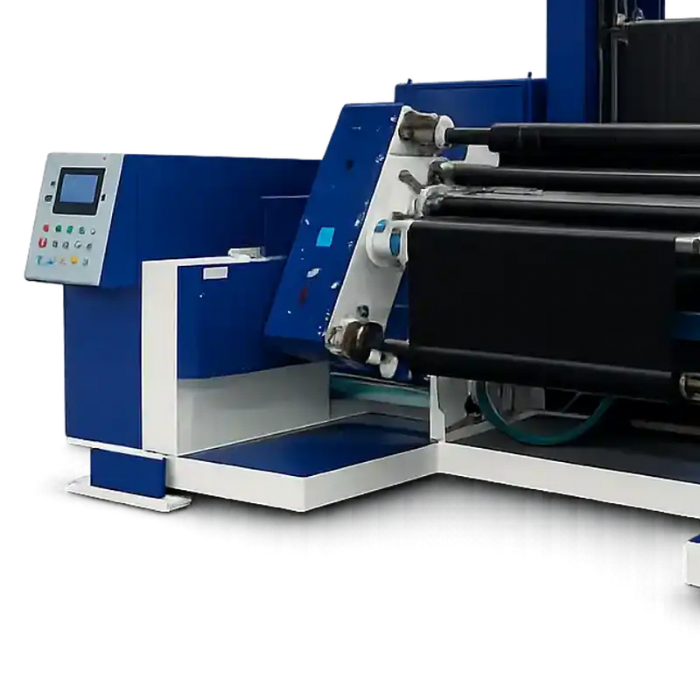

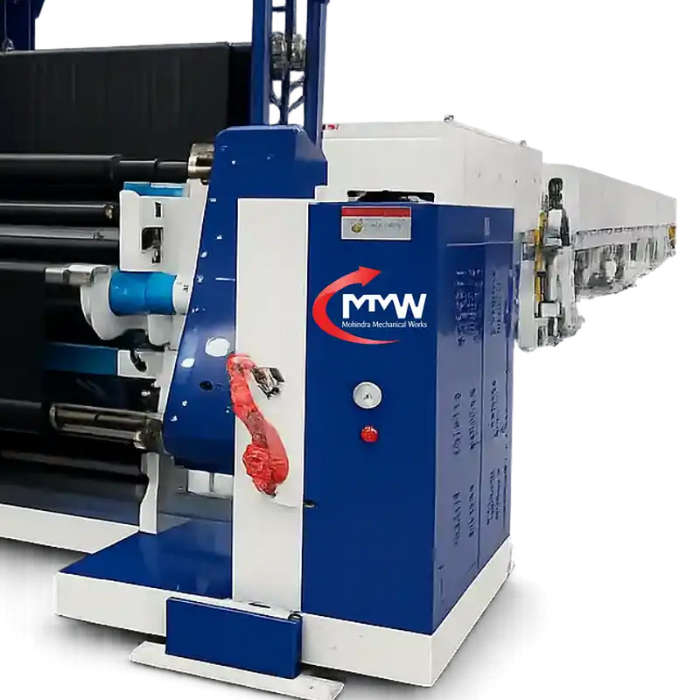

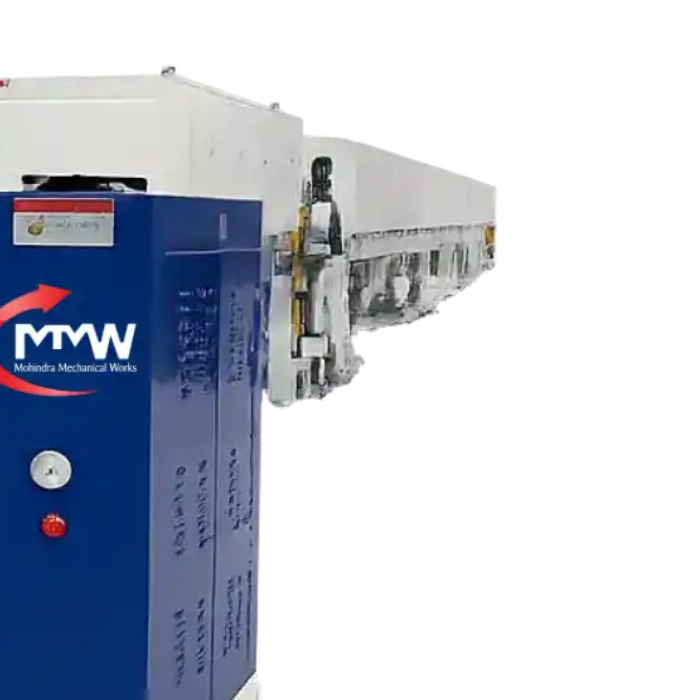

Aluminum Foil Tape Coating Machine

Name: Aluminum Foil Tape Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 2000000.0 INR
Availability: InStock

Price 2000000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Aluminum Foil Tape Coating Machine Specification

Coating Transfer Method
Comma or Gravure Coating

Feeding Type
Continuous Roll Feeding

Machine Speed
Up to 100 m/m

Power Requirement
80 150 kW

Varnish Type
Adhesive Coating

Coating Type
Pressure-Sensitive Adhesive Coating

Min. Sheet Area
As per Customer Requirement

Sheet Thickness
20 100 Microns

Max. Sheet Area
32 Inches

Coating Format
Roll-to-Roll

Registration
Automatic Web Alignment

Max. Coating Area
Full Web Width

Product Type
Aluminum Foil Tape Coating Machine

General Use
Applying Pressure-Sensitive Adhesive on Aluminium Foil

Material
Stainless Steel

Type
Adhesive Coating Machine, Industrial Coating Machine

Weight (kg)
8000 Kilograms (kg)

Coating Speed
Up to 100 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
80 150 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1300 Millimeter (mm)

Unwinding Width
Up to 1300 Millimeter (mm)

Dimension (L*W*H)
1400 380 400 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Blue, White or Customized

Warranty
1 Year

Aluminum Foil Tape Coating Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Units Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Electrical panels, coating components, precision rollers and motors are securely protected. Major sections are fastened on wooden or steel supports for domestic or export transportation.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Aluminum Foil Tape Coating Machine About

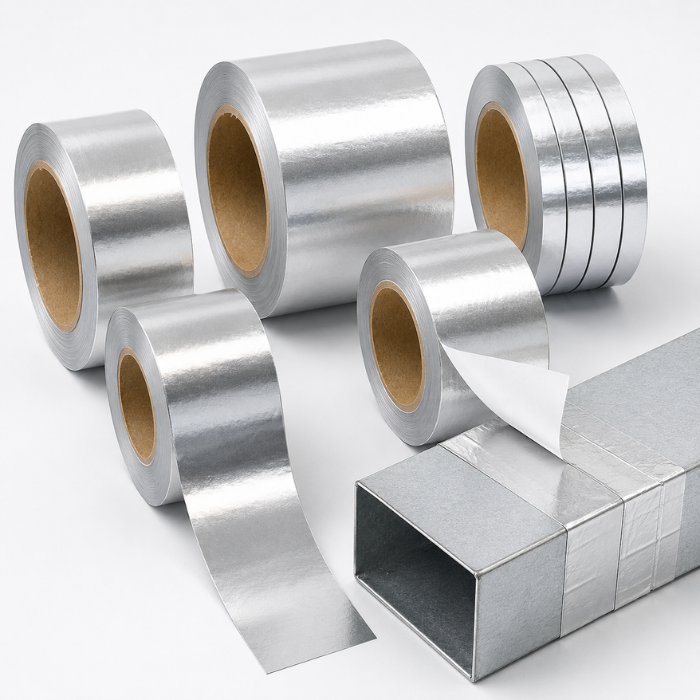

The Aluminum Foil Tape Coating Machine manufactured by Mohindra Mechanical Works is designed for applying a controlled adhesive layer onto aluminium foil and foil-laminated substrates. It produces pressure-sensitive adhesive material used for HVAC duct sealing, thermal insulation, electrical applications, refrigeration and industrial repair work.

The machine operates through a continuous roll-to-roll process comprising automatic unwinding, adhesive coating, controlled hot-air drying and uniform rewinding. Its precision coating arrangement maintains consistent adhesive thickness across the working width. PLC-based controls allow operators to manage coating speed, web tension and drying temperature. The working width, drying length and coating system can be customized according to the adhesive formulation and required production capacity.
