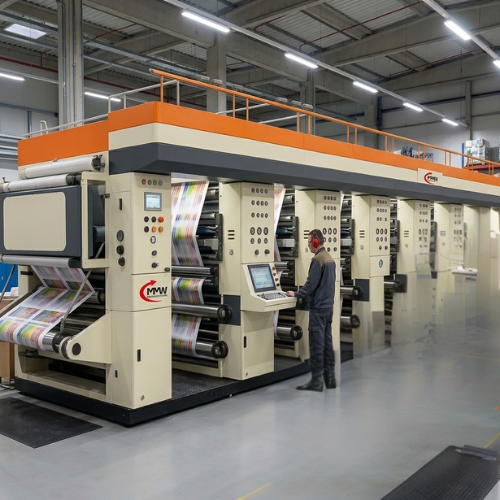

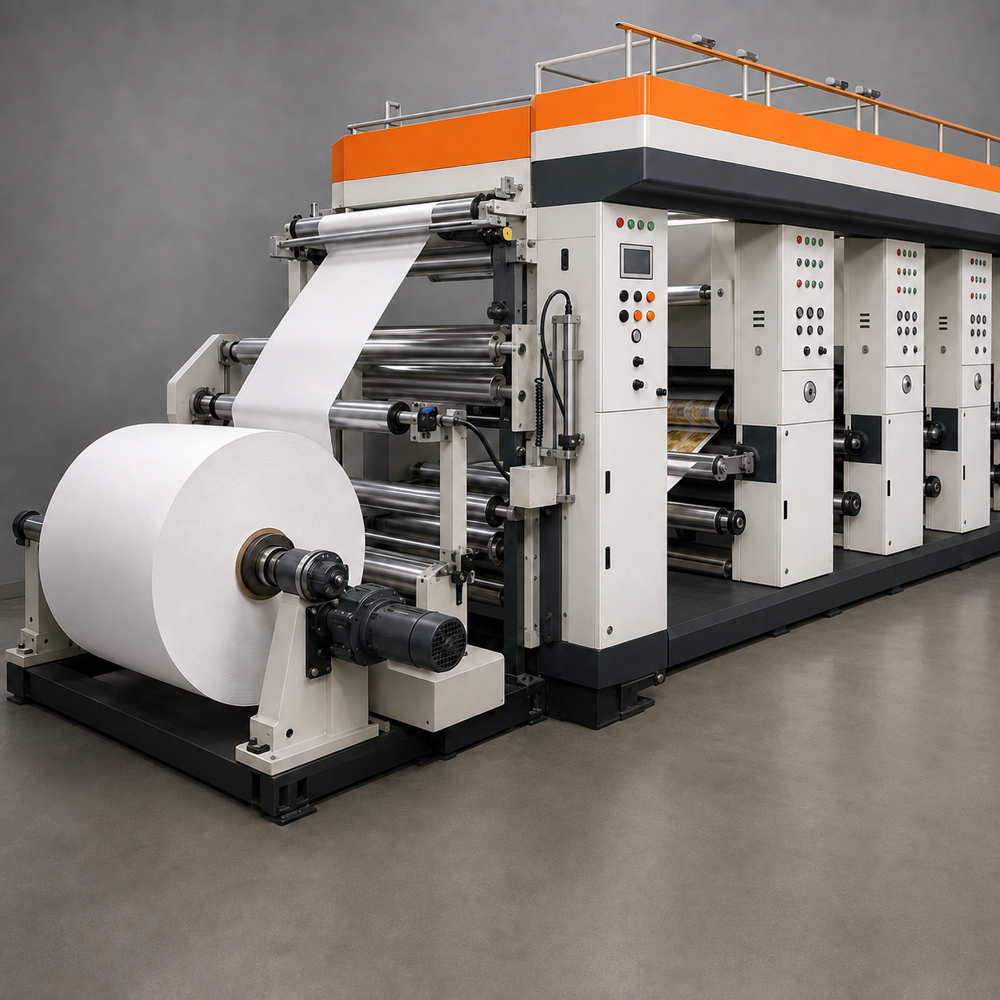

Our experts ensure quality assured Paper Printing Machine and provide complete satisfaction to our clients. This machine is efficiently manufactured at our well versed production unit using quality approved components and contemporary techniques in adherence with set international standards. It is an ideal machine for imparting attractive images and prints on paper. In order to meet various preferences of our customers, this Paper Printing Machine can be availed from us in diverse specifications at feasible prices.
Well-suited for variety of printing surfaces
Consistent printing quality throughout the extended service life
Easy changeover of printing rolls with automatic unwinding
Built-in temperature control system for hassle-free drying of inks

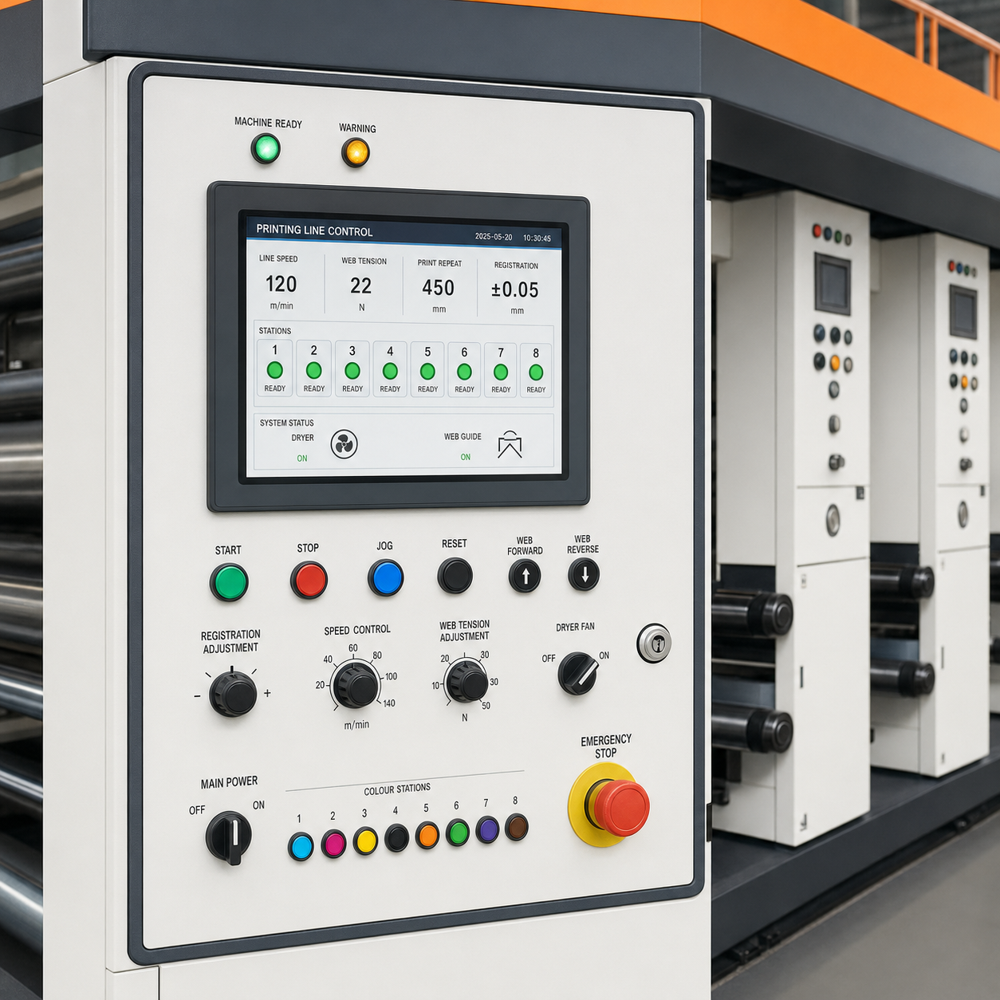

PLC based unit for hassle-free and automatic operations
Printing material: - Film, paper, aluminum foil, pet, bopp, pvcfilm, polyster, bolyster, poly, matelized film etc
Number of colors: - 1 - 8 colors
Web Width:- 20" to 80"
Web roller:- Aluminum rollers or steel rollers
Machine speed:- Up to 250 m/min
Unwind type: - Single fixed shaft type or 2 shaft turret type unwind
Reel diameter: - 1000 mm(approx)
Unwind shaft: - Air shaft, tapper cone with solid shaft or shaft ness
Tension controller: - Manually & auto registration control system (A.C. Motor)
In feed unit:-
Synchronized control (A.C. Motor)
Frame:- Cast iron
Cylinder :- Diameter - 100 mm to 300 mm
Chucking :- Shaft with taper cone
Drying system :- Single chamber impingement slot dryer (electric, thermic oil, hot air generator, etc.)'
Doctor Blade :- Manual &numetic doctor blades
Ink system :- S. S. ink tray
Registration system:- Manually & auto registration control system
Out feed unit:- Synchronized control (A.C. Motor)
Reel diameter :- 1000 mm(approx)
Rewind shaft :- Air shaft, taper cone with solid shaft or shaft ness
Tension controller :- Manual & Fully automatic control system (A.C. Motor)
Suitable for roller to roller printing plastic film, BOPP, PET, PVC, PVC Foil, aluminum Foil, PE, CPP and Paper etc. It is extensively used in high quality packaging material printing.
