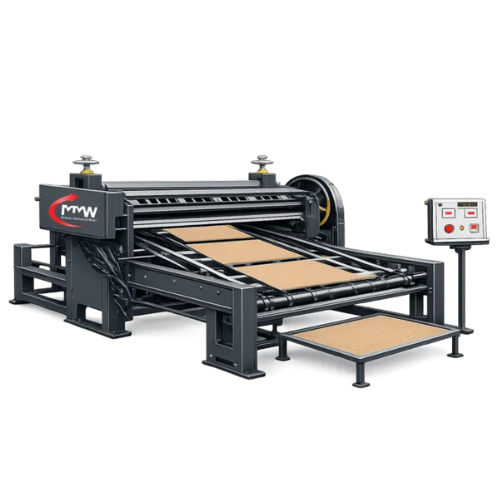

High Speed Automatic Paper Reel to Sheet Cutting Machine

Send Inquiry

Request To Call Back

High Speed Automatic Paper Reel to Sheet Cutting Machine

Name: High Speed Automatic Paper Reel to Sheet Cutting Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 225000.0 INR
Availability: InStock

Price 225000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

High Speed Automatic Paper Reel to Sheet Cutting Machine Specification

Drive Motor
AC Synchronous Motor

Product Type
Reel to Sheet Paper Cutting Machine

General Use
For converting paper reels to sheets

Material
Steel

Type
Automatic Cutting Machine

Capacity
2 to 5 Tons per shift Pcs/min

Weight (kg)
3500-5000 kg approx. Kilograms (kg)

Computerized
No

Automatic
Yes

Cutting Speed
80-200 cuts/min mm/m

Cutting Thickness
0.02 mm to 0.50 mm Millimeter (mm)

Cutting Function
Full Automatic

BladeSize
1400 mm

Cooling System
Other

Drive Type
Electric

Voltage
220V / 380V / 415V (customized) Volt (v)

Dimension (L*W*H)
7500 mm x 2400 mm x 2200 mm Millimeter (mm)

Feature
Automatic Feeding, Low Noise, High Efficiency, Low Energy Consumption, Good Quality, High Torque, Environmental Friendly

Color
White

Warranty
1 year

Motor
Main Drive AC Motor 5-7.5 HP

Mechanical Precision
0.5 mm

Software Detail
PLC based control

Cutting Method
Rotary / Guillotine Blade

Control System
Microprocessor / PLC based

Cutting Area
1400 Square Millimeter (mm2)

Cutting Material
Paper, Board, Laminates

Production Line Integration
Compatible with inline printing or packaging units

Max Sheet Length
1800 mm

Cutting Accuracy
0.3 mm (with servo version)

Material Handling
Auto loading/unloading platform

Min Sheet Length
400 mm

Sheet Stacking
Automatic stacking with adjustable jogger

Operating Temperature Range
5C - 45C

Power Consumption
4~7.5 kW (varies by model)

Max Reel Diameter
1200 mm (standard)

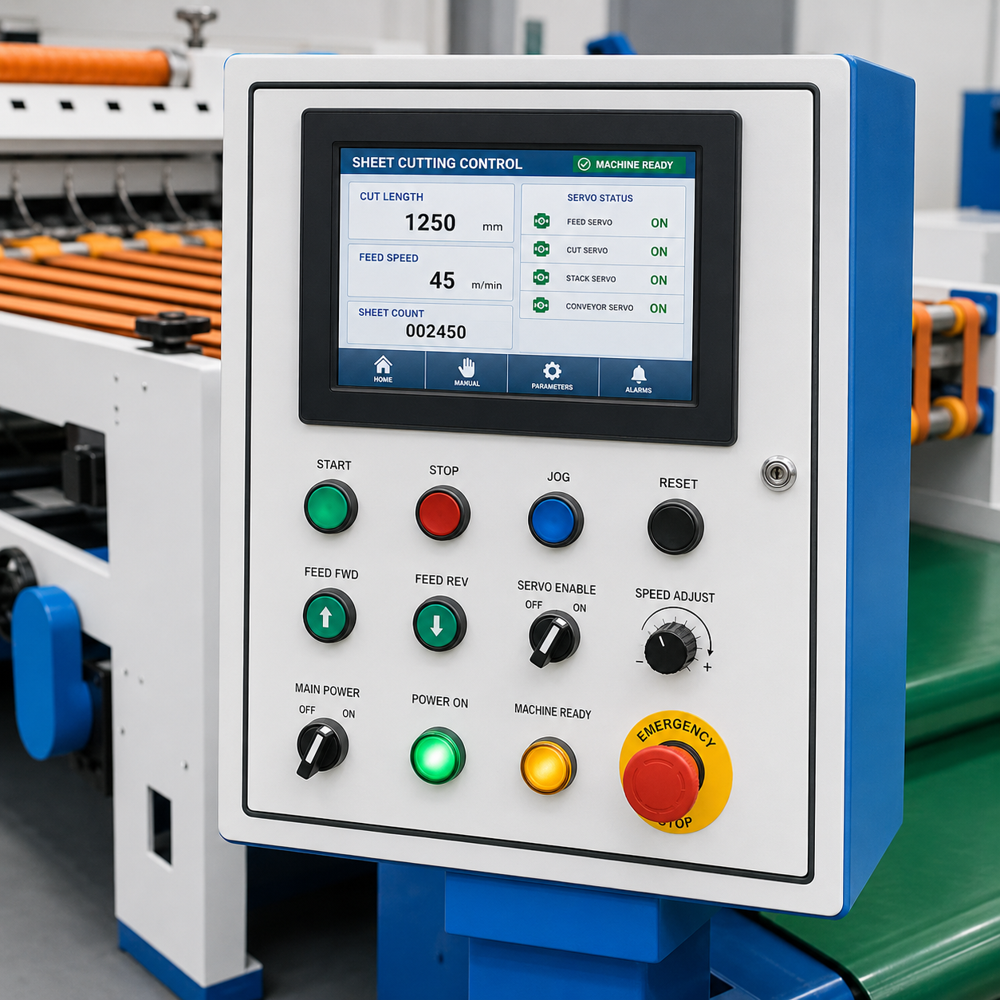

Operator Panel
Digital Touch Screen Display

Lubrication System
Automatic Lubrication available as option

Safety Features
Emergency stop, overload protection, safety covers

Blade Changing Time
<10 Minutes (quick-change design)

Noise Level
Less than 80 dB

High Speed Automatic Paper Reel to Sheet Cutting Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mundra Port / Nhava Sheva Port

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The Paper Reel to Sheet Cutting Machine is securely packed using waterproof protective wrapping, wooden supports and export-quality packaging materials. The cutting unit, servo drive, feeding rollers, electrical panel and conveyor section are properly covered to prevent damage during transportation.

Main Export Market(s)
Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
Delhi

Certifications
ISO Certified Company | Made in India Machinery

About High Speed Automatic Paper Reel to Sheet Cutting Machine

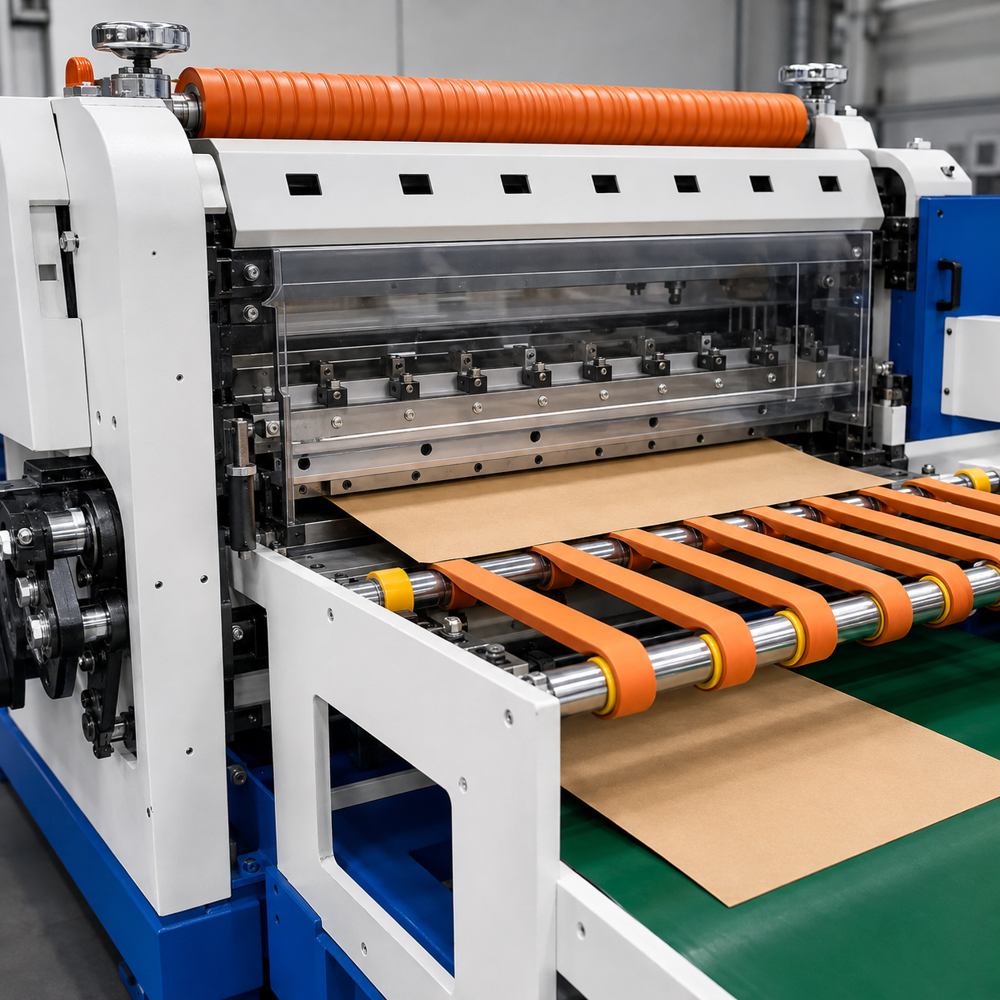

Mohindra Mechanical Works manufactures High Speed Automatic Paper Reel to Sheet Cutting Machines for converting continuous paper reels into accurately sized sheets. The machine uses synchronized feeding rollers, servo-controlled material movement and a precision cutting mechanism to maintain consistent sheet length during continuous production.

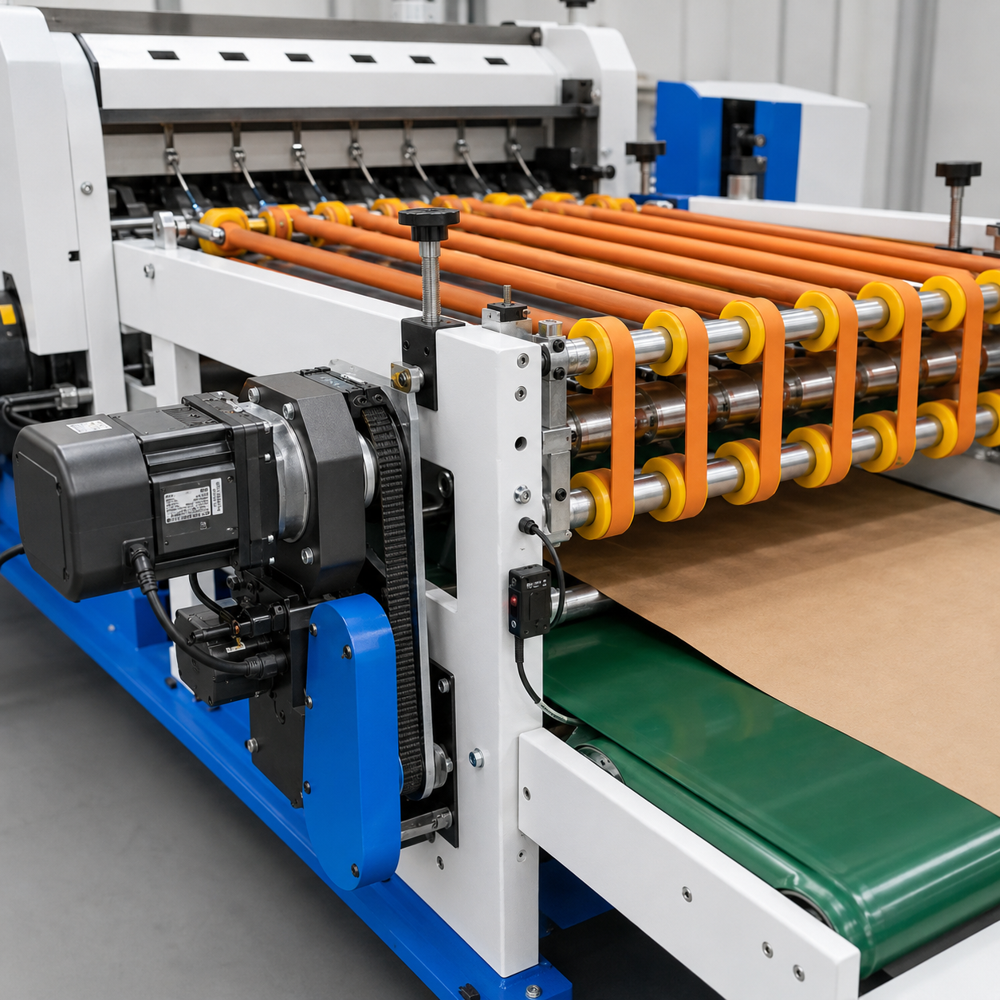

Its automatic feeding system guides the paper smoothly into the cutting section, while the conveyor transfers finished sheets to the collection table. The machine is suitable for kraft paper, coated paper, laminated paper, packaging paper and paperboard used by printing, packaging and paper-converting industries.

Key Features
