Paper Roll To Sheet Cutting Machinery

Name: Paper Roll To Sheet Cutting Machinery
Brand: MOHINDRA MECHANICAL WORKS
Price: 225000 INR
Availability: InStock

Price 225000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Paper Roll To Sheet Cutting Machinery Specification

Drive Motor
Servo motor for feed and cutting

Product Type
Industrial Paper Cutting Machinery

General Use
Converting paper rolls to sheets for packaging, printing, lamination

Material
Mild steel body, stainless steel rollers

Type
Automatic Sheet Cutting Machine

Capacity
Up to 25 cuts/min (depends on size & thickness)

Weight (kg)
Approx. 1900 kg

Computerized
Yes

Automatic
Yes

Cutting Speed
25-80 meters/min

Cutting Thickness
Up to 700 gsm or 6 mm

Cutting Function
Auto roll-to-sheet cutting

Cooling System
Air cooling

Drive Type
Electric motor-driven with gear transmission

Voltage
380V/440V, 3 Phase, 50 Hz

Dimension (L*W*H)
3500 x 2200 x 1800 mm

Feature
Heavy duty, low noise, high speed operation

Color
Industrial green/grey

Warranty
1 year

Motor
5 HP/7.5 HP AC motor

Mechanical Precision
0.5 mm

Software Detail
PLC embedded control system

Cutting Method
Rotary/guillotine knife

Control System
PLC controlled with Servo Drive

Cutting Area
Up to 1400 mm width (customizable)

Cutting Material
Paper, Craft, Duplex Board, Film

Noise Level
<75 dB

Operator Required
1 person

Max Cutting Length
1500 mm

Sheet Length Accuracy
0.2 mm

Min Cutting Length
350 mm

Blade Material
High speed steel (HSS)

Lubrication System
Semi-automatic

Safety Features
Emergency stop, overload relay

Power Consumption
6 kW

Changeover Time
10 min

Installation Service
Available on request

Optional Attachments
Sheet stacker, counter, conveyor

Feeding System
Web feeder with auto tension control

Max Roll Diameter
1200 mm

Paper Roll To Sheet Cutting Machinery Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
Delhi

About Paper Roll To Sheet Cutting Machinery

MOHINDRA Non-woven fabric roll to sheet cuttingmachine is design for non woven fabric sheet cutting. It is necessaryequipment for reel to sheet cutting of non woven fabric of any thickness. Itadopts servo motor (or stepless motor) for controlling constant-length cutting.It has the functions of easy operation, high precision, good stability, lownoise. (Pneumatic device is optional).

We present an exclusive range of rollto sheet cut machines is manufactured & supplied by out organization whichconsist of high graded raw materials. These machines are suitable for cut-offand rip cut of non woven and poly material. The major features of thesemachines include control of length fix and cut-off.

High-Precision Cutting

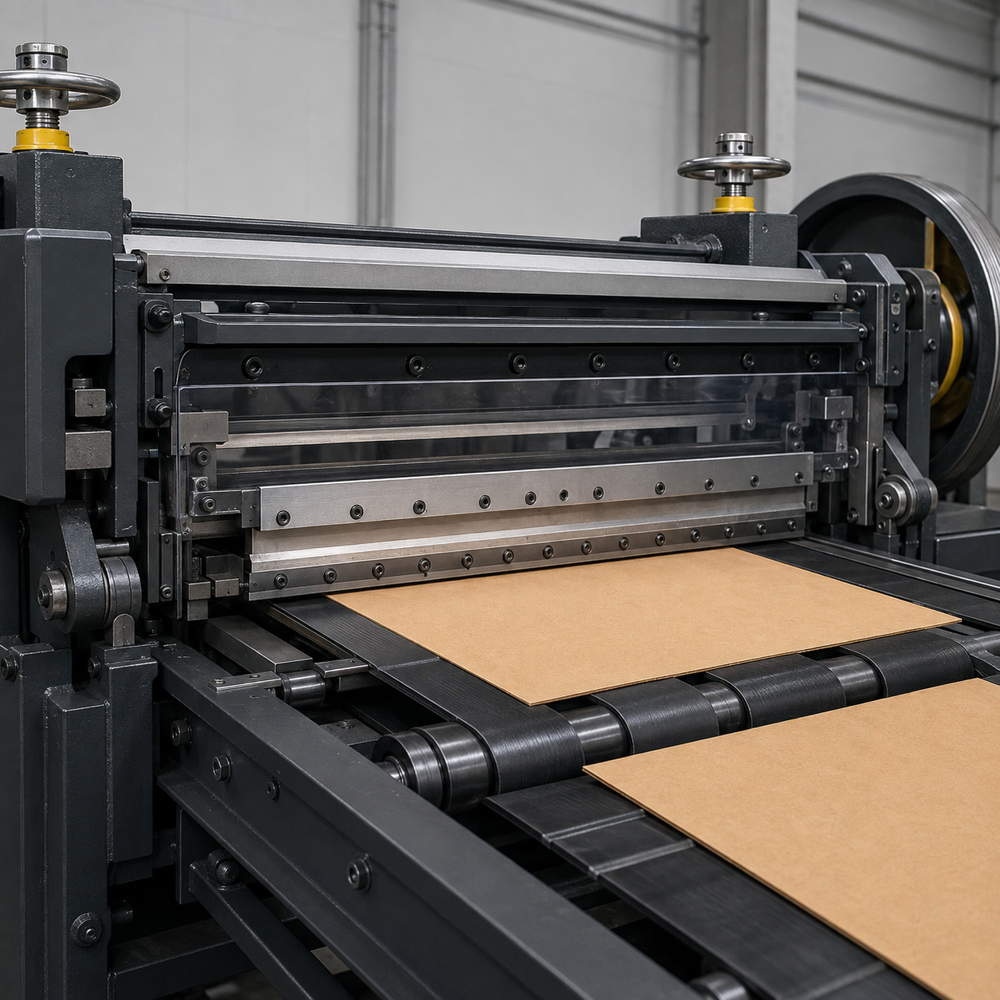

Engineered for mechanical precision up to 0.5 mm, this machine features a rotary or guillotine knife system, ensuring uniform sheets even at high speeds. The computerized PLC-embedded control system allows for adjustable cutting lengths and customizable width up to 1400 mm, accommodating diverse industrial requirements in packaging, printing, and lamination.

Superior Automation and Control

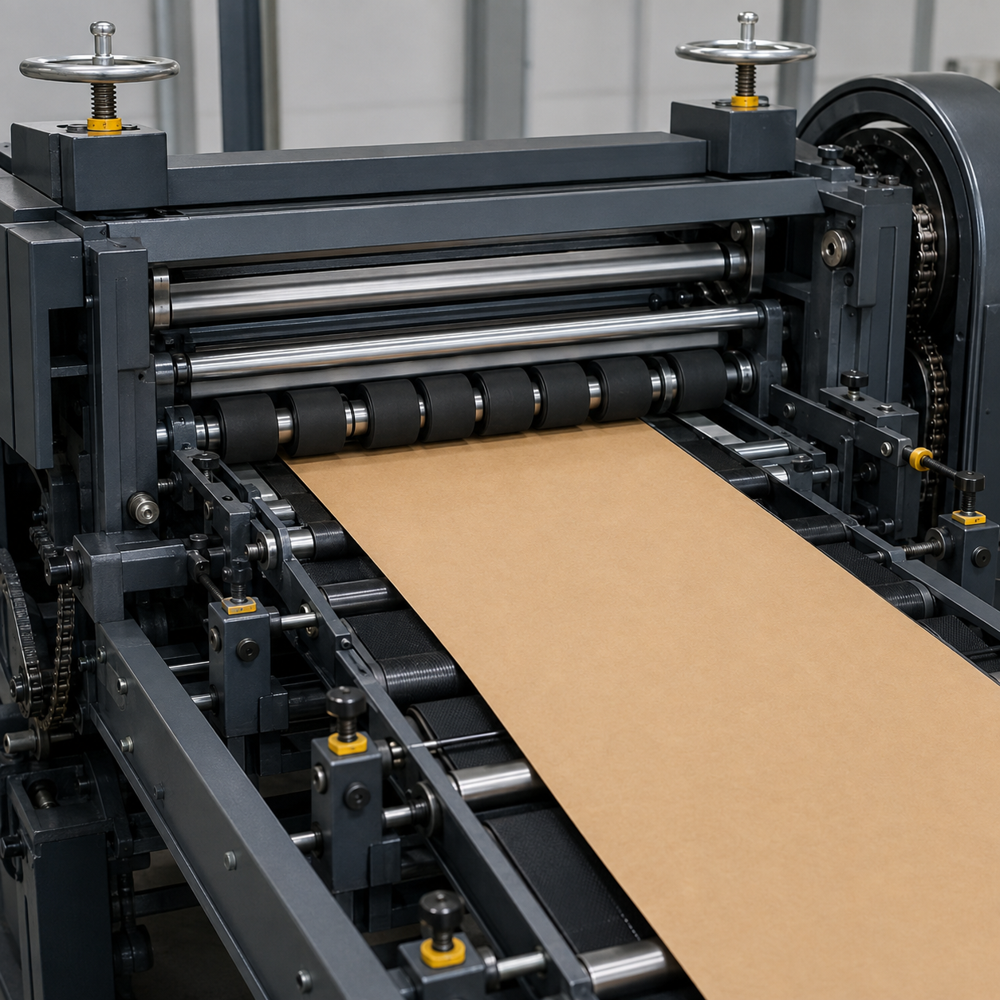

The automatic synchronized web feeding and servo motor-driven feed and cutting functions offer seamless operation. Hydraulic shaftless unwinder (optional) allows effortless roll loading. Digital length counter and PLC-controlled interface enhance operator convenience, enabling a single person to manage the whole process efficiently.

Safety and Serviceability

Prioritizing operator safety, this paper roll to sheet cutter includes robust safety features: emergency stop, safety guarding, and overload protection. Easy-access maintenance panels expedite servicing, while auto-lubrication reduces routine downtime, ensuring reliable and safe long-term performance.

FAQ's of Paper Roll To Sheet Cutting Machinery:

Q: How does the automatic web feeding system improve productivity in the sheet cutting process?

A: The automatic synchronized web feeding system continuously aligns and feeds the paper roll into the cutting section, minimizing manual intervention. This ensures consistent material movement, reducing downtime and increasing overall productivity during high-speed operations.

Q: What materials and thicknesses can this machine cut effectively?

A: The machine is capable of processing paper, craft, duplex board, and film materials, with maximum cutting thickness up to 700 gsm or 6 mm. Its heavy-duty stainless steel rollers and precise cutting mechanism guarantee clean, accurate cuts across various substrates.

Q: When do you need to use the hydraulic shaftless unwinder for paper loading?

A: The hydraulic shaftless unwinder is recommended when dealing with heavy or large rolls (up to 1200 mm diameter). It allows efficient, safe rollout and loading of material without the need for manual lifting, reducing strain and streamlining setup.

Q: Where is on-site installation and commissioning support available?

A: On-site support and commissioning is available for customers across India and for international clients upon request. Expert technicians will ensure proper set-up, testing, and training during installation to guarantee smooth operation from the outset.

Q: What are the key benefits of the machine's safety and maintenance features?

A: Key safety attributes include emergency stop, safety guarding, and overload protection, all essential for operator security. The auto-lubrication system and easy-access maintenance panels make servicing straightforward, reducing downtime and improving overall machine longevity.

Q: How does the PLC-based control system enhance operation and precision?

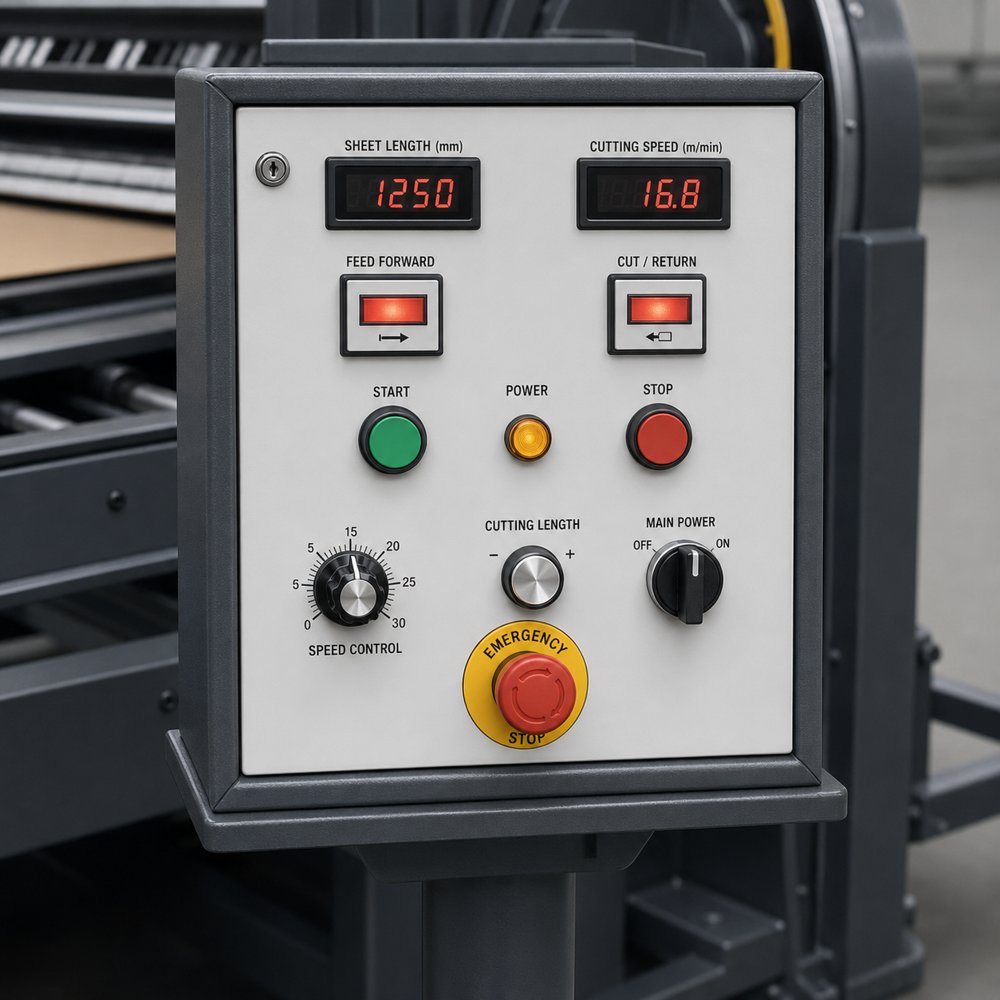

A: The embedded PLC control system with servo drive provides automated monitoring and adjustment of cutting parameters. This ensures precise, repeatable sheet lengths (within 0.5 mm tolerance), and allows operators to quickly set or modify cutting specifications using the digital interface.

Q: What usage scenarios typically benefit from this roll-to-sheet cutting machine?

A: Industries involved in packaging, printing, and lamination benefit significantly from this machinery, as it quickly and accurately converts large paper rolls to customizable sheets, supporting high-volume, versatile production demands.
