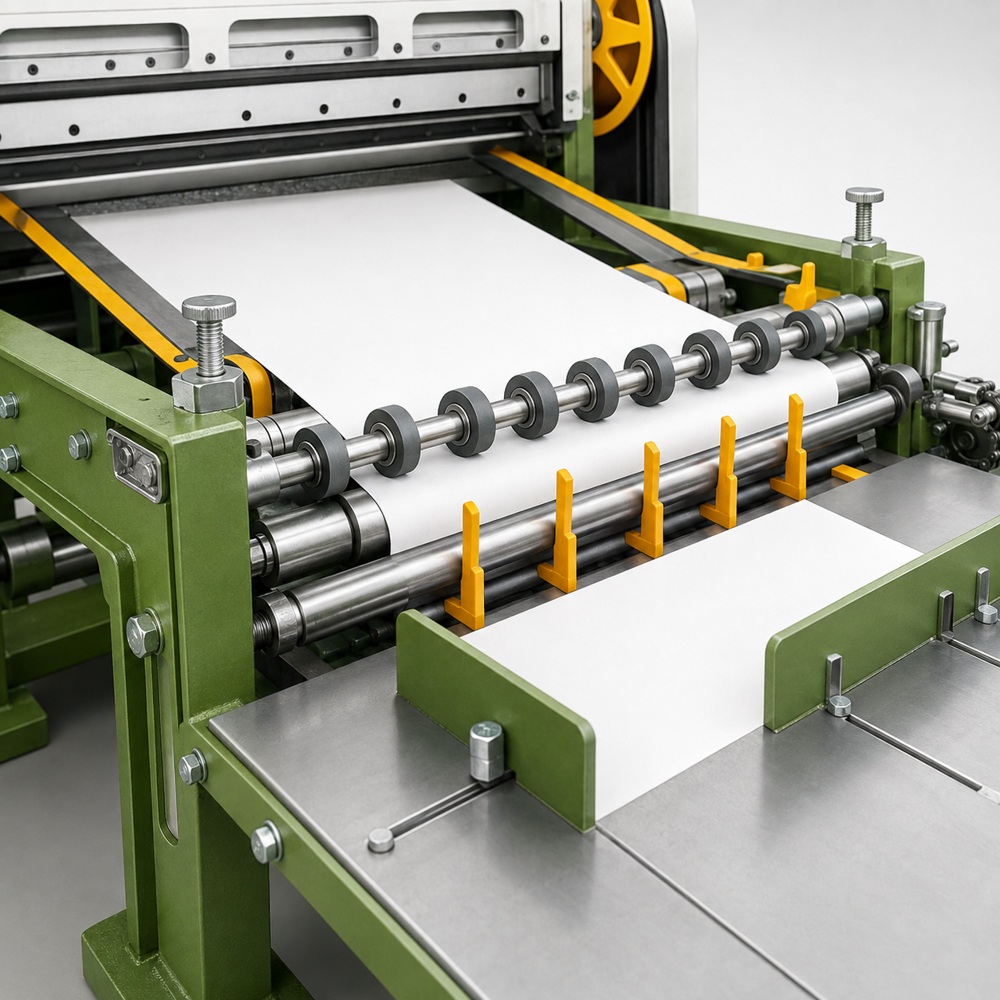

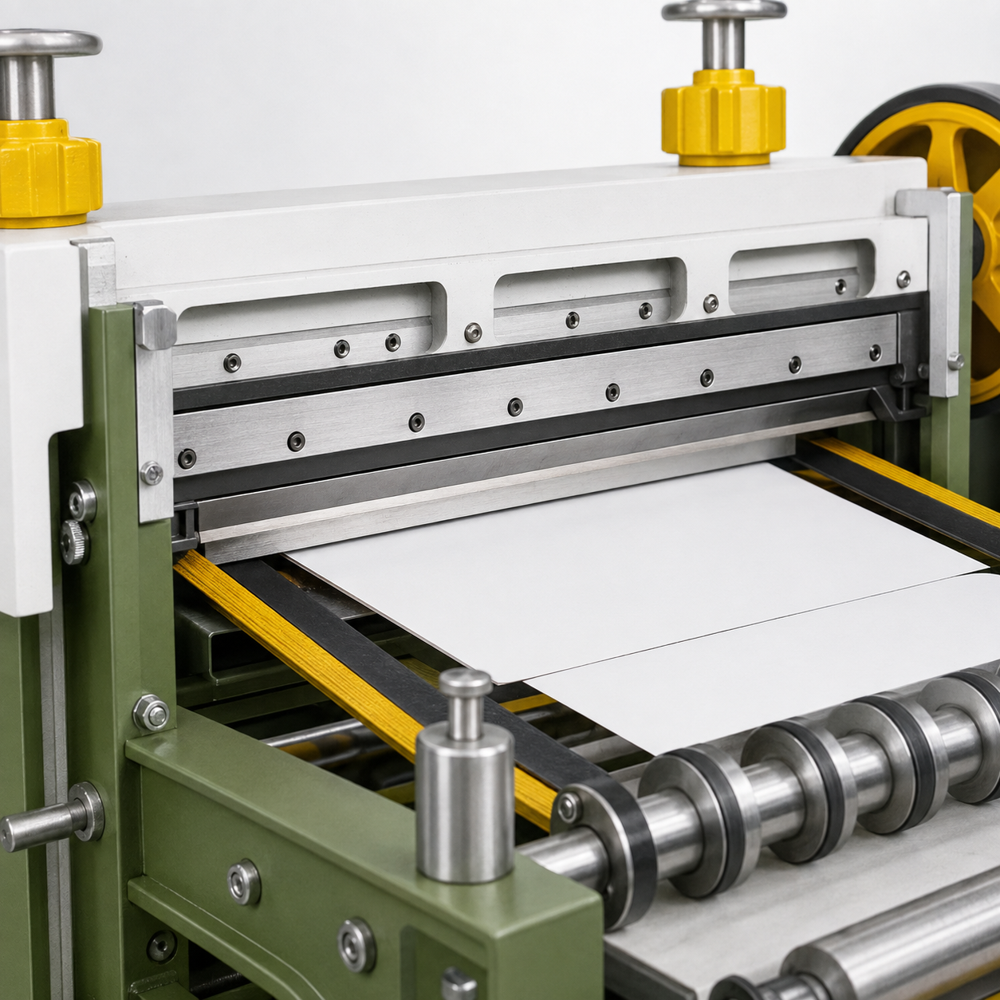

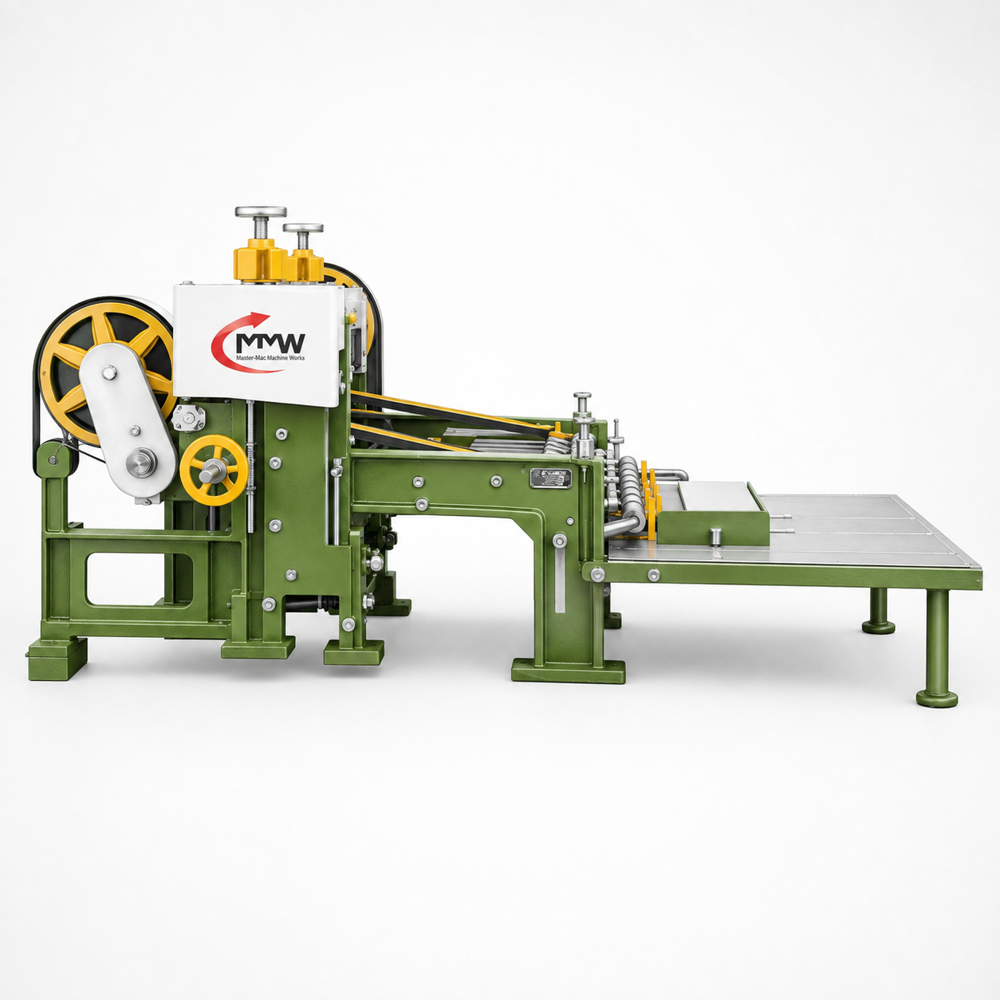

Paper Sheeter Machine

Name: Paper Sheeter Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 225000 INR
Availability: InStock

Price 225000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Paper Sheeter Machine Specification

Drive Motor
Heavy Duty Induction Motor

Product Type
paper, non woven etc

General Use
Cutting of paper, board, laminated sheets

Material
Mild steel frame, suitable for paper and board processing

Type
Heavy Duty Industrial Paper Sheeter

Capacity
Up to 10 tons/day (depends on material and configuration)

Weight (kg)
Approx. 2400 kg (depends on model size)

Computerized
Yes

Automatic
Yes

Cutting Speed
80-200 cuts per minute (model dependent)

Cutting Thickness
Up to 400 gsm (varies by model)

Cutting Function
Precision rotary or knife-based cutting for sheet separation

Cooling System
Natural Air Cooling

Drive Type
AC Motor with VFD Drive

Voltage
380-440V, 3 Phase, 50/60 Hz

Dimension (L*W*H)
Approx. 6500 mm x 3200 mm x 1800 mm (can vary)

Feature
High-speed operation, automatic counting, adjustable sheet size

Color
Green/White (customizable)

Warranty
1 year

Motor
5-10 HP main drive (depending on model)

Mechanical Precision
0.5 mm cutting accuracy

Software Detail
PLC Based Control Panel with HMI

Cutting Method
Rotary/Shear Knife or Guillotine

Control System
PLC control with digital display

Cutting Area
Variable, as per requirement (standard models available)

Cutting Material
Paper rolls, board, laminated paper stock

Lubrication System
Automatic Centralized

Safety Features
Emergency Stop, Safety Covers

Max Roll Diameter
1200 mm

Installation Service
Available

Optional Attachments
Counting Stacker, Conveyor Belt

Sheet Width Range
300 mm to 1200 mm

Production Environment
Suitable for Industrial Use

Edge Alignment
Automatic Web Guiding

Operator Interface
Digital Touch Screen

Number of Unwind Stations
Up to 4 Roll Stands

Power Consumption
7.5 kW

Roll Loading Method
Hydraulic Power

Sheet Length Range
300 mm to 1600 mm

Noise Level
< 80 dB(A)

Paper Sheeter Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cheque, Cash in Advance (CID), Cash Advance (CA)

Supply Ability
1 Unit Per Month

Delivery Time
30 Days

Main Domestic Market
Delhi

About Paper Sheeter Machine

MOHINDRA Non-woven fabric roll to sheet cutting machine is design for non woven fabric sheet cutting. It is necessary equipment for reel to sheet cutting of non woven fabric of any thickness. It adopts servo motor (or stepless motor) for controlling constant-length cutting. It has the functions of easy operation, high precision, good stability, low noise. (Pneumatic device is optional).

Seamless Precision and Control

Achieve spot-on cutting accuracy with a mechanical precision of 0.5 mm. The PLC-based control panel, equipped with digital display and HMI, streamlines all sheet size adjustments and workflow monitoring. Operators benefit from an intuitive touch screen and pushbutton interface, making high-speed, repeatable performance simple and safe.

Robust Construction, Reliable Operation

Engineered on a fabricated mild steel frame, this paper sheeter delivers excellent durability and performance under continuous use. Centralized grease lubrication, a powerful induction motor, and built-in safety features such as emergency stop and overload protection ensure reliable and long-lasting service, minimizing downtime.

Flexible Configuration and High Output

Adapt the machine to your needs with options for up to four unwind stands, manual or hydraulic shaftless roll loading, and a conveyor stacking system. Suitable for paper and board GSM ranging from 40 to 400 gsm and capable of delivering up to 10 tons/day, it is designed to support diverse industrial requirements with ease.

FAQ's of Paper Sheeter Machine:

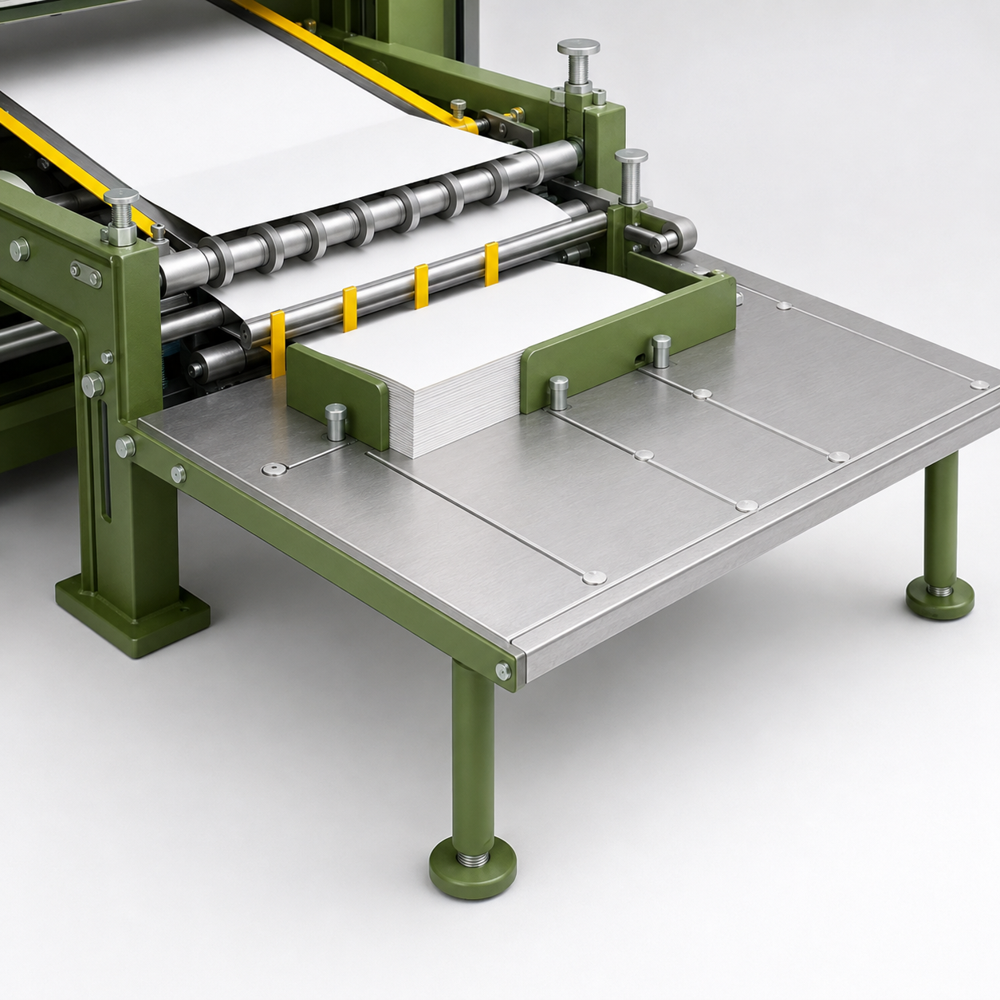

Q: How does the automatic counting and stacking system work on this paper sheeter machine?

A: The built-in automatic counting and stacking system uses sensors to precisely count each cut sheet as it's produced. After cutting, sheets are neatly delivered to the conveyor stacking system, enabling efficient, hands-free collection and improved workflow efficiency.

Q: What types of materials can the Heavy Duty Paper Sheeter process?

A: This machine is engineered to handle a wide GSM range (40-400 gsm), making it ideal for cutting paper, board, and laminated paper stock with high accuracy, whether for printing, packaging, or industrial applications.

Q: When should maintenance and lubrication be performed on the sheeter?

A: Routine maintenance is simplified by the centralized grease lubrication system. Lubrication intervals typically depend on usage intensity, but basic checks and lubrication should take place daily or weekly according to the operator's manual provided during installation and training.

Q: Where is installation and training for this machine provided?

A: The manufacturer provides onsite installation and operator training, ensuring a smooth handover and swift start-up of your paper sheeter. Remote service support is also available for troubleshooting and system updates.

Q: What are the main benefits of using the PLC control panel with HMI?

A: The PLC control panel with integrated HMI allows real-time monitoring and adjustment of operational parameters such as cut length, speed, and stacking configuration. This reduces manual errors, boosts productivity, and enhances safety for operators.

Q: How can the machine be customized to specific cutting length requirements?

A: Both minimum and maximum cut lengths are adjustable as per customer order, within a standard range of 300 mm to 2000 mm. Users may request custom configurations to match precise project or material requirements during the ordering process.

Q: What safety features are included with the paper sheeter?

A: For operator protection, the machine includes emergency stop buttons, overload protection systems, and web edge alignment sensors to maintain safe, precise operation and reduce the risk of material jams or equipment damage.
