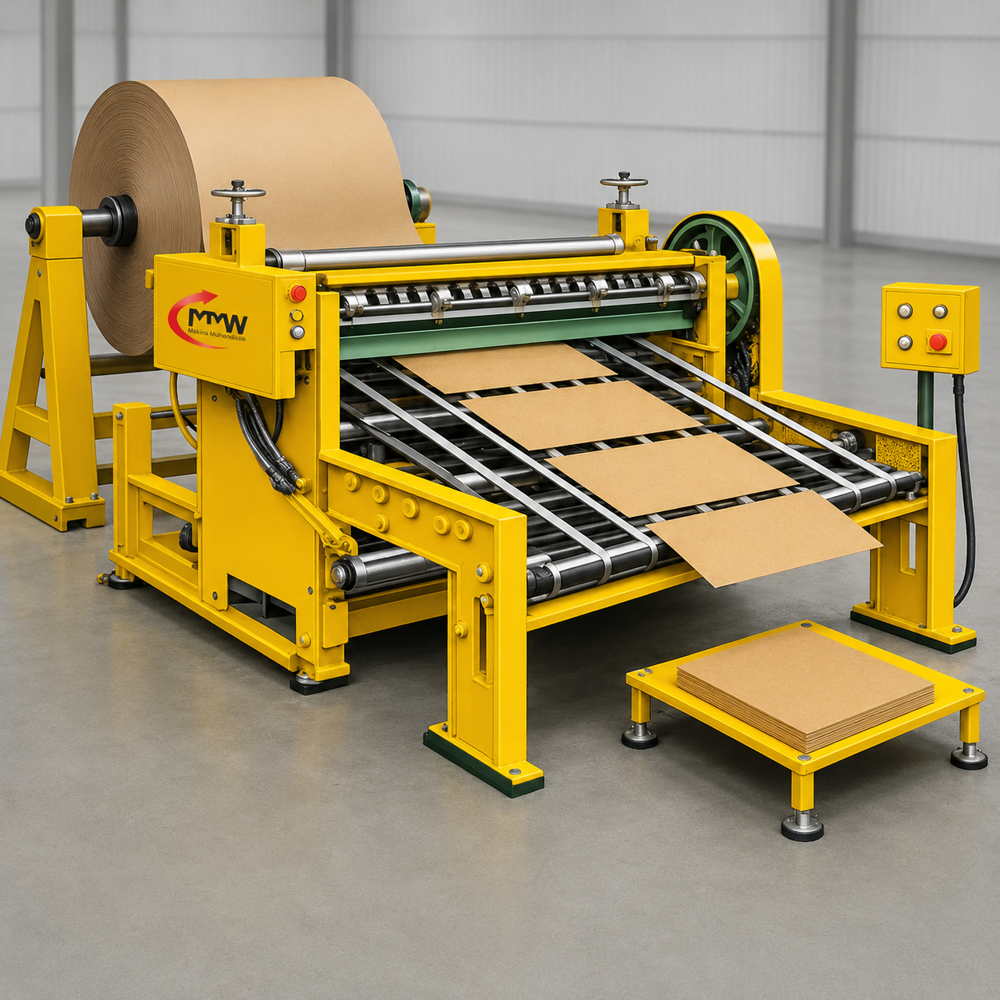

Reel to Sheet Cutting Machine

Name: Reel to Sheet Cutting Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 225000 INR
Availability: InStock

Price 225000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Reel to Sheet Cutting Machine Specification

Drive Motor
Heavy Duty Electric Motor

Product Type
Automatic Reel to Sheet Cutter

General Use
Sheeting rolls of paper, film or fabric for packaging or printing

Material
Paper, Film, Foil, Laminates

Type
Sheet Cutting Machine

Capacity
6000 Sheets/Hour

Weight (kg)
2000 kg (approx)

Computerized
Yes

Automatic
Yes

Cutting Speed
80-200 Cuts/Min

Cutting Thickness
Up to 5 mm (varies by material)

Cutting Function
Automatic reel to sheet cutting

Cooling System
Air cooled

Drive Type
Electric motor with gearbox drive

Voltage
220V/380V, 50Hz/60Hz

Dimension (L*W*H)
4500 mm x 1800 mm x 1600 mm

Feature
High-speed performance, precise cutting, adjustable settings

Color
Industrial Green (custom colors available)

Warranty
1 year

Motor
3 HP - 7.5 HP (as per model)

Mechanical Precision
0.5 mm

Software Detail
PLC based control system with digital interface

Cutting Method
Rotary/Guillotine type

Control System
Microprocessor/PLC based

Cutting Area
1200 mm to 3000 mm (customizable)

Cutting Material
Paper, Laminates, Films, Foils

Operator Requirement
Single operator

Lubrication
Central automatic lubrication

Installation Requirements
Flat surface, electrical and compressed air supply

Power Consumption
Approx. 5 kW

Surface Finish
Powder coated anti-corrosive paint

Noise Level
Below 80 dB

Feeding System
Automatic tension control

Roll Diameter Capability
Up to 1000 mm

Safety Features
Emergency stop, safety guards, overload protection

Counting System
Automatic sheet counting with digital display

Operating Temperature
5C to 40C

Reel to Sheet Cutting Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
Delhi

About Reel to Sheet Cutting Machine

Reel to Sheet Cutting Machine

Sheet cutting machine produces aluminium sheets or plastic film sheets from the roll.
Sheet cutting machine also can make embossing patterns such as company logo, product name, brand logo and etc. on the aluminium sheets.Sheet cutting machine aluminium but also Paper, PE, PP, PET and etc.

BASIC SPECIFICATION

Model	SWC-600
Materials	Aluminium, Paper, PE, PP, PET and Laminated or coated one
Output of products	50 90 sheets / min.
Cutting size	Max. 600mm x 450mm
Major unit	Cutting knife, Servo motor, Tension controller system, Powder brake, Mark sensor, Photo sensor, Touch screen consol

Designed for Precision and Efficiency

This machine delivers outstanding cut accuracy of 0.2 mm, supported by a web guide edge control system for perfect alignment. Customizable feeding rolls and adjustable cutting lengths (300 mm to 2000 mm) cater to varied production requirements, ensuring adaptability for different materials and industries.

User-Friendly Digital Control

Equipped with a modern digital touch panel and PLC-based software, the system offers effortless programming and monitoring. One operator can manage the entire process, benefiting from both manual and automatic controls, with real-time performance data for efficient workflow management.

Reliable Performance and Safety

Designed with heavy-duty construction and industrial-grade materials, the machine provides high-speed output (up to 6000 sheets/hour). Integrated safety features, including emergency stops, safety guards, and interlocked covers, maximize operational security, while centralized lubrication and air-cooling extend machine life.

FAQ's of Reel to Sheet Cutting Machine:

Q: How does the automatic roll feeding system work on this Reel to Sheet Cutting Machine?

A: The machine features an automatic roll feeding unit that seamlessly unwinds and aligns the material roll, using a web guide edge control system for precise alignment before feeding it to the cutting unit. This ensures continuous, accurate feeding without manual intervention.

Q: What types of materials can be cut using this machine?

A: This cutting machine is engineered to handle a range of materials including paper, films, foils, and laminates. It is suitable for applications in the printing, packaging, label, stationery, and converting industries.

Q: What benefits does the digital touch panel offer for operations?

A: The digital touch panel allows intuitive programming and monitoring of the cutting process. Operators can adjust sheet lengths, monitor production data, and receive alerts for maintenance or safety, all from a user-friendly interface.

Q: When is after-sales support or installation service available?

A: Installation and after-sales service are available upon request. Support includes setup, training, troubleshooting, and maintenance to ensure optimum machine performance throughout its lifecycle.

Q: Where is this machine typically used?

A: This model is widely used in industrial settings such as printing houses, packaging plants, label manufacturers, converting units, and stationery production lines that require efficient reel-to-sheet cutting.

Q: What is the process flow from loading the roll to collecting the cut sheets?

A: The operator loads the material roll onto the unwinder. The automatic roll feeding mechanism, guided by a web alignment system, moves the material into the cutting area, where it is precisely cut to the programmed length and collected at the output, ready for stacking or further processing.

Q: What are the key safety features incorporated in this machine?

A: Safety is ensured through emergency stop buttons, protective safety guards, and interlocked covers that prevent access during operation. The centralized lubrication system also reduces manual maintenance risks.
