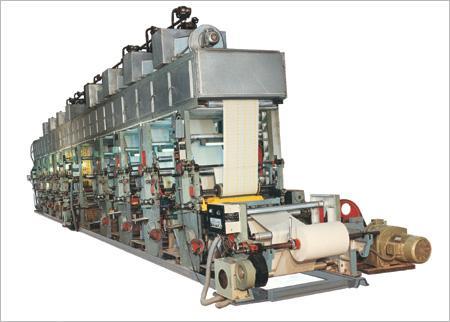

Rotogravure Printing Machine

Rotogravure Printing Machine
Rotogravure Printing Machine
Send Inquiry
Product Code : roto 4
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price Range
  • 400000.00 - 1350000.00 INR
Product Specifications
  • Type
  • Printing Machine
  • Material
  • Mild Steel
  • Capacity
  • 10000 Pieces Per Hour
  • Computerized
  • No
  • Automatic Grade
  • Automatic
  • Voltage
  • 280-420 Volt (v)
  • Weight (kg)
  • 4-6 Tonne
Product Description

Rotogravure Printing Machine

"Machine that gives the Solution of Printing on Polythene"

We are introducing for our respected customers the sensational and innovative gamut of Rotogravure Printing Machine Our developed machines are suitable for printing different packaging material like polypropylene bag, polyethylene and roll paper. Mostly suggested as the ideal printing equipment, our Rotogravure Printing Machine is applicable for making packaging bags for supermarket handbags, food and clothes bags. Due to its unique configuration flexibility, our machine is recommended for various applications and market segments.

Salient Features:

  • The machine is available in two versions either with shaftless or shafted cylinders which makes the configuration versatile
  • Have programmable digital drives with 7 Motor Drive tension control system
  • "Length, Side and Preset" can be automatically controlled
  • On safety chucks unwind shaft has been mounted
  • In feed unit is provided just after Unwind unit in order to isolates the web tension between the first printing station and unwinder
  • For all printing stations digital AC drive with common AC motor has been provided
  • Have independent pressure control at both ends  for quick and easy changeovers
  • Doctor Blade units have oscillation movement +/- 10mm
  • Have motorized ink pumps
  • Modular and highly efficient drying unit which is main source of saving energy
  • Printing cylinder is applied which can be loaded/unloaded on each print station
  • The speed of machine is upto Speed upto 300 mtr/min
  • Integrated with shaft type cylinders
  • Prompt tension indication & feedback

Parts of Rotogravure Press:

  • Unwind Unit
  • In Feed Unit
  • Printing Unit
  • Main Drive ( Digital Ac Drive )
  • Impression Roller
  • Drying Unit
  • Registration Unit (by Means Of A Mounting Blocks)
  • Doctor Blade Unit
  • Inking Unit
  • Outfeed Unit
  • Rewind Station


Printing material Film, paper, aluminum foil, pet, bopp, pvcfilm, polyster, bolyster, poly, matelized film etc
Number of colors Available in 1 to 8 colors
Web Width 20" to 80"
Web roller Aluminum rollers / steel rollers
Machine speed Upto 250 m/min
Unwind type Single fixed shaft type / 2 shaft turret type unwind
Reel diameter 1000 mm(approx)
Unwind shaft Air shaft, tapper cone with solid shaft or shaftless
Tension controller Manually & auto registration control system (A.C. Motor)
Frame Cast iron
Cylinder Diameter : 100 mm to 300 mm
Chucking Shaft with taper cone
Drying system Single chamber impingement slot dryer (electric, thermic oil, hot air generator, etc.)'
Doctor Blade Manual & pneumatic doctor blades
Ink system SS Ink tray
Registration system Manually & auto registration control system
Out feed unit Synchronized control (A.C. Motor)
Rewinder 1000 mm(approx)
Reel diameter Air shaft, taper cone with solid shaft or shaft ness
Rewind shaft Manual & Fully automatic control system (AC Motor)
Tension controller Manual & Fully automatic control system (AC Motor)

Technical Details:

Web width 1050 to 1450 mm
Speed max 450 m/min
Web tension 35 - 50 to 350 - 500 N
Print cylinder repeat 400 - 450 to 920 - 1020 mm
Main Drive D.C. 3 HP
Blower A.C. Motor 4 HP
Winder Motor 1 HP









Suitable for the industries like: Packaging - Flexible materials, Label manufacture, Security_applications, Decorative printings, Packaging for liquids
Main Material Processed: Paper, Film, Aluminium foil, Laminates, Carton board etc

Following machines/ press are widely demanded by the customers:

* Bopp Film Printing Machine * Polyester Printing Machine * Printing Machine For Aluminium Foil * Roto Printing Machine * Rotogravure Press Printing Machine
* LDPE Printing Press * Gravure Printing Machine * Rotogravure Printing With Lamination * Multi Color Rotogravure Printing * Rotogravure Pvc Printing Machine

Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cash Advance (CA), Cash on Delivery (COD)
  • Supply Ability
  • 200-300 Unit Machines Per Month
  • Delivery Time
  • 45-60 Days
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
