Cello Tape Coating Machine

Price 3000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cello Tape Coating Machine Specification

Max. Sheet Area
Up to 1600 mm

Machine Speed
Up to 120 m/m

Min. Sheet Area
As per Customer Requirement

Sheet Thickness
20 50 Microns

Feeding Type
Continuous Roll Feeding

Registration
Automatic Web Alignment

Power Requirement
100 180 kW

Max. Coating Area
Full Web Width

Coating Transfer Method
Gravure, Mayer Bar or Customized Coating Method

Coating Format
Roll to Roll

Coating Type
BOPP Pressure-Sensitive Adhesive Coating

Varnish Type
Water-Based Acrylic Adhesive

Product Type
Cello Tape Coating Machine

General Use
Manufacturing Self-Adhesive BOPP Cello Tape

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
8000 Kilograms (kg)

Coating Speed
Up to 120 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
100 180 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 480 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, Coating, High Precision

Color
White, Green or Customized

Warranty
1 Year

Cello Tape Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cheque, Cash on Delivery (COD)

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Coating assemblies, adhesive-contact rollers, drying sections, cooling rollers, unwinders, rewinders, motors and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Asia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Australia

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Cello Tape Coating Machine About

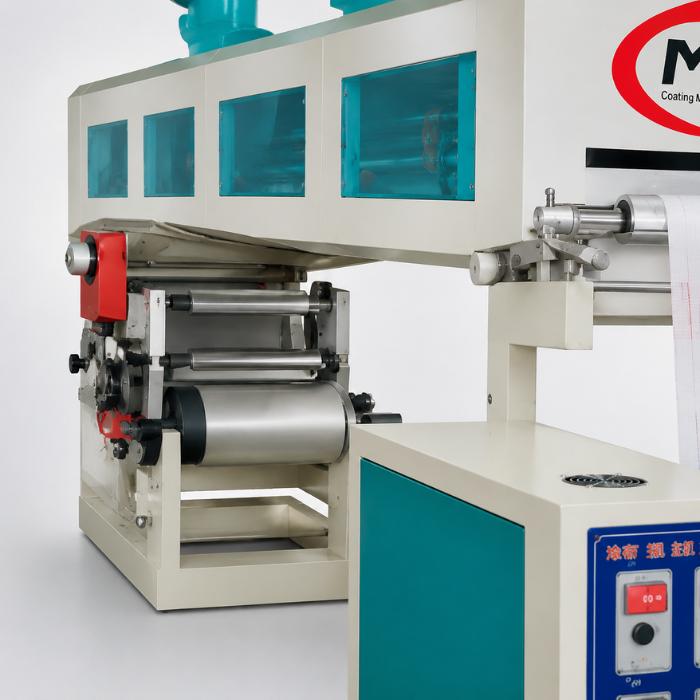

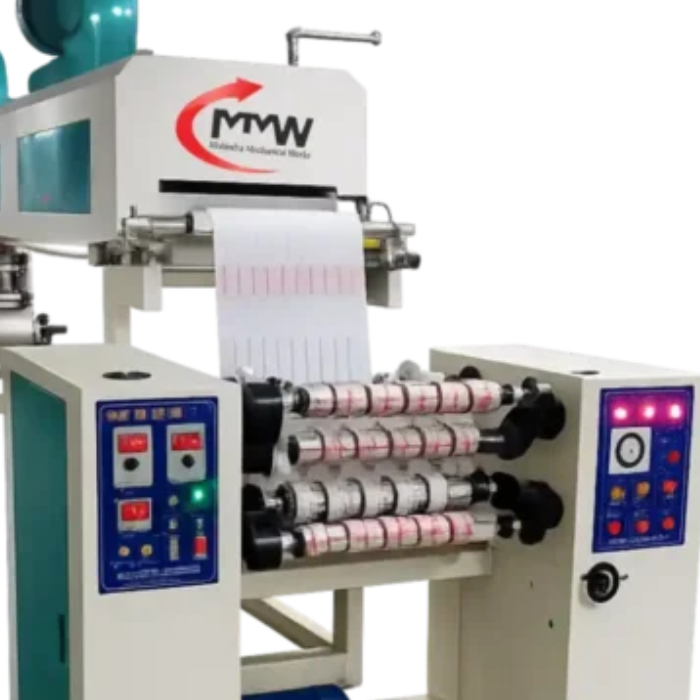

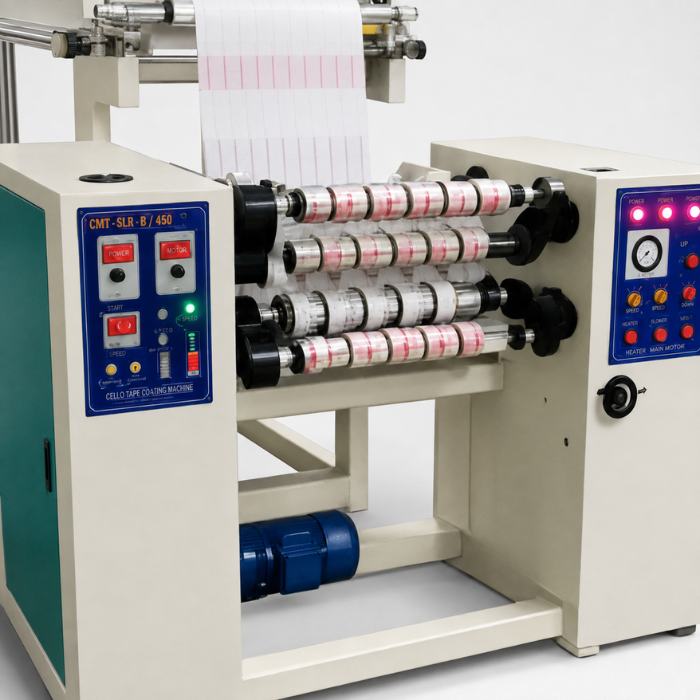

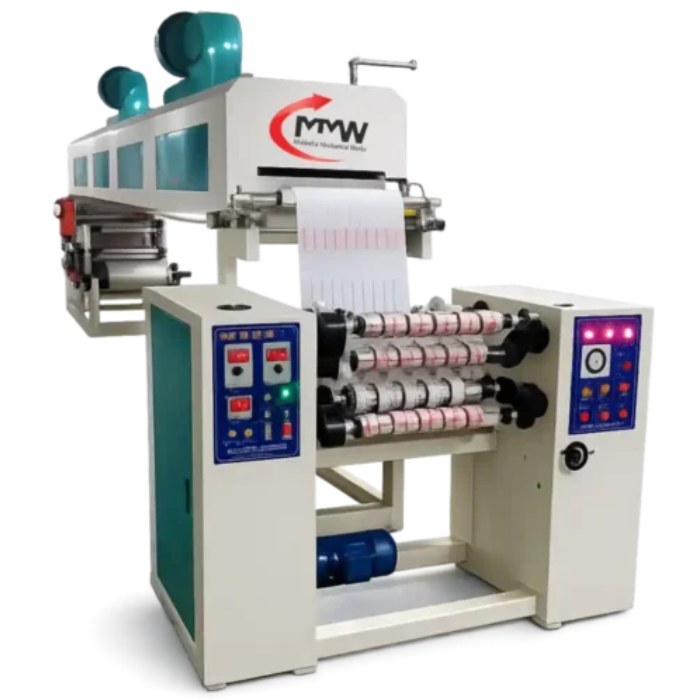

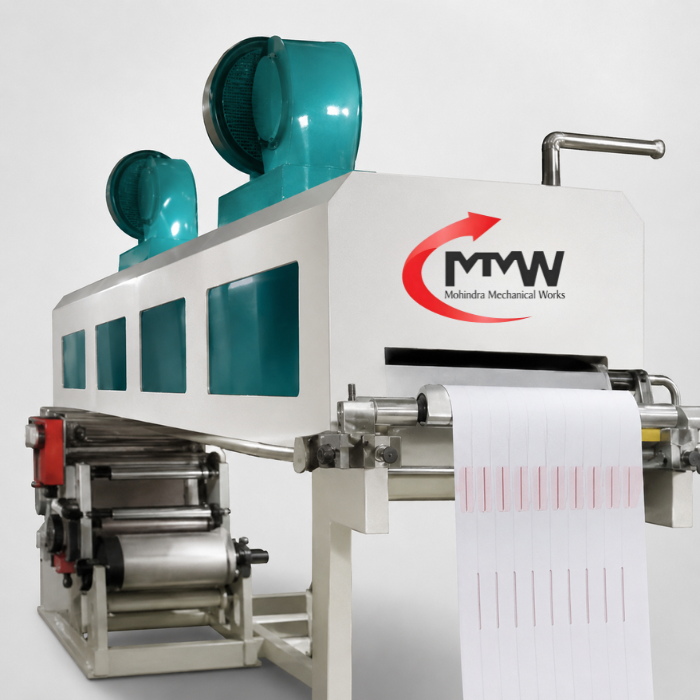

The Cello Tape Coating Machine is designed to apply a uniform layer of pressure-sensitive adhesive onto BOPP film. Its automatic roll-to-roll process combines accurate adhesive coating, controlled web tension, hot-air drying, cooling and smooth rewinding to manufacture self-adhesive packaging-tape jumbo rolls.

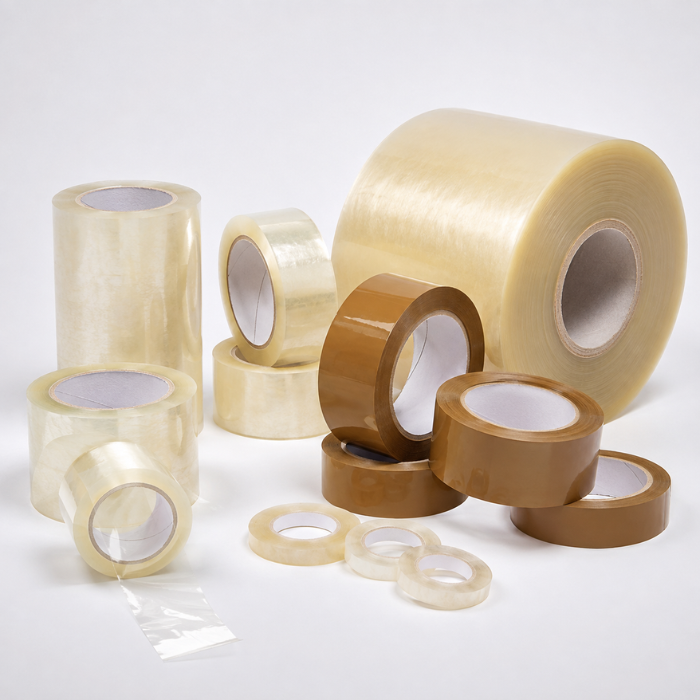

The coated jumbo rolls can subsequently be slit and rewound into cello tape, transparent tape, brown packing tape, printed tape and other adhesive-tape products. Working width, coating method, drying length and production speed can be customized according to the required tape quality and output.
