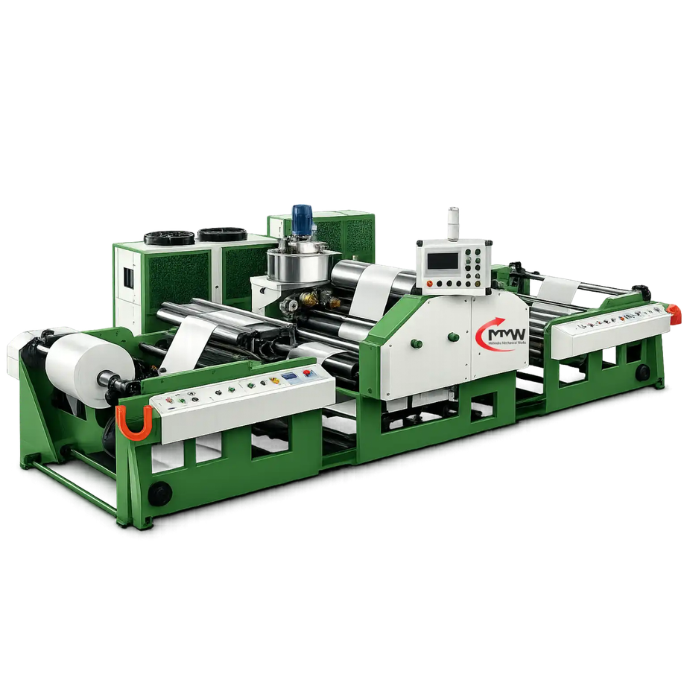

Send InquiryPaper Wax Coating Machine
Price 850000.0 INR/ Piece
MOQ : 1 Piece
Paper Wax Coating Machine Specification
- Varnish Type
- Paraffin, Microcrystalline or Customized Wax
- Coating Transfer Method
- Heated Roller Coating
- Sheet Thickness
- 30 300 GSM
- Feeding Type
- Continuous Roll Feeding
- Registration
- Automatic Web Alignment
- Max. Sheet Area
- 36 Inch
- Min. Sheet Area
- As per Customer Requirement
- Coating Type
- Hot-Melt Wax Coating
- Coating Format
- Roll-to-Roll
- Max. Coating Area
- Full Web Width
- Machine Speed
- Up to 80 m/m
- Power Requirement
- 60 120 kW
- Product Type
- Paper Wax Coating Machine
- General Use
- Applying Molten Wax Coating on Paper Rolls
- Material
- Stainless Steel
- Type
- Adhesive Coating Machine, Industrial Coating Machine
- Weight (kg)
- 7000 Kilograms (kg)
- Coating Speed
- Up to 80 m/m
- Coating Head
- Gravure Roller
- Coating Width
- Up to 1600 Millimeter (mm)
- Coating Material
- Other
- Computerized
- No
- Automatic
- Yes
- Control System
- PLC Control
- Power Source
- Electric
- Power Consumption
- 60 120 Kilowatt (kW)
- Heating System
- Hot Air
- Drive Type
- Pneumatic
- Voltage
- 440v Volt (v)
- Humidification System
- No
- Glue Type
- Water Based
- Rewinder Type
- Duplex Rewinder

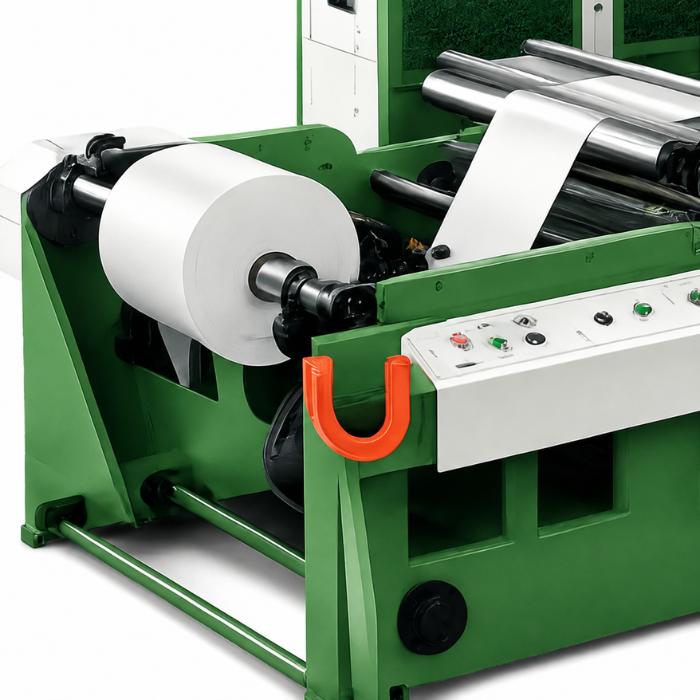

- Unwinder Type
- Duplex Unwinder
- Rewinding Width
- Up to 1600 Millimeter (mm)
- Unwinding Width
- Up to 1600 Millimeter (mm)
- Dimension (L*W*H)
- 900 300 250 Centimeter (cm)
- Feature
- High Speed, High Precision, Low Energy Consumption, Coating
- Color
- Green, White or Customized
- Warranty
- 1 Year
Paper Wax Coating Machine Trade Information
- Minimum Order Quantity
- 1 Piece
- FOB Port
- ICD Tughlakabad, Delhi
- Payment Terms
- Cash on Delivery (COD), Cheque
- Supply Ability
- 2 Pieces Per Month
- Delivery Time
- 60 Days
- Sample Available
- No
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- The machine is covered with waterproof protective wrapping. The wax-melting tank, heated coating rollers, pumps, pipelines, cooling components, electrical panels and motors are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.
- Main Export Market(s)
- Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America, South America
- Main Domestic Market
- All India
- Certifications
- ISO 9001:2015 Certified, CE Certified Standard Machinery
Paper Wax Coating Machine About

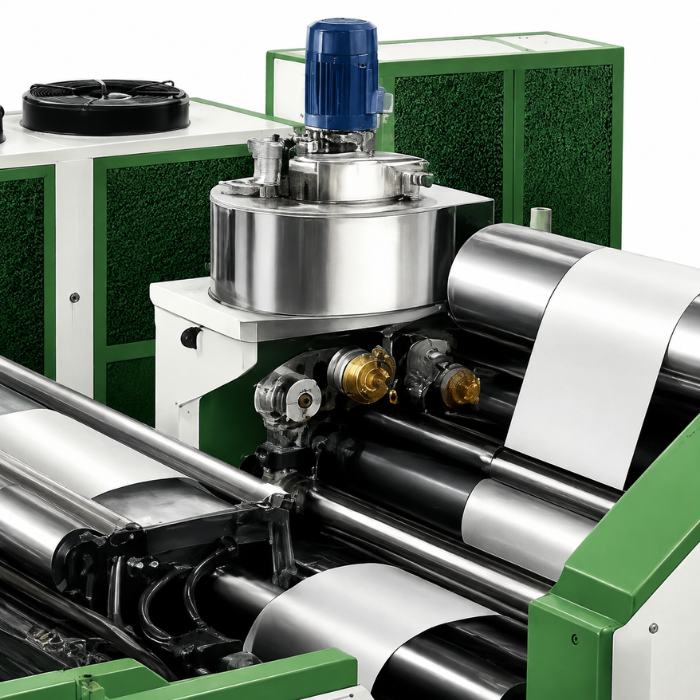

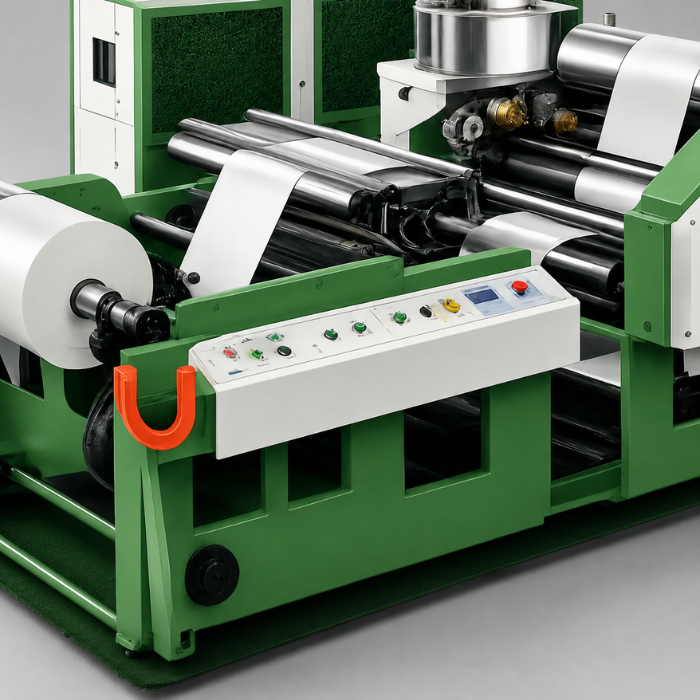

The Paper Wax Coating Machine applies a controlled layer of molten wax onto continuous paper rolls. Its heated coating system, temperature control, cooling arrangement and uniform rewinding help produce moisture- and grease-resistant wax paper for packaging, wrapping and industrial applications.Key Features
- Uniform molten-wax application
- Accurate coat-weight adjustment
- Temperature-controlled wax-melting tank
- Heated coating rollers and pipelines
- Single-side or double-side coating option
- Controlled cooling and wax solidification
- Automatic roll-to-roll operation

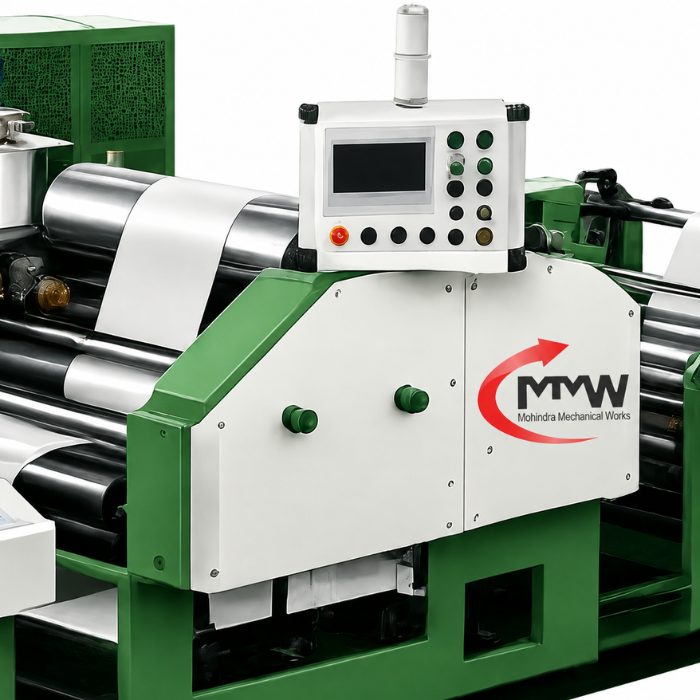

- PLC-based operating controls
- Automatic web-tension management
- Automatic edge-guiding system
- Smooth and wrinkle-free rewinding
- Reduced wax and paper wastage
- Easy cleaning and maintenance
- Heavy-duty machine construction
- Customized working width available
Suitable Raw Materials
- Kraft paper
- White paper
- Glassine paper
- Greaseproof paper
- Butter-paper base stock
- Food-wrapping paper
- Packaging paper
- MG paper
- Tissue paper
- Bakery wrapping paper
- Lightweight paperboard
- Specialty industrial paper
Suitable Coating Materials
- Paraffin wax
- Microcrystalline wax
- Food-contact wax formulation
- Vegetable-based wax
- Beeswax blend
- Synthetic wax
- Petroleum wax
- Slip-modified wax coating
- Moisture-barrier wax
- Heat-sealable wax formulation
- Customized wax compound

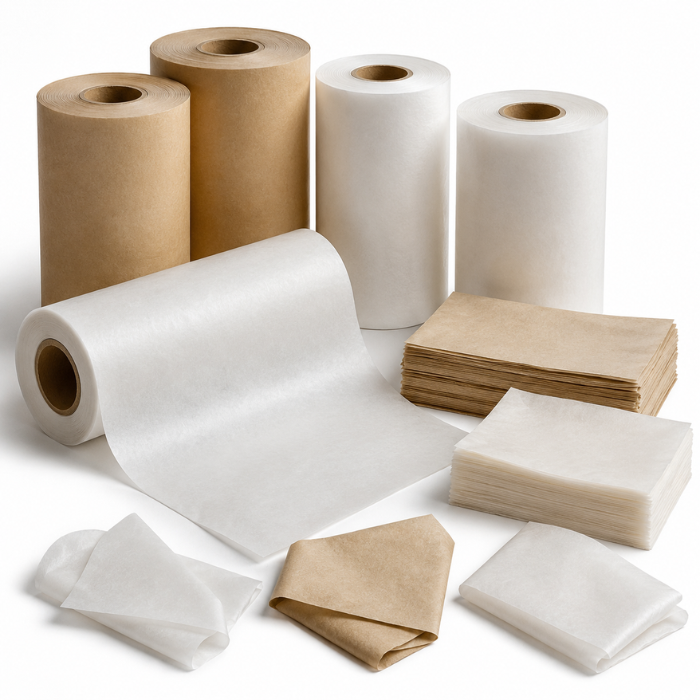

Finished Products
- Wax-coated paper rolls
- Moisture-resistant wrapping paper
- Grease-resistant wax paper
- Bakery and confectionery wrapping paper
- Butter and cheese wrapping paper
- Soap-wrapping paper
- Food-packaging wax paper
- Fruit and vegetable wrapping paper
- Industrial protective paper
- Wax-coated kraft paper
- Interleaving wax paper
- Heat-sealable wax paper
- Floral wrapping paper
- Packaging and converting rolls
