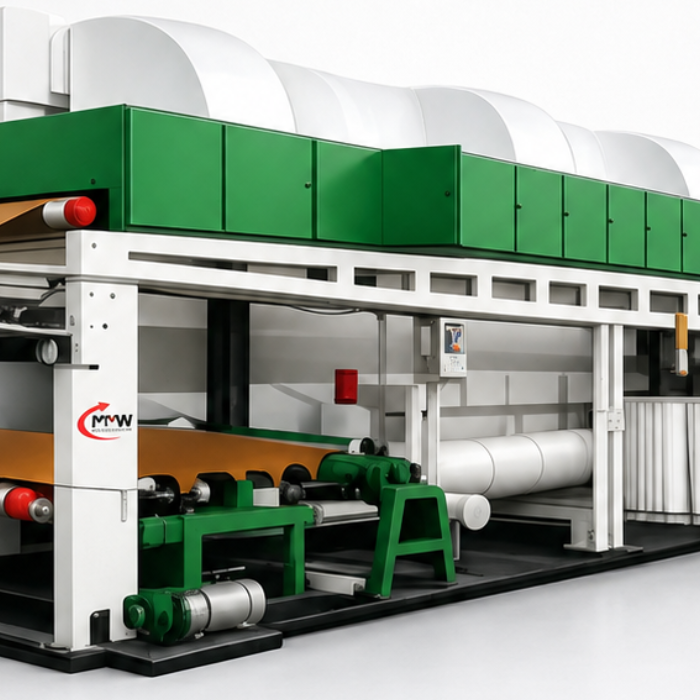

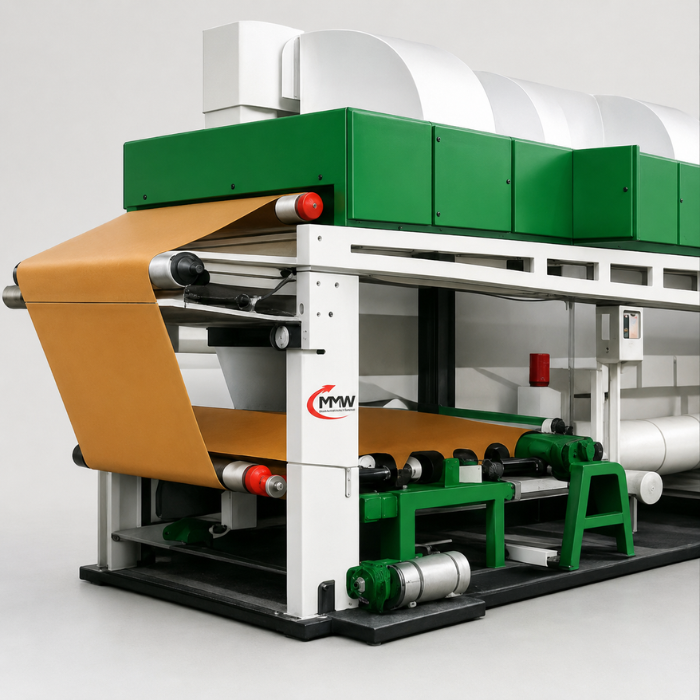

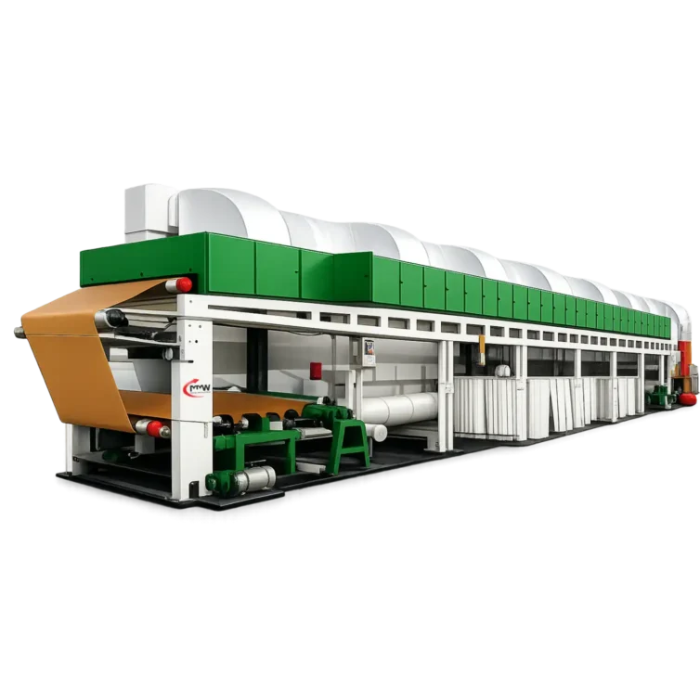

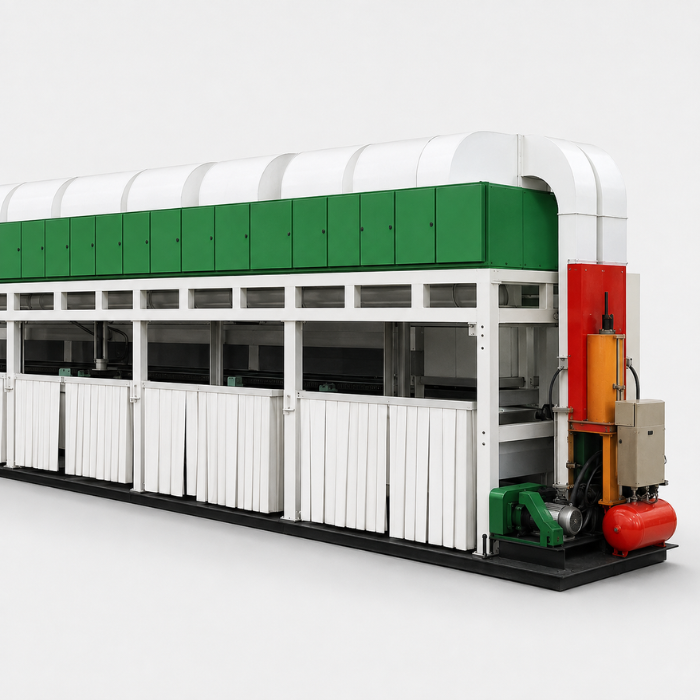

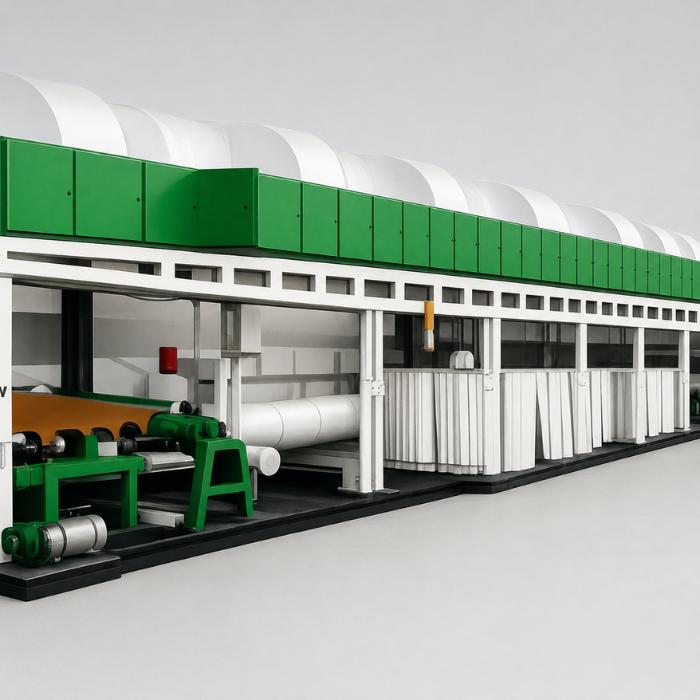

Adhesive Tape Coating Machine

Price 3000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Adhesive Tape Coating Machine Specification

Machine Speed
Up to 150 m/m

Varnish Type
Water-Based Acrylic Adhesive

Max. Coating Area
Full Web Width

Max. Sheet Area
Up to 1600 mm Working Width

Coating Transfer Method
Comma-Roll Coating

Coating Type
Pressure-Sensitive Adhesive Coating

Min. Sheet Area
As per Customer Requirement

Coating Format
Roll to Roll

Registration
Automatic Web Alignment

Power Requirement
140 220 kW

Sheet Thickness
20 200 Microns

Feeding Type
Continuous Roll Feeding

Product Type
Adhesive Tape Coating Machine

General Use
Applying Pressure-Sensitive Adhesive on Flexible Webs

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
12000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Other

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
140 220 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
2000 500 520 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Green, White or Customized

Warranty
1 Year

Adhesive Tape Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. The coating unit, precision rollers, drying chamber, unwinder, rewinder, motors, blowers and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Asia, Africa, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Adhesive Tape Coating Machine About

The Adhesive Tape Coating Machine applies a uniform layer of pressure-sensitive adhesive onto flexible substrates such as BOPP film, PVC film, PET film, PE film, paper, cloth and foam. Its continuous roll-to-roll process combines precision coating, automatic web-tension control, multi-zone hot-air drying, edge guiding and smooth jumbo-roll rewinding.

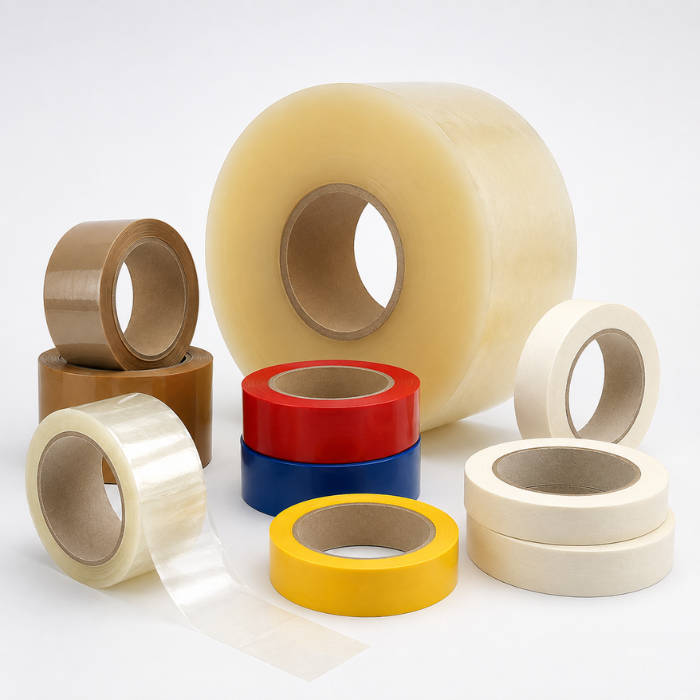

The machine can be configured for compatible water-based, solvent-based or specialized adhesive formulations. It is suitable for manufacturing packaging tape, electrical insulation tape, masking tape, double-sided tape, surface-protection tape, medical tape and other industrial adhesive products.
