Aluminium Free Paper Pouch Coating Machine

Name: Aluminium Free Paper Pouch Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 7500000.0 INR
Availability: InStock

Price 7500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aluminium Free Paper Pouch Coating Machine Specification

Coating Type
Aluminium-Free Barrier Coating / Eco Pouch Coating

Machine Speed
150 m/m

Coating Format
Web / Roll

Min. Sheet Area
12 Inch

Max. Coating Area
32 Inch

Coating Transfer Method
Metering Rod / Mayer Bar

Sheet Thickness
50 - 300 GSM

Varnish Type
Heat Sealable Barrier Varnish / Aqueous Dispersion

Registration
Automatic / Manual

Max. Sheet Area
32 INCHS Inch (in)

Feeding Type
Roll to Roll

Power Requirement
30 kW

Product Type
Aluminium Free Pouch Coating Machine

General Use
Paper & Flexible Packaging Coating Industry

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
10500 Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Mayer Bar

Coating Width
32 Inch (in)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
25 - 30 Horsepower (HP)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
32 Inch (in)

Unwinding Width
32 Inch (in)

Dimension (L*W*H)
500 x 96 x 140 Inch (in)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Industrial Black, Electric Blue & Metal Silver

Warranty
1 Year

Aluminium Free Paper Pouch Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Nhava Sheva / Mundra / ICD Tughlakabad

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Heavy-Duty Industrial Wooden Box Packaging with Moisture-Proof Stretch Wrapping for Safe Transit

Main Export Market(s)
Asia, South America, Eastern Europe, Western Europe, Middle East, Africa, Australia, Central America, North America

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Aluminium Free Paper Pouch Coating Machine About

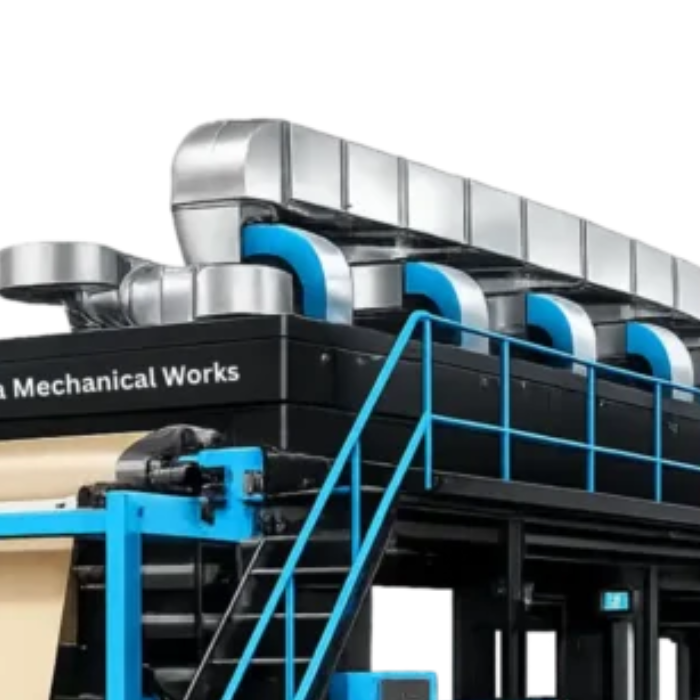

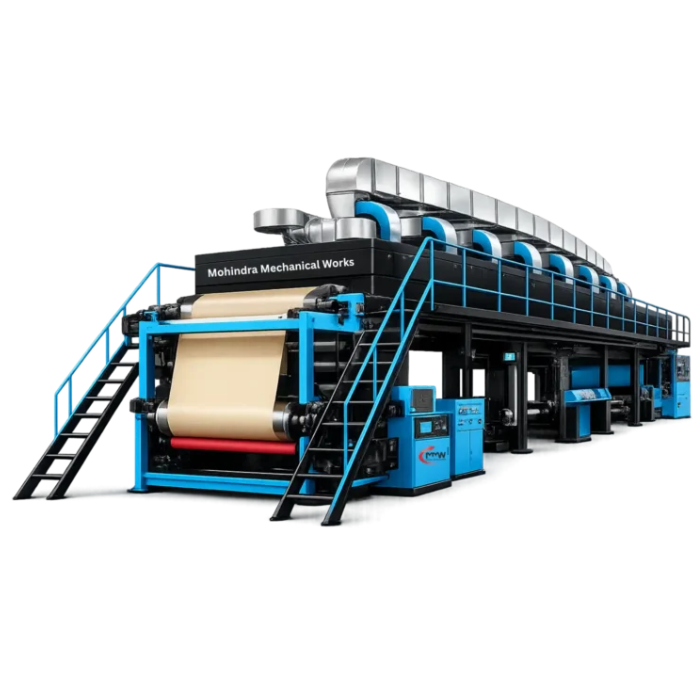

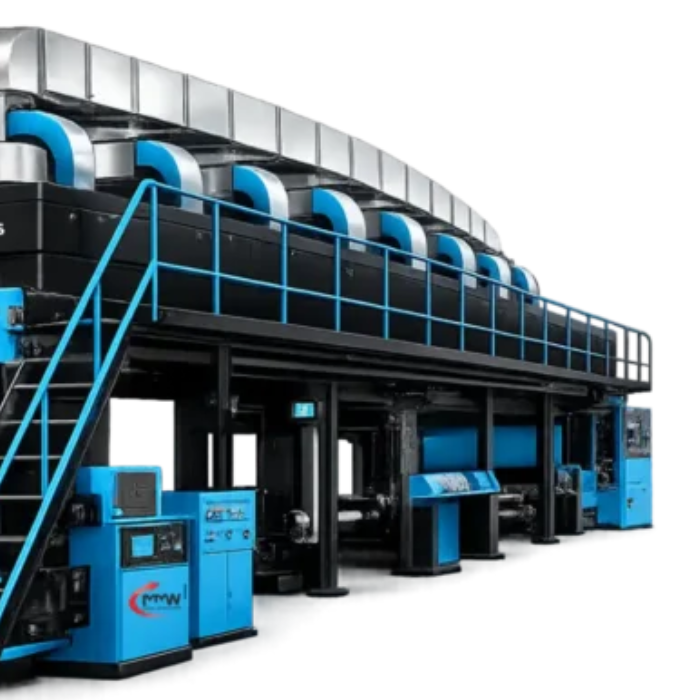

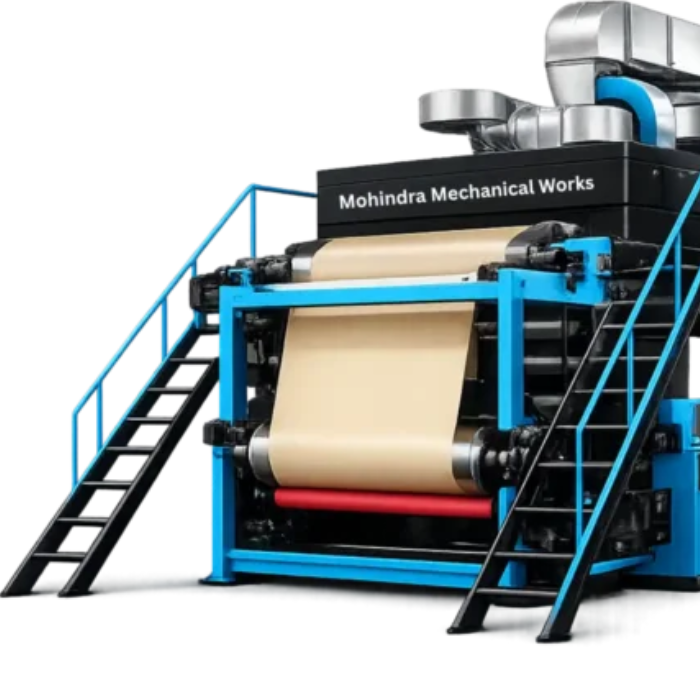

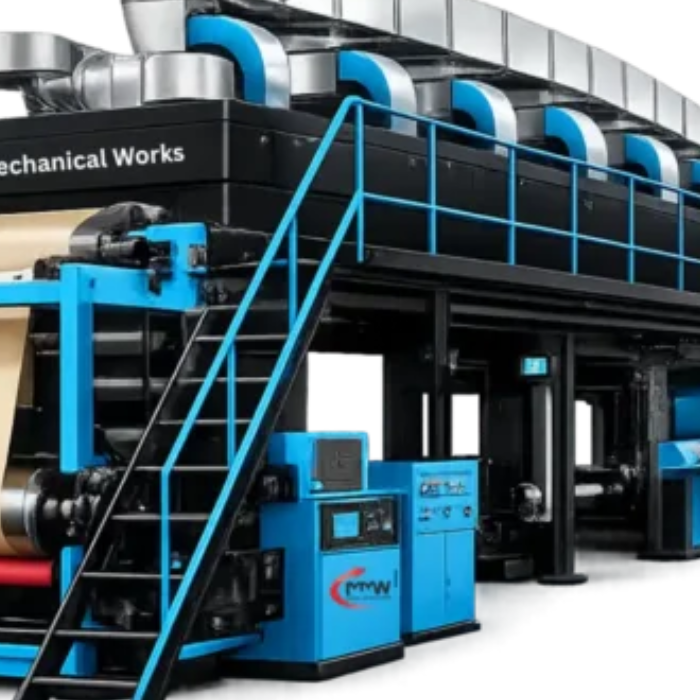

Mohindra Mechanical Works introduces the heavy-duty Automatic Aluminium Free Paper Pouch Coating Machine, specialized for manufacturing 100% recyclable, foil-free, high-barrier flexible packaging paper. Designed to eliminate conventional aluminum foil from pouch structures, this advanced machine applies eco-friendly water-based barrier emulsions, heat-sealable coatings, and moisture-vapor barriers onto Kraft paper, specialty paper, and pouch substrates used for food, tea, coffee, gutka, and pharmaceutical packaging.

Equipped with a precision Mayer Bar / Metering Rod coating head, an extended high-efficiency Hot Air drying tunnel with top exhaust blowers, heavy-duty access stairs, duplex unwinder, duplex rewinder, and automated web tension control, it operates at production speeds up to 150 m/min. The computerized PLC Control System with HMI touchscreen interface guarantees uniform coat weight, precise temperature management, and continuous heavy-duty operation.
