Cast Coating Machine

Name: Cast Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 1999999.00 INR
Availability: InStock

Price 1999999.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Cast Coating Machine Specification

Registration
Automatic / Manual

Feeding Type
Roll to Roll

Machine Speed
150 m/m

Min. Sheet Area
12 Inch

Coating Transfer Method
Metering Rod / Mayer Bar

Coating Type
Cast Coating / High Gloss Pigment

Power Requirement
25 kW

Coating Format
Web / Roll

Max. Sheet Area
32 Inch

Varnish Type
Aqueous / High Gloss Varnish

Sheet Thickness
50 - 300 GSM

Max. Coating Area
32 Inch

Product Type
Coating Machine

General Use
Paper & Packaging Coating Industry

Material
Stainless Steel

Type
Industrial Coating Machine

Weight (kg)
8500 Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Mayer Bar

Coating Width
32 INCHS Inch (in)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
20 - 25 Horsepower (HP)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
32 Inch (in)

Unwinding Width
32 Inch (in)

Dimension (L*W*H)
420 x 96 x 120 Inch (in)

Feature
High Speed, Coating

Color
White & Blue

Warranty
1 year

Cast Coating Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Nhava Sheva / Mundra / ICD Tughlakabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Units Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Heavy-Duty Industrial Wooden Box Packaging with Moisture-Proof Stretch Wrapping for Safe Transit

Main Export Market(s)
Australia, North America, Western Europe, Middle East, Africa, Asia, Central America, South America, Eastern Europe

Main Domestic Market
Delhi

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

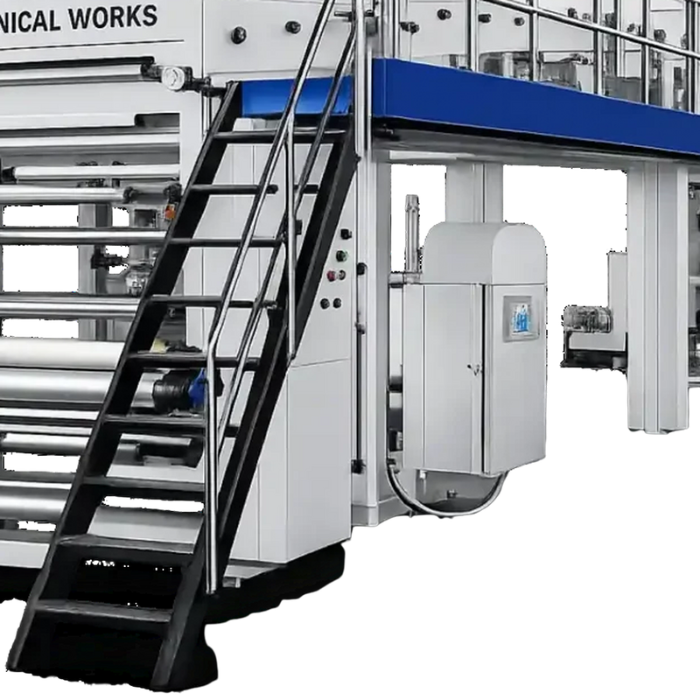

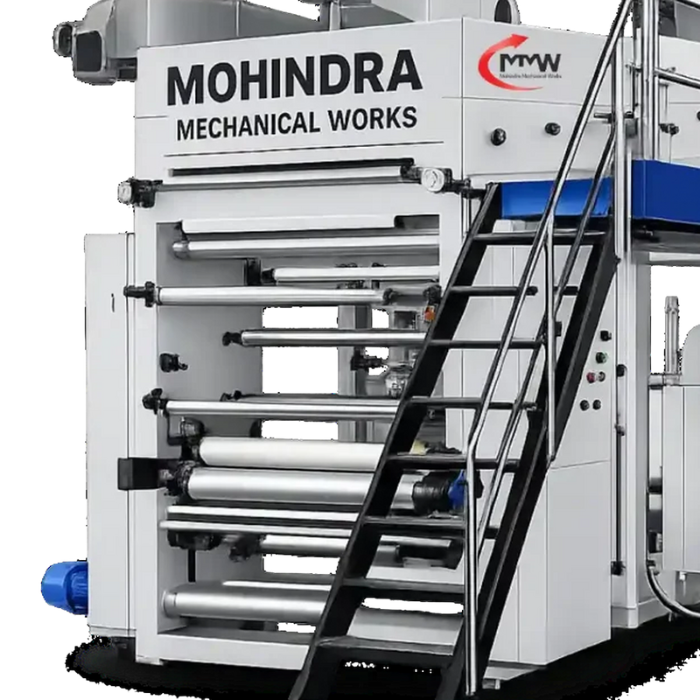

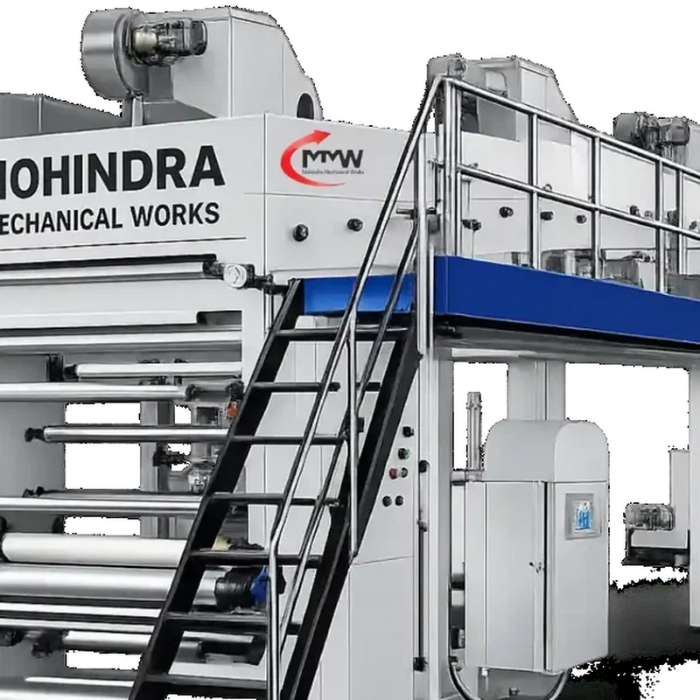

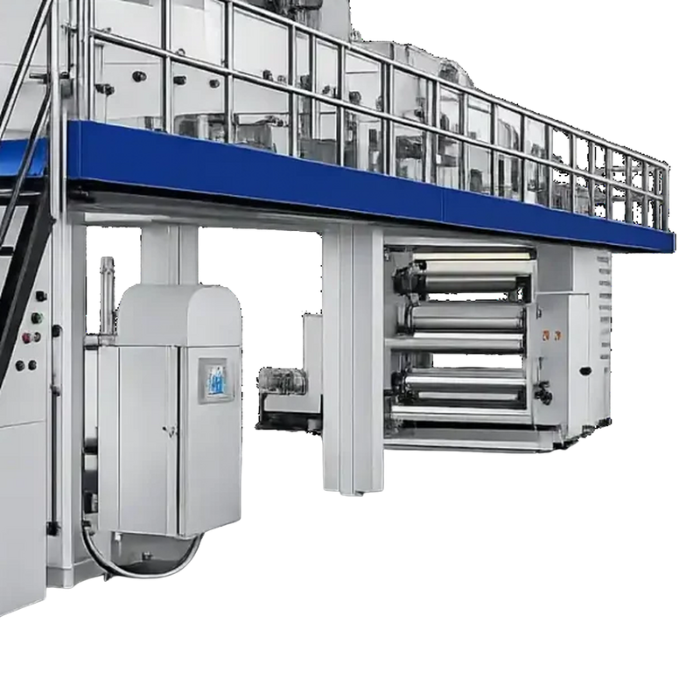

Cast Coating Machine About

Mohindra Mechanical Works presents the high-capacity Automatic Cast Coating Machine, specially engineered for manufacturing high-gloss mirror-finish coated papers, cast coated boards, and premium specialty paper packaging. Constructed with a heavy-duty industrial steel frame structure, this machine delivers superior surface smoothness, high opacity, and outstanding printability.

Featuring a high-precision Mayer Bar / Metering Rod coating head, an advanced Hot Air drying system, chromium-plated mirror drum cylinder, duplex unwinder, duplex rewinder, and pneumatic tension control, it operates seamlessly at speeds up to 150 m/min. The computerized PLC Control System with HMI touchscreen interface ensures automated web management, accurate coating application, and reliable continuous operation. Ideal for paper mills, packaging converters, and high-end label manufacturers.
