High Temperature Tape Coating Machine
High Temperature Tape Coating Machine
High Temperature Tape Coating Machine
High Temperature Tape Coating Machine
High Temperature Tape Coating Machine
High Temperature Tape Coating Machine
High Temperature Tape Coating Machine
High Temperature Tape Coating Machine
High Temperature Tape Coating Machine
High Temperature Tape Coating Machine
High Temperature Tape Coating Machine
High Temperature Tape Coating Machine

High Temperature Tape Coating Machine

Price 2000000.0 INR/ Piece

MOQ : 1 Piece

High Temperature Tape Coating Machine Specification

  • Registration
  • Automatic Web Alignment
  • Max. Coating Area
  • Full Web Width
  • Varnish Type
  • High-Temperature Adhesive Coating
  • Power Requirement
  • 100 180 kW
  • Min. Sheet Area
  • As per Customer Requirement
  • Coating Type
  • Heat-Resistant Pressure-Sensitive Adhesive Coating
  • Sheet Thickness
  • 20 500 Microns
  • Max. Sheet Area
  • 32 Inches
  • Coating Format
  • Roll-to-Roll
  • Coating Transfer Method
  • Comma Coating
  • Feeding Type
  • Continuous Roll Feeding
  • Machine Speed
  • Up to 80 m/m
  • Product Type
  • High Temperature Tape Coating Machine
  • General Use
  • Applying Heat-Resistant Adhesive on Industrial Tape Materials
  • Material
  • Stainless Steel
  • Type
  • Adhesive Coating Machine, Industrial Coating Machine
  • Weight (kg)
  • 10000 Kilograms (kg)
  • Coating Speed
  • Up to 80 m/m
  • Coating Head
  • Gravure Roller
  • Coating Width
  • 1600 Millimeter (mm)
  • Coating Material
  • Other
  • Computerized
  • No
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Power Source
  • Electric
  • Power Consumption
  • 100 180 Kilowatt (kW)
  • Heating System
  • Hot Air
  • Drive Type
  • Pneumatic
  • Voltage
  • 440v Volt (v)
  • Humidification System
  • No
  • Glue Type
  • Water Based
  • Rewinder Type
  • Duplex Rewinder
  • Unwinder Type
  • Duplex Unwinder
  • Rewinding Width
  • Up to 1300 Millimeter (mm)
  • Unwinding Width
  • Up to 1300 Millimeter (mm)
  • Dimension (L*W*H)
  • 1600 400 450 Centimeter (cm)
  • Feature
  • High Precision, Coating, Low Energy Consumption, High Speed
  • Color
  • Blue, White or Customized
  • Warranty
  • 1 Year


High Temperature Tape Coating Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • ICD Tughlakabad, Delhi
  • Payment Terms
  • Cash on Delivery (COD), Cheque
  • Supply Ability
  • 2 Pieces Per Month
  • Delivery Time
  • 90 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • The machine is covered with waterproof protective wrapping. Electrical panels, coating heads, heating components, precision rollers and motors are properly protected. Major machine sections are securely fastened on wooden or steel supports for domestic or export transportation.
  • Main Export Market(s)
  • Central America, Asia, Australia, Western Europe, Middle East, Africa, North America, South America, Eastern Europe
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 Certified, CE Certified Standard Machinery


About High Temperature Tape Coating Machine

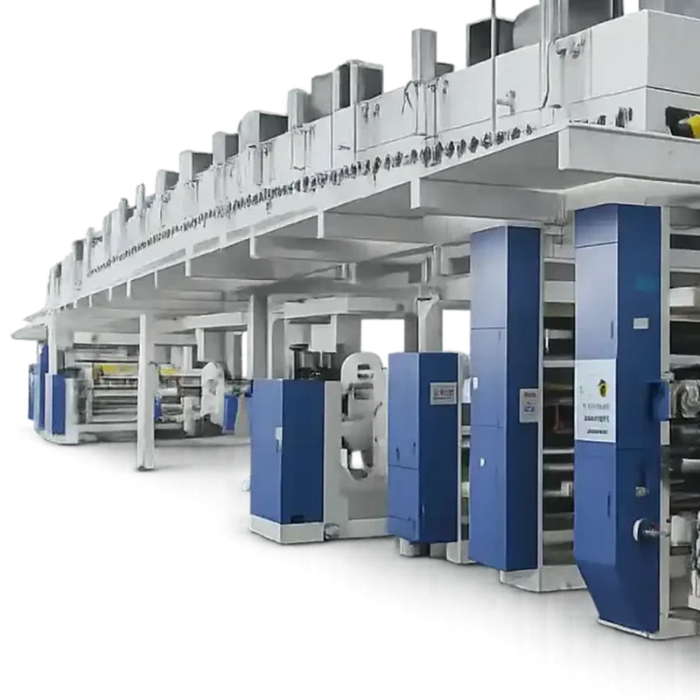

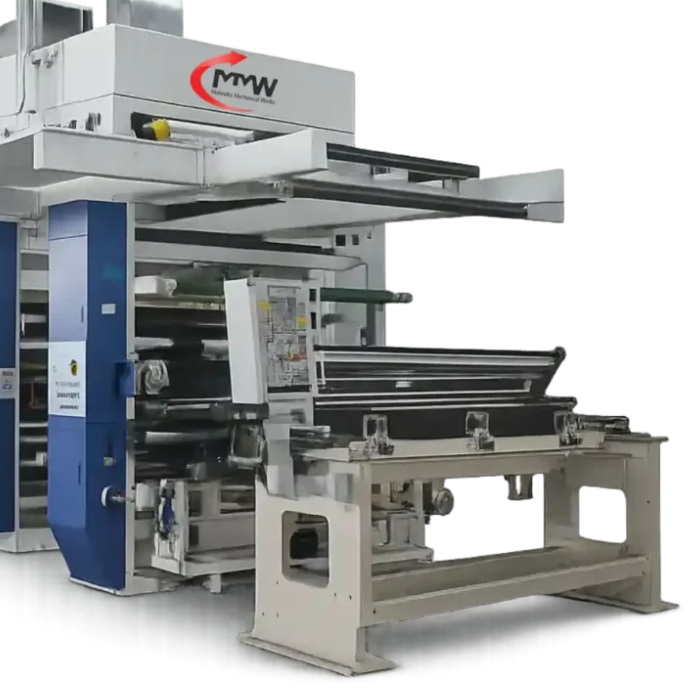

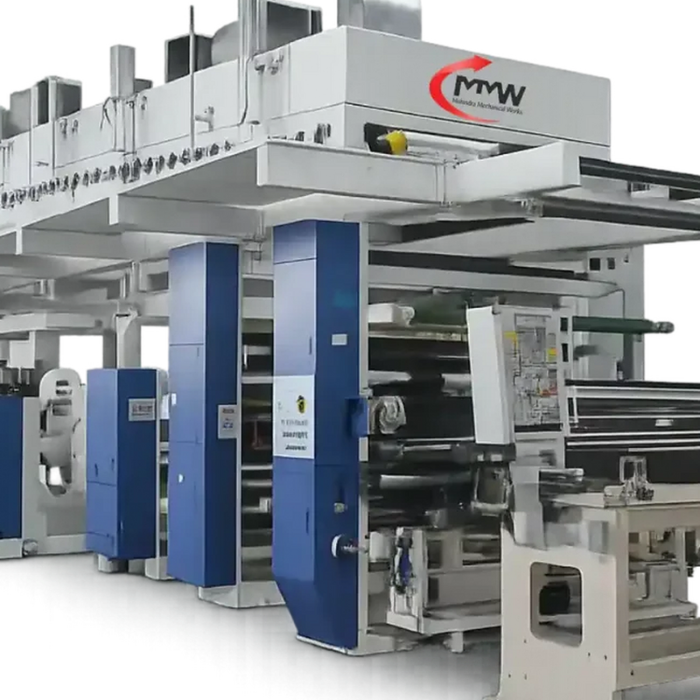

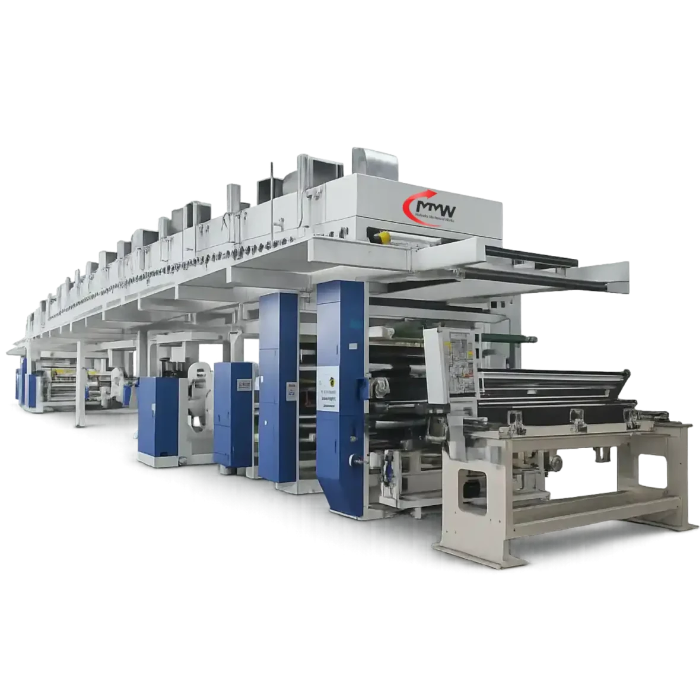

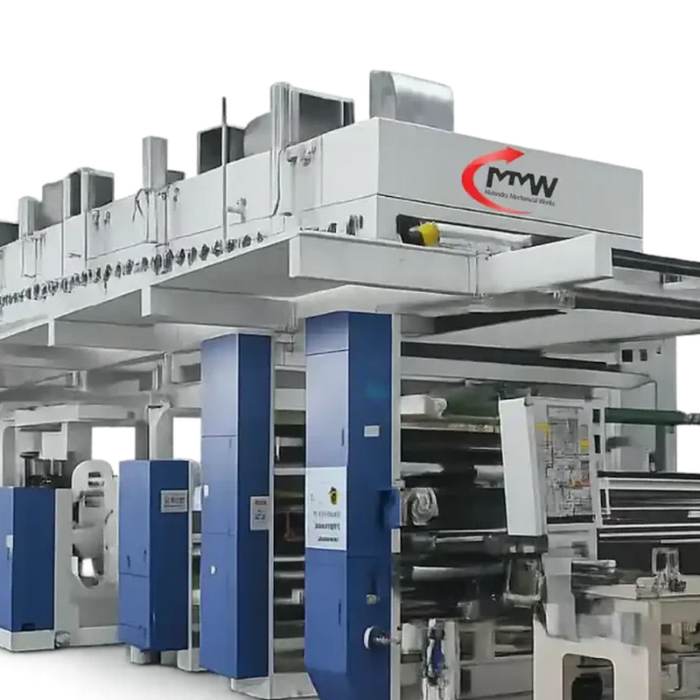

The High Temperature Tape Coating Machine manufactured by Mohindra Mechanical Works is designed for applying heat-resistant pressure-sensitive adhesive onto flexible substrates such as polyimide film, PET film, PTFE film, glass cloth and aluminium foil. It produces adhesive jumbo rolls suitable for electrical insulation, powder coating, automotive painting, electronics manufacturing and other demanding industrial applications.

The machine incorporates automatic unwinding, precision adhesive coating, multi-zone hot-air drying, release-liner lamination and controlled rewinding. Its PLC-based control system helps regulate web tension, coat weight, operating speed and drying temperature. Automatic edge guiding maintains accurate material alignment throughout production. Working width, coating mechanism, drying length and heating capacity can be customized according to the tape substrate, adhesive formulation and required temperature resistance.

Key Features

  • Uniform heat-resistant adhesive coating
  • Accurate adhesive coat-weight control
  • Multi-zone high-temperature drying
  • Precision comma-coating arrangement
  • PLC and HMI-based operation
  • Automatic web-tension control
  • Automatic edge-guiding system
  • Release-liner lamination facility
  • Adjustable temperature and airflow
  • Smooth and wrinkle-free rewinding
  • Heavy-duty industrial construction
  • Customized working width available

Suitable Raw Materials

  • Polyimide film
  • Polyester or PET film
  • PTFE film
  • Glass cloth
  • Fibreglass fabric
  • Aluminium foil
  • Crepe paper
  • Nomex paper
  • Release paper
  • Release film

Suitable Coating Materials

  • Silicone pressure-sensitive adhesive
  • Heat-resistant acrylic adhesive
  • Solvent-based adhesive
  • Flame-retardant adhesive
  • Electrical-insulation adhesive
  • High-tack industrial adhesive
  • Customized thermal-resistant formulation

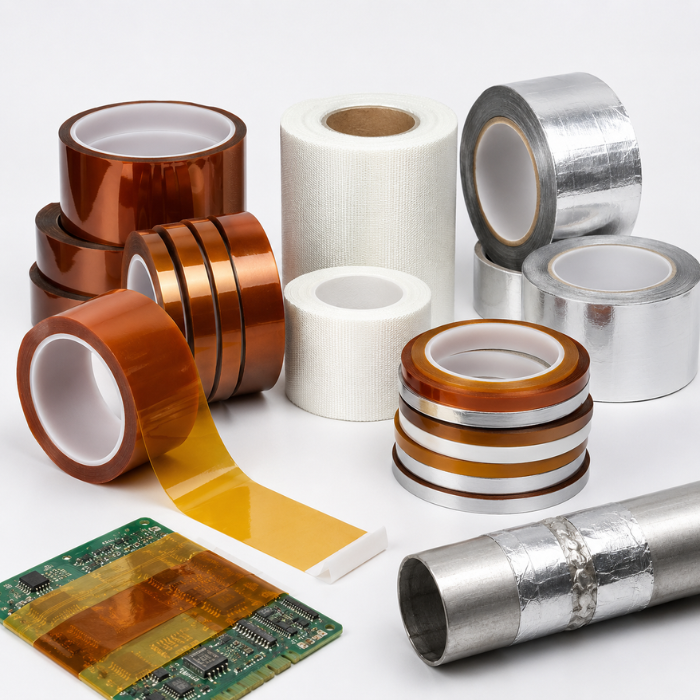

Finished Products

  • Polyimide high-temperature tape
  • Polyester masking tape
  • PTFE adhesive tape
  • Glass-cloth tape
  • Fibreglass insulation tape
  • Aluminium foil heat-resistant tape
  • Powder-coating masking tape
  • Electrical-insulation tape
  • Automotive painting tape
  • PCB masking tape
  • Heat-resistant adhesive jumbo rolls
