Hot Melt Coating Machine

Name: PVC Film Coating Machine
Brand: MOHINDRA MECHANICAL WORKS

Price 3600000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hot Melt Coating Machine Specification

Coating Format
Continuous Web Coating

Max. Coating Area
Continuous Roll-to-Roll Coating

Varnish Type
Not Applicable

Coating Type
Single-Side Hot Melt Coating

Feeding Type
Roll Feeding

Power Requirement
Three-Phase Industrial Power Supply

Sheet Thickness
20 500 Micron

Registration
Automatic Web Alignment

Machine Speed
150 m/m

Min. Sheet Area
12 Inches

Coating Transfer Method
Slot Die or Roller Transfer

Max. Sheet Area
42 Inches

Product Type
Automatic Hot Melt Coater

General Use
Hot-melt adhesive coating and lamination

Material
Other

Type
Pvc Coating Machine

Weight (kg)
4500 kg Approx. Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Gravure Roller

Coating Width
1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
Approximately 45 100 kW Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440 V Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
7500 2800 2500 Millimeter (mm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Black and Yellow

Warranty
1 Year

Hot Melt Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, New Delhi

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The Hot Melt Coating Machine is securely packed using moisture-resistant protective material, export-quality wrapping and strong wooden supports. The coating head, adhesive melter, heated hoses, electrical panels and precision rollers are separately protected to help prevent transit damage.

Main Export Market(s)
Central America, North America, Asia, Australia, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Delhi

Certifications
Manufactured under an ISO-certified quality management system. Electrical, heating, mechanical and safety components are inspected before dispatch. Applicable documents are supplied according to the final machine configuration.

About Hot Melt Coating Machine

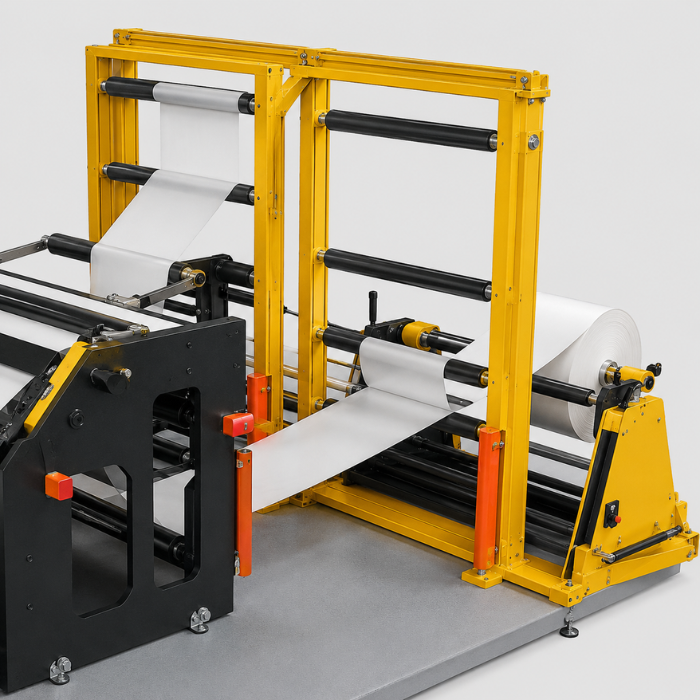

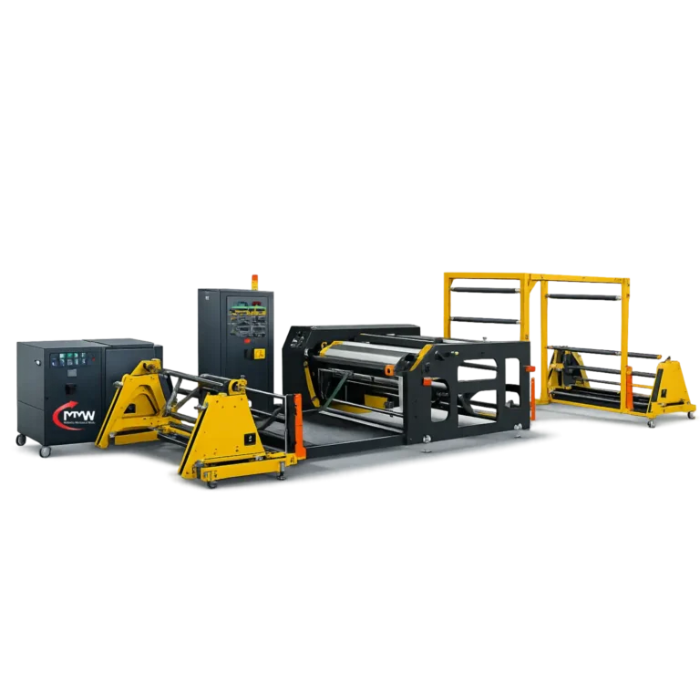

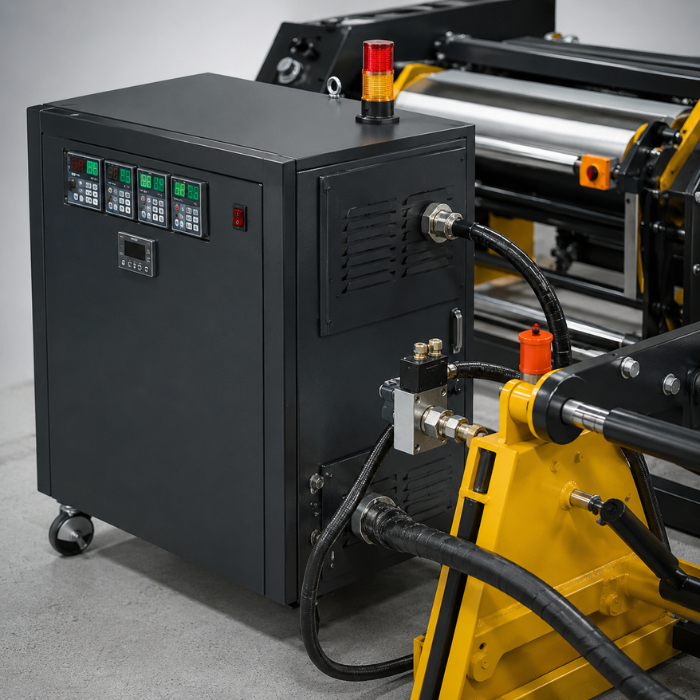

The Automatic Hot Melt Coating Machine manufactured by Mohindra Mechanical Works is designed for the precise application of hot-melt adhesive on paper, plastic film, aluminium foil, fabric, foam and non-woven materials. The machine melts solid adhesive in a temperature-controlled tank and transfers it uniformly to the substrate using a heated slot-die, roller or gravure coating system.

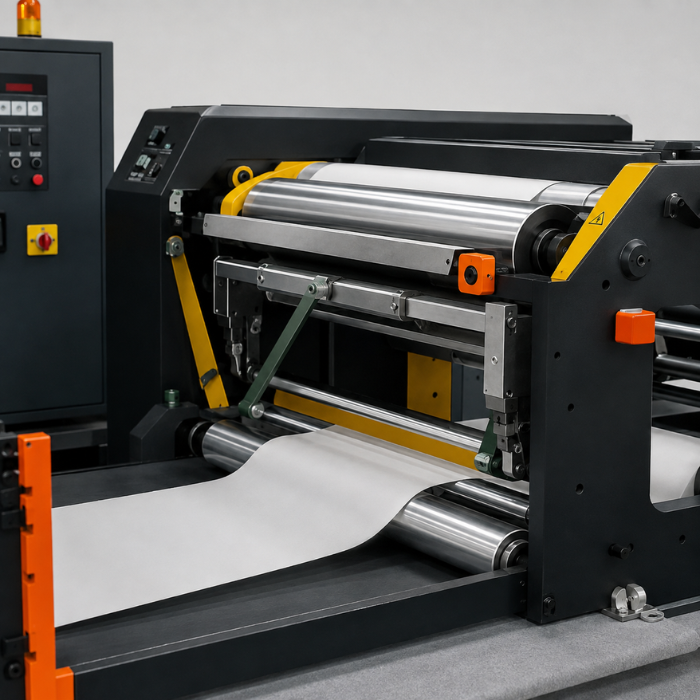

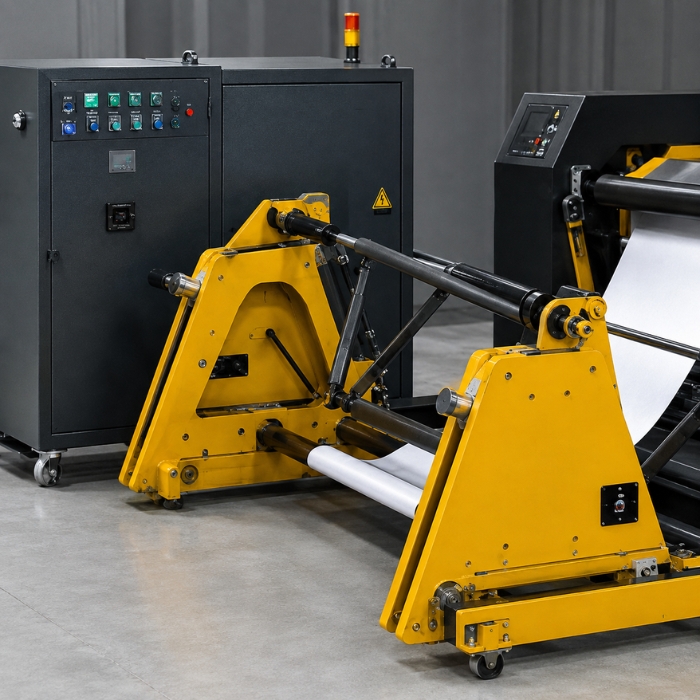

It includes automatic unwinding, web guiding, closed-loop tension control, heated adhesive feeding, precision coating, cooling and controlled rewinding systems. PLC and HMI controls enable convenient adjustment of coating speed, adhesive temperature, pump output, web tension and coating thickness. Since hot-melt adhesives set through cooling, a conventional solvent-drying chamber is generally not required. The machine provides clean operation, accurate coating GSM and reduced adhesive wastage. Working width, coating head, adhesive melter capacity and operating speed can be customized.
