Paper Barrier Coating Machine

Name: Bopp Self Adhesive Tape Making Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 1500000.00 INR
Availability: InStock

Price 3000000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Paper Barrier Coating Machine Specification

Max. Coating Area
Full Web Width

Registration
Automatic Web Alignment

Machine Speed
Up to 150 m/m

Min. Sheet Area
As per Customer Requirement

Coating Type
Functional Barrier Coating

Coating Transfer Method
Mayer Bar Coating

Max. Sheet Area
32 Inches

Coating Format
Roll-to-Roll

Varnish Type
Water-Based Barrier Coating

Power Requirement
120 200 kW

Feeding Type
Continuous Roll Feeding

Sheet Thickness
30 300 GSM

Product Type
Paper Barrier Coating Machine

General Use
Applying Functional Barrier Coating on Paper

Material
Stainless Steel

Type
Industrial Coating Machine

Weight (kg)
12,000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Mayer Bar

Coating Width
32 INCHS Inch (in)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
120 200 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 500 Centimeter (cm)

Feature
Coating, Low Energy Consumption, High Speed, High Precision

Color
Green, White or Customized

Warranty
1 year

Paper Barrier Coating Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Units Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered using waterproof protective wrapping. Electrical panels, coating components, rollers, motors and other sensitive parts are properly protected. Major assemblies are securely fastened on wooden or steel supports for safe road or sea transportation. Export-worthy packaging is available according to customer requirements.

Main Export Market(s)
Asia, North America, Western Europe, South America, Eastern Europe, Australia, Central America, Middle East, Africa

Main Domestic Market
Delhi

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Paper Barrier Coating Machine About

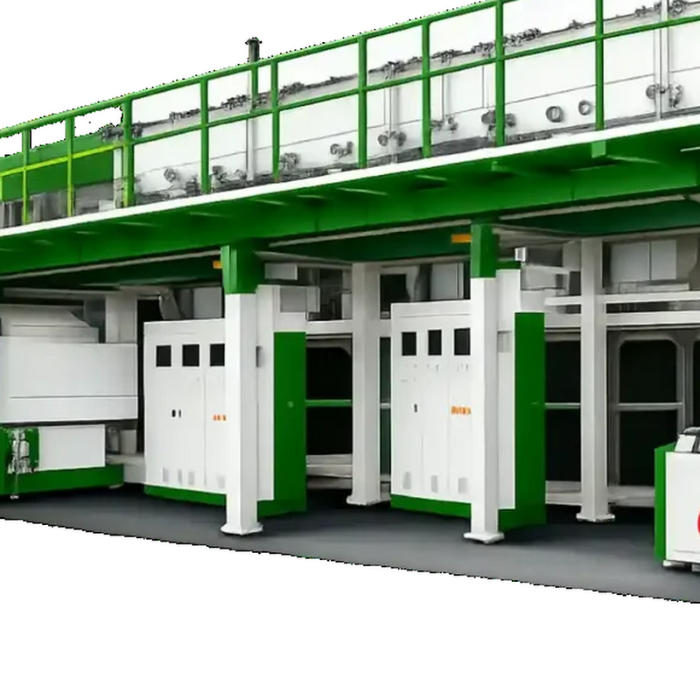

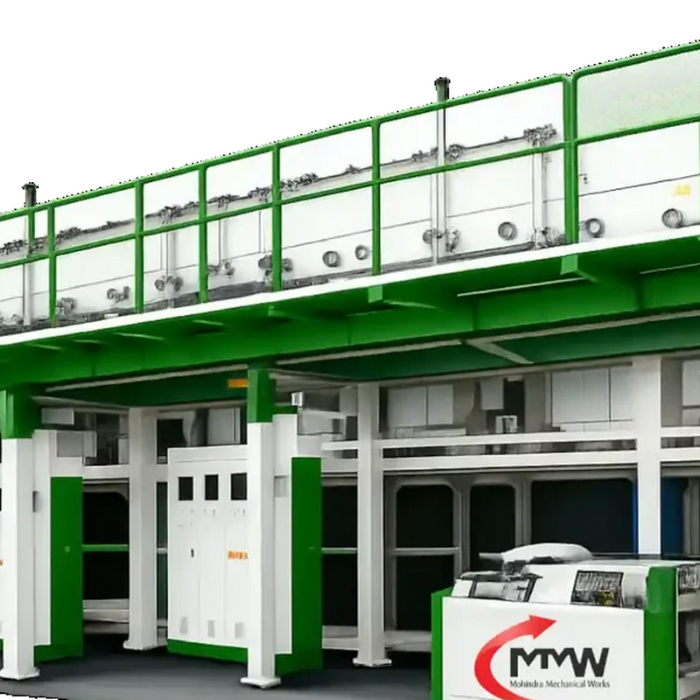

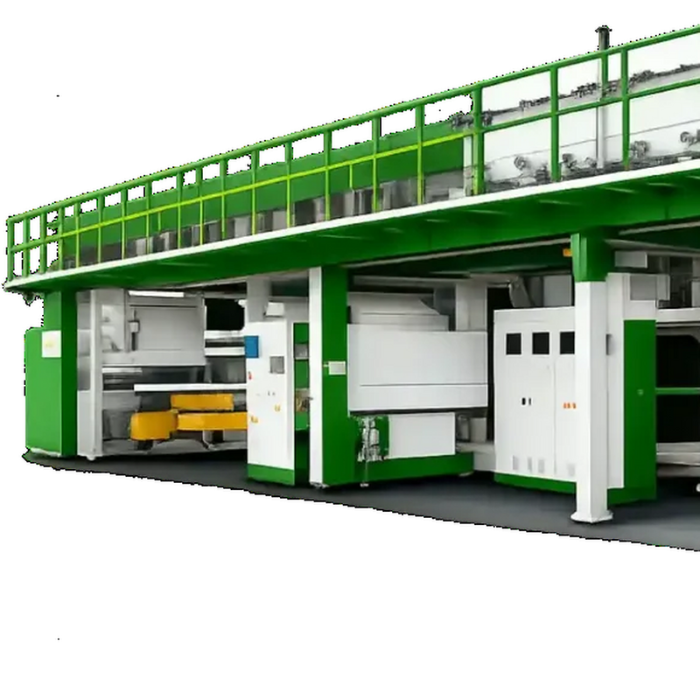

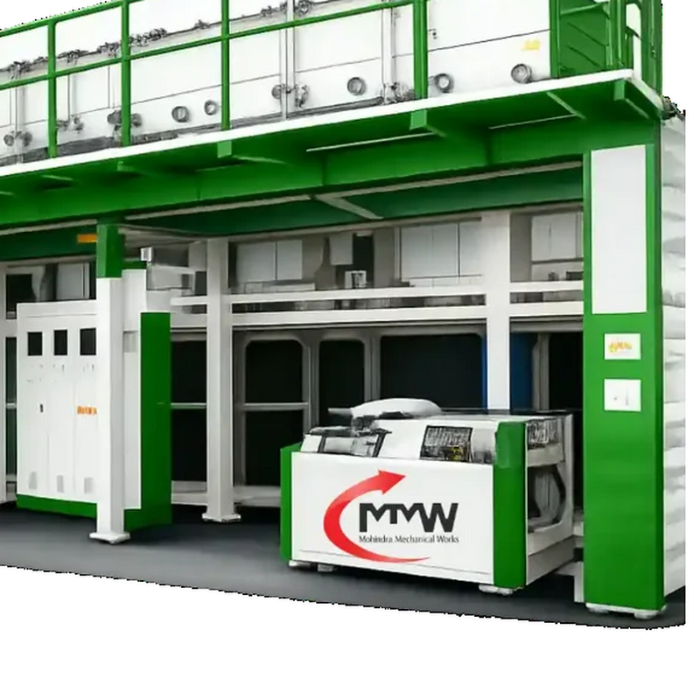

The Paper Barrier Coating Machine manufactured by Mohindra Mechanical Works is designed to apply a uniform functional barrier layer onto paper and paperboard rolls. Depending on the selected coating formulation, the finished paper can provide resistance against water, grease, oil, moisture or water vapour.

The machine operates through a continuous roll-to-roll process comprising controlled unwinding, precision Mayer Bar coating, multi-zone hot-air drying and automatic rewinding. Its PLC-based control system enables convenient adjustment of machine speed, web tension, coating operation and drying temperature. Automatic web alignment helps maintain accurate paper movement and uniform coating across the working width.

The machine is suitable for manufacturing coated paper used in food wrapping, paper cups, takeaway packaging, bakery products, labels and other paper-based packaging applications. Its working width, number of coating stations, drying length and heating source can be customized according to the required barrier performance and production capacity.

Key Features

Uniform functional barrier coating
Mayer Bar coating arrangement
Controlled coating thickness
Automatic roll-to-roll operation
PLC-based machine control
Automatic web-tension control
Automatic edge-guiding system
Multi-zone hot-air drying
Adjustable drying temperature and airflow
Smooth and consistent rewinding
Low paper and coating wastage
Heavy-duty machine construction
Customized coating width available
Easy operation and maintenance

Suitable Raw Materials

Kraft paper
Cup-stock paper
Food-wrapping paper
Paperboard
Glassine paper
Label paper
Bakery paper
Specialty packaging paper

Suitable Barrier Coatings

Water-based barrier coating
Grease- and oil-resistant coating
Moisture-resistant coating
Water-resistant coating
Water-vapour barrier coating
Aqueous polymer coating
Starch- or PVA-based formulation
Customized functional coating

Finished Products

Barrier-coated paper rolls
Grease-resistant food paper
Moisture-resistant packaging paper
Paper-cup stock
Bakery and confectionery wrapping paper
Burger and sandwich wrapping paper
Takeaway food-packaging paper
Coated paperboard
Protective wrapping paper
Functional label paper
