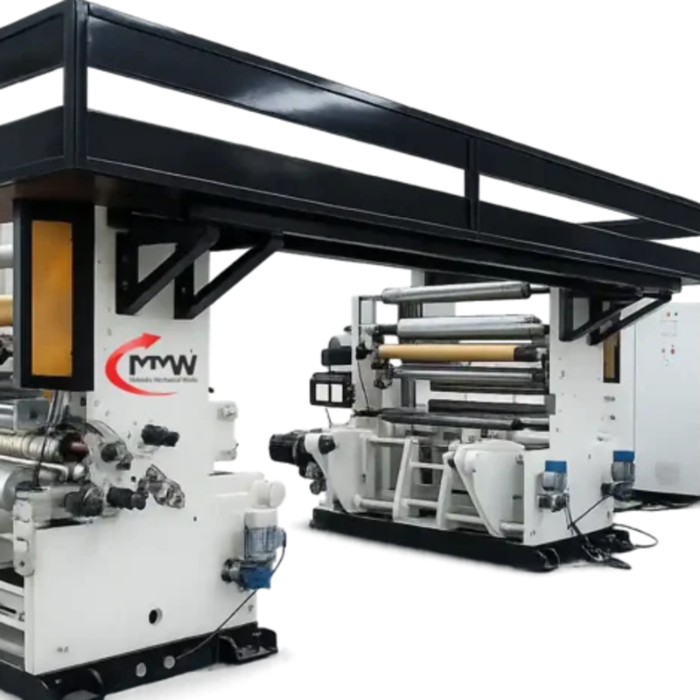

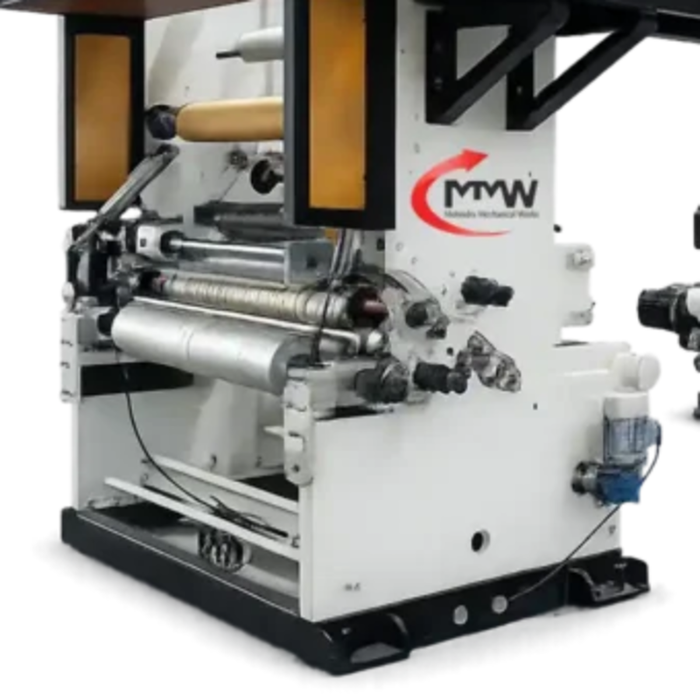

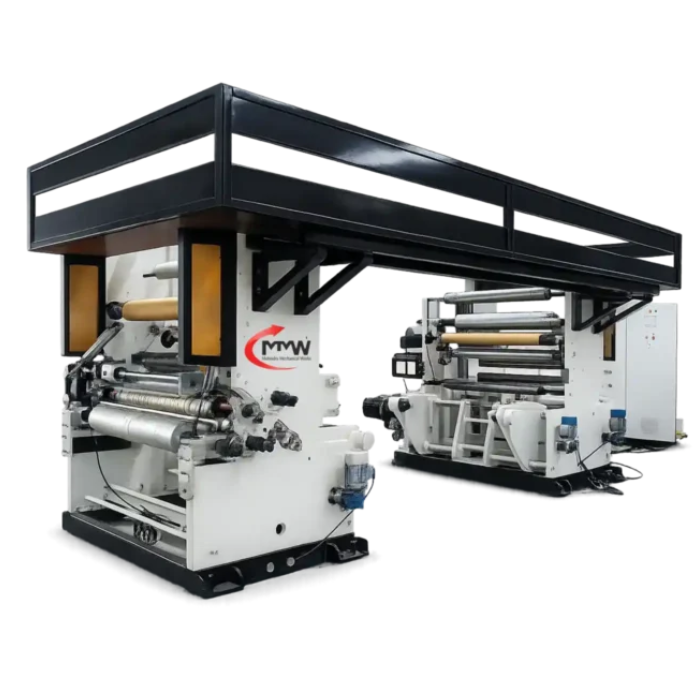

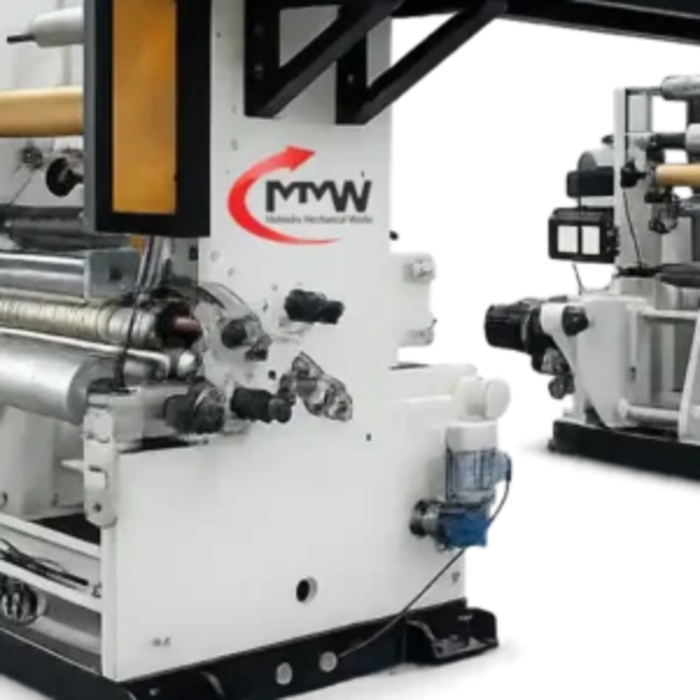

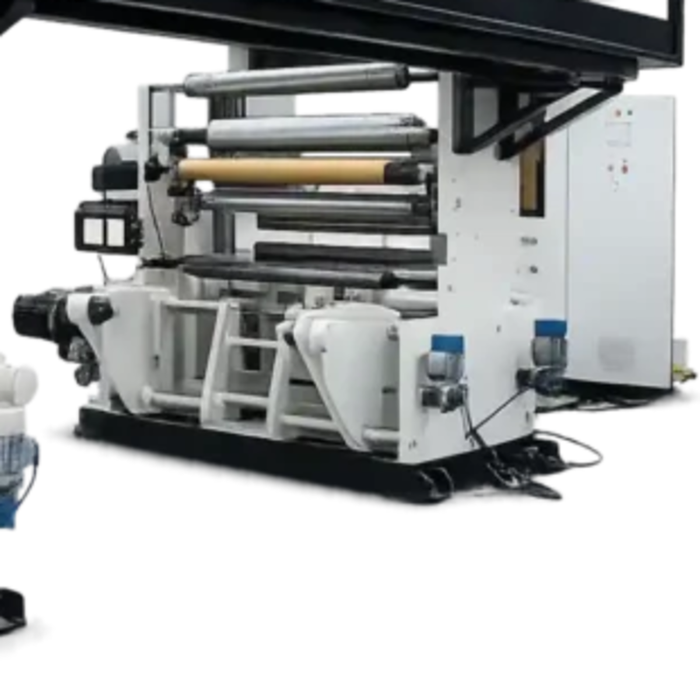

HSL Coating Machine

Name: HSL Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 3500000.0 INR
Availability: InStock

Price 3500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HSL Coating Machine Specification

Power Requirement
120 200 kW

Max. Sheet Area
36 Inch

Sheet Thickness
12 150 Microns

Varnish Type
Solvent-Based or Water-Based HSL

Coating Transfer Method
Reverse Gravure Coating

Machine Speed
Up to 150 m/m

Coating Format
Roll-to-Roll

Min. Sheet Area
As per Customer Requirement

Feeding Type
Continuous Roll Feeding

Registration
Automatic Web Alignment120 200 kW

Max. Coating Area
Full Web Width

Coating Type
Heat-Seal Lacquer Coating

Product Type
HSL Coating Machine

General Use
Applying Heat-Seal Lacquer on Aluminium Foil and Flexible Film

Material
Stainless Steel

Type
Adhesive Coating Machine, Industrial Coating Machine

Weight (kg)
12000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
120 200 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 x 450 x 500 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Black, White or Customized

Warranty
1 Year

HSL Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Precision coating assemblies, gravure rollers, electrical panels, motors and sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
South America, Eastern Europe, Western Europe, Middle East, Asia, Australia, Central America, North America, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

HSL Coating Machine About

The HSL Coating Machine applies a precise heat-seal lacquer layer onto aluminium foil and flexible packaging materials. Its roll-to-roll system combines uniform coating, controlled web tension, efficient drying and smooth rewinding. The finished foil is suitable for pharmaceutical blister packs, container lids and other heat-sealable packaging applications.
