DIP Dying Paper Coating Machine

Name: Bopp Packaging Tape Coating Machine
Brand: MOHINDRA MECHANICAL WORKS

Price 2100000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DIP Dying Paper Coating Machine Specification

Coating Type
Dip and Saturation Coating

Coating Transfer Method
Immersion Bath with Squeeze Rollers

Varnish Type
Water-Based

Min. Sheet Area
12 Inches

Registration
Automatic Web Alignment

Sheet Thickness
40 300 GSM

Coating Format
Continuous Web Coating

Max. Sheet Area
42 Inches

Max. Coating Area
Continuous Roll-to-Roll Coating

Power Requirement
Three-Phase Industrial Power Supply

Feeding Type
Roll Feeding

Machine Speed
150 m/m

Product Type
Automatic Dip Dyeing Paper Coater

General Use
Paper dyeing, impregnation and chemical coating

Material
Stainless Steel

Type
Other

Weight (kg)
4500 kg Approx. Kilograms (kg)

Coating Speed
100 m/m

Coating Head
Other

Coating Width
1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
Approximately 50 100 kW Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
380-440 Volt (v)

Humidification System
No

Glue Type
Other

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
8000 3000 2800 Millimeter (mm)

Feature
Low Energy Consumption, High Speed, High Precision

Color
Black and Grey

Warranty
1 Year

DIP Dying Paper Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, New Delhi

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The Dip Dyeing Paper Coating Machine is packed using moisture-resistant wrapping, protective sheets, strong wooden supports and export-worthy packaging. The electrical panel, dipping assembly, rollers and other sensitive components are separately protected during transportation.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
Manufactured under an ISO-certified quality management system. Mechanical, electrical, heating and safety components are inspected before dispatch. Applicable documents can be supplied according to the final configuration and purchase order.

DIP Dying Paper Coating Machine About

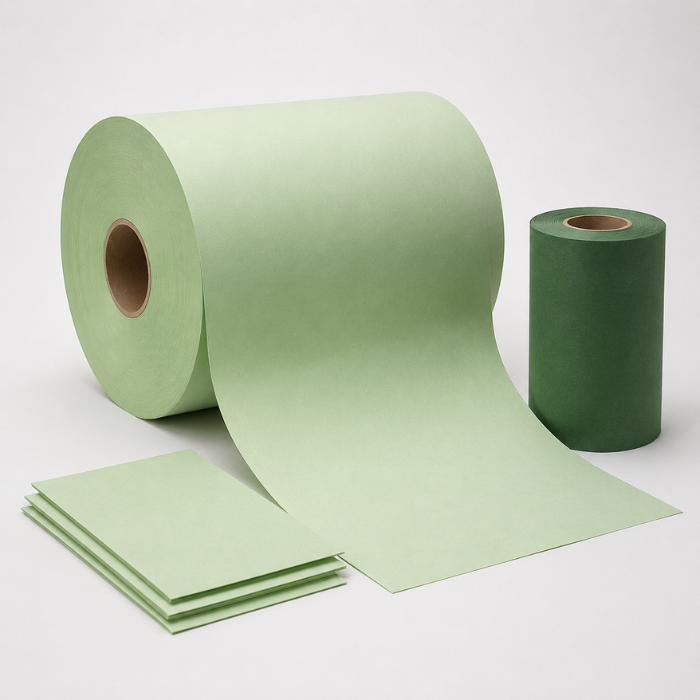

The Automatic Dip Dyeing Paper Coating Machine manufactured by Mohindra Mechanical Works is designed for continuous dyeing, saturation and chemical treatment of paper rolls. In this process, the paper web passes through a controlled dye or coating bath, ensuring penetration on both sides. Adjustable squeeze rollers remove excess liquid and help maintain uniform colour, chemical pickup and finished-paper quality.

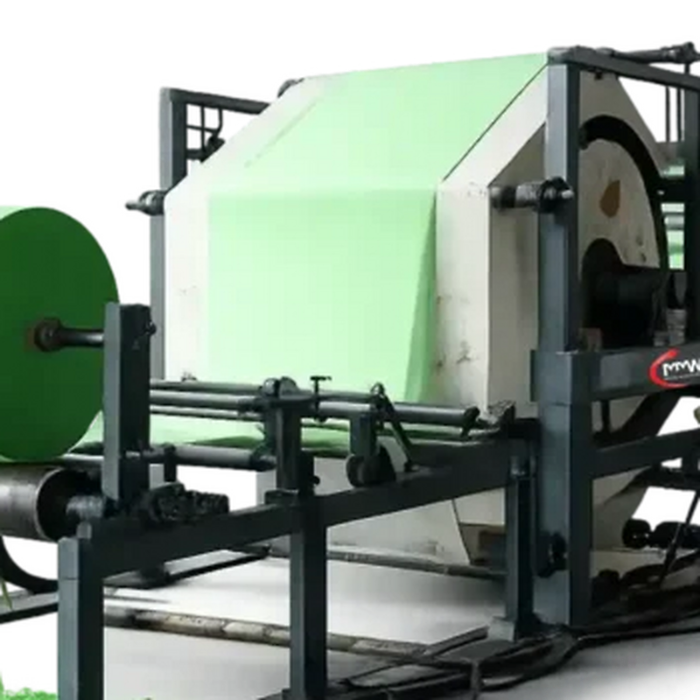

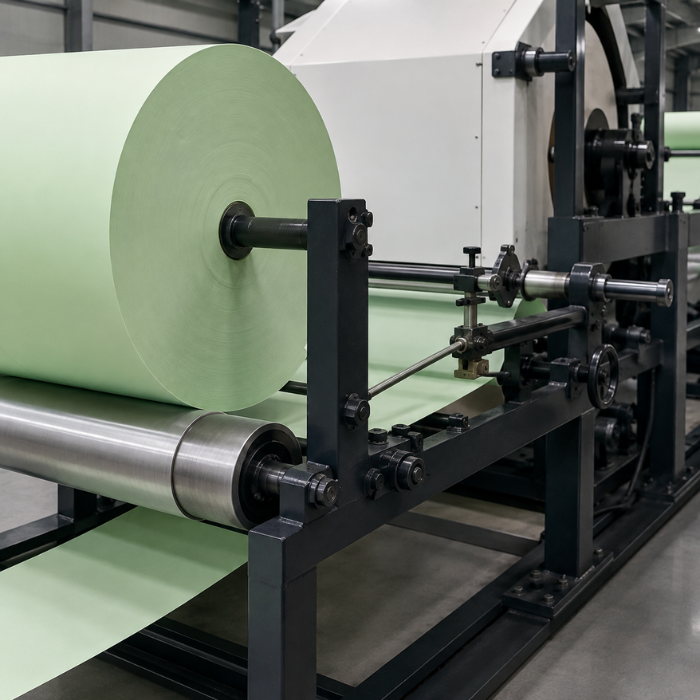

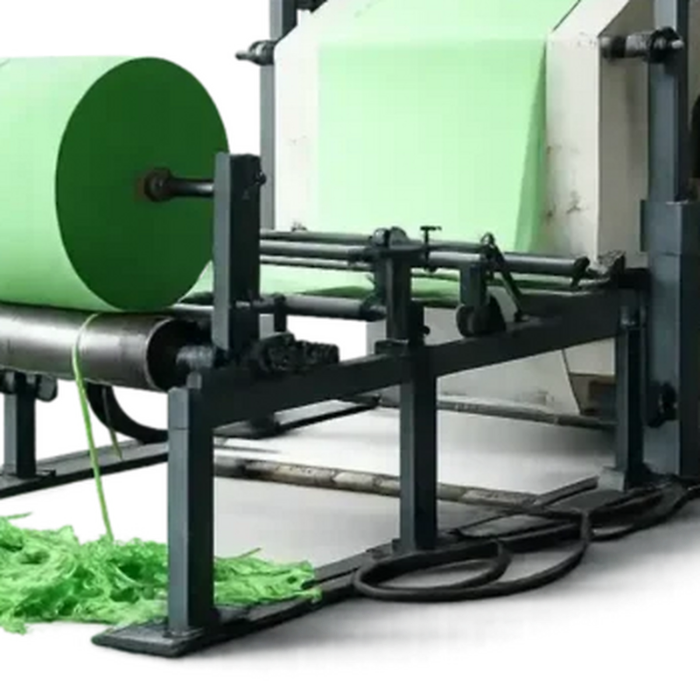

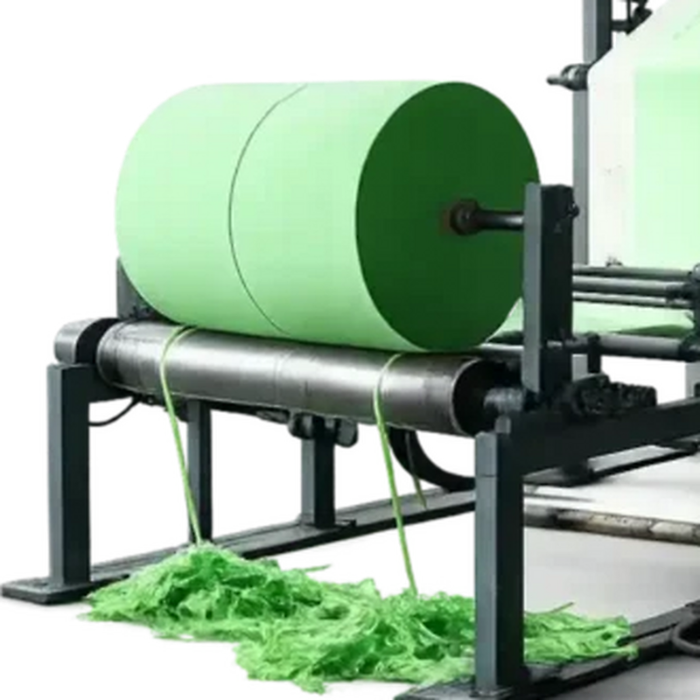

The machine is equipped with automatic unwinding, a stainless-steel dipping tank, squeeze rollers, web-tension control, web guiding, hot-air drying and controlled rewinding systems. Its PLC and HMI control panel enables operators to adjust production speed, squeeze pressure, drying temperature and web tension. The machine can be used with compatible water-based dyes, pigments and functional chemicals. Working width, tank design, drying length and production speed can be customized according to the paper grade and required application.
