High Speed Coating Machine

Name: High Speed Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 3800000.0 INR
Availability: InStock

Price 3800000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Unit

High Speed Coating Machine Specification

Registration
Automatic Registration Control

Coating Transfer Method
Gravure / Reverse Gravure Transfer

Max. Sheet Area
42 Inches

Coating Format
Continuous Web Coating

Machine Speed
150 m/min m/m

Coating Type
Single-Side Coating

Power Requirement
3 Phase Industrial Power Supply

Sheet Thickness
12 200 Micron

Max. Coating Area
Continuous Roll-to-Roll Coating

Feeding Type
Roll to Roll

Varnish Type
Water-Based or Solvent-Based

Min. Sheet Area
12 Inches

Product Type
Automatic Roll-to-Roll Coating Machine

General Use
Paper, film, foil and flexible packaging material coating

Material
Other

Type
Other

Weight (kg)
8500 kg Approx. Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Mayer Bar

Coating Width
42 INCHS Inch (in)

Coating Material
Plastic

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
100 150 kW Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440 V Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 mm Millimeter (mm)

Unwinding Width
Up to 1600 mm Millimeter (mm)

Dimension (L*W*H)
12000 3500 4200 mm Millimeter (mm)

Feature
Low Energy Consumption, High Speed, High Precision, Magnetic Tension Control, Printing, Coating, Slitting, Auto Exchange Rolls

Color
Blue and White

Warranty
1 year

High Speed Coating Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
ICD Tughlakabad, New Delhi

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Units Per Month

Delivery Time
60 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is securely packed using protective wrapping, moisture-resistant material, wooden supports and export-worthy packaging. Sensitive electrical and mechanical components are separately protected to prevent damage during transportation.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Delhi

Certifications
ISO Certified Manufacturing Company

High Speed Coating Machine About

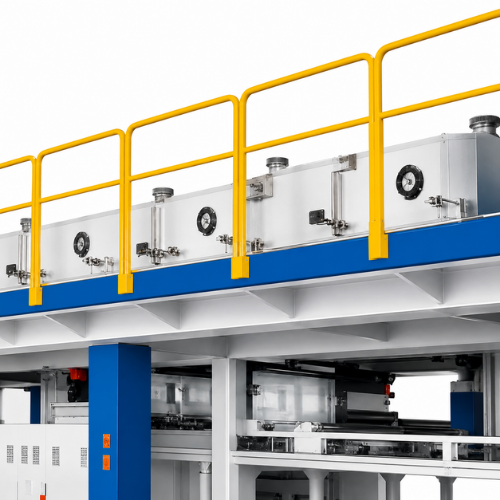

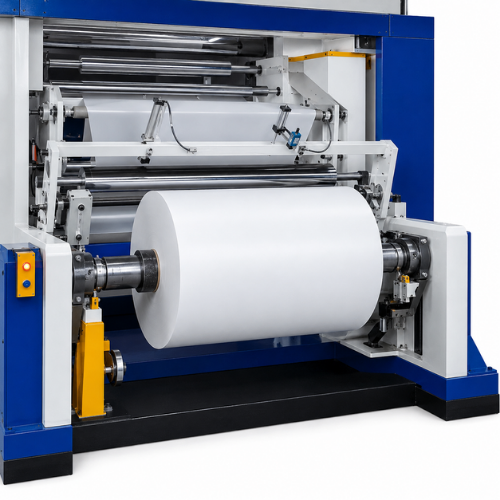

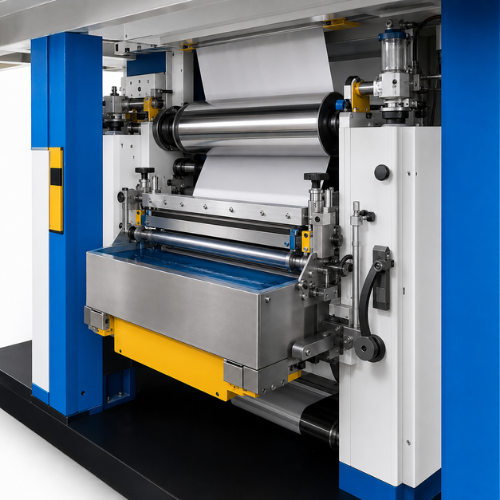

The Industrial High Speed Coating Machine manufactured by Mohindra Mechanical Works is designed for accurate and continuous coating of paper, plastic film, aluminium foil, polyester film, BOPP and laminated flexible packaging materials. The machine provides uniform coating thickness, stable web movement and excellent finished-material quality.

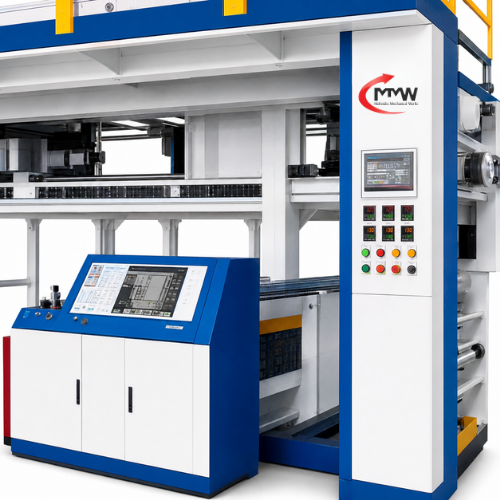

It is equipped with a PLC-based control system, HMI touchscreen, automatic tension control, web guiding system and multi-zone hot-air drying arrangement. The coating section can be configured for water-based, solvent-based, adhesive, varnish, barrier and other functional coatings. Its strong fabricated structure ensures smooth performance with minimum vibration during high-speed production. Unwinding width, coating head, drying length, heating system and rewinding arrangement can be customized according to the buyers material and production requirements.
