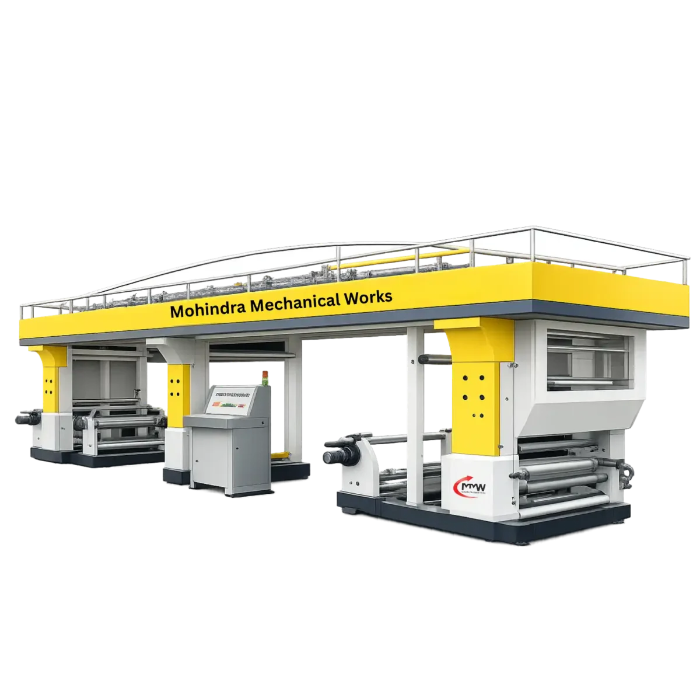

Paper Pouch Coating Machine

Name: Paper Pouch Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 7500000.0 INR
Availability: InStock

Price 7500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Paper Pouch Coating Machine Specification

Registration
Automatic / Manual

Power Requirement
25 kW

Coating Transfer Method
Metering Rod / Mayer Bar

Max. Sheet Area
32 INCHS Inch (in)

Max. Coating Area
32 Inch

Min. Sheet Area
12 Inch

Machine Speed
150 m/m

Coating Type
Pan Masala Barrier Coating / Moisture Proof Coating

Feeding Type
Roll to Roll

Coating Format
Web / Roll

Varnish Type
Heat Sealable Varnish / Aqueous Dispersion

Sheet Thickness
50 - 300 GSM

Product Type
Paper Coating Machine / Barrier Coating Line

General Use
Paper & Packaging Coating Industry

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
8500 Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Gravure Roller

Coating Width
32 Inch Inch (in)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
20 - 25 Horsepower (HP)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
32 Inch Inch (in)

Unwinding Width
32 Inch Inch (in)

Dimension (L*W*H)
420 x 96 x 120 Inch (in)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Bright Yellow & White / Light Grey

Warranty
1 Year

Paper Pouch Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Nhava Sheva / Mundra / ICD Tughlakabad

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Heavy-Duty Industrial Wooden Box Packaging with Moisture-Proof Stretch Wrapping for Safe Transit

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Paper Pouch Coating Machine About

Mohindra Mechanical Works presents the high-performance Automatic Paper Pouch Coating Machine for Pan Masala, specifically engineered for applying high-barrier, moisture-proof, and aroma-retention coatings on paper pouch substrates. Designed with a heavy-duty industrial structure, this machine is ideal for flexible packaging units manufacturing pan masala pouches, gutkha packaging, mouth freshener packets, and eco-friendly paper-based sachets.

Featuring a high-precision Mayer Bar / Metering Rod coating head, an advanced Hot Air drying system, duplex unwinder, duplex rewinder, and pneumatic web tension control, it operates smoothly at production speeds up to 150 m/min. The computerized PLC Control System with HMI touchscreen interface ensures automated web tracking, uniform coat weight, heat-sealability compliance, and reliable continuous operation.
