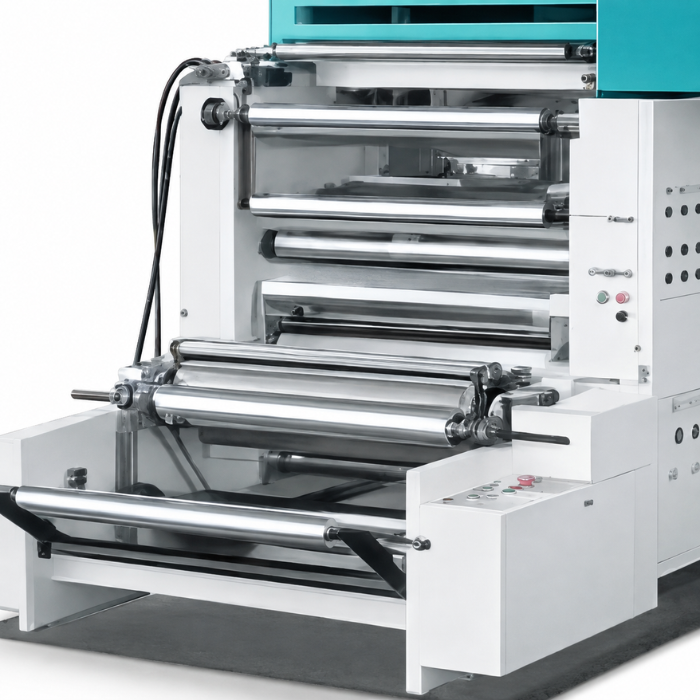

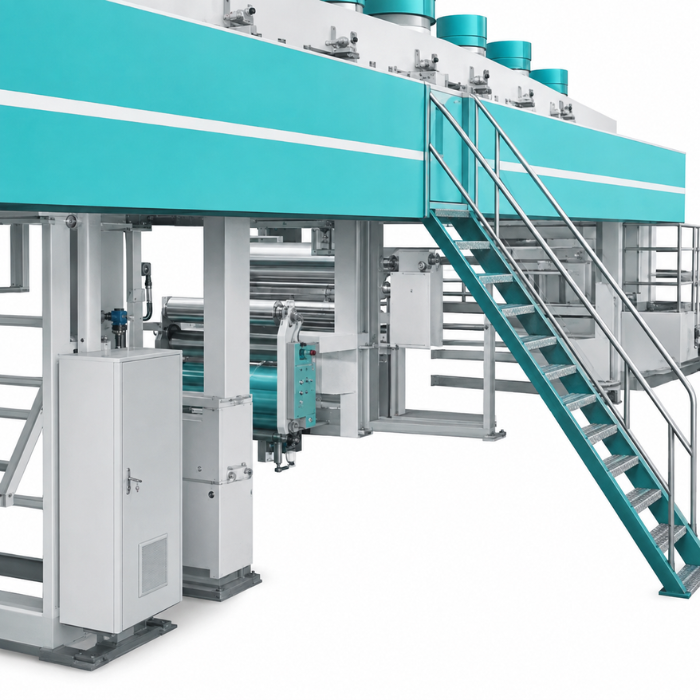

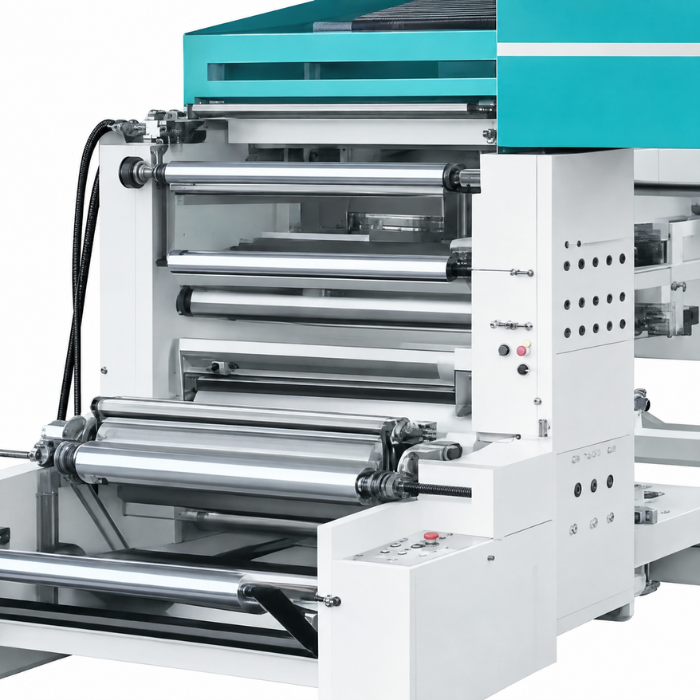

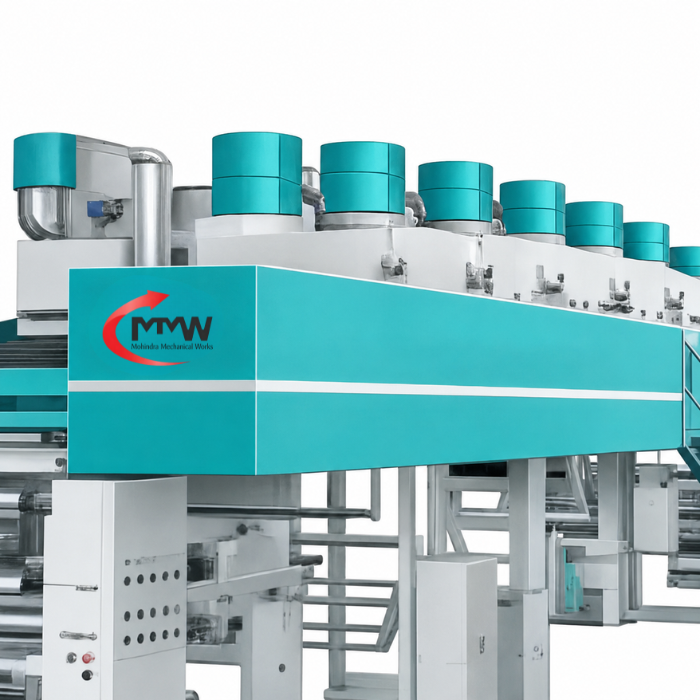

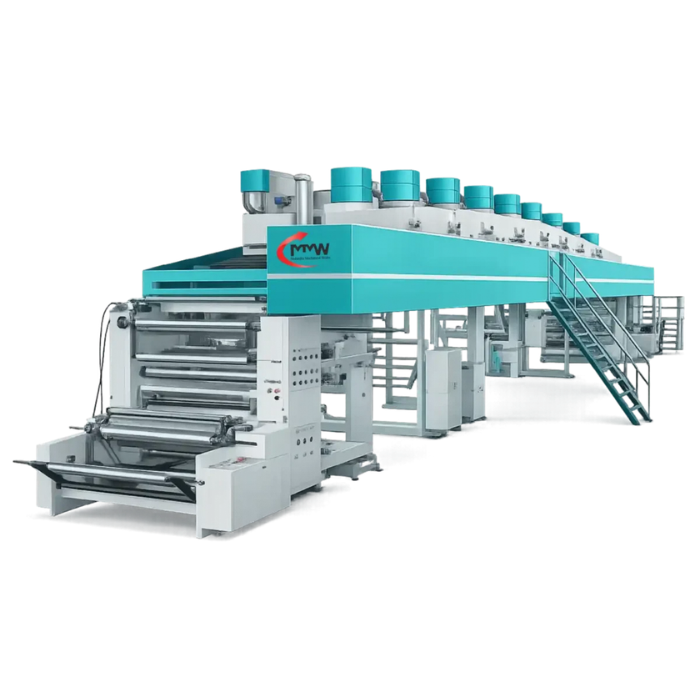

Double Head Paper Coating Machine
Double Head Paper Coating Machine
Double Head Paper Coating Machine
Double Head Paper Coating Machine
Double Head Paper Coating Machine
Double Head Paper Coating Machine
Double Head Paper Coating Machine
Double Head Paper Coating Machine
Double Head Paper Coating Machine
Double Head Paper Coating Machine
Double Head Paper Coating Machine
Double Head Paper Coating Machine

Double Head Paper Coating Machine

Price 2000000.0 INR/ Piece

MOQ : 1 Piece

Double Head Paper Coating Machine Specification

  • Power Requirement
  • 160 250 kW
  • Registration
  • Automatic Web Alignment
  • Max. Sheet Area
  • 36 inch
  • Varnish Type
  • Water-Based, Acrylic, Barrier or Customized
  • Feeding Type
  • Continuous Roll Feeding
  • Coating Format
  • Roll-to-Roll
  • Coating Type
  • Double-Layer or Dual-Function Paper Coating
  • Min. Sheet Area
  • As per Customer Requirement
  • Max. Coating Area
  • Full Web Width
  • Machine Speed
  • Up to 120 m/m
  • Sheet Thickness
  • 40 450 GSM
  • Coating Transfer Method
  • Gravure, Mayer Bar or Knife Coating
  • Product Type
  • Double Head Paper Coating Machine
  • General Use
  • Applying Two Coating Layers on Paper and Paperboard Rolls
  • Material
  • Stainless Steel
  • Type
  • Adhesive Coating Machine, Industrial Coating Machine
  • Weight (kg)
  • 14000 Kilograms (kg)
  • Coating Speed
  • Up to 120 m/m
  • Coating Head
  • Gravure Roller
  • Coating Width
  • Up to 1600 Millimeter (mm)
  • Coating Material
  • Other
  • Computerized
  • No
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Power Source
  • Electric
  • Power Consumption
  • 160 250 Kilowatt (kW)
  • Heating System
  • Hot Air
  • Drive Type
  • Pneumatic
  • Voltage
  • 440v Volt (v)
  • Humidification System
  • No
  • Glue Type
  • Water Based
  • Rewinder Type
  • Duplex Rewinder
  • Unwinder Type
  • Duplex Unwinder
  • Rewinding Width
  • Up to 1600 Millimeter (mm)
  • Unwinding Width
  • Up to 1600 Millimeter (mm)
  • Dimension (L*W*H)
  • 2200 500 520 Centimeter (cm)
  • Feature
  • High Precision, Coating, Low Energy Consumption, High Speed
  • Color
  • Turquoise, White or Customized
  • Warranty
  • 1 Year


Double Head Paper Coating Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • ICD Tughlakabad, Delhi
  • Payment Terms
  • Cash on Delivery (COD), Cheque
  • Supply Ability
  • 2 Pieces Per Month
  • Delivery Time
  • 90 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • The machine is covered with waterproof protective wrapping. Both coating assemblies, precision rollers, drying sections, electrical panels, motors and other sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.
  • Main Export Market(s)
  • South America, Eastern Europe, Western Europe, Australia, North America, Middle East, Africa, Asia, Central America
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 Certified, CE Certified Standard Machinery


About Double Head Paper Coating Machine

The Double Head Paper Coating Machine features two independent coating stations for applying multiple layers or different coating formulations in one continuous process. It provides controlled coat weight, efficient drying and smooth rewinding for packaging, printing and specialty-paper production.

Coating Configurations

Configuration Application
Two Layers on One Side Primer plus topcoat or two-stage functional coating
Coating on Both Sides Front-and-back coating with a suitable web-turning arrangement
Same Coating at Both Heads Increased coat weight through two controlled applications
Different Coatings Combination of colour, barrier, gloss, adhesive or protective layers


Key Features

  • Two independent coating stations
  • Multi-layer coating in one continuous process
  • Independent coat-weight adjustment
  • Same or different coating formulations
  • Single-side or double-side configuration available
  • Automatic roll-to-roll operation
  • PLC-based machine controls
  • Automatic web-tension management
  • Automatic edge-guiding system
  • Multi-zone hot-air drying chambers
  • Adjustable temperature and airflow
  • Stainless steel coating-contact components
  • Smooth and wrinkle-free rewinding
  • Reduced production time and material wastage
  • Customized working width available

Suitable Raw Materials

  • Kraft paper
  • White kraft paper
  • Printing paper
  • Art-paper base stock
  • Chromo-paper base stock
  • Cup-stock paper
  • Paperboard
  • Label paper
  • Packaging paper
  • Release-paper base stock
  • Greaseproof paper
  • Specialty industrial paper

Suitable Coating Materials

  • Water-based acrylic coating
  • Pigment coating
  • Barrier coating
  • Oil- and grease-resistant coating
  • Moisture-resistant coating
  • Silicone release coating
  • Heat-seal coating
  • Primer coating
  • Gloss or matte topcoat
  • Adhesive coating
  • Colour coating
  • Customized functional formulation

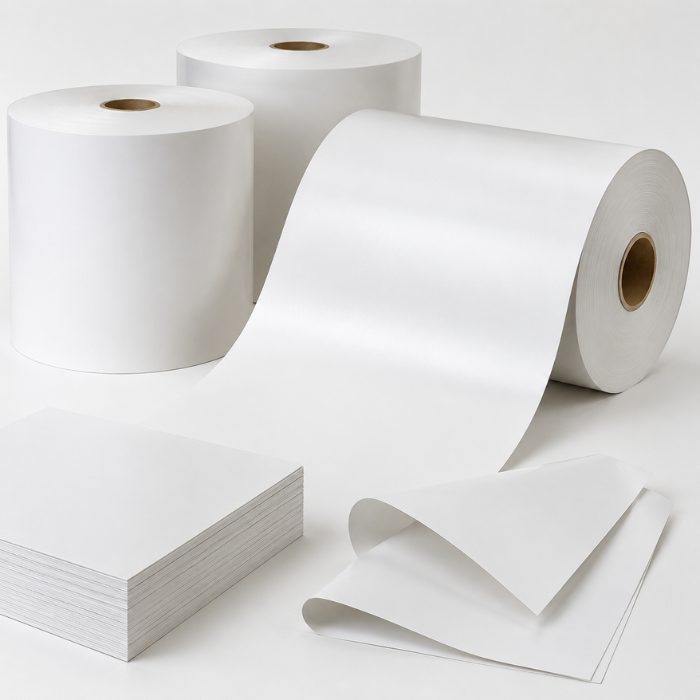

Finished Products

  • Double-coated paper rolls
  • Multi-layer barrier paper
  • Coated kraft paper
  • Printable coated paper
  • Label and sticker paper
  • Release-paper rolls
  • Food-packaging paper
  • Cup- and plate-stock paper
  • Glossy or matte coated paper
  • Water- and grease-resistant paper
  • Heat-sealable packaging paper
  • Decorative coated paper
  • Industrial protective paper
  • Specialty functional paper
