Hot Stamping DG Coating Machine

Price 3500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hot Stamping DG Coating Machine Specification

Coating Format
Roll to Roll

Sheet Thickness
12 50 Microns

Min. Sheet Area
As per Customer Requirement

Feeding Type
Continuous Roll Feeding

Varnish Type
Release, Colour, Protective or Heat-Activated Adhesive Coating

Max. Coating Area
Full Web Width

Coating Transfer Method
Direct Gravure Coating

Power Requirement
180 300 kW

Machine Speed
Up to 150 m/m

Max. Sheet Area
Up to 1600 mm Working Width

Coating Type
Hot-Stamping Foil Functional Coating

Registration
Automatic Web Alignment

Product Type
Hot Stamping DG Coating Machine

General Use
Applying Release, Colour and Heat-Activated Adhesive Coatings on PET Film

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
14000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
180 300 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
2600 550 550 Centimeter (cm)

Feature
Low Energy Consumption, High Precision, Coating, High Speed

Color
Orange, White or Customized

Warranty
1 Year

Hot Stamping DG Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Gravure coating heads, engraved cylinders, doctor-blade assemblies, precision rollers, drying chambers, unwinders, rewinders, motors, blowers and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
North America, South America, Eastern Europe, Asia, Western Europe, Middle East, Africa, Australia, Central America

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Hot Stamping DG Coating Machine About

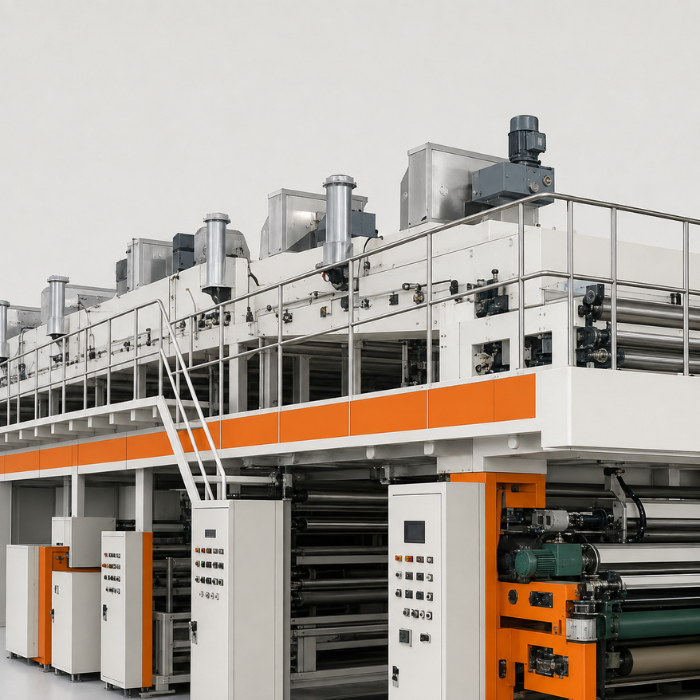

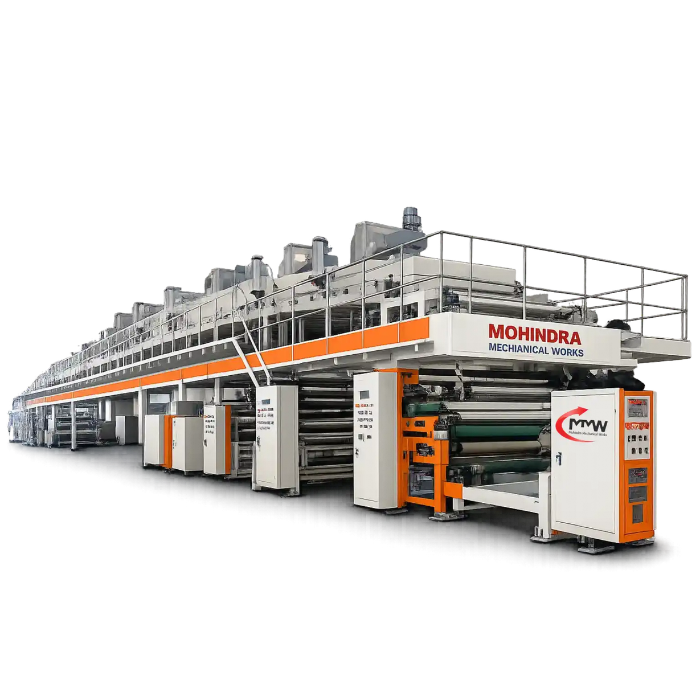

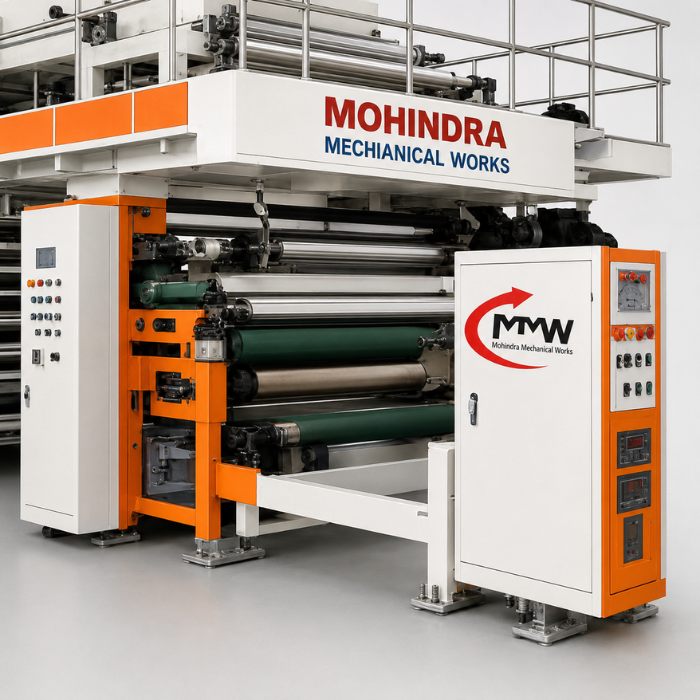

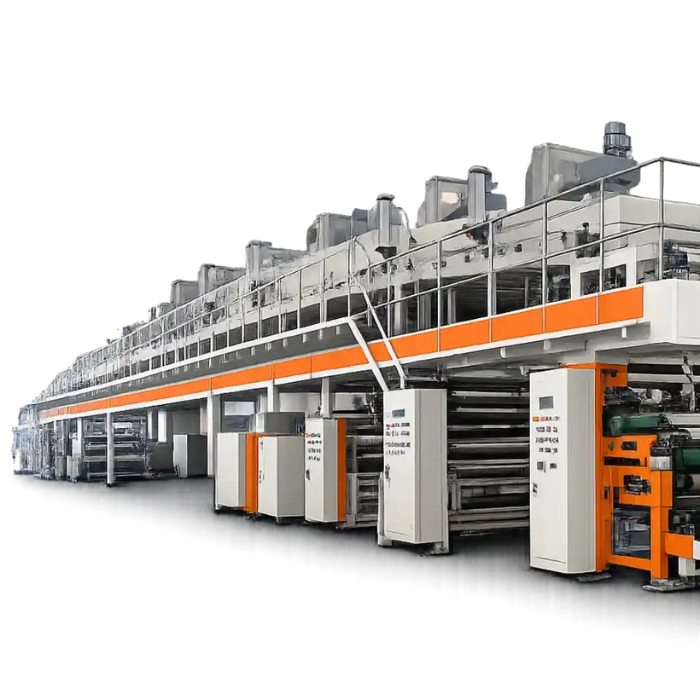

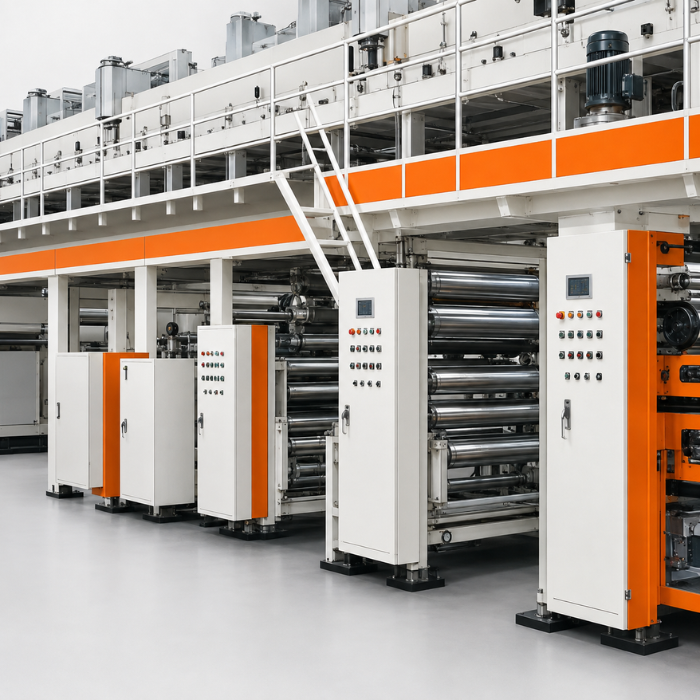

The Hot Stamping DG Coating Machine is designed for precision coating of PET carrier film and metallized polyester film used in manufacturing hot-stamping and decorative transfer foils. DG refers to the direct-gravure coating process, in which an engraved gravure roller transfers a controlled quantity of coating material onto the moving film.
Depending on the approved configuration, the machine can apply release coating, colour lacquer, protective coating and heat-activated adhesive in separate production passes or through multiple inline coating stations. Each coated layer is passed through a controlled hot-air drying chamber before the film is rewound.
The machine combines precision gravure coating, automatic web-tension control, edge guiding, multi-zone drying, solvent exhaust and uniform rewinding. The resulting coated foil can be used for decorative stamping on paper, paperboard, plastic, leather, textiles and other compatible surfaces.

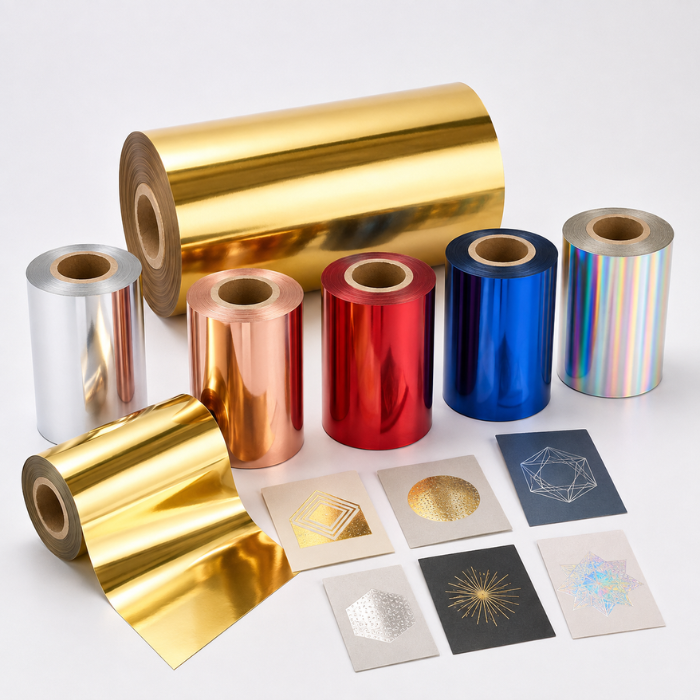

Typical Hot-Stamping Foil Structure

A standard hot-stamping foil may contain the following functional layers:

PET carrier film
Release coating
Colour or protective lacquer
Metallized layer, when required
Heat-activated adhesive coating

The exact number and sequence of layers depend on the finished foil application. Metallization is normally performed using separate vacuum-metallizing equipment unless an already-metallized PET film is used.
