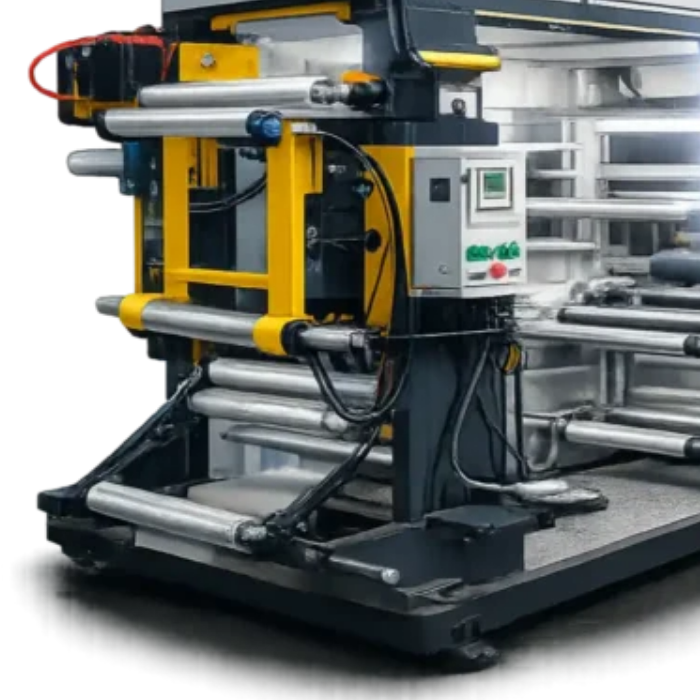

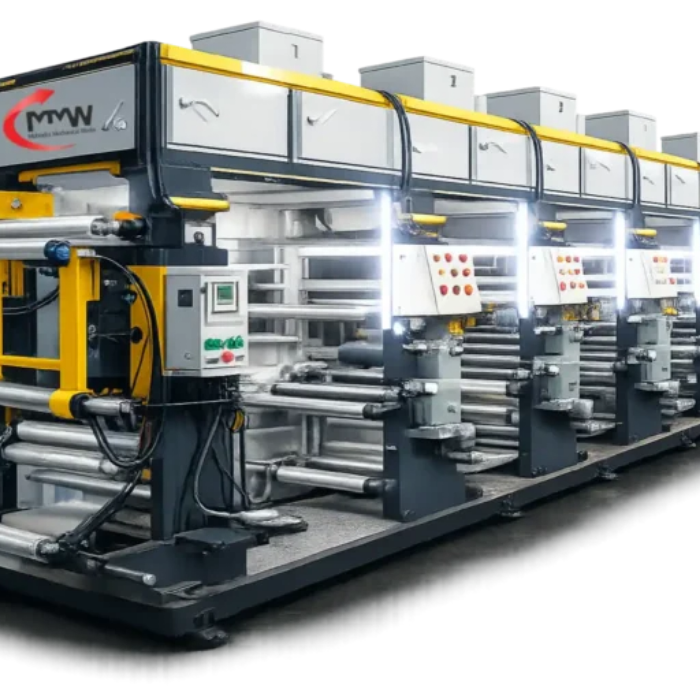

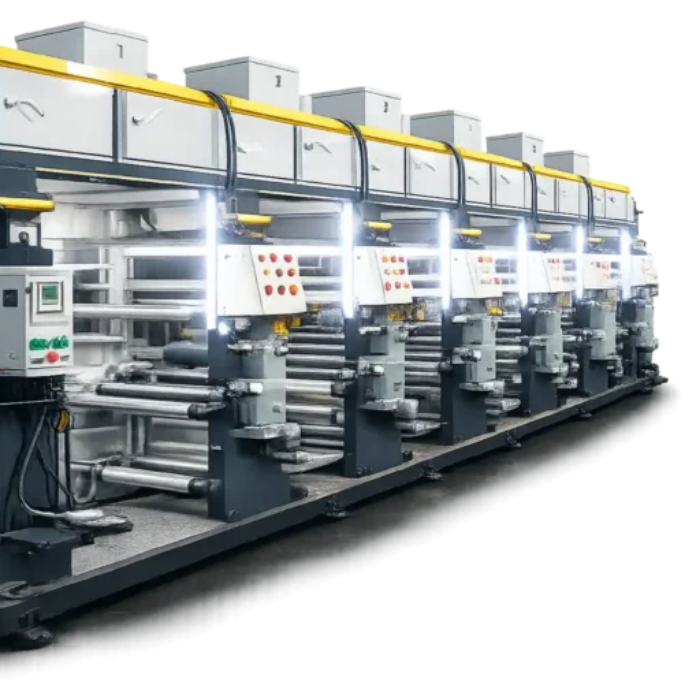

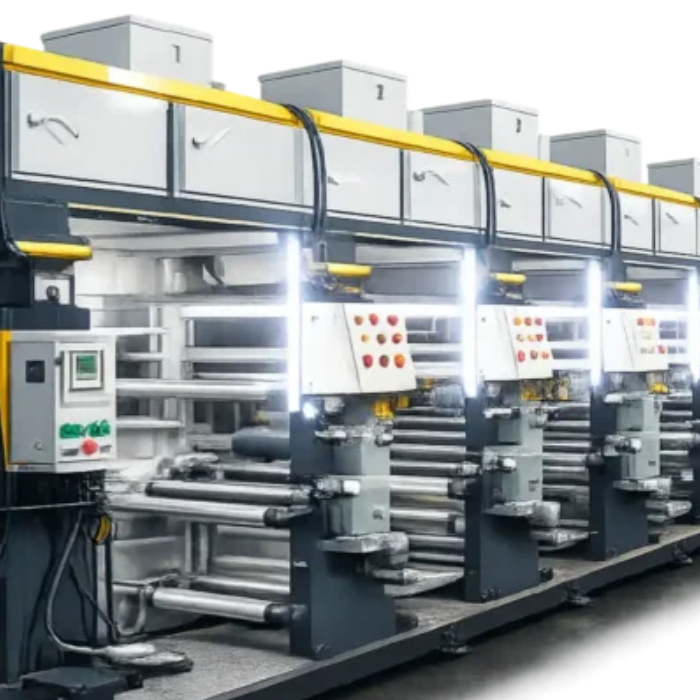

Foil Printing Machine

About Foil Printing Machine

• Printing material: Film, paper, aluminum foil, pet, BOPP, PVC film, polyester, bolyster, poly, matelized film etc
• Number of colors: 1 - 8 colors
• Web Width: 20" to 80"
• Web roller: Aluminum rollers or steel rollers
• Machine speed: Up to 250 m/min
• Unwind type: Single fixed shaft type or 2 shaft turret type unwind
• Reel diameter: 1000 mm(approx)
• Unwind shaft: Air shaft, tapper cone with solid shaft or shaft ness
• Tension controller: Manually & auto registration control system (A.C. Motor)
• In feed unit: Synchronized control (A.C. Motor)
• No. Of Colours: 1 to 10
• Wed Width: 20 to 80, 500 mm to 2050 mm
• Unwind/rewind Reel Dia: 1000 mm (40)
• Unwind/rewind Core Id: 76 mm to 152 mm (3 And 6)
• Cylinder Dia: 100 mm to 800 mm
• Film Thickness: 6 Micron to 300 Micron
• Paper Thickness: 20 Gsm to 300 Gsm
• Web Roller: Aluminium Roller or Steel Roller
• Printing Speed: 120 to 180 Mtr Per Min

• Frame: Cast iron
• Cylinder: Diameter: 100 mm to 300 mm
• Chucking: Shaft with taper cone
• Drying system: Single chamber impingement slot dryer (electric, thermic oil, hot air generator, etc.)
• Doctor Blade: Manual &numetic doctor blades
• Ink system: S. S. ink tray
• Registration system: Manually & auto registration control system
• Out feed unit: Synchronized control (A.C. Motor)

• Reel diameter: 1000 mm(approx)
• Rewind shaft: Air shaft, taper cone with solid shaft or shaft ness
• Tension controller: Manual & Fully automatic control system (A.C. Motor)
