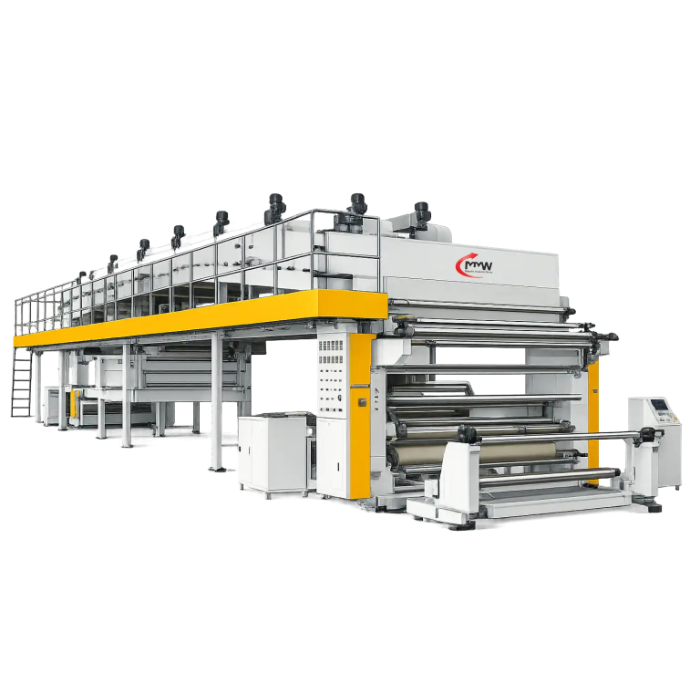

Lacquer Coating Machine

Name: Lacquer Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 3500000.0 INR
Availability: InStock

Price 3500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Lacquer Coating Machine Specification

Power Requirement
160 250 kW

Machine Speed
Up to 150 m/m

Coating Transfer Method
Gravure, Reverse Gravure or Comma-Roll Coating

Max. Coating Area
Full Web Width

Coating Format
Roll to Roll

Varnish Type
Clear, Coloured, Protective or Heat-Seal Lacquer

Max. Sheet Area
Up to 1600 mm Working Width

Min. Sheet Area
As per Customer Requirement

Coating Type
Protective and Functional Lacquer Coating

Registration
Automatic Web Alignment

Sheet Thickness
12 200 Microns

Feeding Type
Continuous Roll Feeding

Product Type
Lacquer Coating Machine

General Use
Applying Protective, Decorative and Heat-Seal Lacquer on Flexible Webs

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
12000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
160 250 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
2200 500 520 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Yellow, White or Customized

Warranty
1 Year

Lacquer Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
75 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Coating heads, gravure cylinders, doctor-blade assemblies, precision rollers, drying chambers, unwinders, rewinders, motors, blowers and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Asia, Australia, Central America, South America, Eastern Europe, Western Europe, Middle East, Africa, North America

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Lacquer Coating Machine About

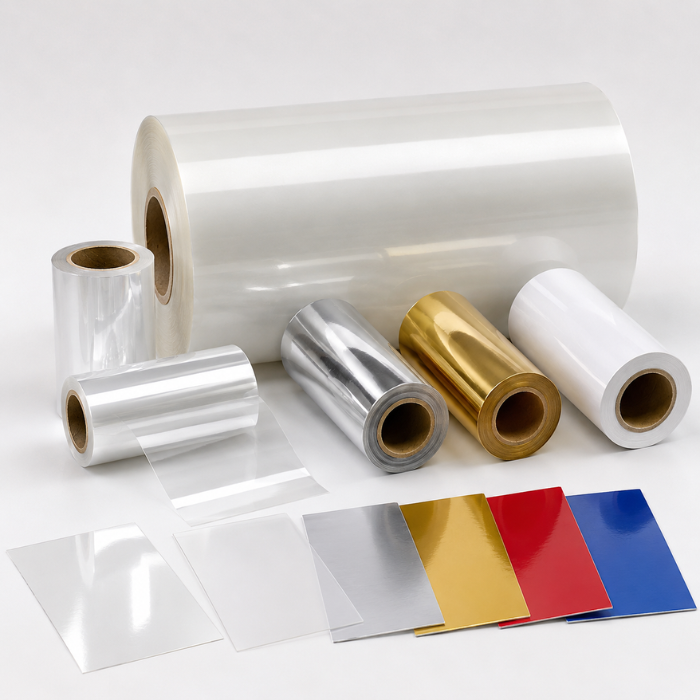

The Lacquer Coating Machine applies a thin and uniform layer of protective, decorative, sealing or adhesion-promoting lacquer onto flexible roll materials. It can process compatible aluminium foil, PET film, BOPP film, PVC film, paper and other web substrates.
The machine uses a controlled roll-to-roll process that combines precision lacquer application, automatic web-tension management, edge guiding, multi-zone hot-air drying and uniform rewinding. Gravure, reverse-gravure or comma-roll coating systems can be provided according to the lacquer viscosity, required coat weight and substrate.

Depending on the approved configuration, the machine can apply clear lacquer, coloured lacquer, protective lacquer, heat-seal lacquer, primer or specialty functional coatings. The coated material may be used in pharmaceutical packaging, food packaging, decorative foil, labels, flexible packaging and industrial products.
