Water Based Coating Machine

Name: Water Based Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 7500000.0 INR
Availability: InStock

Price 7500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Water Based Coating Machine Specification

Coating Type
Water-Based Barrier Coating / Aqueous Moisture Barrier

Sheet Thickness
50 - 300 GSM

Power Requirement
28 kW

Varnish Type
Aqueous Varnish / Heat Sealable Dispersion

Registration
Automatic / Manual

Max. Sheet Area
32 INCHS Inch (in)

Max. Coating Area
32 Inch

Machine Speed
150 m/m

Coating Transfer Method
Metering Rod / Mayer Bar

Min. Sheet Area
12 Inch

Coating Format
Web / Roll

Feeding Type
Roll to Roll

Product Type
Water Based Pouch Coating Machine

General Use
Paper & Packaging Coating Industry

Material
Stainless Steel

Type
Adhesive Coating Machine, Industrial Coating Machine

Weight (kg)
10000 Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Mayer Bar

Coating Width
32 Inch (in)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
22 - 28 Horsepower (HP)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
32 Inch (in)

Unwinding Width
32 Inch (in)

Dimension (L*W*H)
480 x 96 x 135 Inch (in)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Black, Grey & Red Accents

Warranty
1 Year

Water Based Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Nhava Sheva / Mundra / ICD Tughlakabad

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Heavy-Duty Industrial Wooden Box Packaging with Moisture-Proof Stretch Wrapping for Safe Transit

Main Export Market(s)
Middle East, Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Water Based Coating Machine About

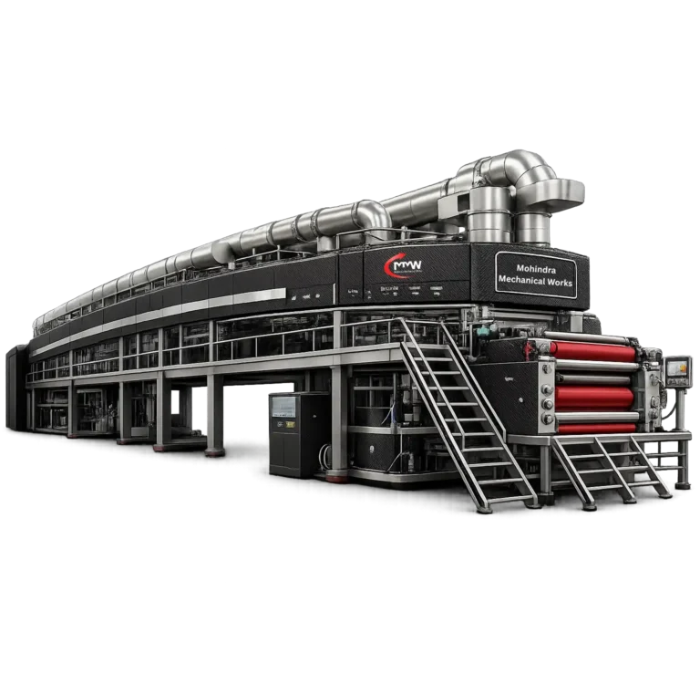

Mohindra Mechanical Works presents the heavy-duty Automatic Water Based Coating Machine for Gutka Pouches, specifically engineered for eco-friendly, aqueous barrier coating applications on flexible packaging and pouch substrates. Built to comply with modern sustainable packaging standards, this machine applies eco-friendly water-based emulsions, heat-sealable barrier coatings, and moisture-resistant polymers onto paper substrates used for gutka sachets, pan masala packets, and confectionery pouches.

Equipped with a high-accuracy Mayer Bar / Metering Rod coating head, an extended high-capacity Hot Air drying tunnel with ventilation exhausts, red applicator rollers, duplex unwinder, duplex rewinder, and pneumatic web tension control, it operates smoothly at speeds up to 150 m/min. The computerized PLC Control System with HMI touchscreen interface offers precise coat weight accuracy, automated temperature monitoring, and reliable continuous production.
