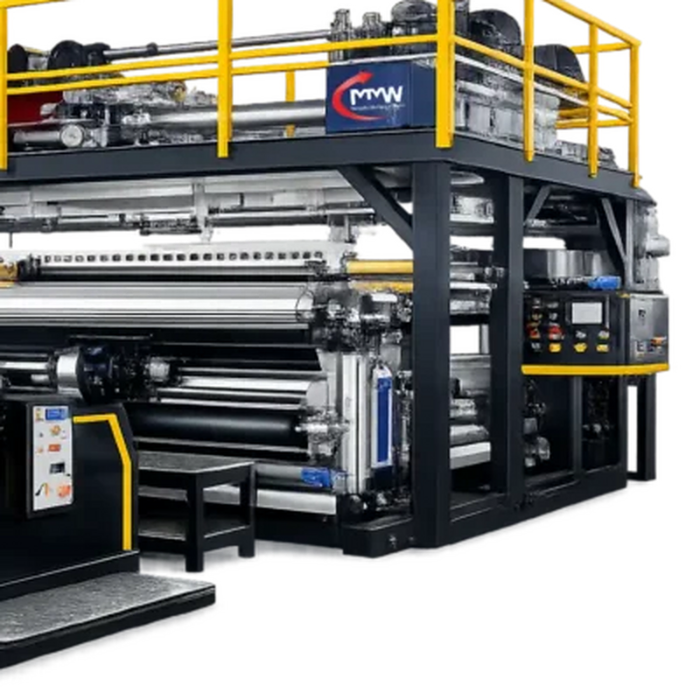

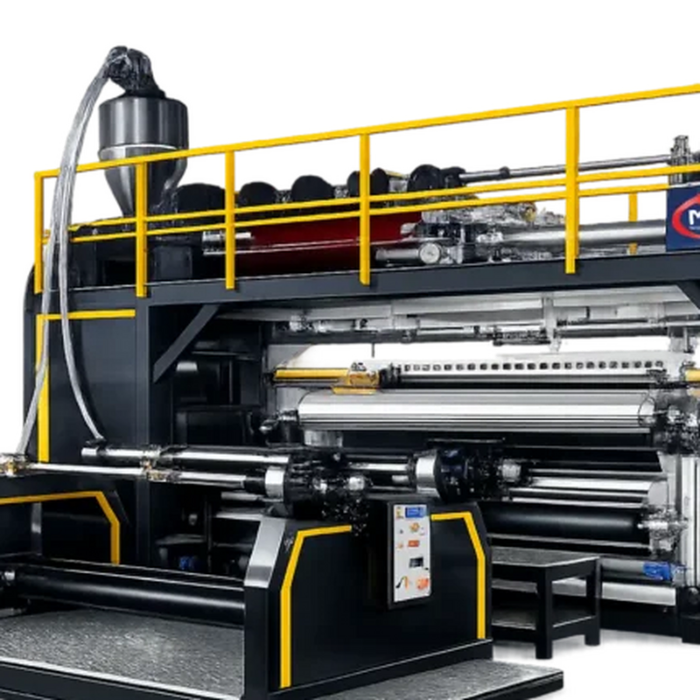

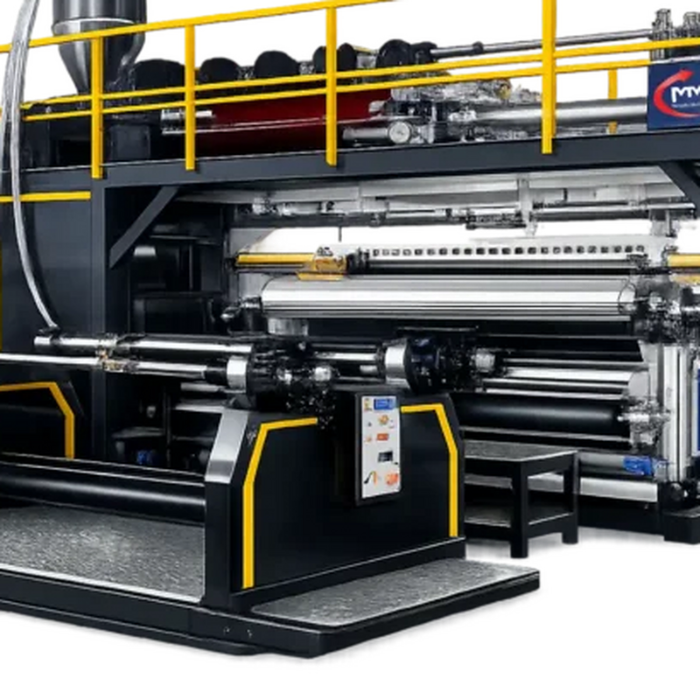

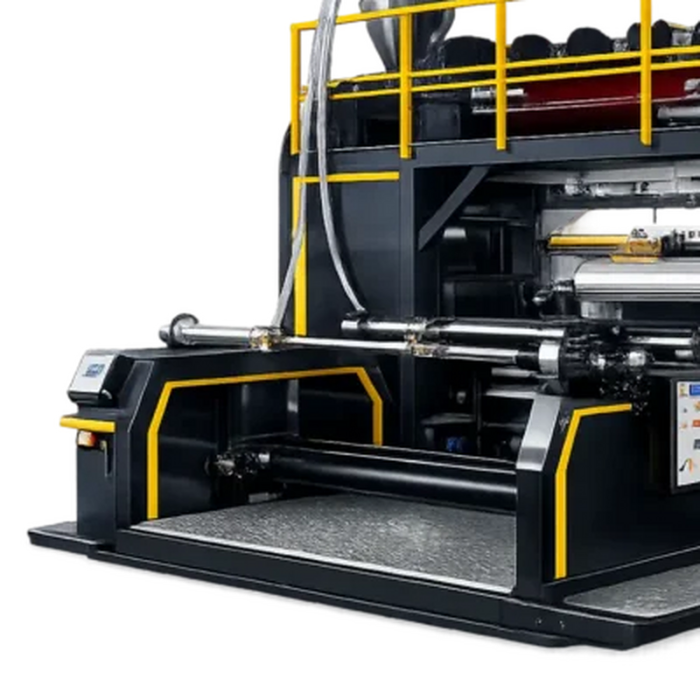

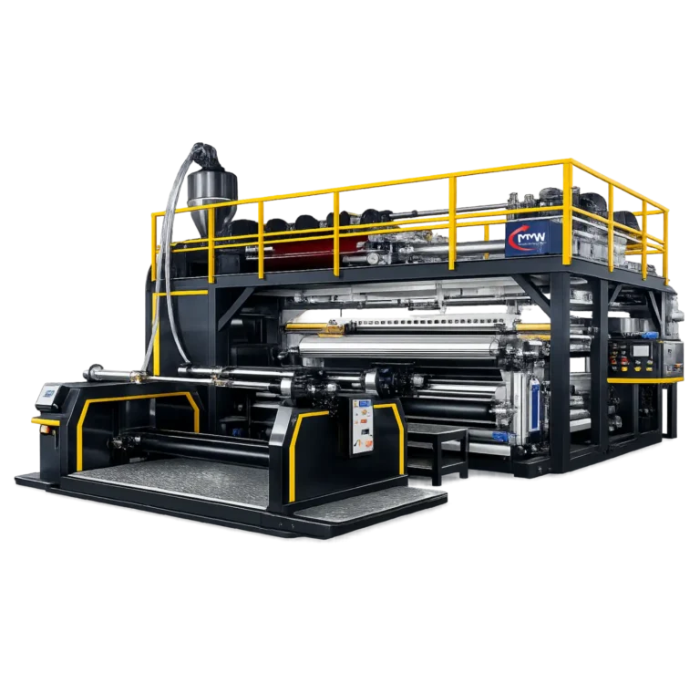

Chromo Paper Coating Machine

Price 3000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Chromo Paper Coating Machine Specification

Machine Speed
Up to 150 m/m

Max. Sheet Area
32 Inches

Max. Coating Area
Full Web Width

Registration
Automatic Web Alignment

Sheet Thickness
40 350 GSM

Min. Sheet Area
As per Customer Requirement

Feeding Type
Continuous Roll Feeding

Coating Type
Chromo Paper Pigment Coating

Coating Transfer Method
Mayer Bar Coating

Power Requirement
120 200 kW

Coating Format
Roll-to-Roll

Varnish Type
Water-Based Pigment Coating

Product Type
Chromo Paper Coating Machine

General Use
Applying Smooth Pigment Coating on Chromo Paper

Material
Stainless Steel

Type
Adhesive Coating Machine, Industrial Coating Machine

Weight (kg)
12000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Mayer Bar

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
120 200 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 500 Centimeter (cm)

Feature
Low Energy Consumption, Coating, High Speed, High Precision

Color
Black, Yellow or Customized

Warranty
1 Year

Chromo Paper Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Electrical panels, coating assemblies, precision rollers, motors and other sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for transportation by road or sea. Export-worthy packaging can be supplied according to customer requirements.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Chromo Paper Coating Machine About

The Chromo Paper Coating Machine manufactured by Mohindra Mechanical Works is designed for applying a smooth and uniform pigment coating onto continuous paper rolls. This coating improves the papers surface smoothness, whiteness, brightness, opacity, ink holdout and print quality. The finished chromo paper is suitable for labels, stickers, packaging, posters, advertising materials, stationery and other high-quality printing applications.

The machine works through a continuous roll-to-roll process comprising automatic unwinding, precise coating application, controlled hot-air drying and uniform rewinding. Its Mayer Bar coating arrangement helps maintain consistent coat weight and an even finish across the complete paper width.

A PLC-based control system enables operators to regulate coating speed, web tension, drying temperature and other production parameters. Automatic web guiding keeps the paper properly aligned during operation. Working width, coating stations, drying length and heating configuration can be customized according to the base paper, required surface finish and production capacity.
