Masking Tape Coating Machine
Masking Tape Coating Machine
Masking Tape Coating Machine
Masking Tape Coating Machine
Masking Tape Coating Machine
Masking Tape Coating Machine
Masking Tape Coating Machine
Masking Tape Coating Machine
Masking Tape Coating Machine
Masking Tape Coating Machine
Masking Tape Coating Machine
Masking Tape Coating Machine

Masking Tape Coating Machine

Price 2000000.0 INR/ Piece

MOQ : 1 Piece

Masking Tape Coating Machine Specification

  • Feeding Type
  • Continuous Roll Feeding
  • Max. Coating Area
  • Full Wed width
  • Max. Sheet Area
  • 36 inch
  • Varnish Type
  • Pressure-Sensitive Adhesive
  • Registration
  • Automictic Web Alingment
  • Coating Transfer Method
  • Comma Coating
  • Coating Format
  • Roll to Roll
  • Sheet Thickness
  • 50 200 Microns
  • Power Requirement
  • 90 160 kW
  • Machine Speed
  • Up to 100 m/m
  • Min. Sheet Area
  • As Per Customer Requirement
  • Coating Type
  • Masking-Tape Adhesive Coating
  • Product Type
  • Masking-Tape Adhesive Coating
  • General Use
  • Applying Pressure-Sensitive Adhesive on Masking-Tape Paper
  • Material
  • Stainless Steel
  • Type
  • Industrial Coating Machine, Adhesive Coating Machine
  • Coating Speed
  • Up to 100 m/m
  • Coating Head
  • Gravure Roller
  • Coating Width
  • Up to 1600 Millimeter (mm)
  • Coating Material
  • Other
  • Computerized
  • No
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Power Source
  • Electric
  • Power Consumption
  • 90 160 Kilowatt (kW)
  • Drive Type
  • Pneumatic
  • Voltage
  • 440v Volt (v)
  • Humidification System
  • No
  • Glue Type
  • Water Based
  • Rewinder Type
  • Duplex Rewinder
  • Unwinder Type
  • Duplex Unwinder
  • Rewinding Width
  • Up to 1300 Millimeter (mm)
  • Unwinding Width
  • Up to 1300 Millimeter (mm)
  • Dimension (L*W*H)
  • 1500 400 420 Centimeter (cm)
  • Feature
  • Low Energy Consumption, High Speed, High Precision, Coating
  • Color
  • White, Yellow or Customized
  • Warranty
  • 1 Year


Masking Tape Coating Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • ICD Tughlakabad, Delhi
  • Payment Terms
  • Cheque, Cash on Delivery (COD)
  • Supply Ability
  • 2 Pieces Per Month
  • Delivery Time
  • 90 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • The machine is covered with waterproof protective wrapping. Electrical panels, coating assemblies, precision rollers, motors and other sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for transportation by road or sea. Export-worthy packaging can be supplied according to customer requirements.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Africa, Middle East
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 Certified, CE Certified Standard Machinery


About Masking Tape Coating Machine

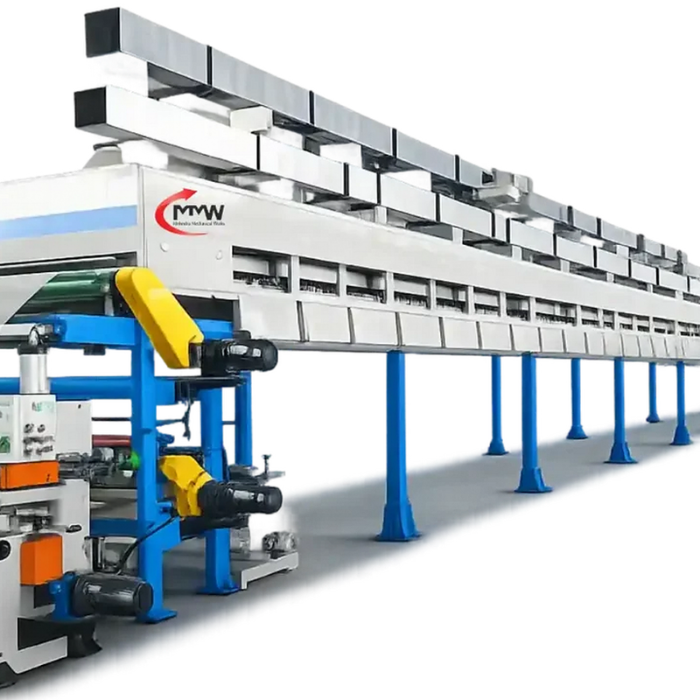

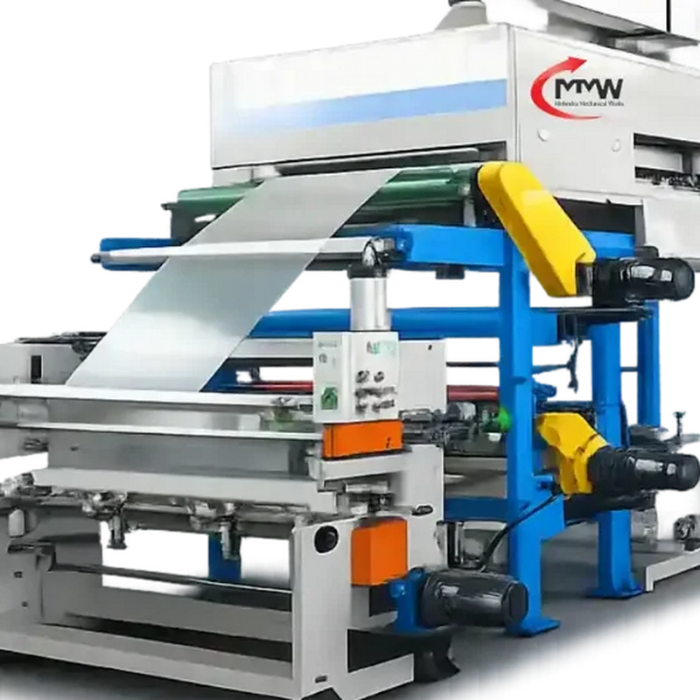

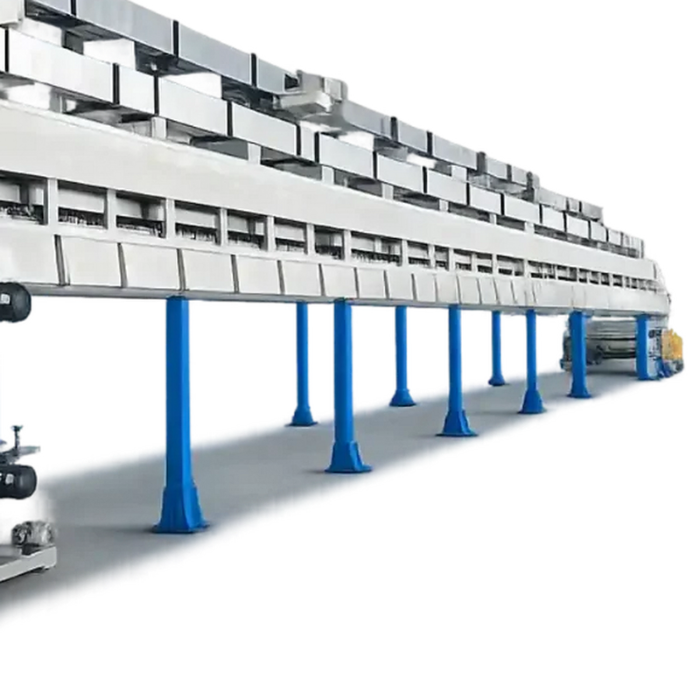

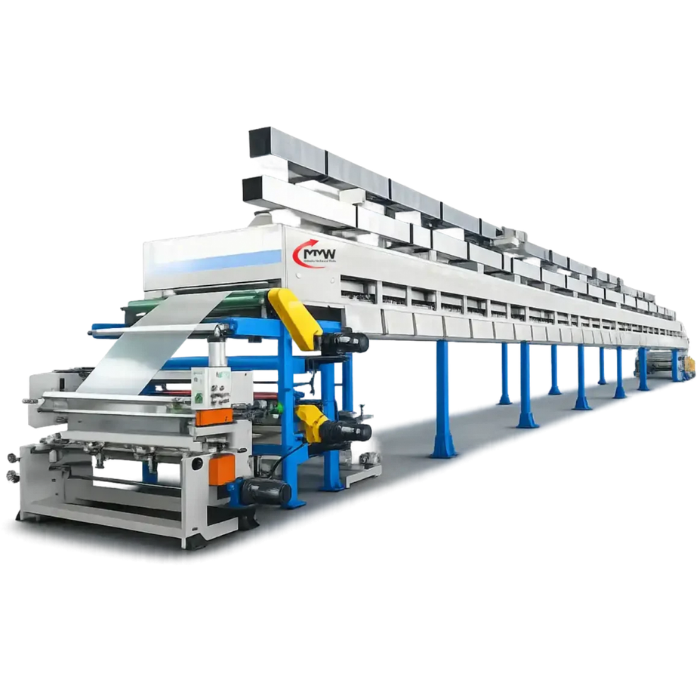

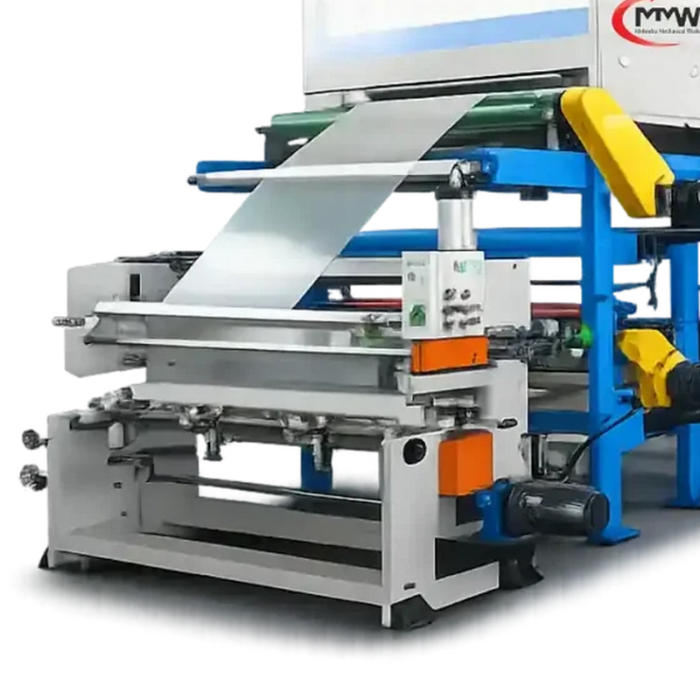

The Masking Tape Coating Machine applies a controlled layer of pressure-sensitive adhesive onto crepe paper and similar flexible substrates. Its automatic unwinding, precision coating, hot-air drying and tension-controlled rewinding systems help produce masking-tape jumbo rolls with consistent adhesion and a smooth finish. The machine is suitable for manufacturing general-purpose, painting, automotive and industrial masking tapes.

Key Features

  • Uniform pressure-sensitive adhesive application
  • Accurate coating-thickness adjustment
  • Precision Comma coating arrangement
  • Continuous roll-to-roll operation
  • Automatic web-tension control
  • Automatic edge-guiding system
  • PLC-based operating controls
  • Multi-zone hot-air drying chamber
  • Adjustable drying temperature and airflow
  • Smooth handling of crepe-paper substrates
  • Consistent and wrinkle-free rewinding
  • Reduced adhesive and paper wastage
  • Heavy-duty industrial construction
  • Customized coating width available

Suitable Raw Materials

  • Crepe paper
  • Saturated masking paper
  • Flatback paper
  • Washi paper
  • Kraft masking paper
  • Heat-resistant masking paper
  • Release paper
  • Specialty tape-grade paper

Suitable Coating Materials

  • Natural rubber-based adhesive
  • Synthetic rubber adhesive
  • Acrylic pressure-sensitive adhesive
  • Solvent-based adhesive
  • Water-based acrylic adhesive
  • Heat-resistant adhesive
  • UV-resistant adhesive
  • Customized masking-tape adhesive

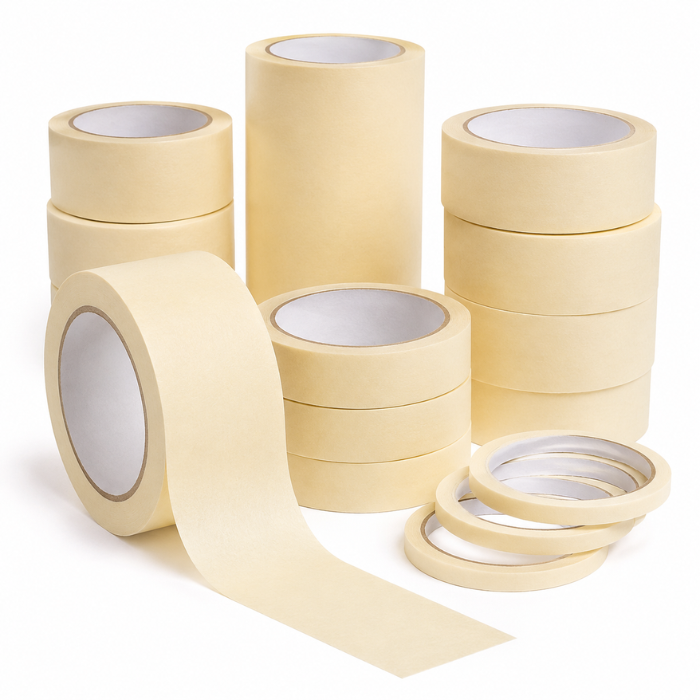

Finished Products

  • General-purpose masking tape
  • Painters masking tape
  • Automotive masking tape
  • High-temperature masking tape
  • Industrial masking tape
  • Washi masking tape
  • Construction masking tape
  • Surface-protection tape
  • Masking-tape jumbo rolls
  • Printable masking tape
