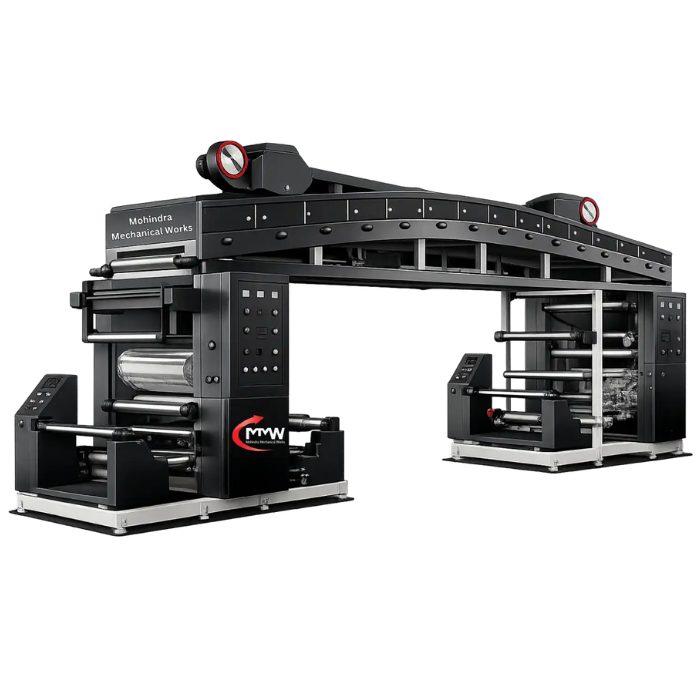

Aluminium Foil Induction Sealing Wads Wax Coating Lamination Machine

Send Inquiry

Request To Call Back

Aluminium Foil Induction Sealing Wads Wax Coating Lamination Machine

Name: Aluminium Foil Induction Sealing Wads Wax Coating Lamination Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 1300000.0 INR
Availability: InStock

Price 1300000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Aluminium Foil Induction Sealing Wads Wax Coating Lamination Machine Specification

Max. Sheet Area
22 inch

Varnish Type
Foil with Paperboard, Pulp Board or Foam

Machine Speed
Up to 80 m/m

Min. Sheet Area
As per Customer Requirement

Sheet Thickness
20 50 Microns

Coating Type
Aluminium Foil Wax Coating

Coating Format
Roll-to-Roll

Registration
Automatic Web Alignment

Max. Coating Area
Full Web Width

Feeding Type
Continuous Roll Feeding

Coating Transfer Method
Heated Roller Coating

Power Requirement
100 180 kW

Product Type
Aluminium Foil Induction Sealing Wads Wax Coating Lamination Machine

General Use
Laminating Aluminium Foil with Backing Material for Induction Wads

Material
Stainless Steel

Type
Industrial Coating Machine, Adhesive Coating Machine

Weight (kg)
12000 Kilograms (kg)

Coating Speed
Up to 80 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1300 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
100 180 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1300 Millimeter (mm)

Unwinding Width
Up to 1300 Millimeter (mm)

Dimension (L*W*H)
1400 400 450 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Black, White or Customized

Warranty
1 Year

Aluminium Foil Induction Sealing Wads Wax Coating Lamination Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cheque, Cash on Delivery (COD)

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Wax-melting equipment, aluminium-foil rollers, lamination assemblies, unwinders, rewinder, electrical panels and motors are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Aluminium Foil Induction Sealing Wads Wax Coating Lamination Machine About

The Aluminium Foil Induction Sealing Wads Wax Coating Lamination Machine applies bonding wax onto induction foil and laminates it with paperboard, pulp board or foam. It produces uniform multi-layer liner stock for manufacturing two-piece induction sealing wads used in bottle and container caps.
