Mayer Bar Coating Machine

Name: Eva Foam Adhesive Tape Machine
Brand: MOHINDRA MECHANICAL WORKS

Price 1500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mayer Bar Coating Machine Specification

Varnish Type
Water-Based or Solvent-Based

Registration
Automatic Web Alignment

Coating Transfer Method
Wire-Wound Mayer Bar Metering

Machine Speed
150 m/m

Feeding Type
Roll Feeding

Sheet Thickness
12 400 Micron

Coating Type
Precision Single-Side Coating

Min. Sheet Area
12 Inches

Coating Format
Continuous Web Coating

Max. Coating Area
Continuous Roll-to-Roll Coating

Max. Sheet Area
42 Inches

Power Requirement
Three-Phase Industrial Power Supply

Product Type
Automatic Mayer Bar Coater

General Use
Precise thin-film coating on flexible roll materials

Material
Other

Type
Other

Weight (kg)
9000 kg Approx. Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Mayer Bar

Coating Width
1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
Approximately 100 175 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
280-420 Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
14000 3800 4500 Millimeter (mm)

Feature
Low Energy Consumption, High Speed, High Precision

Color
White, Maroon and Yellow

Warranty
1 Year

Mayer Bar Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, New Delhi

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Pieces, Piece Per Month

Delivery Time
60 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The Mayer Bar Coating Machine is securely packed using moisture-resistant wrapping, protective sheets, wooden supports and export-worthy packaging. Electrical panels, Mayer Bar assemblies, rollers and other precision components are separately protected during transportation.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Delhi

Certifications
Manufactured under an ISO-certified quality management system. Mechanical, electrical, heating and safety components are inspected before dispatch. Applicable machine documents can be supplied according to the final configuration and purchase order.

About Mayer Bar Coating Machine

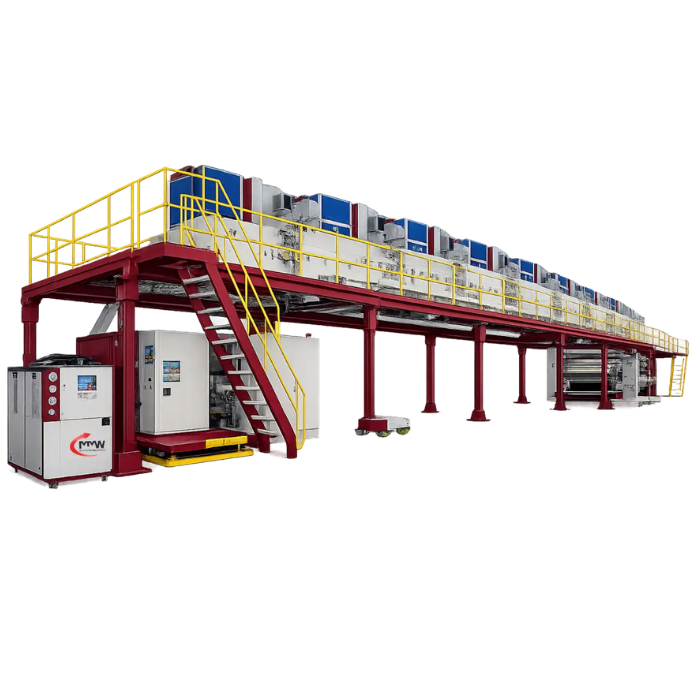

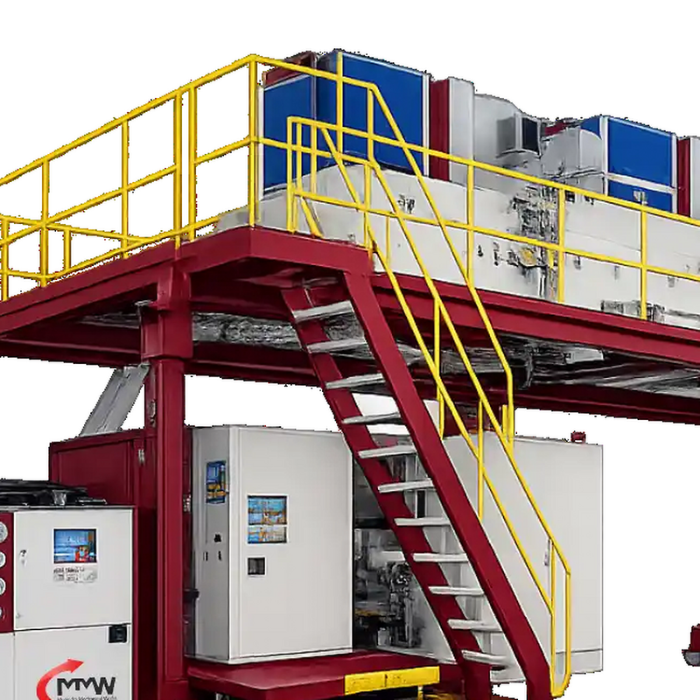

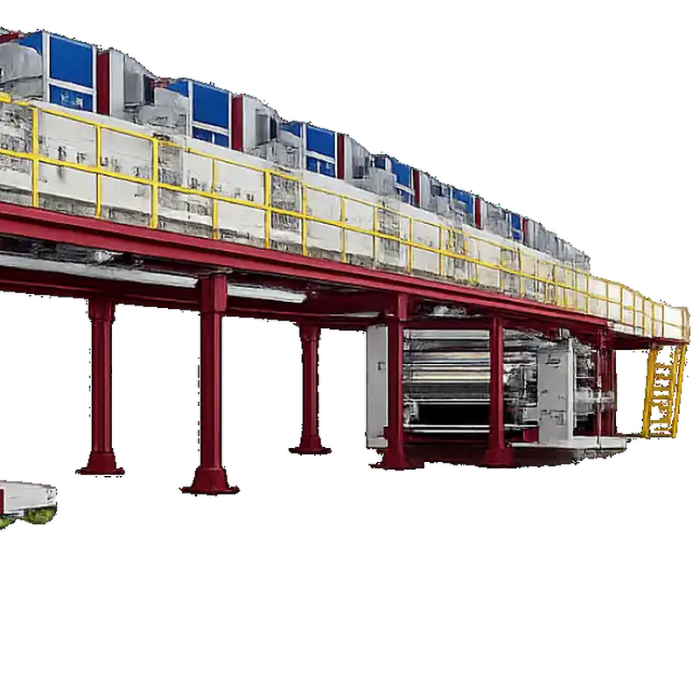

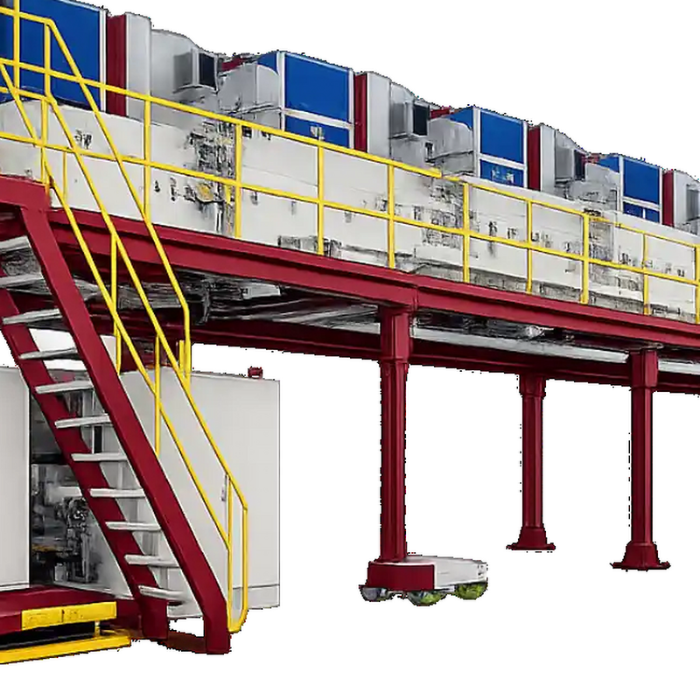

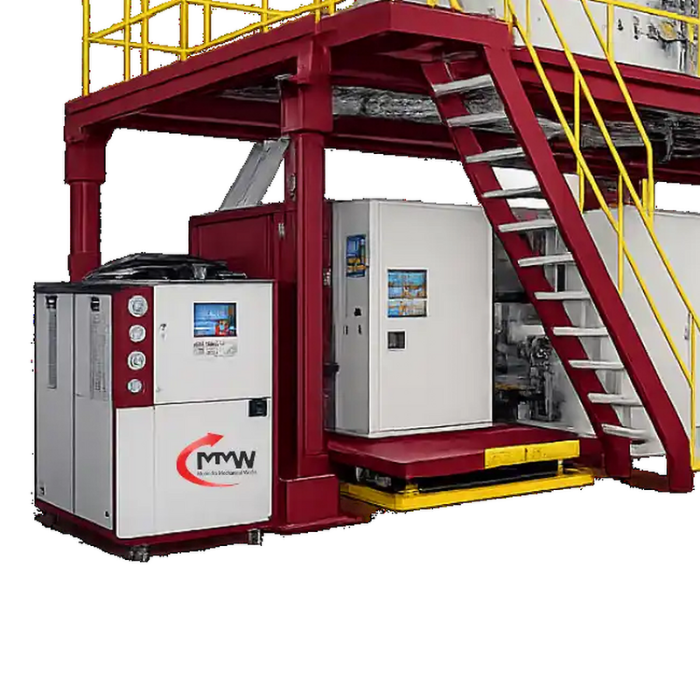

The Automatic Mayer Bar Coating Machine manufactured by Mohindra Mechanical Works is engineered for applying thin, smooth and accurately controlled coating layers on paper, plastic film, aluminium foil, non-woven material and flexible laminates. Its wire-wound Mayer Bar meters the liquid coating and helps maintain a consistent wet-film thickness across the complete substrate width.

The machine incorporates automatic unwinding, web guiding, closed-loop tension control, Mayer Bar coating, multi-zone hot-air drying, cooling and controlled rewinding systems. Its PLC and HMI touchscreen enables convenient adjustment of production speed, web tension, drying temperature and coating parameters. Interchangeable Mayer Bars allow different coating thicknesses to be achieved according to the application. Working width, drying length, heating source and coating arrangement can be customized according to the substrate and coating formulation.
