Water Base Paper Coating Machine

Name: Water Base Paper Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 3000000.0 INR
Availability: InStock

Price 3000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Water Base Paper Coating Machine Specification

Max. Coating Area
Full Web Width

Coating Format
Roll-to-Roll

Varnish Type
Water-Based Varnish

Max. Sheet Area
32 Inches

Machine Speed
Up to 150 m/m

Sheet Thickness
30 300 GSM

Registration
Automatic Web Alignment

Coating Type
Water-Based Paper Coating

Min. Sheet Area
As per Customer Requirement

Feeding Type
Continuous Roll Feeding

Power Requirement
100 180 kW

Coating Transfer Method
Mayer Bar Coating

Product Type
Water Base Paper Coating Machine

General Use
Applying Water-Based Functional Coating on Paper

Material
Stainless Steel

Type
Industrial Coating Machine, Adhesive Coating Machine

Weight (kg)
10,000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Mayer Bar

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
100 180 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1400 380 450 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Blue, Silver or Customized

Warranty
1 Year

Water Base Paper Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Paypal, Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Electrical panels, coating assemblies, rollers, motors and sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe road or sea transportation. Export-worthy packaging can be supplied according to customer requirements.

Main Export Market(s)
Central America, Asia, Australia, North America, South America, Western Europe, Middle East, Africa, Eastern Europe

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Water Base Paper Coating Machine About

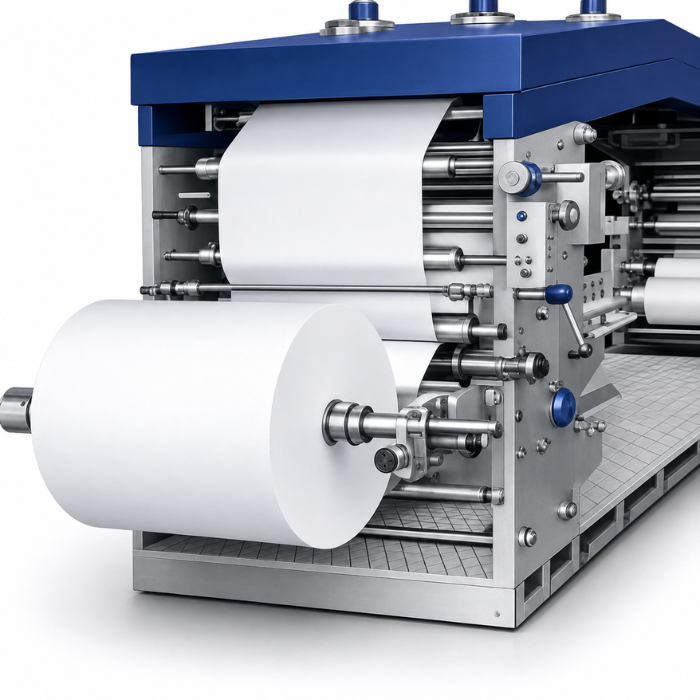

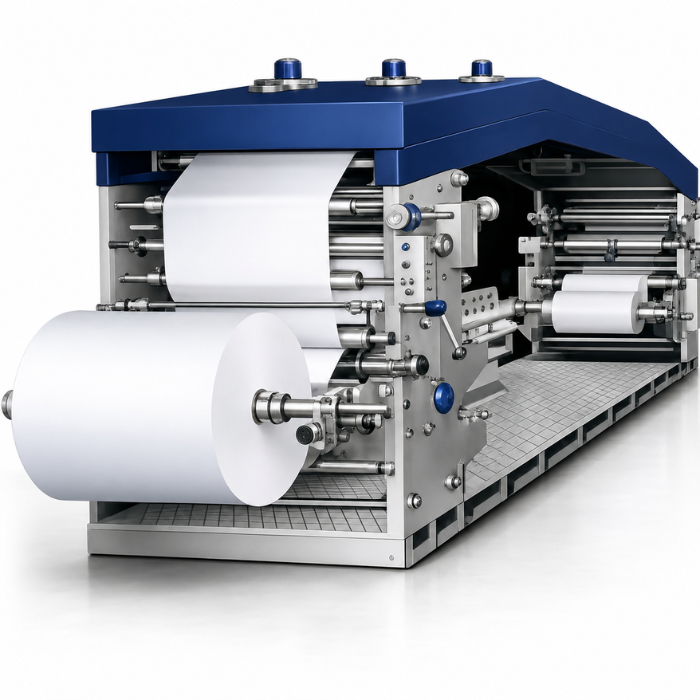

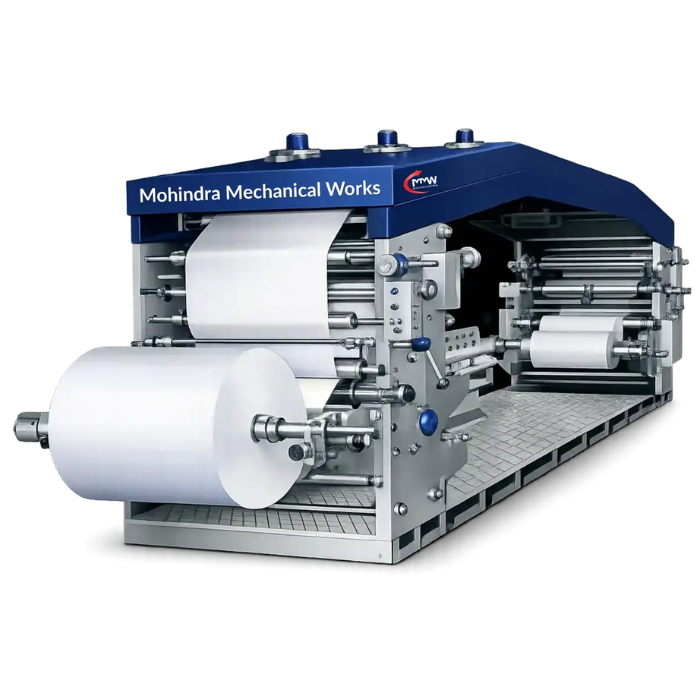

The Water Base Paper Coating Machine manufactured by Mohindra Mechanical Works is designed for applying water-based functional and surface-finishing coatings onto paper and paperboard rolls. Depending on the selected formulation, the coating can improve printability, smoothness, gloss, surface strength and resistance to water, moisture, grease or oil.

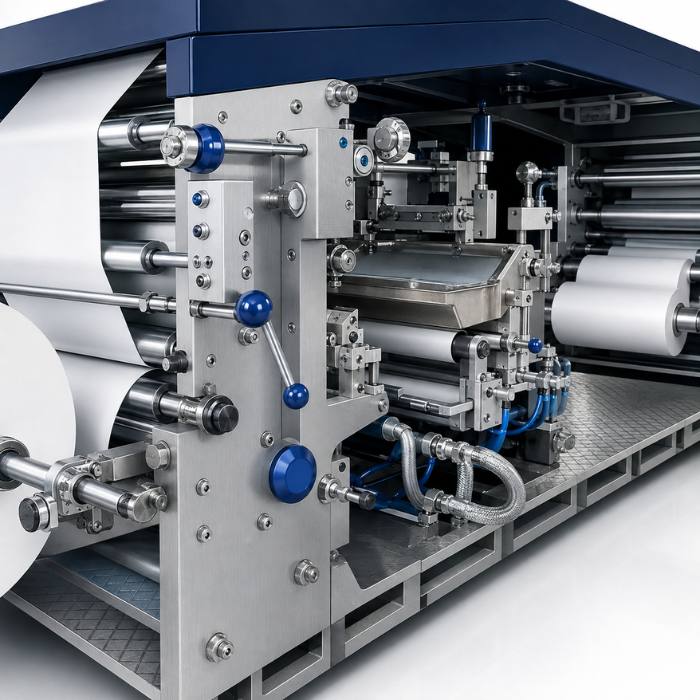

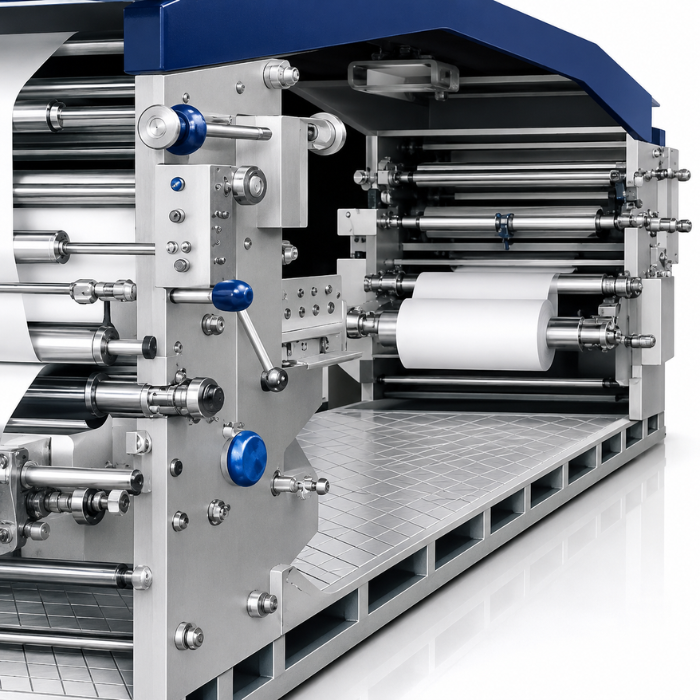

The machine operates through a continuous roll-to-roll process comprising automatic unwinding, precision coating, controlled hot-air drying and uniform rewinding. Its Mayer Bar coating system helps maintain the required coating thickness and consistent coverage across the complete paper width.

A PLC-based control system enables convenient adjustment of machine speed, web tension, coating parameters and drying temperature. Automatic web guiding maintains correct paper alignment during production. The machine can process water-based acrylic, PVA, starch, pigment and barrier-coating formulations. Its working width, coating head, drying length and production speed can be customized.
