Metallic Paper Coating Machine
Metallic Paper Coating Machine
Metallic Paper Coating Machine
Metallic Paper Coating Machine
Metallic Paper Coating Machine
Metallic Paper Coating Machine
Metallic Paper Coating Machine
Metallic Paper Coating Machine
Metallic Paper Coating Machine
Metallic Paper Coating Machine
Metallic Paper Coating Machine
Metallic Paper Coating Machine

Metallic Paper Coating Machine

Price 1500000.0 INR/ Piece

MOQ : 1 Piece

Metallic Paper Coating Machine Specification

  • Feeding Type
  • Roll Feeding
  • Registration
  • Automatic Web Alignment
  • Max. Coating Area
  • Continuous Roll-to-Roll Coating
  • Min. Sheet Area
  • 12 Inches
  • Power Requirement
  • Three-Phase Industrial Power Supply
  • Coating Type
  • Single-Side Metallic Coating
  • Coating Transfer Method
  • Gravure/Mayer Bar Transfer
  • Sheet Thickness
  • 40 400 GSM
  • Machine Speed
  • 150 m/m
  • Coating Format
  • Continuous Web Coating
  • Max. Sheet Area
  • 42 Inches
  • Varnish Type
  • Metallic or Protective Varnish
  • Product Type
  • Automatic Metallic Paper Coater
  • General Use
  • Metallic and decorative coating of paper rolls
  • Material
  • Stainless Steel
  • Type
  • Industrial Coating Machine
  • Weight (kg)
  • 7000 kg Approx. Kilograms (kg)
  • Coating Speed
  • 150 m/m
  • Coating Head
  • Gravure Roller
  • Coating Width
  • 1600 Millimeter (mm)
  • Coating Material
  • Other
  • Computerized
  • No
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Power Source
  • Electric
  • Power Consumption
  • Approximately 75 150 Kilowatt (kW)
  • Heating System
  • Hot Air
  • Drive Type
  • Electric
  • Voltage
  • 380-440 Volt (v)
  • Humidification System
  • No
  • Glue Type
  • Solvent Based
  • Rewinder Type
  • Duplex Rewinder
  • Unwinder Type
  • Duplex Unwinder
  • Rewinding Width
  • Up to 1600 Millimeter (mm)
  • Unwinding Width
  • Up to 1600 Millimeter (mm)
  • Dimension (L*W*H)
  • 11000 3400 3800 Millimeter (mm)
  • Feature
  • Low Energy Consumption, High Speed, High Precision
  • Color
  • White, Silver and Orange
  • Warranty
  • 1 Year


Metallic Paper Coating Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • ICD Tughlakabad, New Delhi
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 2 Pieces Per Month
  • Delivery Time
  • 60 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • The Metallic Paper Coating Machine is securely packed using moisture-resistant wrapping, protective sheets, wooden supports and export-worthy packaging. Electrical panels, coating assemblies and precision rollers are separately protected during transportation.
  • Main Export Market(s)
  • Eastern Europe, Africa, Australia, North America, South America, Western Europe, Middle East, Asia, Central America
  • Main Domestic Market
  • Delhi
  • Certifications
  • Manufactured under an ISO-certified quality management system. Mechanical, electrical, heating and safety components are inspected before dispatch. Applicable machine documents can be provided according to the final configuration and purchase order.


About Metallic Paper Coating Machine

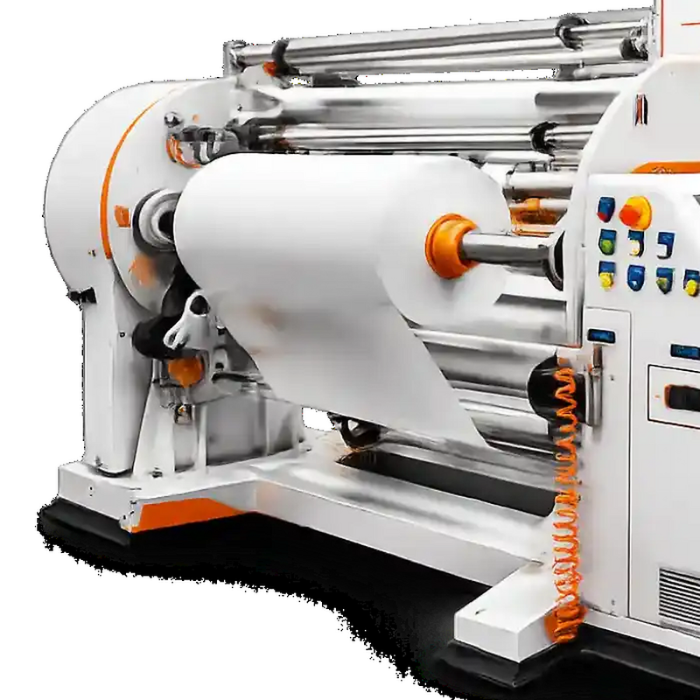

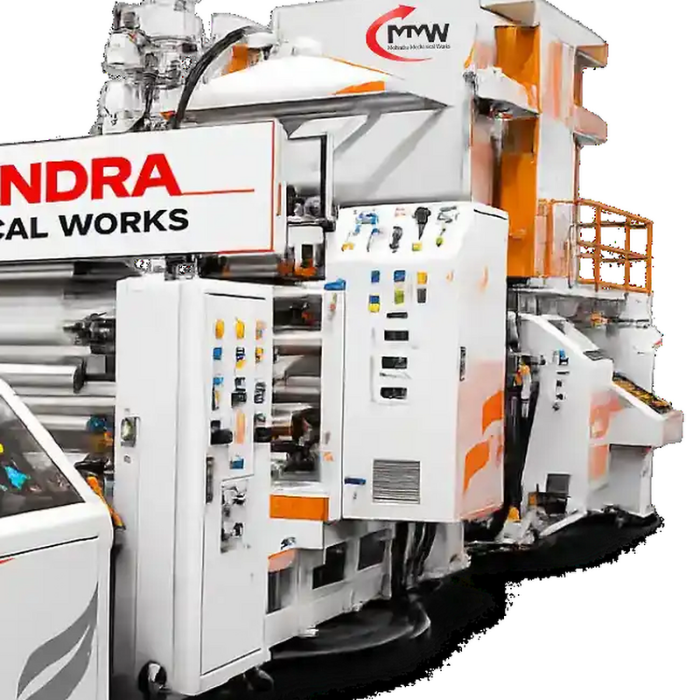

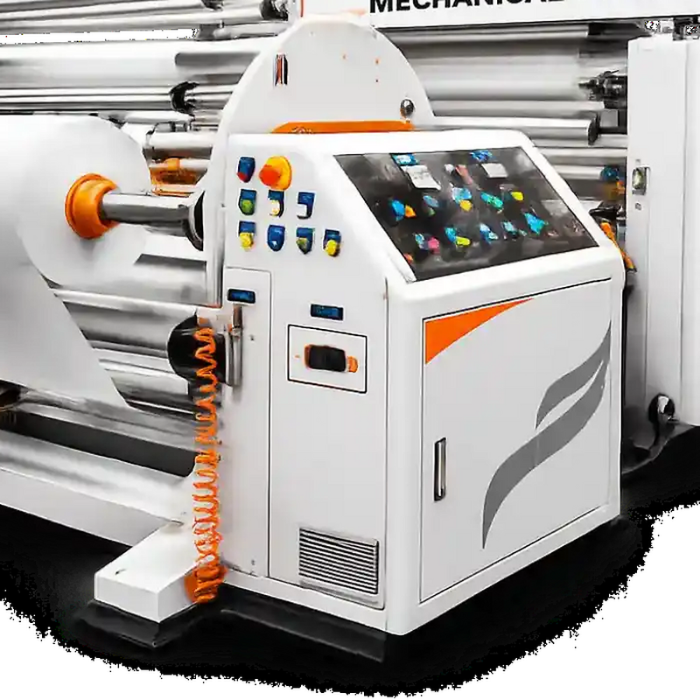

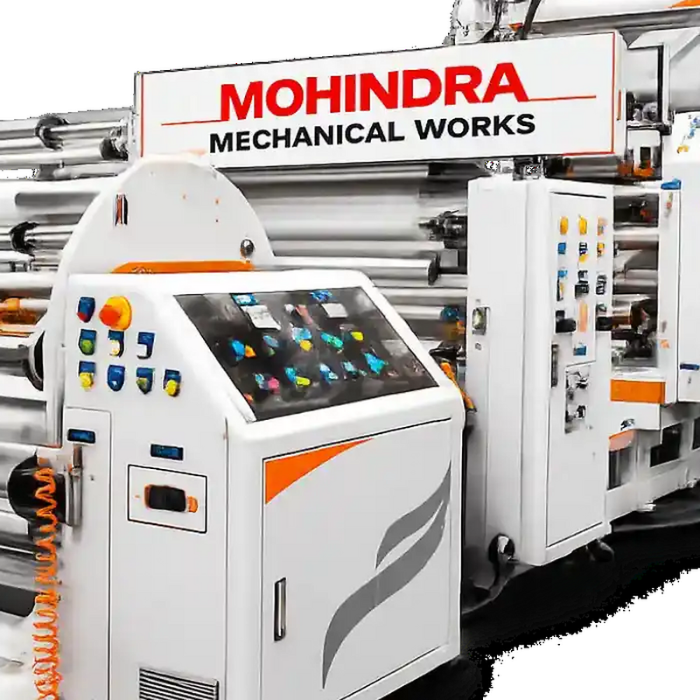

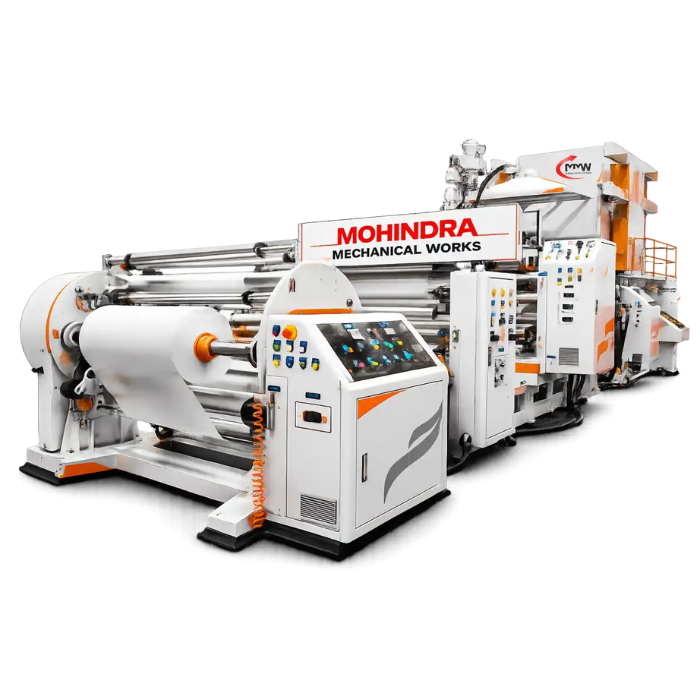

The Automatic Metallic Paper Coating Machine manufactured by Mohindra Mechanical Works is designed to apply a smooth, decorative metallic coating on paper, kraft paper, paperboard and specialty paper rolls. The machine can process compatible metallic-pigment, pearl-effect and protective coating formulations to produce silver, gold, bronze and other decorative surface finishes.

It incorporates automatic unwinding, web guiding, closed-loop tension control, precision coating, multi-zone hot-air drying, cooling and controlled rewinding systems. Its PLC and HMI touchscreen allows operators to regulate production speed, drying temperature, web tension and coating thickness conveniently. Precision-ground rollers help maintain an even metallic appearance across the complete web width. The coating method, working width, drying length and heating source can be customized according to the selected paper grade, coating formulation and required surface finish.


Key Features

  • Smooth and uniform metallic coating
  • Silver, gold, bronze and pearl-finish capability
  • Automatic roll-to-roll operation
  • PLC with HMI touchscreen control
  • Adjustable coating thickness and GSM
  • Automatic closed-loop tension control
  • Automatic web-guiding system
  • Multi-zone hot-air drying chamber
  • Digital temperature regulation
  • Stainless-steel coating-contact parts
  • Precision-ground coating rollers
  • Controlled unwinding and rewinding
  • Low coating-material wastage
  • Heavy-duty fabricated construction
  • Customized working width available

Suitable Paper Materials

  • Kraft paper
  • White paper
  • Art paper
  • Packaging paper
  • Label paper
  • Gift-wrapping paper
  • Paperboard
  • Duplex board
  • Decorative paper
  • Specialty industrial paper

Suitable Coating Materials

  • Metallic-pigment coating
  • Silver metallic coating
  • Gold metallic coating
  • Bronze-effect coating
  • Pearl-effect coating
  • Water-based metallic ink
  • Solvent-based metallic coating
  • Decorative lacquer
  • Protective topcoat
  • Customized functional coating

Applications

  • Gift-wrapping paper
  • Luxury-packaging paper
  • Decorative paper
  • Metallic label paper
  • Greeting-card paper
  • Wedding-card paper
  • Cosmetic packaging
  • Premium food packaging
  • Shopping-bag paper
  • Book-cover material
  • Decorative paperboard
  • Specialty printing paper

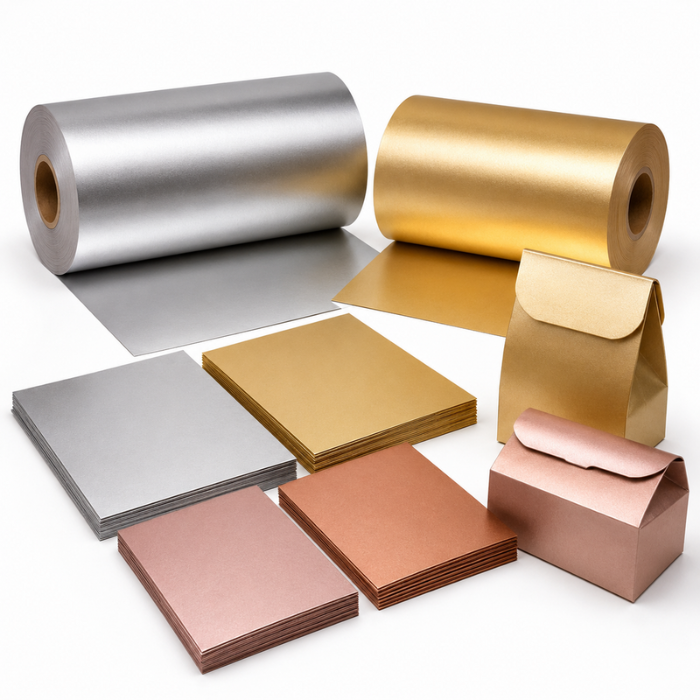

Finished Products

  • Silver-coated paper rolls
  • Gold-coated paper rolls
  • Bronze-finish paper
  • Pearl-finish decorative paper
  • Metallic gift-wrapping paper
  • Metallic label stock
  • Luxury-packaging paper
  • Greeting-card paper
  • Metallic paperboard
  • Premium shopping-bag paper

Product Advantages

  • Produces an attractive metallic surface
  • Provides consistent coating across the web
  • Offers adjustable coating GSM
  • Supports different metallic colours and effects
  • Reduces coating-material wastage
  • Maintains stable paper tension
  • Provides efficient controlled drying
  • Suitable for different paper grades
  • Supports continuous industrial production
  • Can be customized for specific finishes
