Gasket Paper Coating & Printing Machine

Name: Foam Tape Coating Machine
Brand: MOHINDRA MECHANICAL WORKS

Price 1500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Gasket Paper Coating & Printing Machine Specification

Coating Type
Saturation and Surface Coating

Feeding Type
Roll Feeding

Power Requirement
Three-Phase Industrial Power Supply

Sheet Thickness
0.20 2.00 mm

Varnish Type
Protective or Functional Coating

Machine Speed
150 m/m

Registration
Automatic Printing Registration

Coating Format
Continuous Web Coating

Coating Transfer Method
Dip/Gravure/Roller Transfer

Max. Coating Area
Continuous Roll-to-Roll Processing

Min. Sheet Area
12 Inches

Max. Sheet Area
42 Inches

Product Type
Foam Tape Coating Machine

General Use
Coating and printing industrial gasket paper

Material
Other

Type
Other

Weight (kg)
9000 kg Approx. Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Gravure Roller

Coating Width
1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
Approximately 100 175 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
280-420 Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
14000 3800 4500 Millimeter (mm)

Feature
High Speed, High Precision, Low Energy Consumption

Color
White and Green

Warranty
1 Year

Gasket Paper Coating & Printing Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, New Delhi

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Pieces, Piece Per Month

Delivery Time
60 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The Gasket Paper Coating and Printing Machine is securely packed using moisture-resistant wrapping, protective sheets, wooden supports and export-worthy packaging. Electrical panels, coating heads, printing units and precision rollers are separately protected during transportation.

Main Export Market(s)
Asia, South America, Eastern Europe, Western Europe, North America, Middle East, Africa, Australia, Central America

Main Domestic Market
Delhi

Certifications
Manufactured under an ISO-certified quality management system. Mechanical, electrical, heating and safety components are inspected before dispatch. Applicable machine documents can be supplied according to the final configuration and purchase order.

About Gasket Paper Coating & Printing Machine

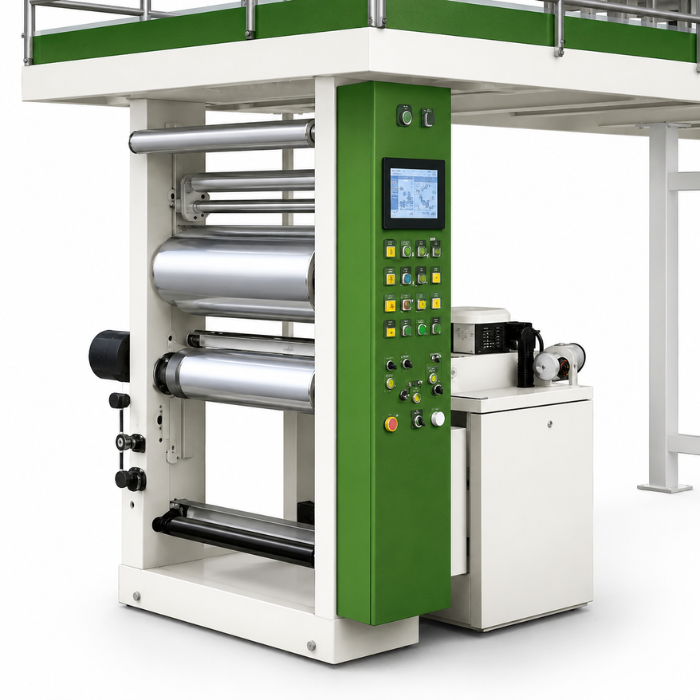

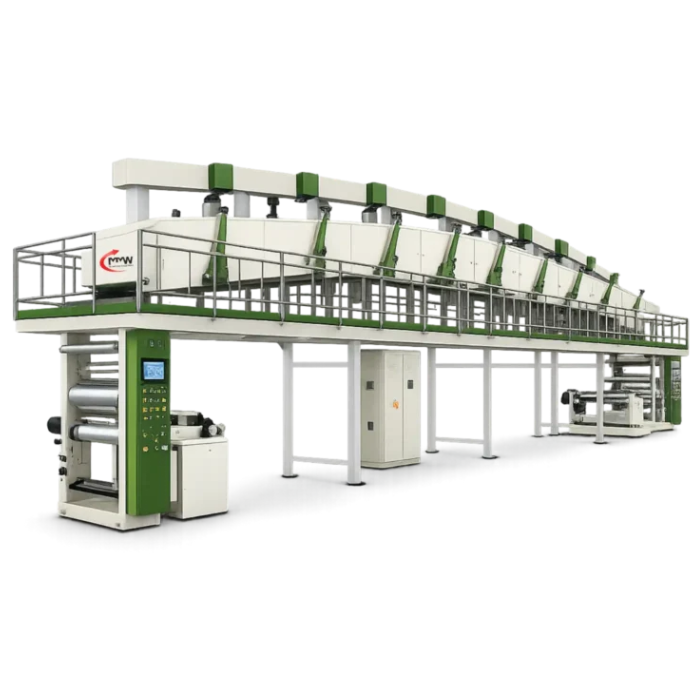

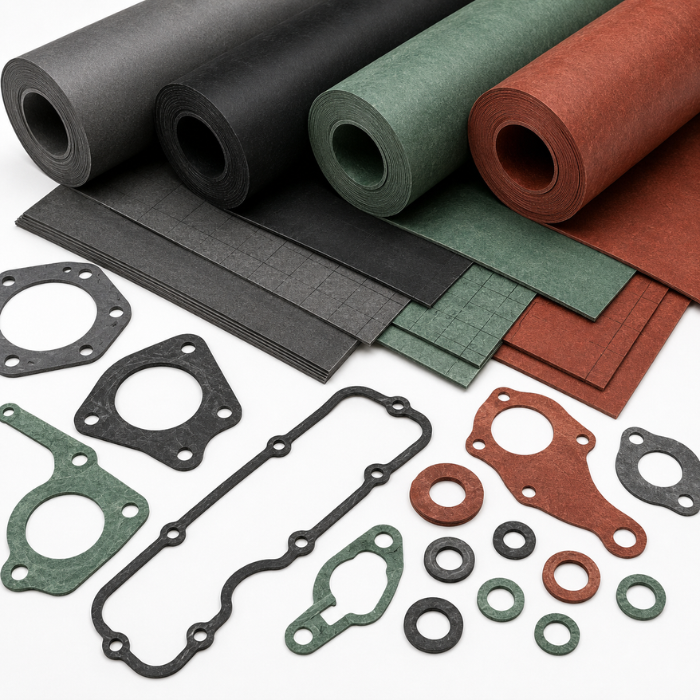

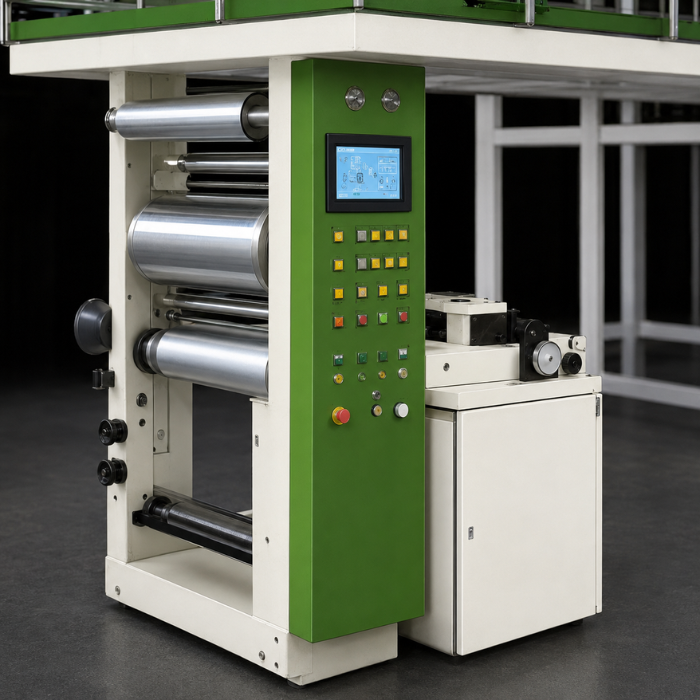

The Automatic Gasket Paper Coating and Printing Machine manufactured by Mohindra Mechanical Works is designed for the continuous impregnation, surface coating, drying and printing of industrial gasket paper. It can apply compatible latex, resin, rubber compound and other functional formulations to cellulose or non-asbestos gasket-paper substrates. The integrated printing section can add brand names, grade identification, technical markings or repeating patterns to the processed material.

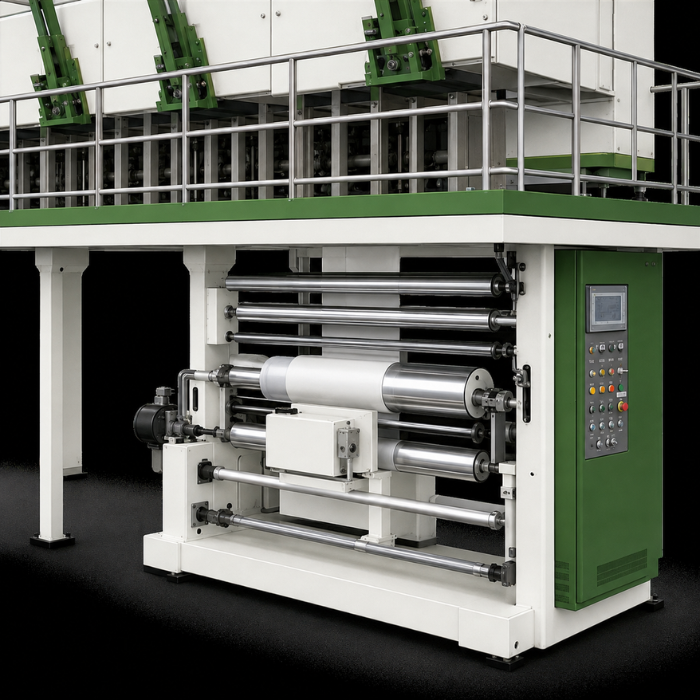

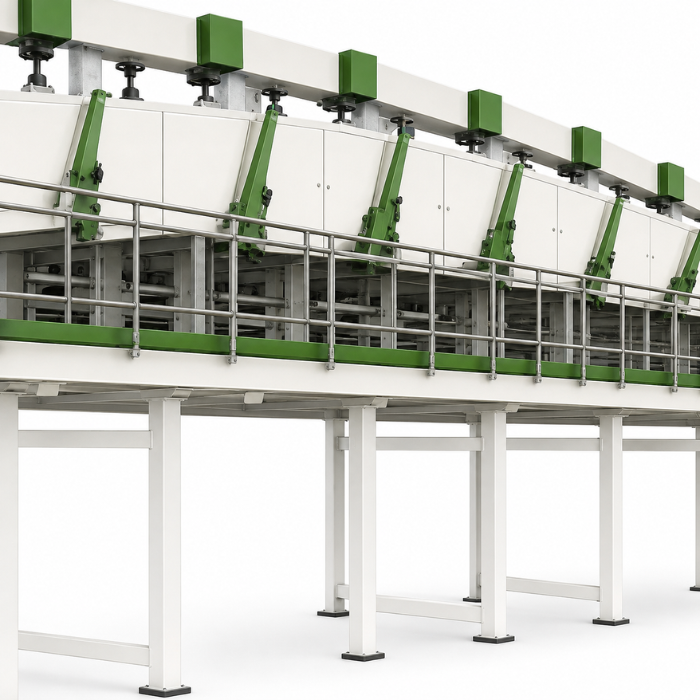

The machine incorporates automatic unwinding, web guiding, closed-loop tension control, precision coating, multi-zone hot-air drying, printing, cooling and controlled rewinding systems. Its PLC and HMI touchscreen allows operators to regulate production speed, coating pickup, drying temperature, web tension and printing parameters. Working width, coating method, drying length and number of printing colours can be customized according to production requirements.
