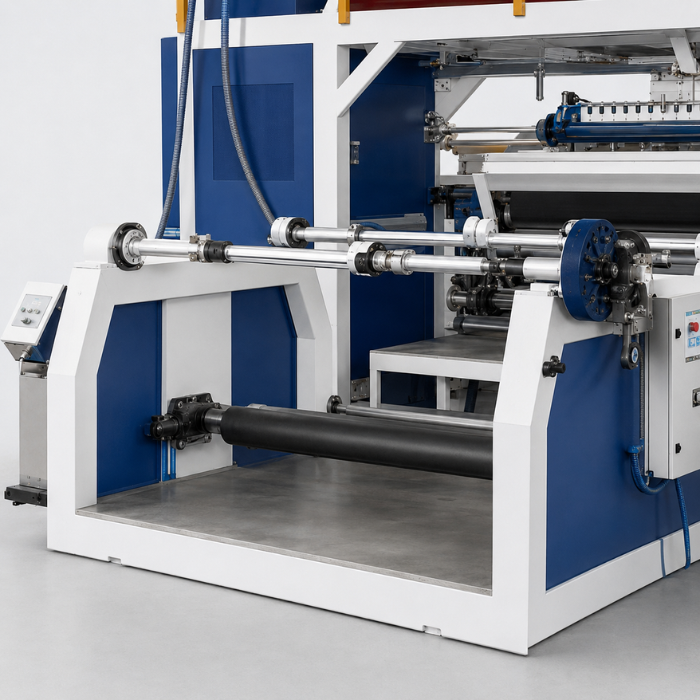

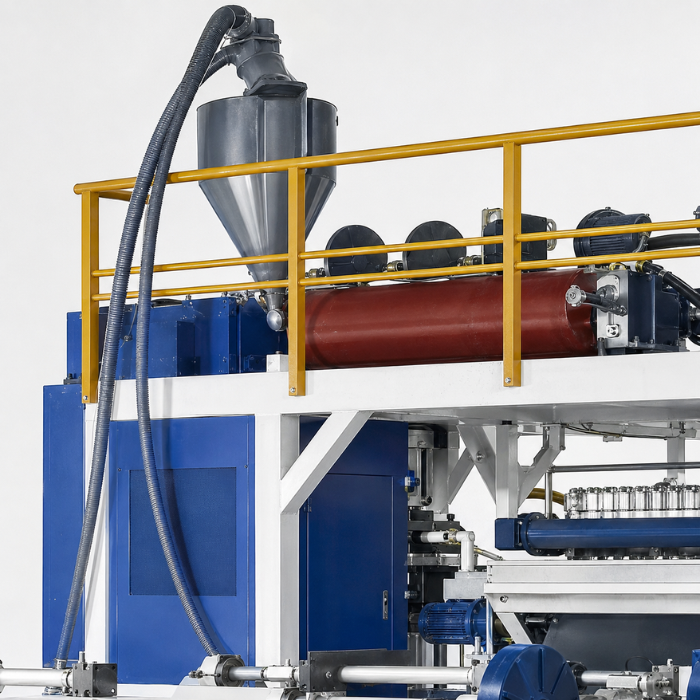

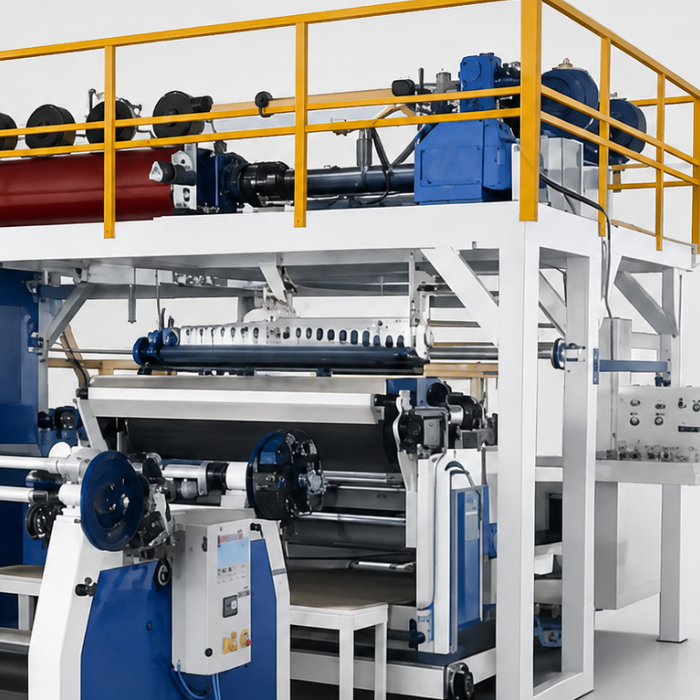

Biodegradable Waterproof Paper Coating Machine

Send Inquiry

Request To Call Back

Biodegradable Waterproof Paper Coating Machine

Name: Paper Coating Machine
Brand: MOHINDRA MECHANICAL WORKS

Price 2000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Biodegradable Waterproof Paper Coating Machine Specification

Feeding Type
Continuous Roll Feeding

Coating Transfer Method
Mayer Bar Coating

Coating Type
Biodegradable Water-Barrier Coating

Machine Speed
Up to 150 m/m

Max. Sheet Area
32 Inches

Power Requirement
100 180 kW

Registration
Automatic Web Alignment

Coating Format
Roll-to-Roll

Sheet Thickness
30 350 GSM

Max. Coating Area
Full Web Width

Min. Sheet Area
As per Customer Requirement

Varnish Type
Water-Based Bio-Barrier Coating

Product Type
Paper Coating Machine

General Use
Applying Biodegradable Water-Barrier Coating on Paper

Material
Stainless Steel

Type
Industrial Coating Machine

Weight (kg)
10,000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Mayer Bar

Coating Width
1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
100 180 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1400 380 450 Centimeter (cm)

Feature
Low Energy Consumption, Coating, High Speed, High Precision

Color
Blue, White or Customized

Warranty
1 Year

Biodegradable Waterproof Paper Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is protected with waterproof wrapping. Electrical panels, coating heads, rollers, motors and other sensitive components are properly covered. Major assemblies are securely fastened on wooden or steel supports for safe transportation by road or sea. Export-worthy packaging can be provided according to customer requirements.

Main Export Market(s)
Asia, Australia, Central America, South America, Eastern Europe, North America, Western Europe, Middle East, Africa

Main Domestic Market
Delhi

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Biodegradable Waterproof Paper Coating Machine About

The Biodegradable Waterproof Paper Coating Machine manufactured by Mohindra Mechanical Works is designed for applying bio-based or biodegradable water-barrier coatings onto paper and paperboard rolls. Depending on the coating formulation, the finished paper can provide resistance against water, moisture, grease and oil while supporting the production of paper-based packaging products.

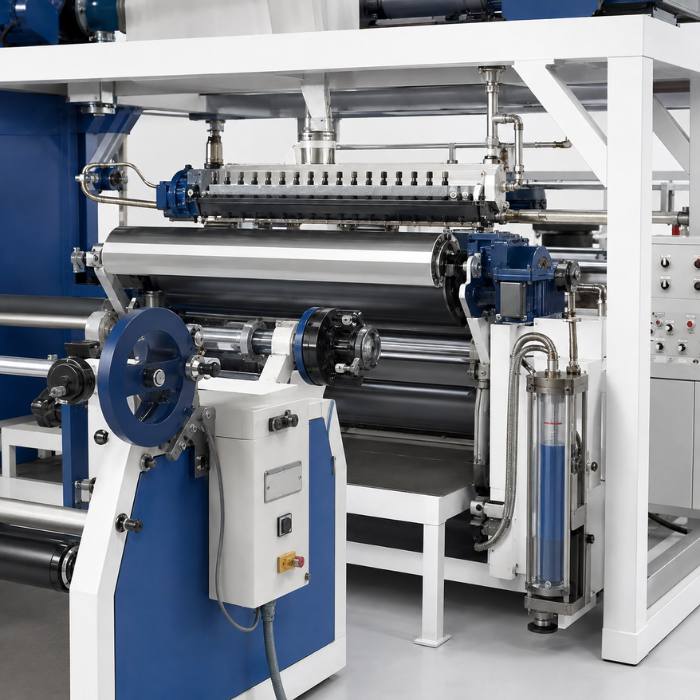

The machine operates through a continuous roll-to-roll process consisting of automatic unwinding, controlled coating application, multi-zone hot-air drying and uniform rewinding. Its Mayer Bar coating system helps regulate the coating thickness and provides consistent coverage across the paper web.

The PLC-based control panel allows convenient adjustment of machine speed, web tension, coating parameters and drying temperature. Automatic web alignment helps maintain stable paper movement during production. The coating width, application system, drying length, heating source and production speed can be customized according to the paper grade and coating formulation.
