Transfer Paper Coating Machine

Price 35000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Transfer Paper Coating Machine Specification

Max. Sheet Area
32 Inches

Coating Type
Transfer Paper Functional Coating

Feeding Type
Continuous Roll Feeding

Varnish Type
Water-Based Transfer Coating

Power Requirement
120 200 kW

Coating Format
Roll-to-Roll

Min. Sheet Area
As per Customer Requirement

Max. Coating Area
Full Web Width

Machine Speed
Up to 150 m/m

Sheet Thickness
40 150 GSM

Registration
Automatic Web Alignment

Coating Transfer Method
Mayer Bar Coating

Product Type
Transfer Paper Coating Machine

General Use
Applying Functional Coating on Heat-Transfer Paper

Material
Stainless Steel

Type
Adhesive Coating Machine, Industrial Coating Machine

Weight (kg)
12000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Mayer Bar

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
120 200 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 500 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Blue, White or Customized

Warranty
1 Year

Transfer Paper Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Electrical panels, coating assemblies, precision rollers, motors and other sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea. Export-worthy packaging can be supplied according to customer requirements.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

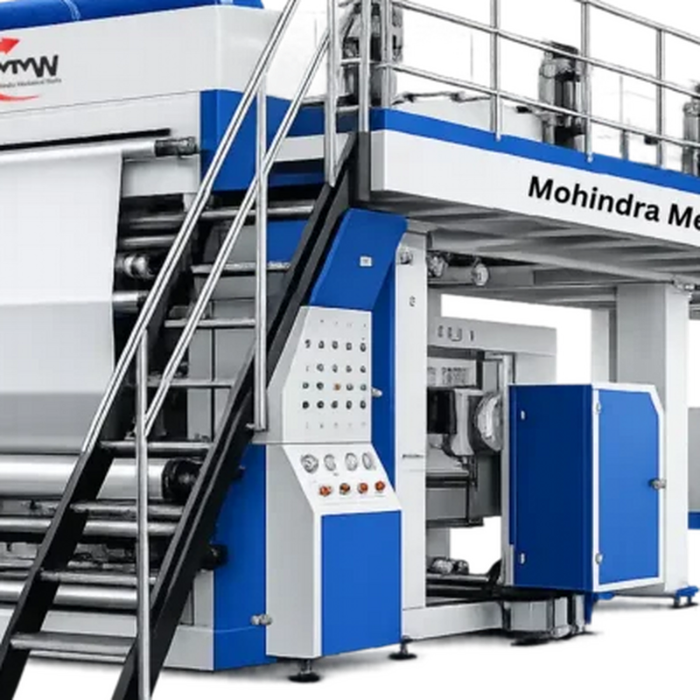

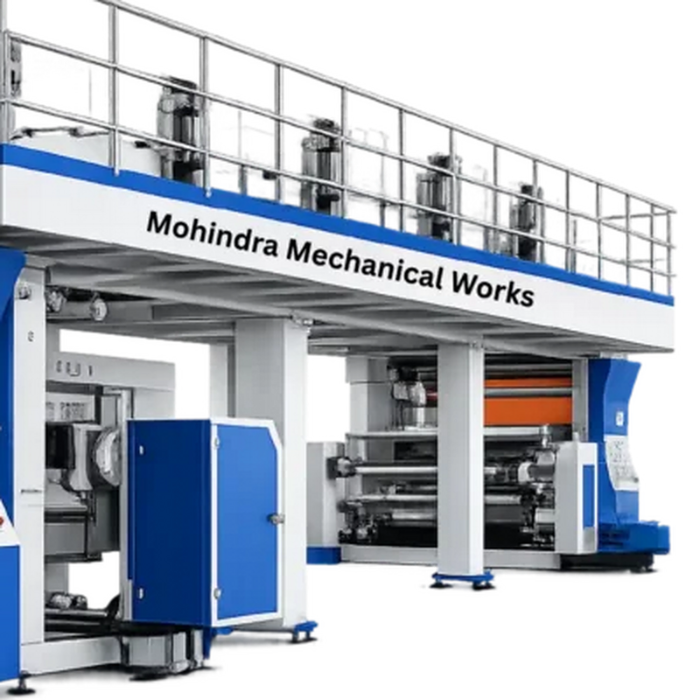

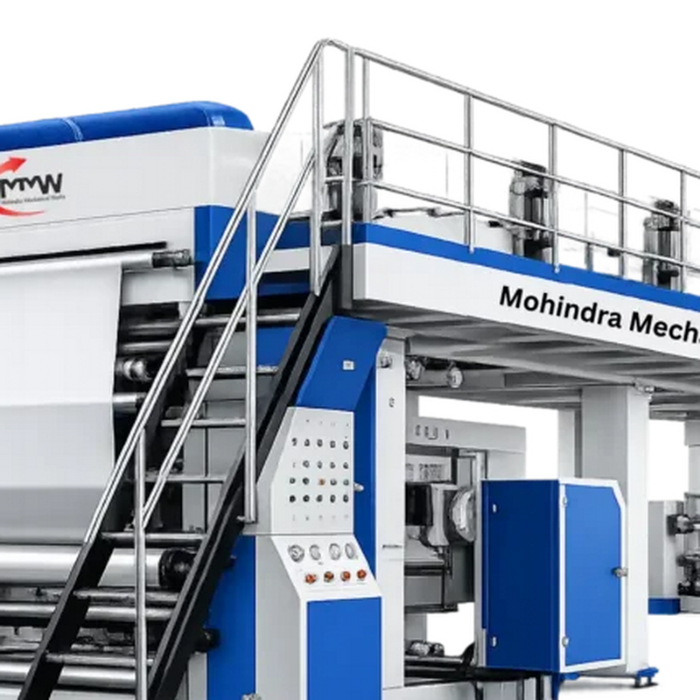

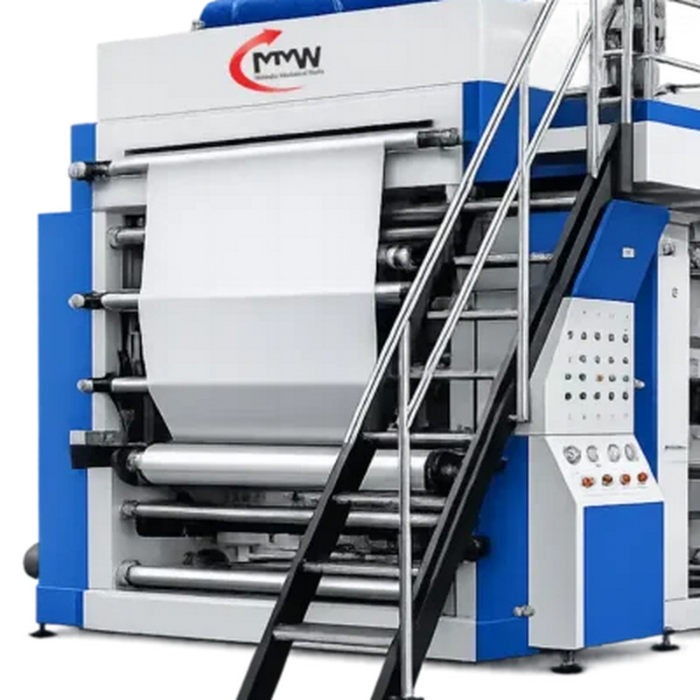

Transfer Paper Coating Machine About

The Transfer Paper Coating Machine manufactured by Mohindra Mechanical Works is designed for applying a smooth and uniform functional coating onto continuous paper rolls. The coated paper can be used for dye-sublimation printing, heat-transfer printing, garment decoration, textile printing and customized merchandise production. Its controlled coating arrangement helps produce paper with consistent ink absorption, controlled drying and efficient colour release during the heat-transfer process.

The machine operates through a continuous roll-to-roll process comprising automatic unwinding, precise coating application, multi-zone hot-air drying and uniform rewinding. Its Mayer Bar coating system helps maintain the required coat weight and an even coating layer across the complete paper width.

A PLC-based control system allows operators to adjust machine speed, web tension, coating parameters and drying temperature. Automatic edge guiding maintains proper paper alignment during production. Working width, coating stations, drying length, heating configuration and production speed can be customized according to the base paper and required transfer performance.
