Paper Plate Waterproof Coating Machine

Price 3000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Paper Plate Waterproof Coating Machine Specification

Max. Sheet Area
32 Inches

Max. Coating Area
Full Web Width

Varnish Type
Water-Based Barrier Coating

Coating Type
Paper Plate Waterproof Barrier Coating

Sheet Thickness
80 400 GSM

Machine Speed
Up to 150 m/m

Feeding Type
Continuous Roll Feeding

Coating Format
Roll-to-Roll

Min. Sheet Area
As per Customer Requirement

Registration
Automatic Web Alignment

Coating Transfer Method
Mayer Bar Coating

Power Requirement
120 200 kW

Product Type
Paper Plate Waterproof Coating Machine

General Use
Applying Waterproof Barrier Coating on Paper Plate Raw Material

Material
Stainless Steel

Type
Industrial Coating Machine, Adhesive Coating Machine

Weight (kg)
12,000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Mayer Bar

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
120 200 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 500 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Orange, White or Customized

Warranty
1 Year

Paper Plate Waterproof Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cheque, Cash on Delivery (COD)

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Electrical panels, coating assemblies, rollers, motors and sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea. Export-worthy packaging can be supplied according to customer requirements.

Main Export Market(s)
Asia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Australia, Central America

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Paper Plate Waterproof Coating Machine About

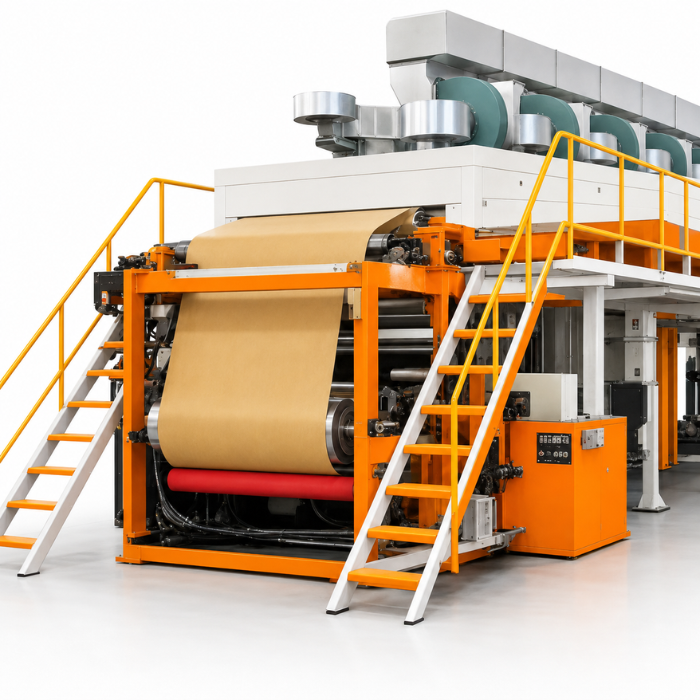

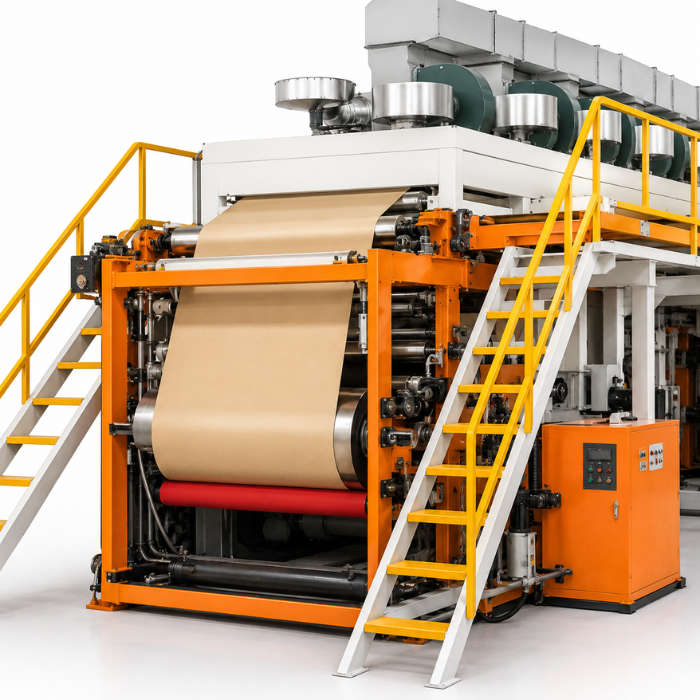

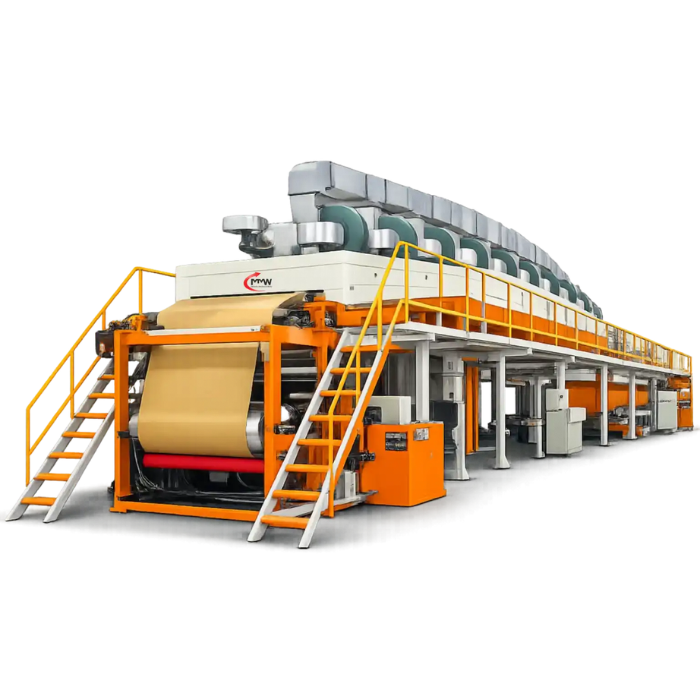

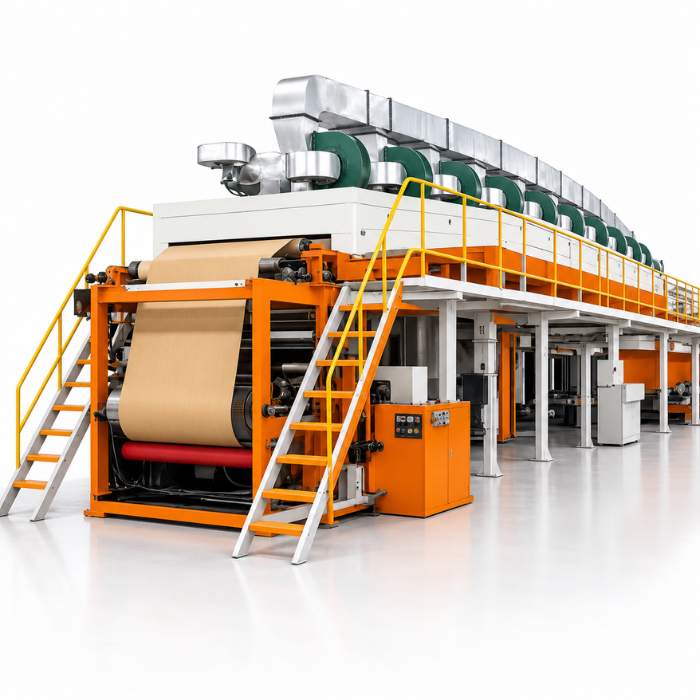

The Paper Plate Waterproof Coating Machine manufactured by Mohindra Mechanical Works is designed for applying a uniform water-, moisture- and grease-resistant coating onto paper rolls used for manufacturing disposable paper plates, bowls and food trays. The machine coats the paper before it is converted into the final shaped product.

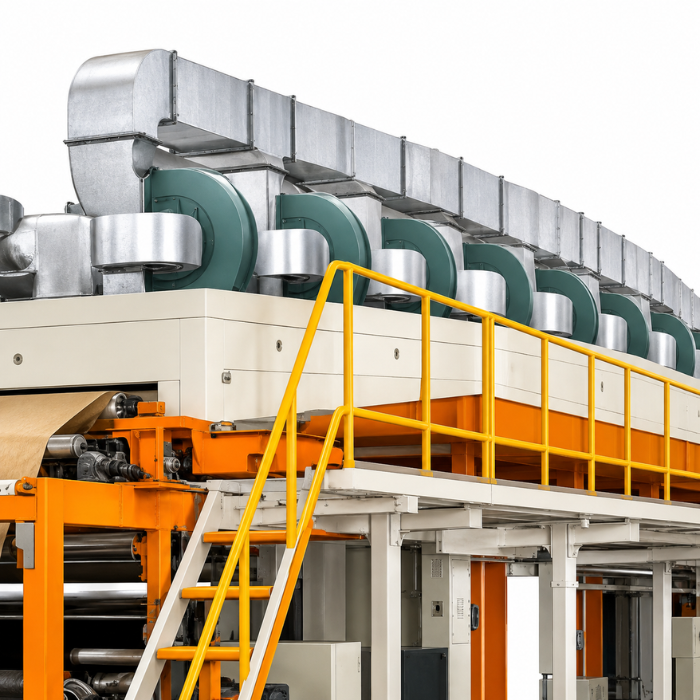

It operates through a continuous roll-to-roll process comprising automatic unwinding, controlled coating application, multi-zone hot-air drying and uniform rewinding. The Mayer Bar coating system helps maintain the required coating thickness and consistent coverage across the entire paper web.

A PLC-based control system allows the operator to regulate coating speed, web tension, drying temperature and other production settings. Automatic web alignment keeps the paper correctly positioned during operation. The machine can process suitable water-based, bio-based and food-packaging barrier formulations according to the required finished-paper properties.
