VMCH Coating Machine

Name: VMCH Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 3500000.0 INR
Availability: InStock

Price 3500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

VMCH Coating Machine Specification

Registration
Automatic Web Alignment

Max. Sheet Area
32 Inch

Min. Sheet Area
As per Customer Requirement

Machine Speed
Up to 150 m/m

Power Requirement
140 220 kW

Coating Type
VMCH Resin Coating

Feeding Type
Continuous Roll Feeding

Max. Coating Area
Full Web Width

Varnish Type
Solvent-Based Primer or Protective Coating

Coating Format
Roll to Roll

Coating Transfer Method
Reverse Gravure Coating

Sheet Thickness
12 150 Microns

Product Type
VMCH Coating Machine

General Use

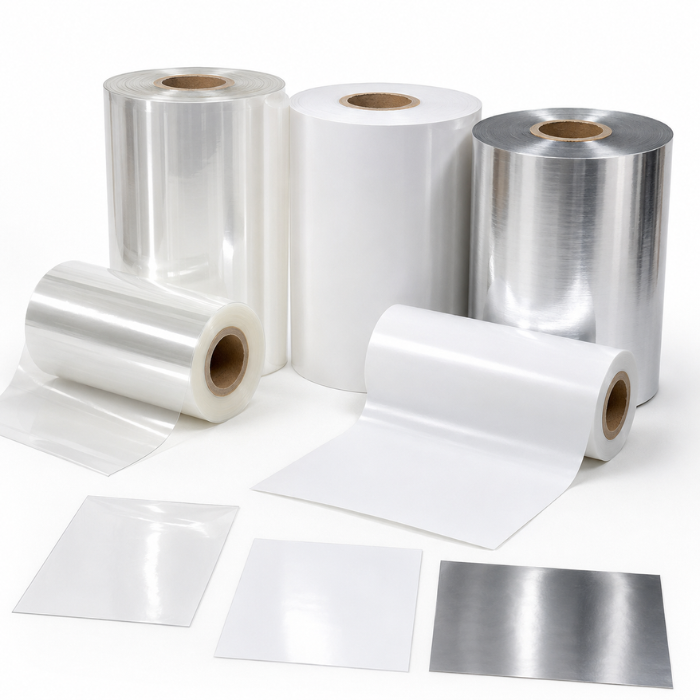

Applying VMCH Resin Coating on Aluminium Foil and Film

Material
Stainless Steel

Type
Industrial Coating Machine, Adhesive Coating Machine

Weight (kg)
14000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
140 220 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
2000 500 520 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Blue, White or Customized

Warranty
1 Year

VMCH Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Precision coating assemblies, gravure rollers, electrical panels, motors and sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Central America, Asia, Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

VMCH Coating Machine About

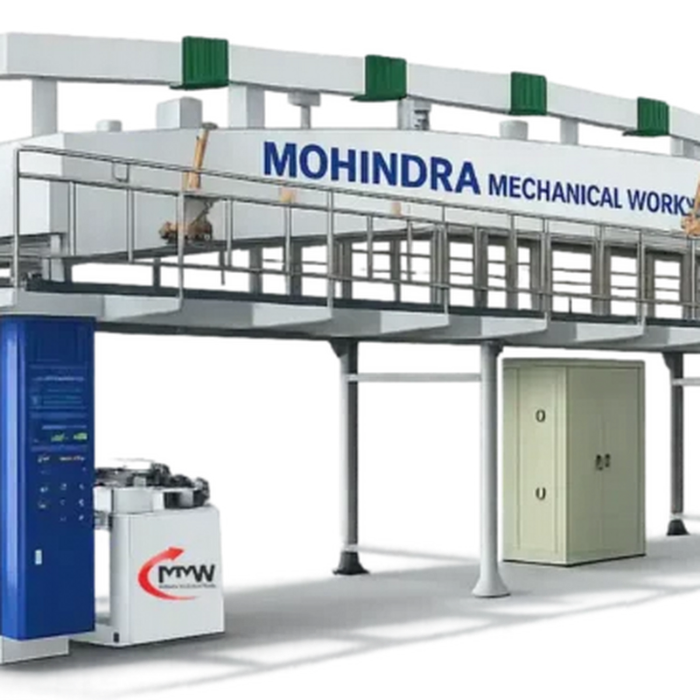

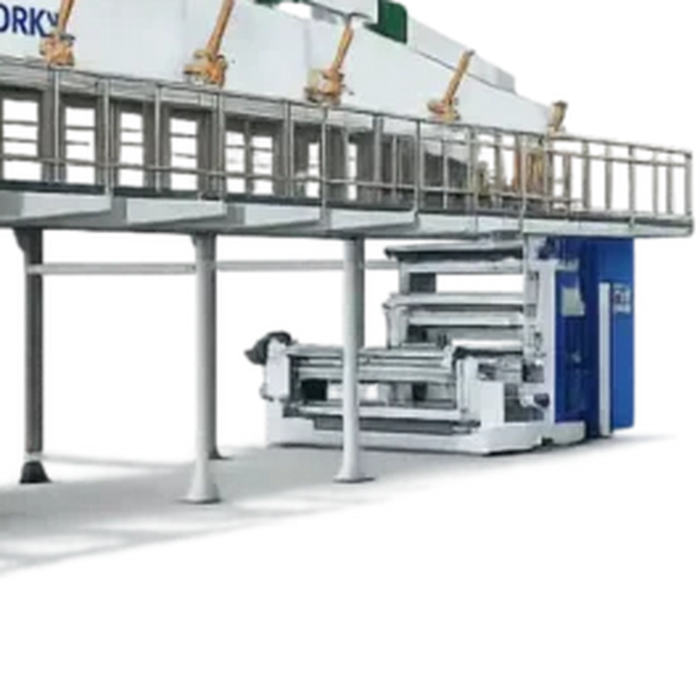

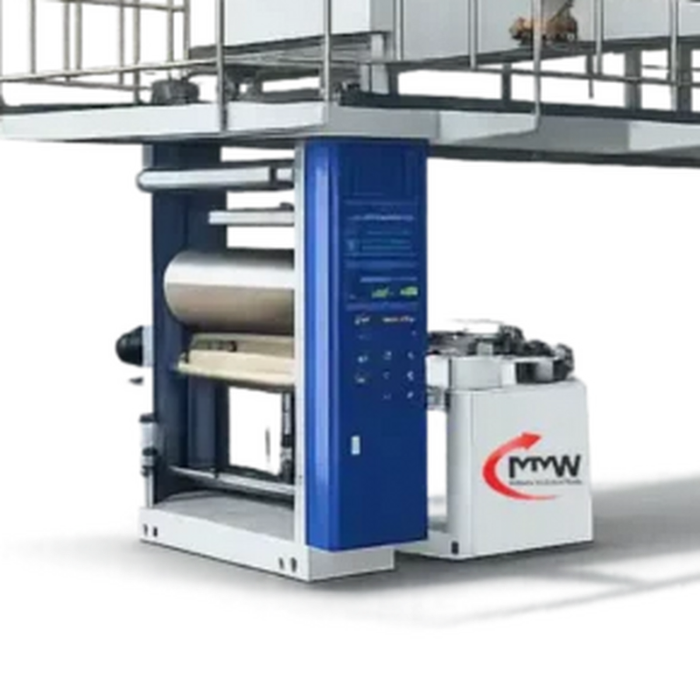

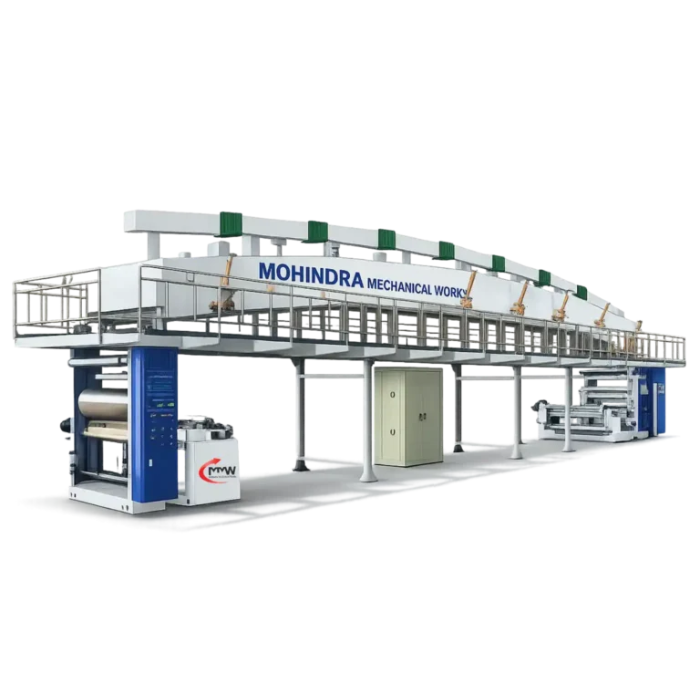

The VMCH Coating Machine applies a thin and uniform VMCH resin-based coating onto aluminium foil and flexible films. Its roll-to-roll process combines precision coating, controlled web tension, hot-air drying and smooth rewinding. The coated material is suitable for pharmaceutical blister foil, packaging foil and other products requiring improved ink, lacquer or adhesive anchorage.
